CUAV Q10F 3 Axis Gimbal Camera 10X Optical Zoom 4MP 1080P HDMI Output For UAV Aircraft

Availability: In stock, usually dispatched in 1 business day

  • Price:$1,128.91
  • Price in reward points: 11289 Reward Points: 113
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1,106.33 $1,083.75 $1,049.89 $1,004.73 Contact US
Quantity:

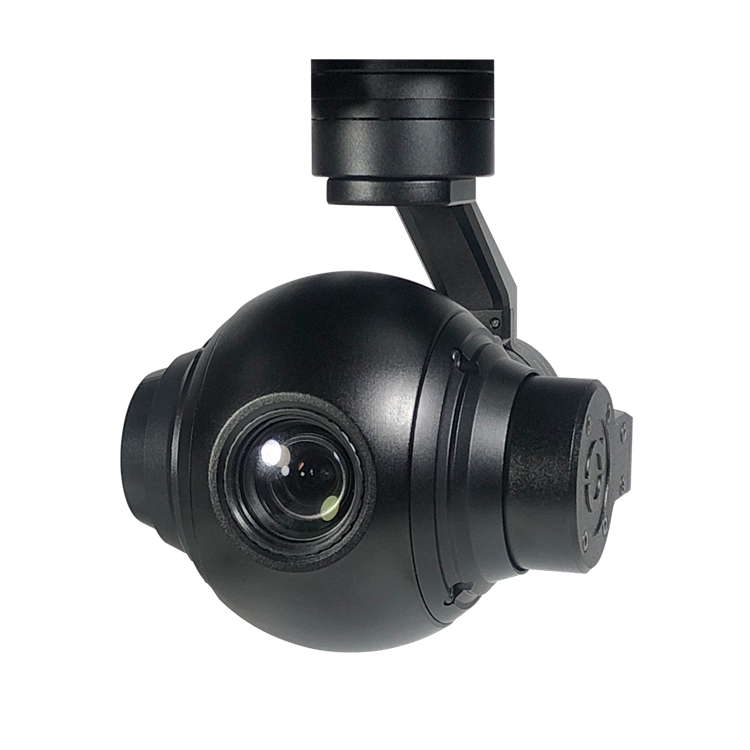

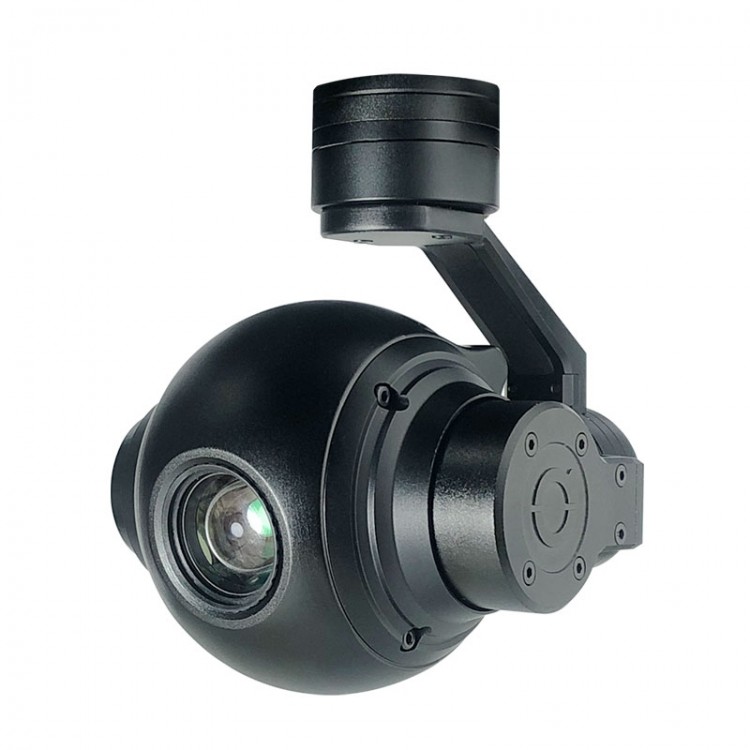

CUAV Q10F 3 Axis Gimbal Camera 10X Optical Zoom 4MP 1080P HDMI Output For UAV Aircraft


Professional 3-axis High-precise FOC Program:

Stabilizing the Q10F is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. 300° rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight.


10x Optical Zoom Camera:

The Q10F gimbal and camera features an 10x optical zoom lens. The type 1/3 inch sensor for CMOS supports approx, 4 million effective pixels, HD 1080p video, fast auto-focus speed, small size, designed for UAV aerial photography. Factory, all the parameters have been perfectly set, you just need to install the gimbal camera to UAV, then ready to fly. The gimbal can be controlled in three directions: YAW, ROLL and PITCH , we use FOC solution can greatly compensate the vibration of UAV. The image is very stable even at ten optical zoom times. Q10F have been widely used in various fields like public security, electric power, fire, zoom aerial photography and other industries in the application of drones.
Applications:



Hardware Parameters:
- Working voltage: 12V ~ 16V
- Input voltage: 3S ~ 4S
- Output voltage: 5V (connect with PWM)
- Dynamic current: 320mA @ 12V
- Idle current: 240mA @ 12V
- Power consumption: ≤3.85W
- Working environment temp.: -20℃ to 50℃
- Output: micro HDMI(HD output 1080P 60fps) /Analog
- Local-storage: SD card (Up to 32G, class 10, FAT32 or ex FAT format)
- Control method: PWM/TTL
- N.W.: 413g

Gimbal Specifications:
- Pitch/Tilt: ±90°
- Roll: ±45°
- Yaw/Pan: ±150°
- Vibration angle: Pitch/Roll: ±0.02°, Yaw: ±0.03°
- One-key to center : √

Camera Specifications:
- Imager Sensor: 1/3inch for CMOS
- Total pixel: 4MP
- Effective pixel: 2688*1520
- Dynamic range: 65dB
- Lens: 5MP
- Optical zoom: 10x, F=4.9~49mm
- Min object distance: 1.5M
- Viewing angle: Horizontal: 53.2° (Wide end) ~ 5.65° (Tele end)
- Vertical: 39.8° (wide end) ~ 4.2° (tele end)
- Focus: 66.6° (wide end) ~ 7.2° (tele end)
- Sync system: Progressive scanning
- Local video: 1080P 30fps local TF card
- HD output: 1080P/720/480P 60fps HDMI1.4
- AV output: Standard CVBS 1Vp-p
- S/N ratio: 38dB
- Min illumination: Color 0.05lux@F1.6
- Backlight compensation: Backlight compensation/strong light inhibition
- Gain: Automatic
- White balance: Automatic/Manual
- Shutter speed: Automatic
- Control system: UART/IR/PWM
- Communication protocol: For PELCO-D, Hitachi protocol or VISCA
- Focus: Automatic/Manual/One-time automatic focus
- Focus speed: 2s
- Lens initialization: Built-in
- User presetting bit: 20 sets
- Image rotation: 180°, Horizontal/Vertical mirror image
- OSD: Not support
- Photo format: JPEG
- Video format: MP4
- Video format: MP4

Package Included:
- 1 x Set of Gimbal Camera

Note: Other items pictured are not included, for demonstration purposes only.
