The max dialing distance:<=1.5m
Product Description:

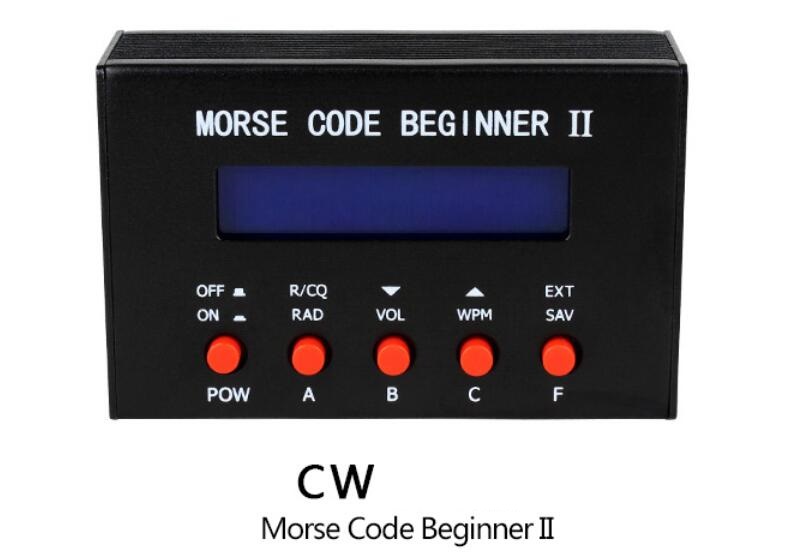

- Morse Code Beginner II CW code trainer.
- It can connects auto key & manual key to practise transmitting messages.It can also use handheld radio or short wave radio to send telegraphy.In addition,it can connect keyboard for telegraphy.
- Application:Learning Morse code telegraph and testing telegraph.
- Morse Code Beginner II trainers supports auto key and manual key exercise.You can also use manual key analog BUG key.
- Wide working voltage,support earphone monitor,adjustable volume.
- In order to adapt to various radio station,you can select whether switch off sidetone or not after connecting to radio station.
- Practise and test mode can conduct listening-writing and coding training.There are two modes:Sequential and random.
- It can connects HF and UA radio station,convenient to practise and operation and self-testing.
- If you add audio phase locking circuit,you can conduct CW decode.
Parameter:
- Input voltage:AC100-240V
- Output voltage:12V,1A
- Voltage accuracy:+-5% (no-load)
- Power supply poles:inner positive,outer negative

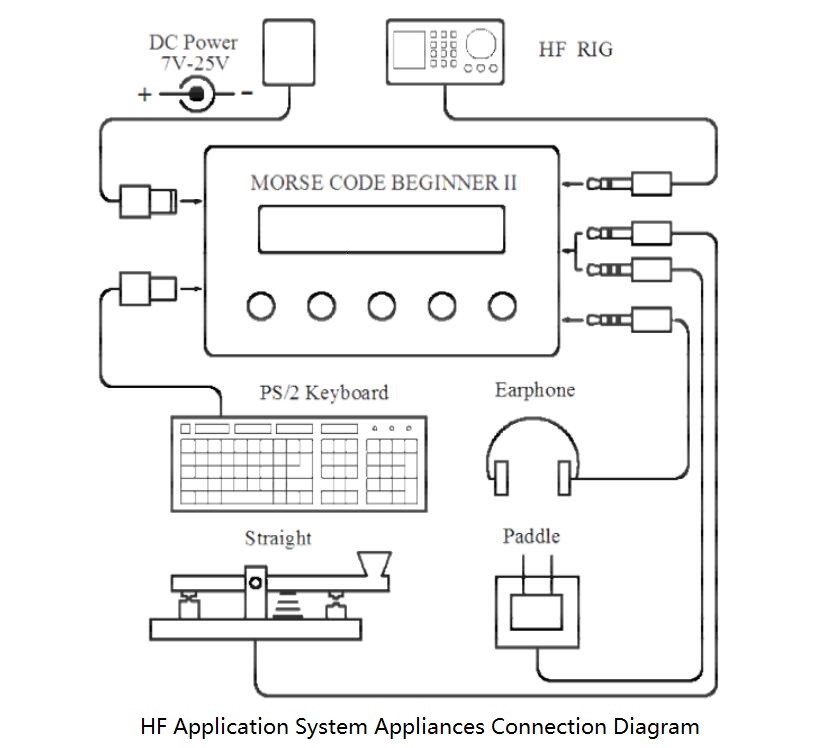

Connection Description:
- Power supply:DC7V-28V inner positive,outer negative.If you reverse connect the poles,the machine can not work.
The max power supply can not beyond 30V,or you will damage the machine.
- Keyboard:standard PS/2 keyboard,coding in NOR mode.
- Radio station:single channel.3.5mm plug.If you use dual channel interface,you need connect the middle part to the grounding.
When you use HF radio station,please set the radio key selection "manual key".When you use UV radio station,please refer diagram 2 for connection.And set trainer related options.

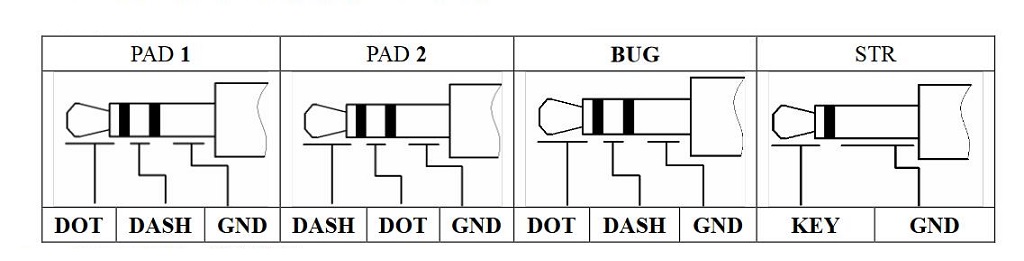

- Keys:3.5mm plug.Auto key use dual channel plug;manual key use single channel plug.
If manual key uses dual channel connector,please make the middle part hanging or connect to grounding.
- Earphone:dual channel,3.5mm plug.If you use single channel earphone,it may not automatically mute.
Package List:
- 1 x Morse Code CW Trainers
- 1 x Power adapter
- 1 x Cable
