CW2600 CW Keyer Automatic/Manual Key Trainer CW Interface Box Support UV Handheld Walkie Talkie Monitoring

CW2600 CW Keyer Automatic/Manual Key Trainer CW Interface Box Support UV Handheld Walkie Talkie Monitoring

Functions:
- Support USB command sending
- Support manual key and automatic key recognition
- Support auto keys (support dot and dash switching, left and right line sequence switching, no need to disconnect wires)
- Dual monitoring (CW side tone monitoring + handheld SP monitoring)
- Pitch: 400-900Hz adjustable, default 700
- WPM: 5-35 adjustable
- The PTT delay can be adjusted by 1-9 seconds, with a default of 5 seconds
- CW synchronization key signal output
- Supports audio reporting and PTT automatic triggering function
- Built-in passive buzzer, supports muting
- Built-in 2000mA lithium battery, built-in USB charging, power management circuit
- Automatic PTT start and power switch automatic sleep
- The standby current is 26uA, and the theoretical standby time is up to 8 years
- Support ISP firmware upgrade
- All parameters can be operated with buttons or set through USB commands

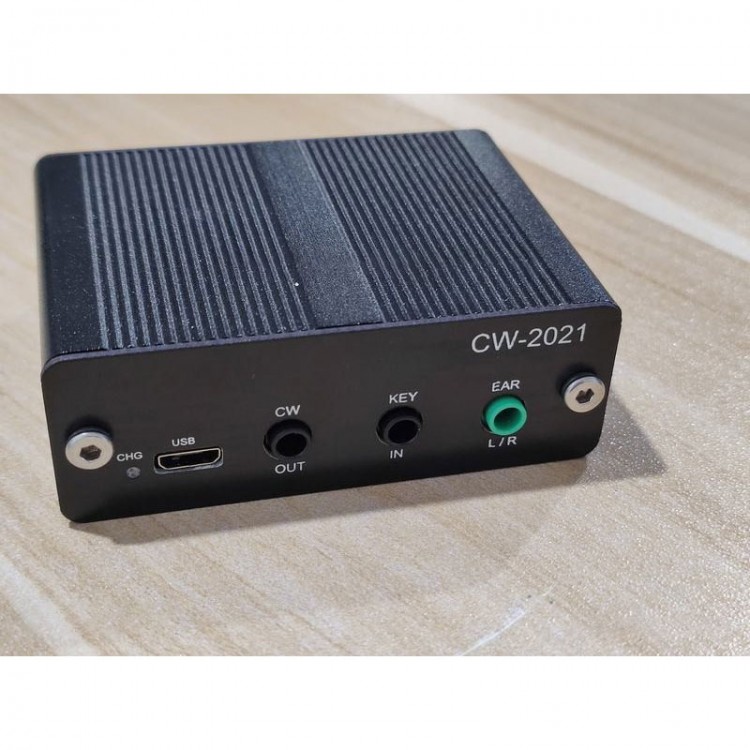

Interfaces:
- SP OUT: headphone monitoring port (dual-channel: CW side tone monitoring + hand-held walkie talkie SP monitoring)

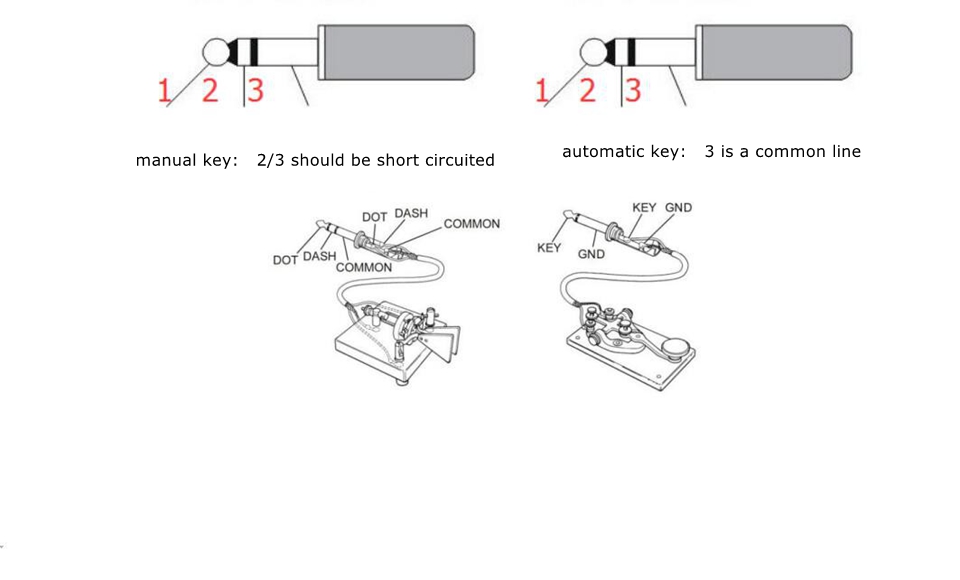

- KEY IN: electric key port (two-channel: auto key, manual key)
- CW OUT: sync key signal output
- MIRO USB: universal socket for charging and firmware upgrade
- RJ11: radio interface, support multiple walkie talkies and vehicle radio stations
- LED Indicators:
  PTT: working indicator
  CW: touch key synchronization indicator
  CHG: charging indicator

Instruction List:
- CPU ID=F628C3C008788F 4.4V
- AT+BEEP=ON
- AT+AUTOKEY=DADI
- AT+DELAY=5
- AT+TONE=3
- AT+PWM=15

Command Sending Format:
- AT+CW=CQ CQ

In the manual key working mode, the thumb wheel function:
- Press and hold the A key, cycle to switch tones, and simultaneously report T0-T9
- Press and hold the B key, cycle the buzzer switch, and simultaneously report B0-B1

In automatic key working mode, the thumb wheel function:
- Press and hold the A key, speed +, reporting S (5-35)
- Press and hold the B key, speed -, reporting S (5-35)

In standby mode, other setting functions:
- Press and hold the A key, activate the electric shock key, switch the left and right line sequence with the automatic key, drip left and swipe right, or swipe left and drip right, and report M0-M1 at the same time.
- Press and hold the B key, activate the electric shock key, cycle PTT switching with a delay of about 1-9 seconds, and report D1-D9 at the same time.

Manual Key Operation:
- Connect the hand keys. The first press will trigger PTT, which will start sending normally. After stopping sending, it will automatically sleep for about 2 seconds.

Automatic Key Operation:
- Connect the auto button. Pressing the left button (or right button, depending on the wiring) for the first time will trigger PTT, which will start sending normally. After stopping sending, it will automatically sleep for about 2 seconds.

Package Included:
- 1 x CW Key Interface Box
- 1 x CW Cable (3.5mm to 3.5mm)
