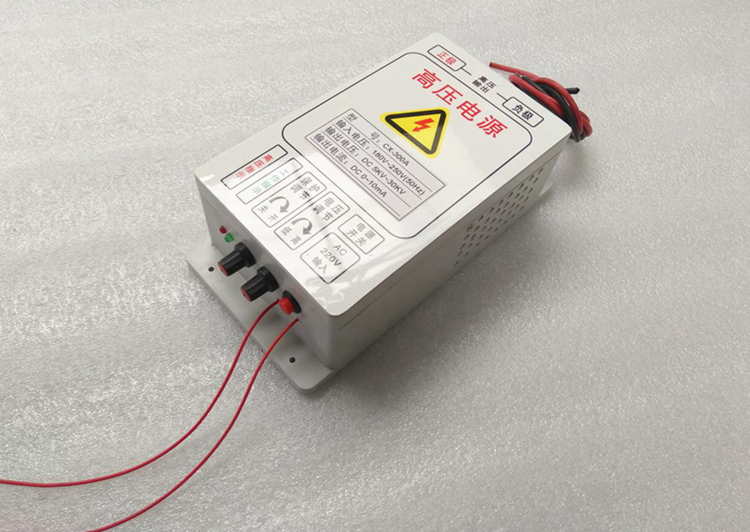

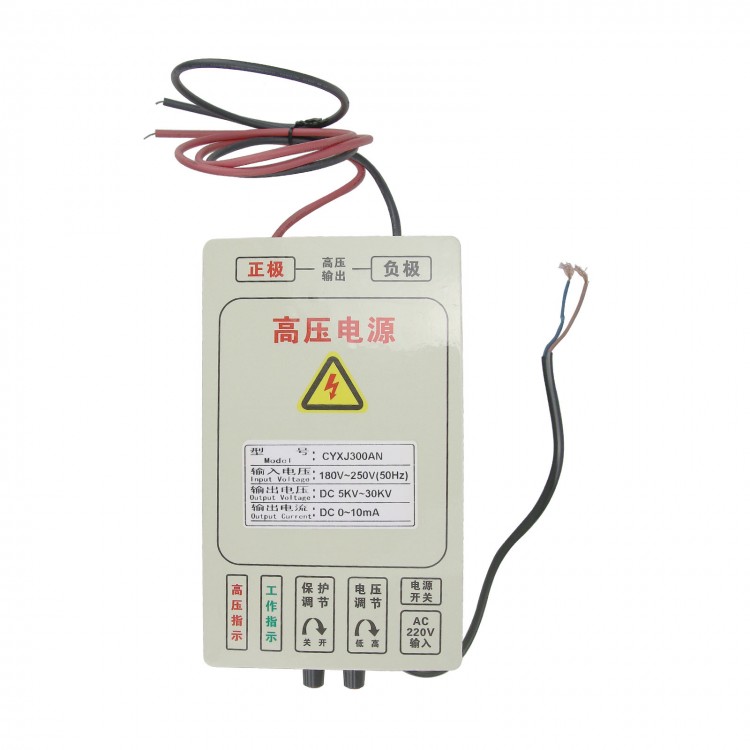

CX-300A 300W 30KV High Voltage Power Supply Electrostatic Field Single-Channel For Oil Fume Purifiers
Description:
This is a high voltage power supply, you can use it to generate the high voltage output, it features these protection functions:
Short-circuit Protection: When the positive output line and the negative output line are short-circuited, the output voltage will be cut off.
Preventing Spark-over Protection: When the electrostatic field is generating a spark-over, the HV power supply will cut the output, after one second, the output will be restarted again, the preventing spark-over protection function can also be shut down by the potentiometer on the box, in the video, the preventing spark-over protection function is also closed, so the HV power supply can continuously generate the high voltage spark between the positive and negative line.
You can change the output voltage continuously with the potentiometer on the box.
Application Occasions:
High voltage electric field, electrotactic air cleaner, electrostatic field, clean smoke, air purifiers, air ionizer, and the like.
Features:
- 300W single-channel output.
- When there is sparking protection, it will restart and reset automatically.
- Automatic short-circuit protection.
- With switch, potentiometer and fan module.
Specifications:
- Model: CX-300A
- Input voltage: 180V-250V (50Hz)
- Output Voltage: DC 5KV~30KV continuously adjustable
- Output Current: DC 0~10mA
- Output Power: 300W

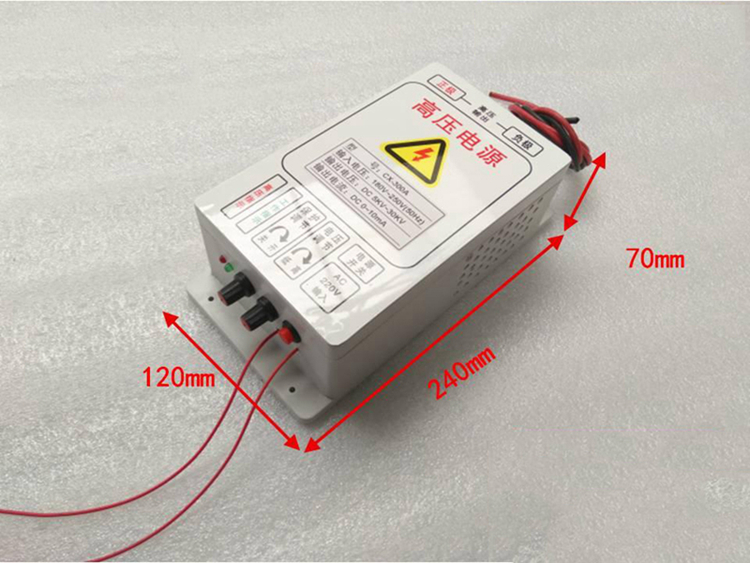

- Dimensions: 240 x 120 x 70 mm (LxWxH)
Package Included:
- 1 x Power Supply
