CX6-DP30 PNP Output High Performance Optical Sensor Counting Area Color Code Point Control Fiber Amplifier

CX6-DP30 PNP Output High Performance Optical Sensor Counting Area Color Code Point Control Fiber Amplifier

Description:
- The CX6 fiber optic series sensors have dual screen digital display function and built-in light correction and compensation function, resulting in strong product stability. Setting the threshold and amount of light through one click buttons is convenient to operate. Four response modes are available, and the SHS (built-in function, not a extreme adjective) mode can achieve action and reset of 50us each. Strong anti-interference ability, capable of using more than 30 units in parallel. Used in conjunction with fiber optic cables, it can detect objects with a diameter of 0.5mm, with stable and reliable performance, good consistency, and high cost-effectiveness.

Features:
- Double screen digital display
- Four response mode
- Response time: 50us
- Automatic compensation for light absorption
- Output delay function
- Ultra-mini object detection
- Automatic adjustment function
- One-key threshold setting
- Positioning adjustment function

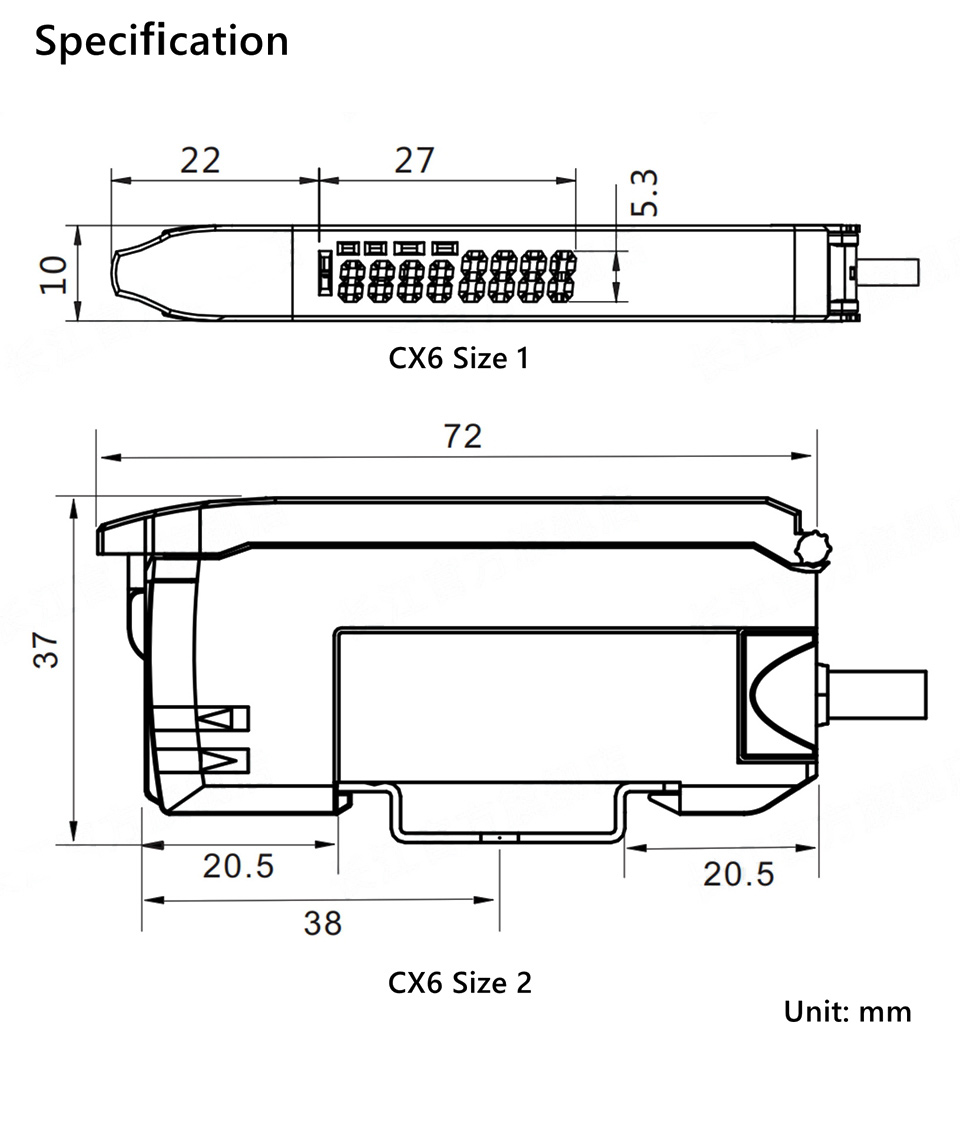

Specification:

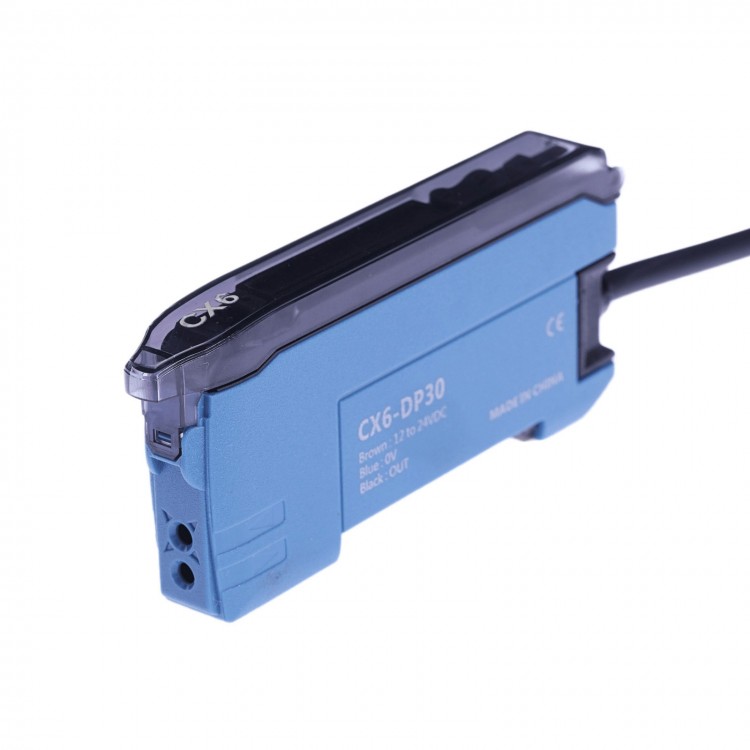

- Model: CX6-DP30
- Response time:
  SHS mode: 100us
  High speed mode: 350us
  Standard mode: 3ms
  High precision mode: 18ms
- Preventing mutual interface: 30 units except SHS mode
- Light source: Red 4 elements LED (625nm)
- Power voltage: DC12 ~ 24V±10% ripple (p - p) 10% below
- Power consumption: 720mW below (<30mA for 24V; <60mA for 12V)

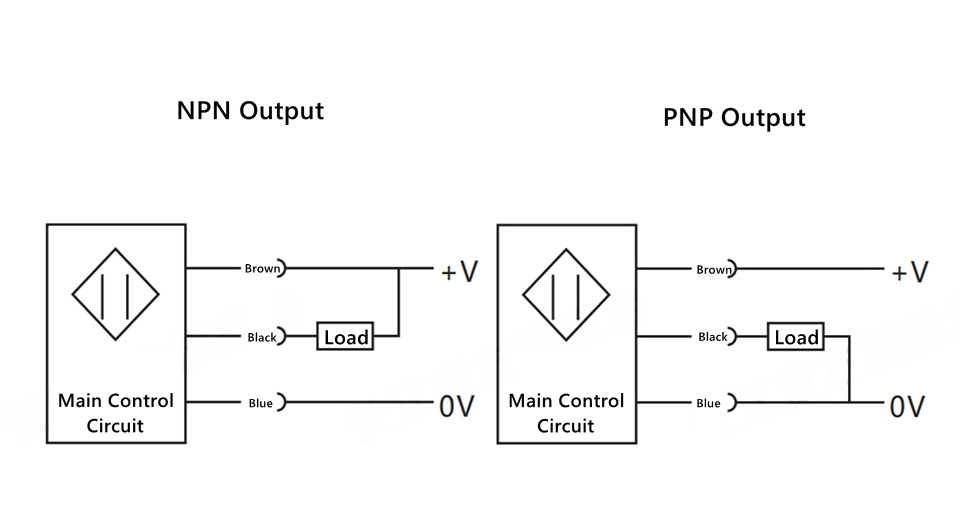

- Output method: PNP
- Action mode: Light ON / Dark ON
- Digital display: double screen digital display
- Protection circuit: power reverse connection, output short-circuit, output reverse connection, power surge
- Voltage resistance: AC1000V 50/60Hz 1min
- Insulation resistance: 20Mohm above (DC500V meg-ohmmeter)
- Threshold setting: set through button
- Using environment illuminance:
  Incandescent lamp: 2000lx
  Sunlight: 10000lx
- Using environment temperature: work/storage: 0 ~ 55℃ (non-icing, non-condensing)
- Using environment humidity: work/storage: 25 ~ 85%RH (non-icing, non-condensing)
- Anti-vibration: 10 ~ 50Hz dual amplitude 0.7mm or 50m/s² X/Y/Z 1.5h in all directions
- Anti-shock: 150m/s² X/Y/Z 3 times in all directions
- Protection level: IEC standard IP50
- Weight: about 65g/2m formed cable
- Outer case material: ABS
- Cable material: PVC

Using instruction:
- Conventional use: Fiber optic sensors include transmitters and receivers in the outer shell. The light emitted by the transmitter is reflected back to the receiver from the detection object, and the receiver evaluates the received light intensity.
- Installation instructions: It can be installed directly or used in conjunction with fiber cables.
- Adjustment instructions: It has functions such as sensitivity setting, threshold setting, mode switching, and output switching.

Package Included:
- 1 x Optical Sensor
