CYCLOPS Easy OSD FPV System W/GPS Pilot View Voltages Amps Telemery

CYCLOPS Easy OSD FPV System W/GPS Pilot View Voltages Amps Telemery
Descriptions:
- Cyslops Easy OSD FPV System W/GPS Pilot View Voltages Amps Telemery FPV Fly

New version  The mAh reading bug have solved!
Feature: Easy OSD is featured in small dimension, light weight and plug & play. This OSDis fully automatic without any manual setup; it adapts to 5 or 10 Hz GPS as well as PAL and NTSC video signal input. RSSI (receiver signal strength identification) is also realized on this tiny   OSD.

This is the latest version V1.5.
-  As the version may change from time to time, the version information on this page may become out of date with time going, but due to the direct link with the manufacturer and fast stock cycling, the ones we sell should be the latest available version.
Important Considerations
- Hold the button for 3 seconds to switch imperial and metric mode. The main board keeps the mode setting from last time .
-  Before taking off, in case the readings are not correct, press reset button to reset all parameters.
(This operation will reset altitude, distance, timer, current and mAh consumed). Do not press it too long or the imperial and metric mode switch will be activated.
- When OSD detect 0 voltage on the power battery, it will not display voltage, current and mAhconsumed of power battery.　
-  Return to Home:
- The “H” on the screen indicates “Home”, when the home is in front of the plane, H will not flash;
- when home is behind the plane, H will flash; When H is in the middle and not flash, it indicates the plane is heading directly to home; When the H is in the middle and flash, it indicates the plane is flying 180 degree away from home; How to return to home:
- when H is on the left ,turn left; when then is on the right, then turn right.　
- EASYOSD will automatically detect video signal input and support both PAL and NSTC signal.
- EASY OSD heats up during working, which is normal.

Additional function
- RSSI voltage display
- EASYOSD can display RSSI voltage RSSI voltage measuring range: 0.1—3.3V, when this voltage is below 0.1v, OSD will not display this parameter.
　
How to use:
- Soldering two wires as indicated below to the RSSI port on the receiver. In case the OSD display switching cable is already connected with the receiver, only connect a RSSI voltage wire to theOSD, duplicated ground cable is not necessary.

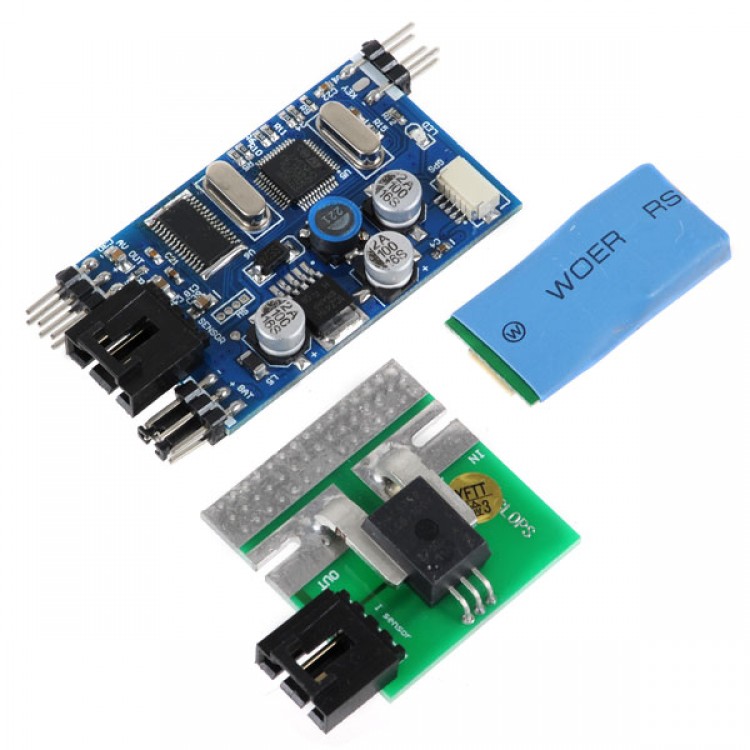

Package Includes:
- 1 x OSD main board
- 1 x current sensor (50A)
- 1 x 10Hz GPS module
- 1 x wire set

CYCLOPS EASY OSD FPV System GPS
