D325P Dual Core TPA3255 Dual Channel Balanced Ultra-high Power Audio Amplifier QCC3084 Bluetooth5.4 LDAC with Power Adapter

D325P Dual Core TPA3255 Dual Channel Balanced Ultra-high Power Audio Amplifier QCC3084 Bluetooth5.4 LDAC with Power Adapter

Description:

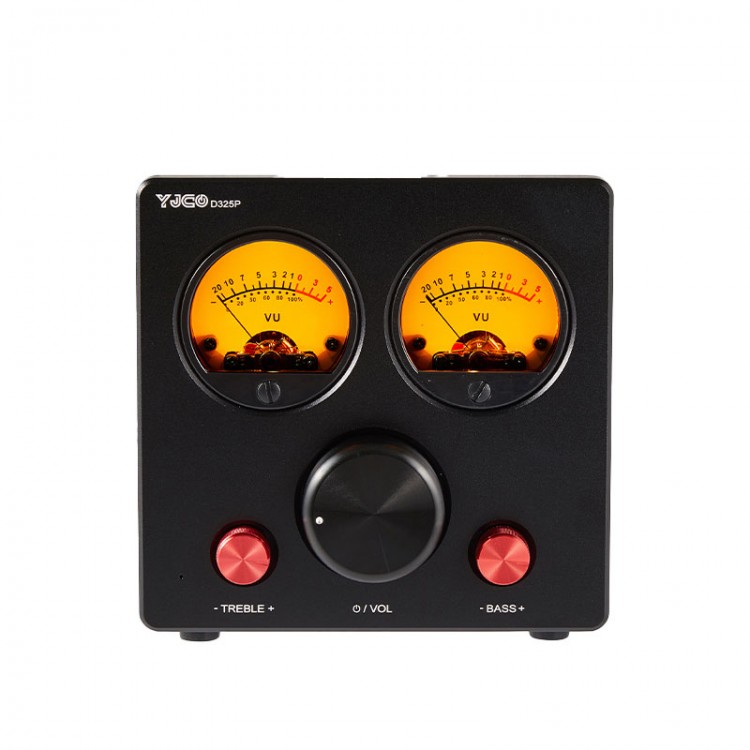

- D325P is a machine that combines aesthetics and sound quality. Powerful functionality, powerful power, and beautiful sound quality. Equipped with two large pure mechanical VU meters, the texture is strong, retro yet fashionable.
- The huge output cable with exposed back ensures low output loss while adding a cyberpunk flavor, creating a visually stunning effect.
- The materials used for D325P are full of sincerity, and the RCA socket is gold-plated for greater durability. The output terminal is the same type as the large power amplifier, incredibly huge, pure copper gold-plated. The machine is designed with the power amplifier chip tightly attached to the chassis shell for heat dissipation, which has the advantage of having a larger heat dissipation area and much better heat dissipation effect than the built-in heat sink. It can work stably for a long time. The large capacity filtering capacitor makes the power supply more stable and the ripple lower. The amplifier chip uses for TI TPA3255, one channel per chip, which can output a peak power of 600W/2ohms. The operational amplifier uses JRC5532D, which is a plug and unplug design and can be upgraded to higher-level operational amplifiers.
- The built-in Bluetooth module has different configurations (optional), namely QCC3034, QCC5125, QCC3084. QCC3034 is Bluetooth 5.1 and supports for APTX HD lossless transmission. QCC5125 is Bluetooth 5.1 supports for LDAC with a high bit rate of 24bit and 96K. QCC3084 is a new Bluetooth 5.4 chip that supports for LDAC and APTX LL. In addition, the independent decoding chip PCM5102 makes the Bluetooth output comparable to that of a CD player input, making it very convenient to use.

Specification:
- Model: D325P
- Input: RCA, XLR, Bluetooth
- Power amplifier chip: TPA3255 x 2
- Frequency response: 20Hz - 20kHz
- Power supply: 24V - 48V
- Bluetooth chip: QCC3034, QCC5125, QCC3084 (optional)
- Bluetooth support:
  QCC3034: SBC/AAC/APTX/APTX-LL/APTX HD, 16-24Bit, 44.1-48KHz
  QCC5125: SBC/AAC/APTX/APTX-LL/APTX HD/LDAC, 16-24Bit, 44.1-96KHz
  QCC3084: SBC/AAC/APTX/APTX-LL/APTX HD/LDAC, 16-24Bit, 44.1-96KHz
- Bluetooth decoding chip: PCM5102
- Output power: 600W x 2/2ohms
- THD+N: 0.5%
- Matching speaker: 10W - 200W, 2ohms, 4ohms, 8ohms
- Bluetooth transmission distance: 10 meters
- Protection mechanism: power supply reverse connection protection, short-circuit protection, self-recovery over-heat protection
- Product size: 118 x 118 x 212mm
- Net weight: 1500g
- DC power socket specification: 5.5*2.5

Package Included:
- 1 x Power Amplifier
- 1 x Power Adapter
