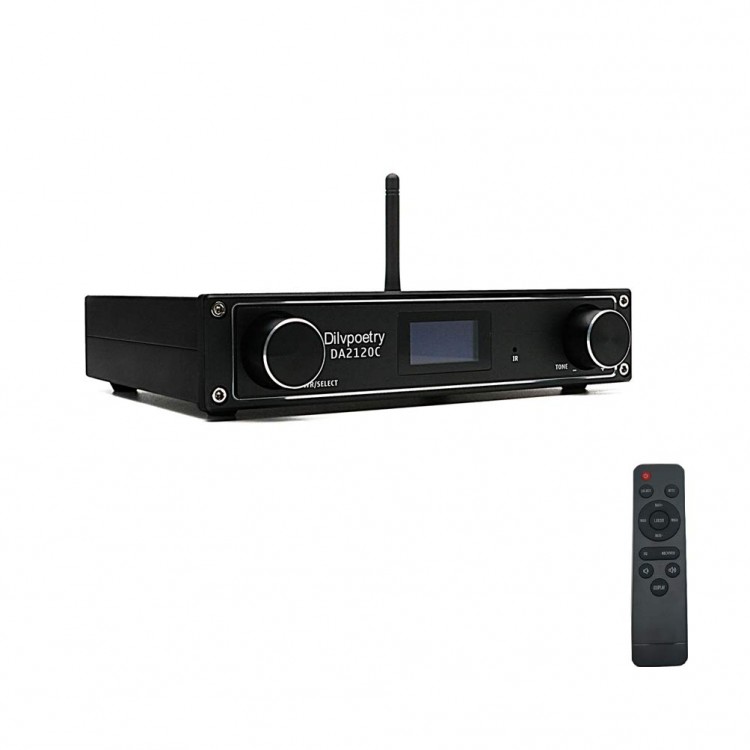

DAC Amplifier 120W+120W 24Bit/192kHz Bluetooth 4.2 USB Coaxial Optical with Remote Control DA2120C

DAC Amplifier 120W+120W 24Bit/192kHz Bluetooth 4.2 USB Coaxial Optical with Remote Control DA2120C

Features:
- HiFi DAC: Hi-Fi standard components to promise the quality. Resistance to impact when switch on & off. Giving you fantastic audio experience.
- USB Coaxial Optical AUX Bluetooth Input: Support 192K/24Bit. SNR ≥ 105 dB and THD＜ 0.01% . Stereo Sound without distortion.
- Pure Digital Audio Amplifier: Support USB, compatible with PC and relevant devices. Bluetooth supports A-PTX.
- Treble & Bass Pre-adjustment: Make the music massive. OLED display window with information showing simply.
- Remote Operation: Treble and Bass adjustment; Turn off the OLED display; Select EQ mode; Select input channel; Mute model, etc.

Parameters:
- (PC - USB) Supported input sampling rate: 192 K / 24 Bit
- Frequency response: 20 Hz to 20 kHz (± 3 dB)
- (Optical / coaxial) Supported input sampling rate: 192K / 24Bit
- Distortion ratio: 0.01%
- (PC - USB) supported operating systems: for XP / W 7 / W 8 / W 10 / MAC /Linux
- SNR: ≥ 105 dB
- Maximum output power: 120 W * 2 4 Ω
- Size: 182 * 126.5 * 36 mm
- Impedance: 4 - 8 Ω
- Host Weight: 0.81 KG
- Working voltage: DC 19 - 36 V
- Input sensitivity: 0.2 mV

Package Included:
- 1 x DA2120C DAC
- 1 x Bluetooth Antenna
- 1 x Remote Control
- 1 x USB Cable
- 1 x Optical Cable
- 1 x DC 32V 5A Power Adapter

Operation Steps:
1. Connect speakers to SPK OUT interface;
2. Connect the sound source to the sound source input interface;
3. Connect power supply (power supply should not exceed DC36V);
4. Long press left encoder of the machine or remote control to start;
5. Select the input channel by rotating the left encoder of the machine or remote control;
6. When using bluetooth input, the input channel needs to be set to BT.
