DAC Decoder HIFI Headphone Amplifier USB 192K 24Bit OPA2604 CS3310 CS4398 FIRE PHOENIX DAC-05

Availability: In stock, usually dispatched in 1 business day

  • Price:$200.68
  • Price in reward points: 2007 Reward Points: 20
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $196.67 $192.65 $186.63 $178.61 Contact US
Quantity:

DAC Decoder HIFI Headphone Amplifier USB 192K 24Bit OPA2604 CS3310 CS4398 FIRE PHOENIX DAC-05

Description

OPT & COA is used with CIRRUS LOGIC, and it is compatible with the high-end digital tone source from current market. There is an external USB receiver and a 24bit separate DAC decoder. HIFI DAC is equal to a high-end external sound card plus headphone amplifier once the USB connected to a computer. The control part of the machine is of abilities of MCU individually adjusting, digital volume and power on delay. Volume control is made my using a top-level IC CS3310.Balanced filter and operational amplifier are using OPA2604.Overall sound quality can match in excellence with ten thousand –level CD’s.

Power supply unit: ±15V being used in voltage-stabilizing during signal processing ,TL431 is for digital processing, control the individual +5V power supply,which can provide more stable performance and pure sound.

Input-digital input:
- COA, OPT and USB, each for a group. Note: the ports are gold plated.
- Multiple Sample rates: 32K-MAX192K/24BIT(for USB input: only support 16bit/44.1K and 48K)

Output
- RCA (single end): It’s convenient for matching with universal audio equipments.
- Headphone output: support 600Ohm high impedance headphone and low impedance headphone.

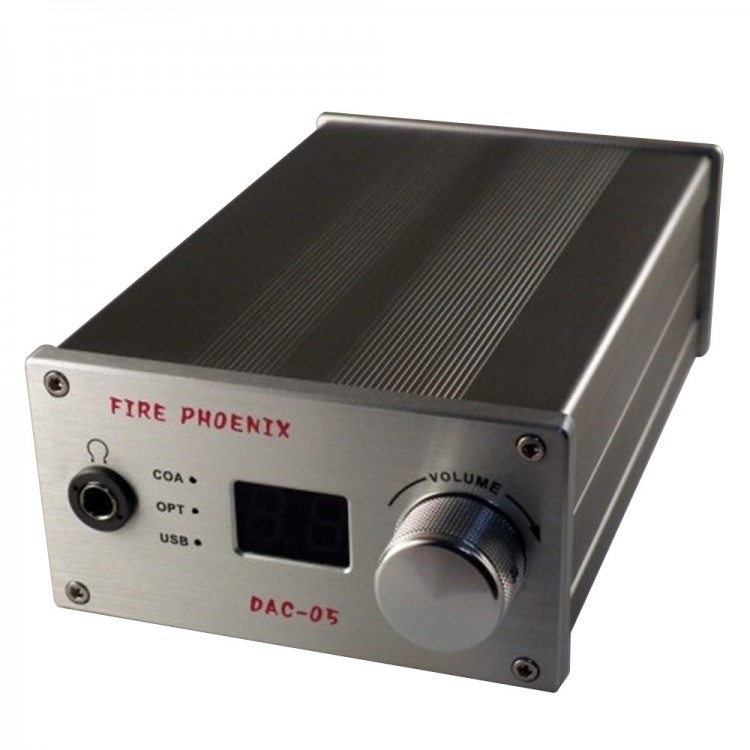

Panel feature:
- Signal selection (by adjusting the volume knob) & digital volume adjustment.
- Signal indication: LED
- Digital volume display
- Headphone output

Core chip:
- Digital Receiver: CS8416 IC up 192K/24BIT SPI & I2S signal output (the max sampling frequency of using on this product is 96K/24BIT)
- USB digital receiver: CM102, SPDIF signal output is adopted for this product.
- D/A converter: CS4398 dynamic response is 127dB with 24bit/192K sampling rate.
- Balance filter: OPA2604, switching rate(S/R) is 20V/us, A high-end IC socket is built in this machine, which helps customers with good hands-on choose relevant operational amplifier according to their preferences.
- Electronic volume: CS3310 THD + N 0.001% Dynamic Range 127dB 0.5dB / step.
- Headphone amplifier: TPA6120 high signal to noise ratio (SNR = 120dB), low distortion and professional headphone amplifier IC with high switching rate.

Specification:
- Brand: FIRE PHOENIX
- Model: DAC-05
- Frequency response: 20Hz -30KHz (0dBV OUT ± 0.5dB)
- Signal output (0dBV 1KHz/48KHz 16bit): THD + N <0.002%, Back noise <108dBV, V> 3V (1FFS)
- SNR:> 116dB (without A-weighted)
- Channel separation:> 100dB
- Headphone output: MAX 18dBV (8V) THD + N <0.003% (1KHZ/50 ohm load & 2V)

Package included:
- 1 x Headphone Amplifier
- 1 x Power cable
- 1 x USB cable
- 1 x Manual
