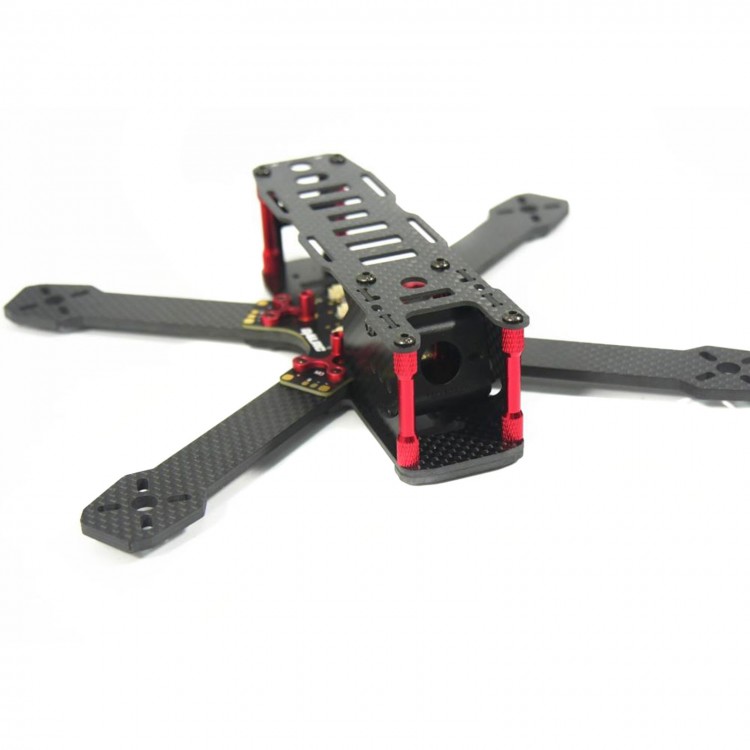

DALRC XR215 PLUS FPV Quadcopter Frame 4 Axis Carbon Fiber Drone with PDB OSD BEC

DALRC XR215 PLUS FPV Quadcopter Frame 4 Axis Carbon Fiber Drone with PDB OSD BEC



Upgrade content:
- Side plate and upper plate: Thickness is 1.5mm, carbon fiber

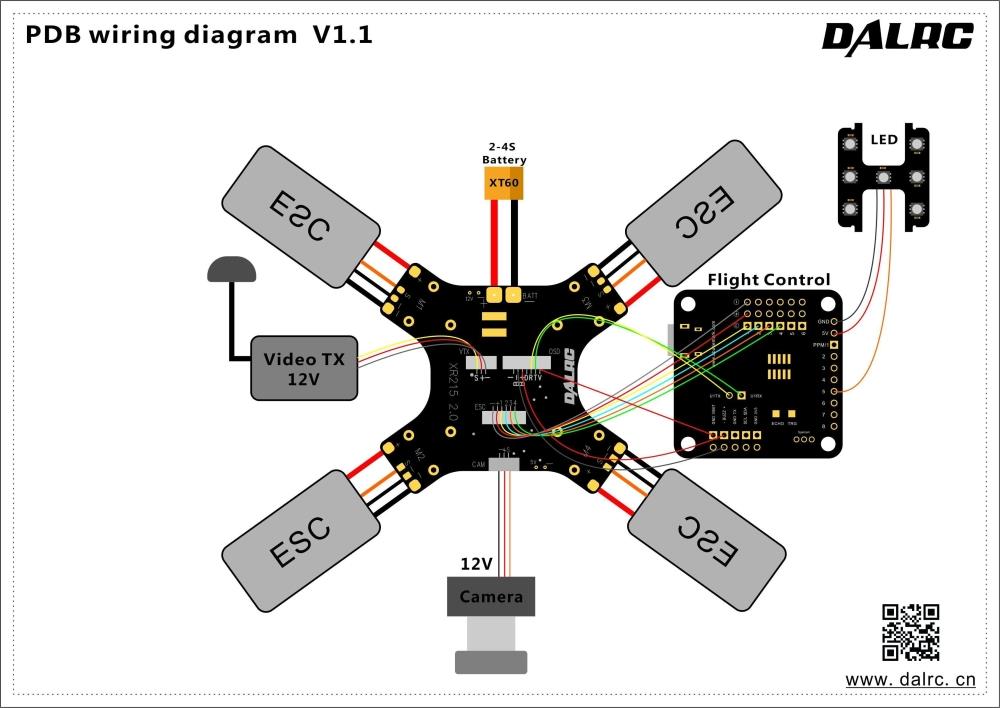

- PDB with current detection function
- Bend angle of camera to 50 degree
- Arm can be separable
- Optimize PCB
- Shorten the length of quadcopter

Features:
- Built in OSD video video overlay (support voltage, time of flight, horizon, mode, support OSD PID adjustment when there is flight control)
- Current display
- Power consumption display (mAh)
- Built in 2 channel 2A BEC 5V/12V low ripple power supply
- Camera 5V/12V voltage can be switched
- Built-in BB ring (needs flight control)
- 2 kinds of adjustable lens holder (up 10-50 degrees)
- Motor protection seat (with tripod, nylon and fiber)
- The machine body is provided with a plurality of antenna holes and an outlet hole
- 3.5MM MITSUBISHI 3K arm
- The head part is equipped with anti collision safety board
- 2812 LED lamp taillights version, need to access the F3 flight control set
- Reasonable layout and convenient installation.
- High strength and ultra light aluminum column
- YFS screws, nuts, high precision, more durable.
- Flight speed up to 150KM/H

Parameter:
- Diagonal wheelbase: 215mm
- Weight: 120 g
- Support motor: 2204/2206/2208
- Support propeller: 4 inch /5 inch
- Working voltage: 3-4S

Recommend configuration (not include):
- Practice: KV2300 G2204 motor, XR20A DALRC, 5045 propeller, 3S 1500mAh battery
- Racing: KV2300 RS2205 motor, BS25A DALRC ESC, 5045 3-blade propeller, 4S 1300mAh battery

Package included:
- 1* DALRC XR215 quadcopter frame
