Features:

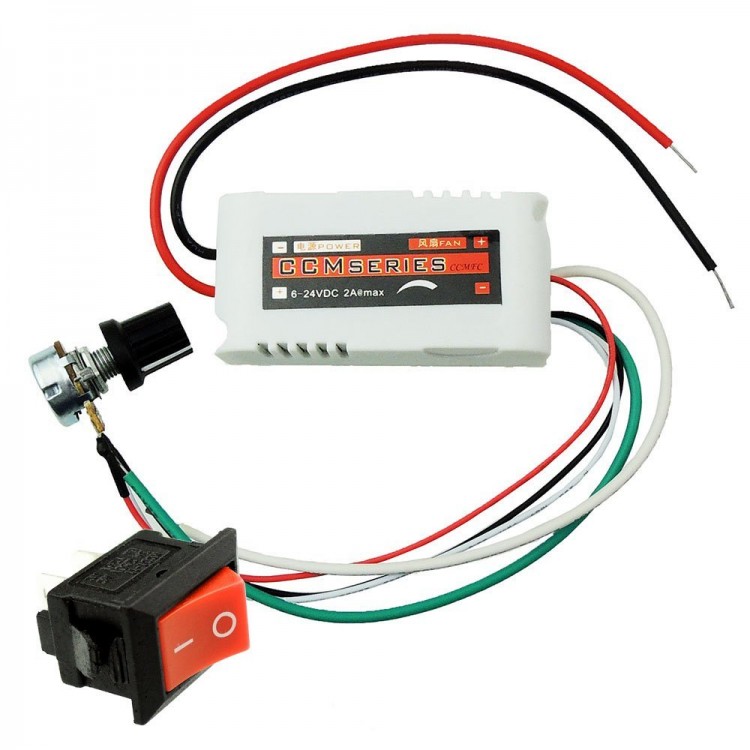

- CCMFC DC Motor Speed Controller provides variable speed capability for brush or brushless DC fans,or the fanswithout control line.
- Input voltage: 12VDC
- Suitable for the DC fan within 1A, Peak current 2A.
- Low noise, small size.
- Main technical parameters:
- Input supply voltage: 12VDC
- The maximum continuous output current :2A;
- Suitable for the DC fan within 1A
- Item size:2.6*1.26*0.95 inches ;
Operating Instruction:
1.Connect wires refer to the product wiring label.(Red wire connects the positive power; black wire connects negative power;
blue wire connects the positive of fan; gray wire connects the negative of fan.)
2. Turn on the power, and adjust the potentiometer.
Before you attempting to wire the controller, make sure power is off.
WARNING: DO NOT REVERSE POSTIVE AND NEGATIVE
POWER LOADS AND DC FAN.THIS WILL DAMAGE THE
CONTROLLER.
Package Including:
- 1 x DC Motor Speed Controller
