DC 12V TDA7377 Audio Power Amplifier Board 40W+40W Car Amp Board 2.0 Channel

Availability: Out Of Stock

  • Price:$10.35
  • Price in reward points: 104 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $10.14 $9.94 $9.63 $9.21 Contact US
Quantity:

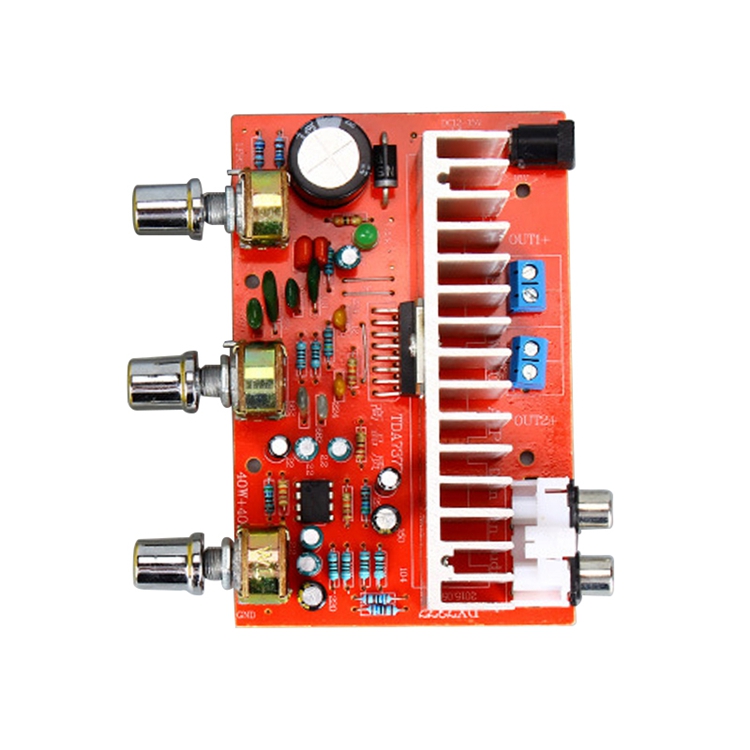

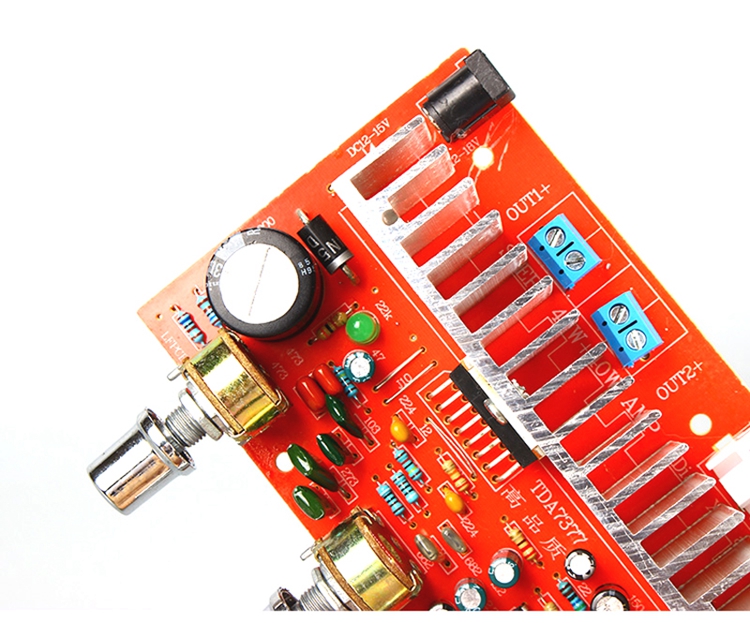

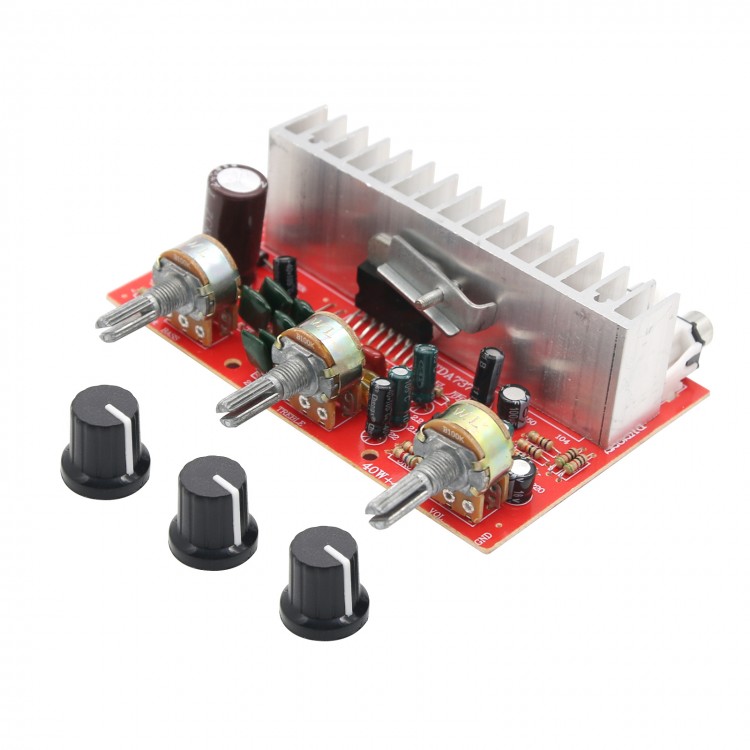

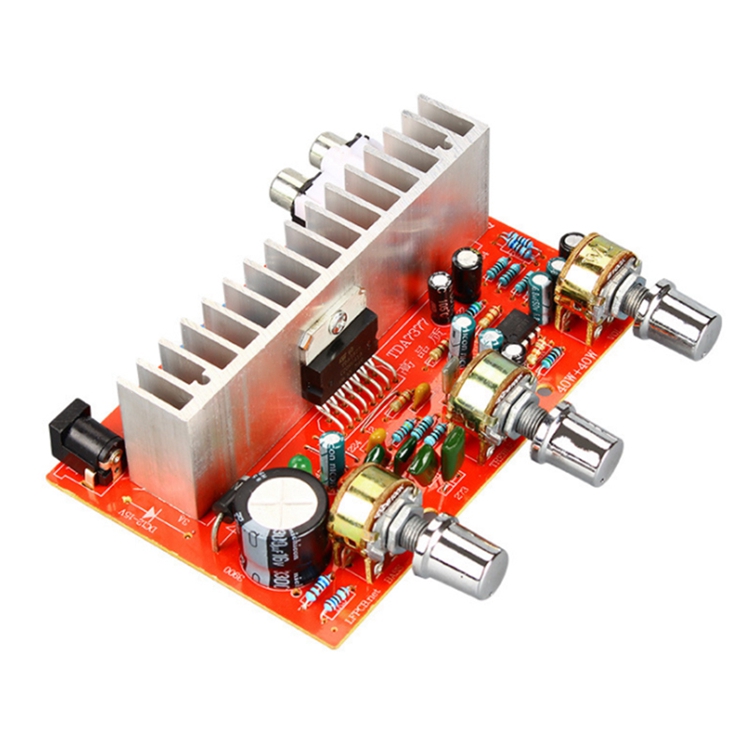

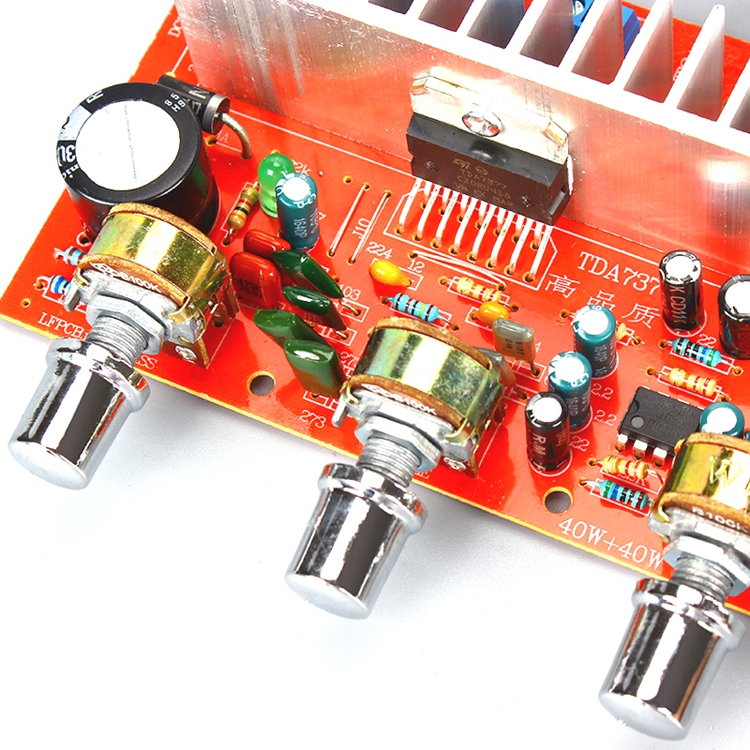

DC 12V TDA7377 Audio Power Amplifier Board 40W+40W Car Amp Board 2.0 Channel

Features:

- Adopts TDA7377 integrated chip, stereo dual-channel output 40W*2.

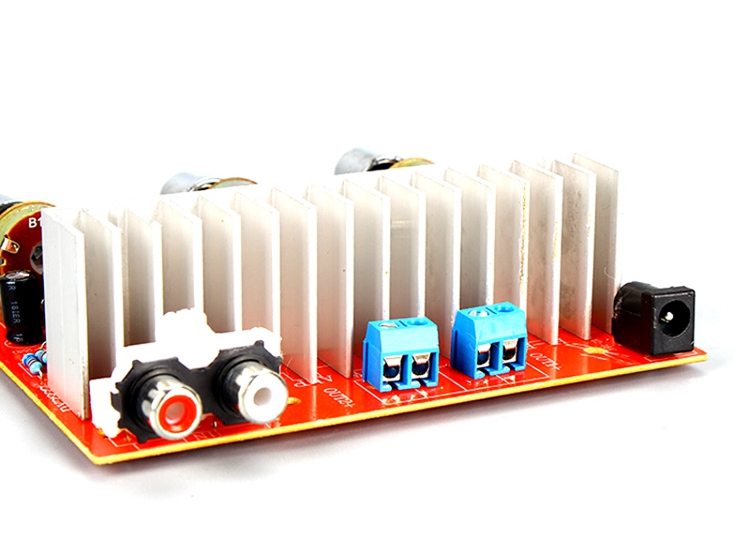

- The power amplifier board installs heat sink for fast heat dissipation to ensure stable operation
- One piece of 16V 3300UF filter capacitor

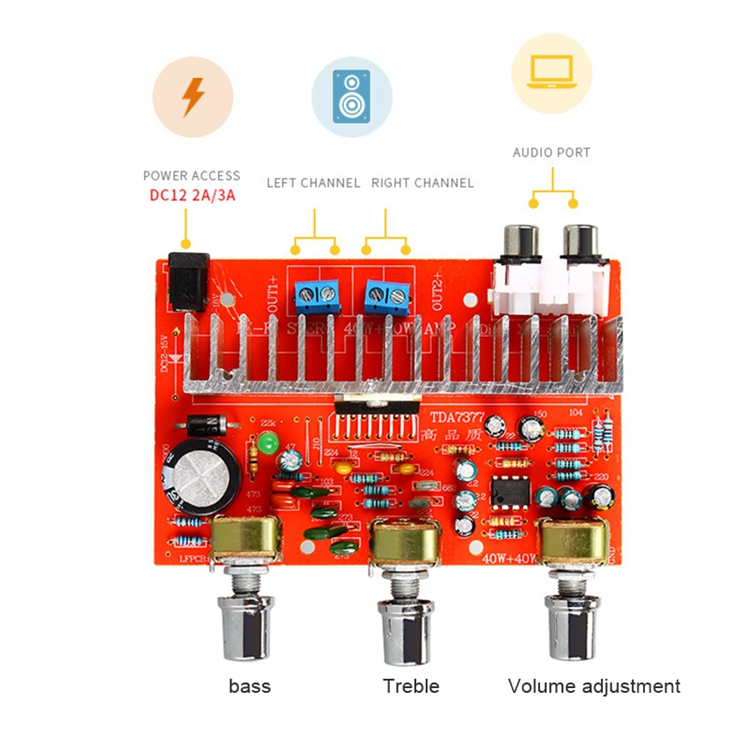

- With treble adjustment, bass adjustment and volume adjustment potentiometer and indicator

Specifications:

- Amplifier Chip: TDA7377
- Output Power: 40W+40W
- Channel Type: 2.0 Channel
- Operating Voltage: AC DC 9-15V/20-40W (Recommended DC 12V 2A Above)
- Frequency Response: 20Hz-20KHz

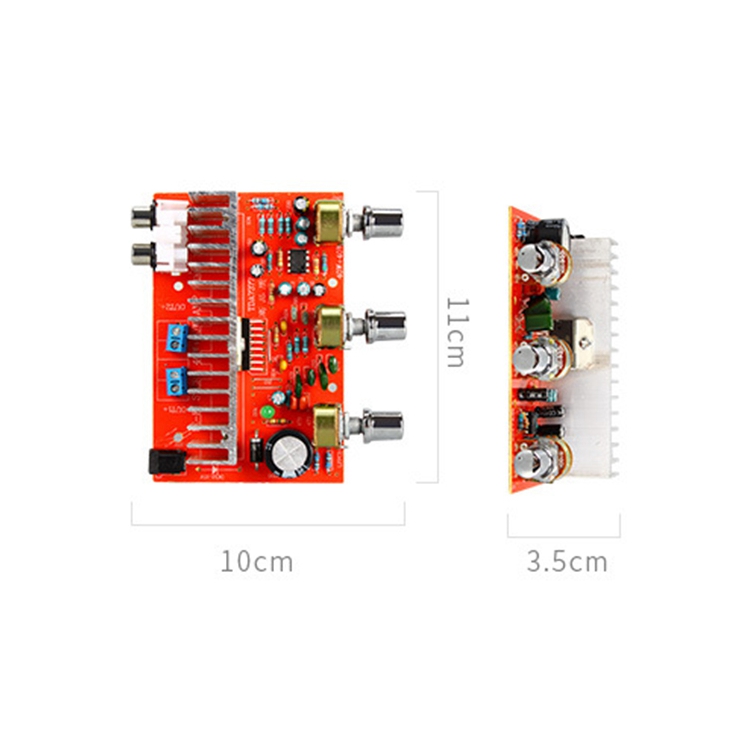

- Size: 11 x 10 x 3.5cm
- Weight: 100g
- Suitable for 3-6 inch bookshelf speakers and floor speakers
- Material: Aluminum Heat Sink + Amplifier Board

Package Included:
- 1 x Amplifier Board
