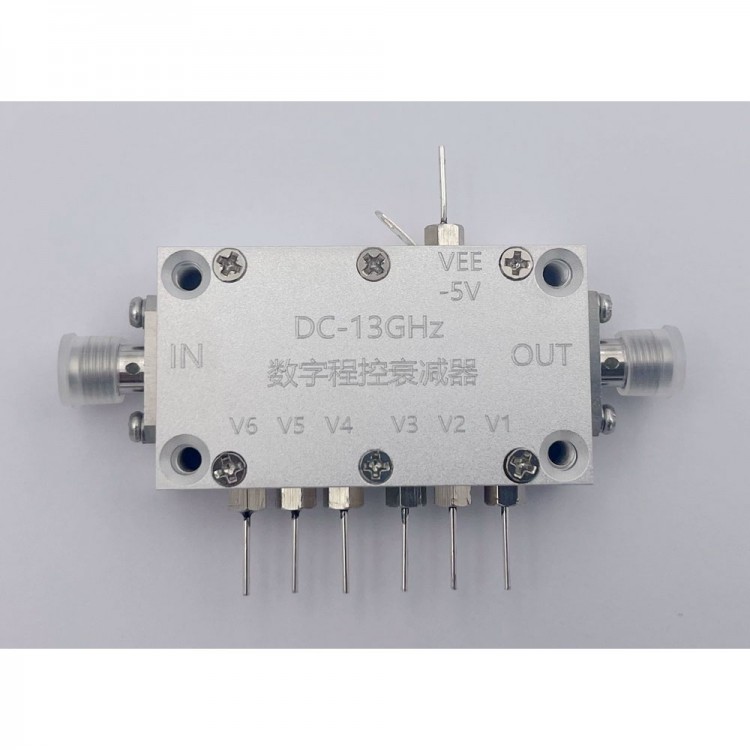

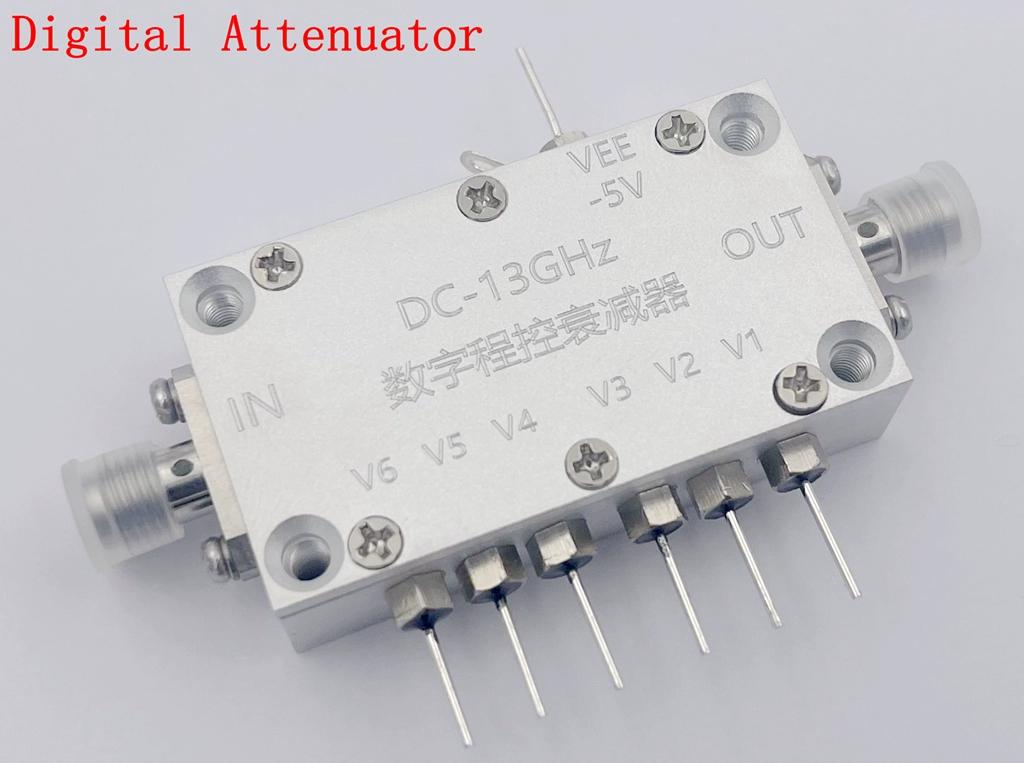

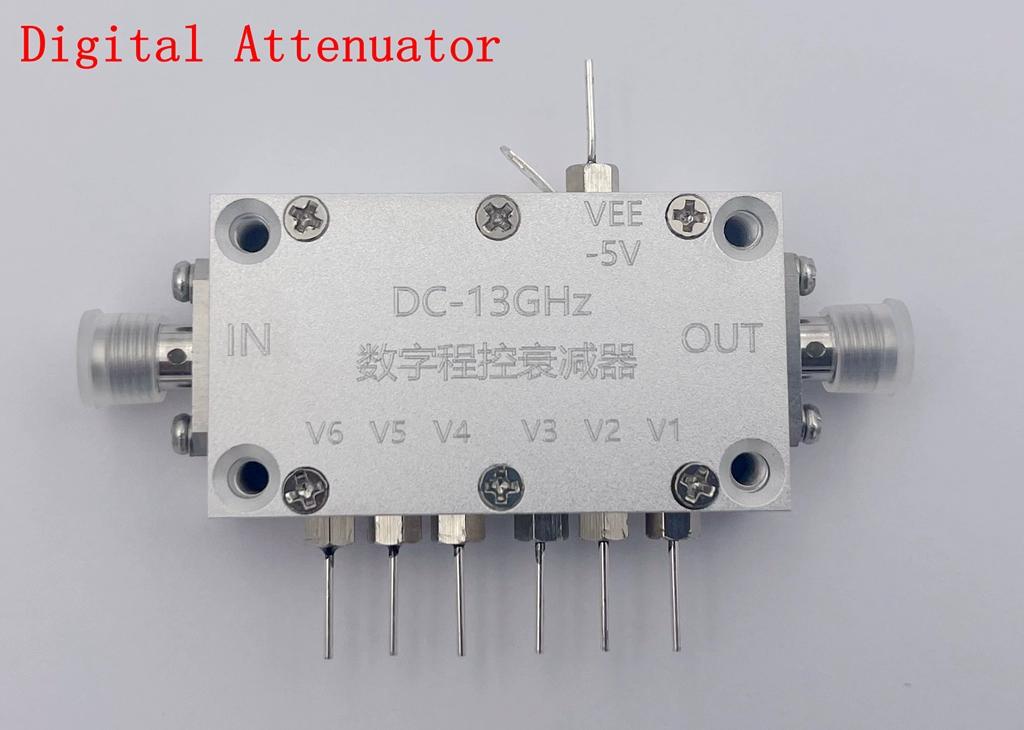

DC-13G Negative Voltage Version Ultra-wide Band Digital Programmable RF Attenuator with SMA Female Connector
Using Instruction Video:
- https://pan.baidu.com/s/1R8R8IVWasH8gfFT3vlH5-g
- Passwords: WYDZ
Description:
- The digital programmable attenuator is used to adjust the signal level in the transmission and reception communication system. The module adopts digital programmable control technology and 6BIT parallel control to achieve the signal size adjustment within the DC-13G ultra wideband frequency range. The module is controlled in parallel mode, with control interface reserved, and can be controlled by external mechanical switches or external MCU. The attenuation step is 0.5dB to achieve 31.5dB broadband attenuation adjustment; The module is packaged in a CNC shell, which has good electromagnetic shielding performance and can be cascaded with other modules, widely used in transmission and reception communication systems.
Specification:
- Working frequency: DC-13GHz

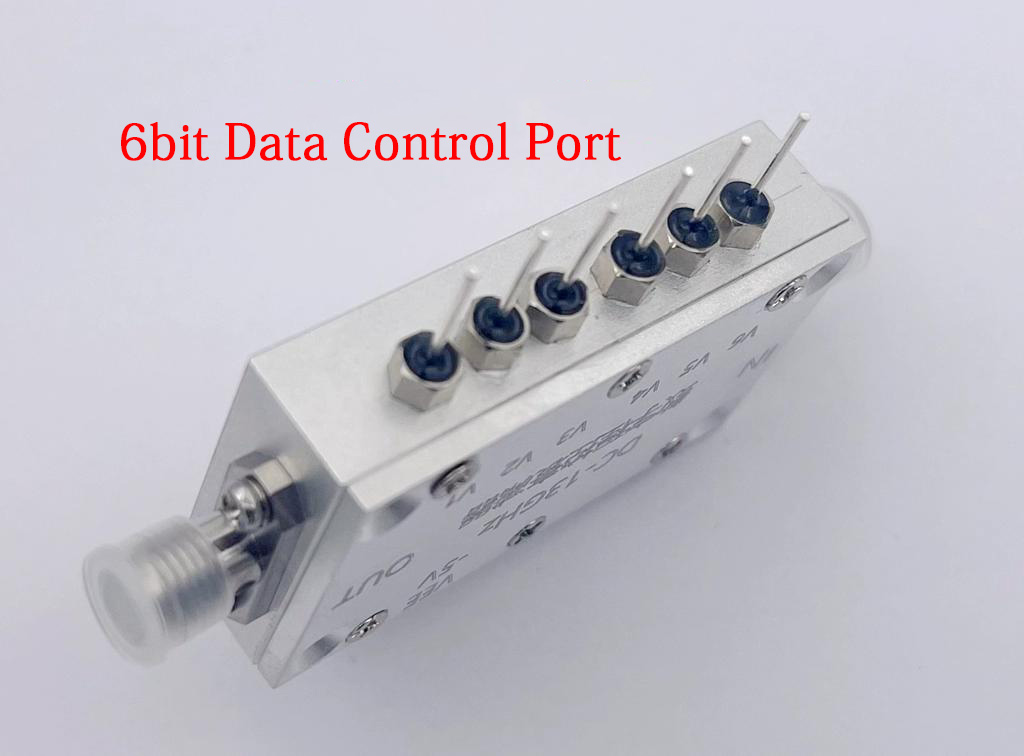

- Control method: parallel (support for micro-controller parallel drive control)
- Insertion loss: 3dB (typical value)
- Attenuation range: 0.5-31.5dB
- Maximum input power: 25dBm

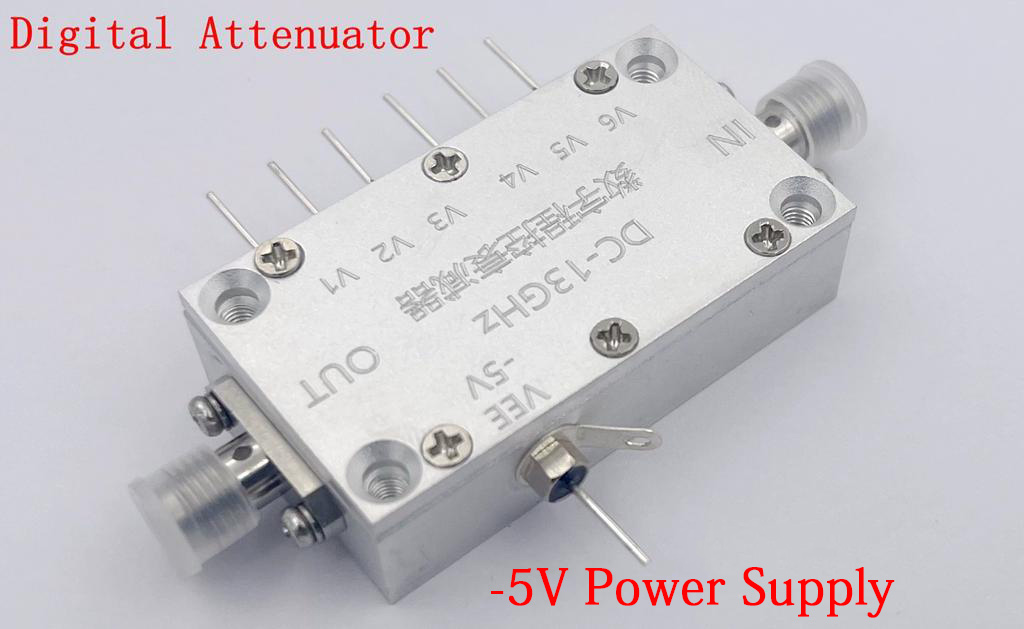

- Power supply: -5V
- Working current: 5mA
- Response time: <50ns
- Control interface output: feed through capacitor
- Impedance: 50ohm

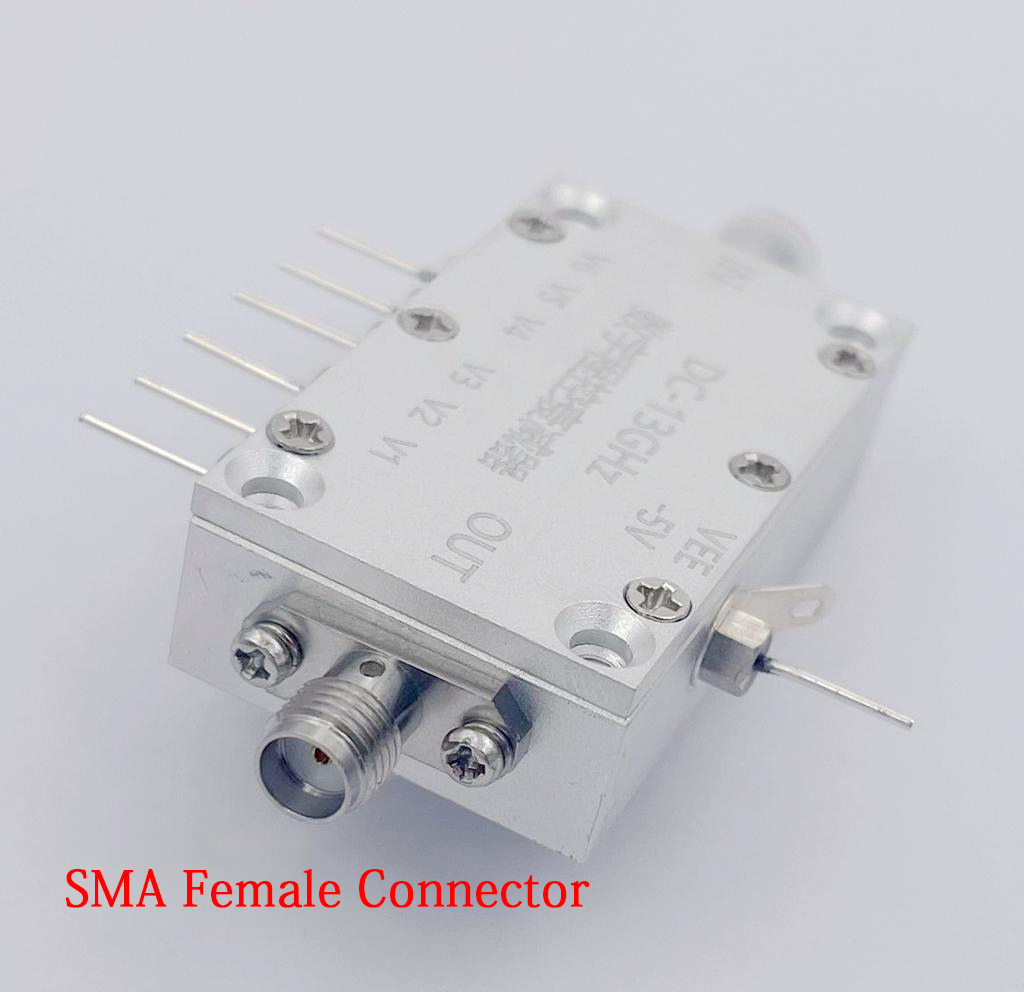

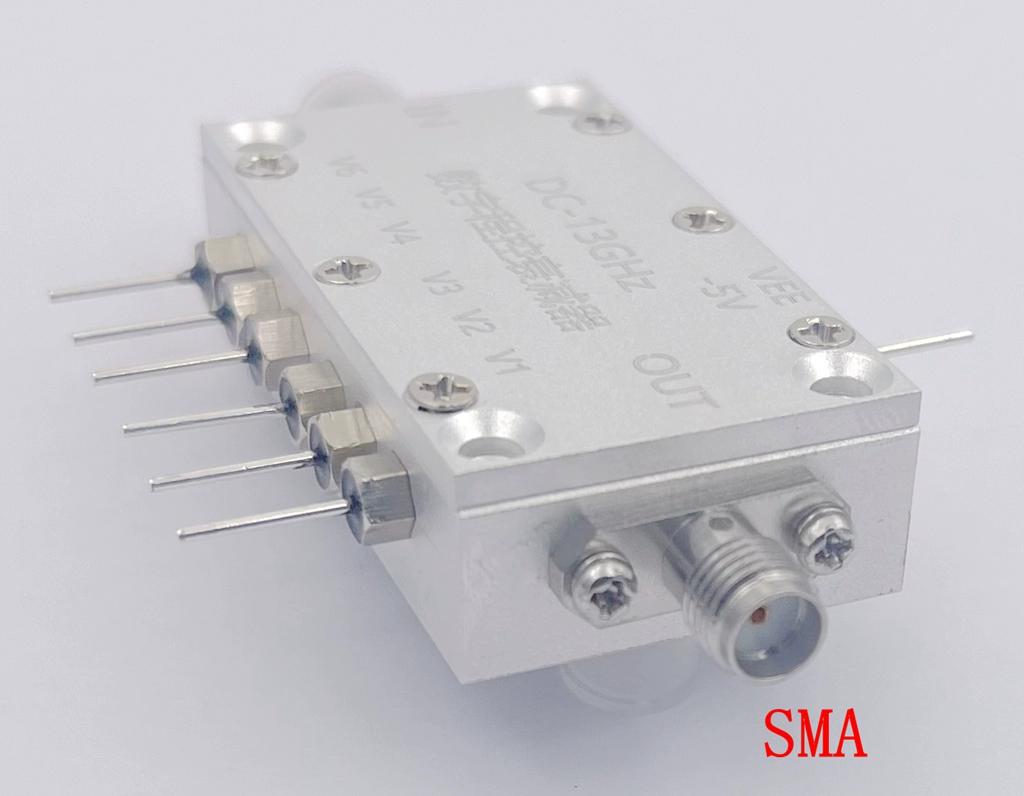

- Input and output interface: SMA female connector
- Control logic:
V1-V6: set to 000000 and attenuate by 0dB
V1-V6: set to 000001 and attenuate by 0.5dB
V1-V6: set to 000010 and attenuated by 1dB
V1-V6: set to 000100 and attenuated by 2dB
V1-V6: set to 001000 and attenuated by 4dB
V1-V6: set to 010000 and attenuated by 8dB
V1-V6: set to 100000 and attenuated by 16dB
V1-V6: set to 111111 and attenuated by 31.5dB
- Level range: (important)
Low level 0: 0 to -1V (recommended grounding)
High level 1: -4V to -5V
Package Included:
- 1 x RF Attenuator

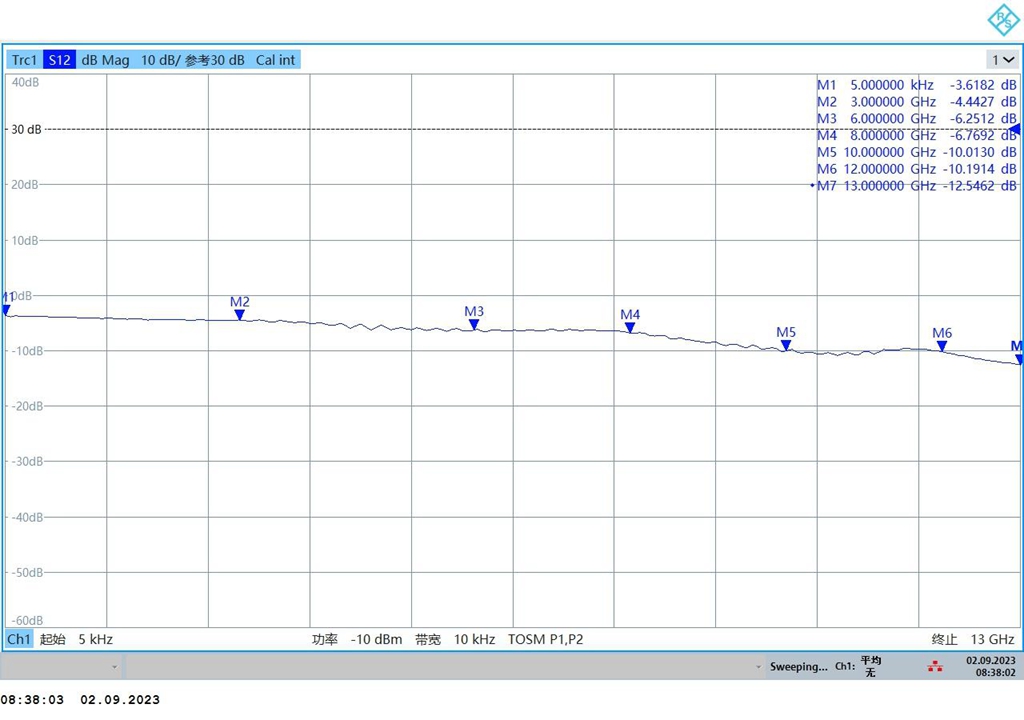

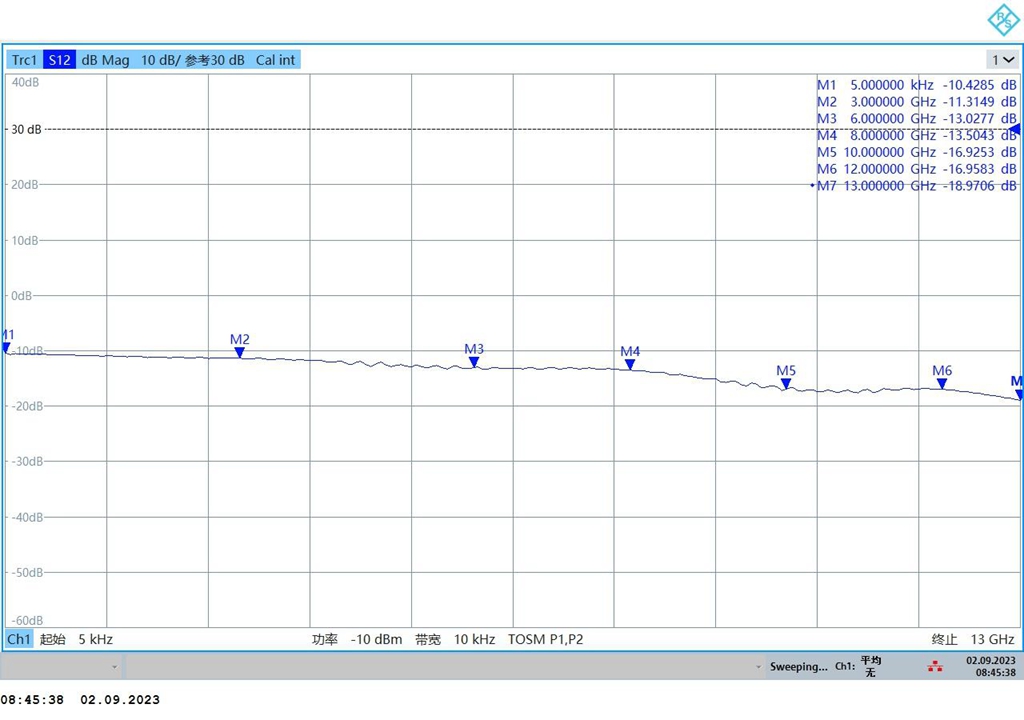

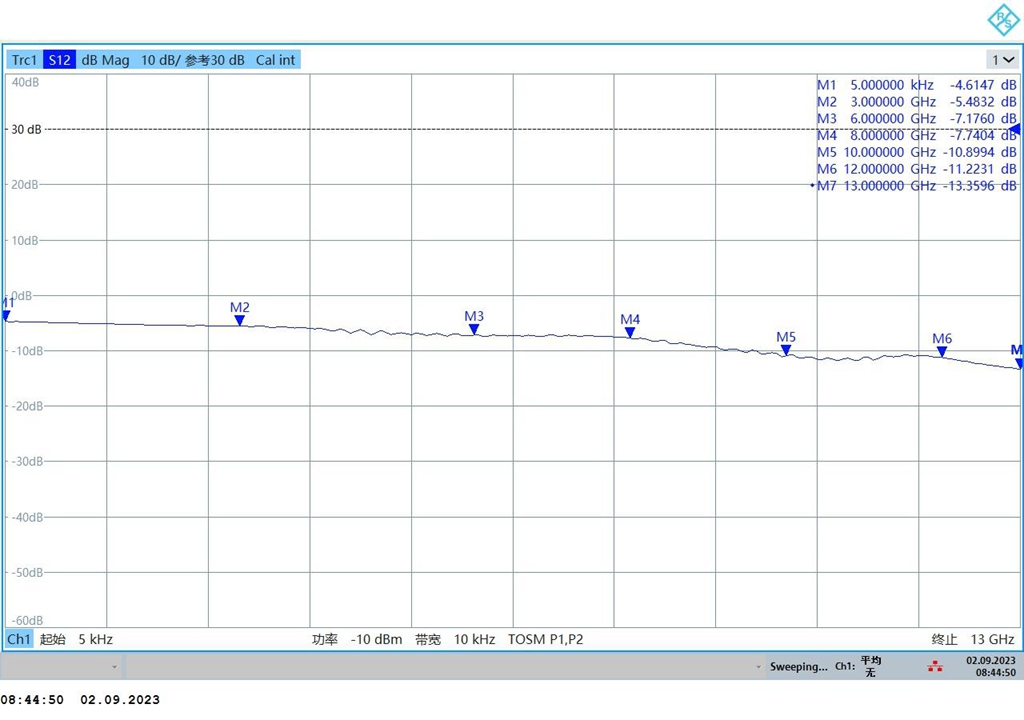

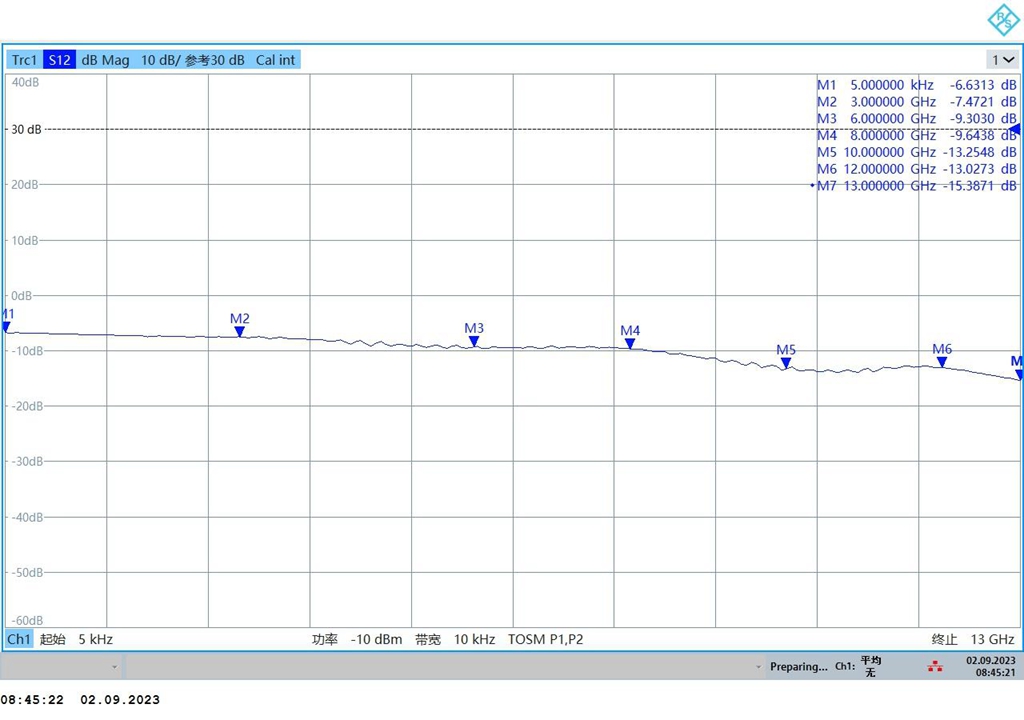

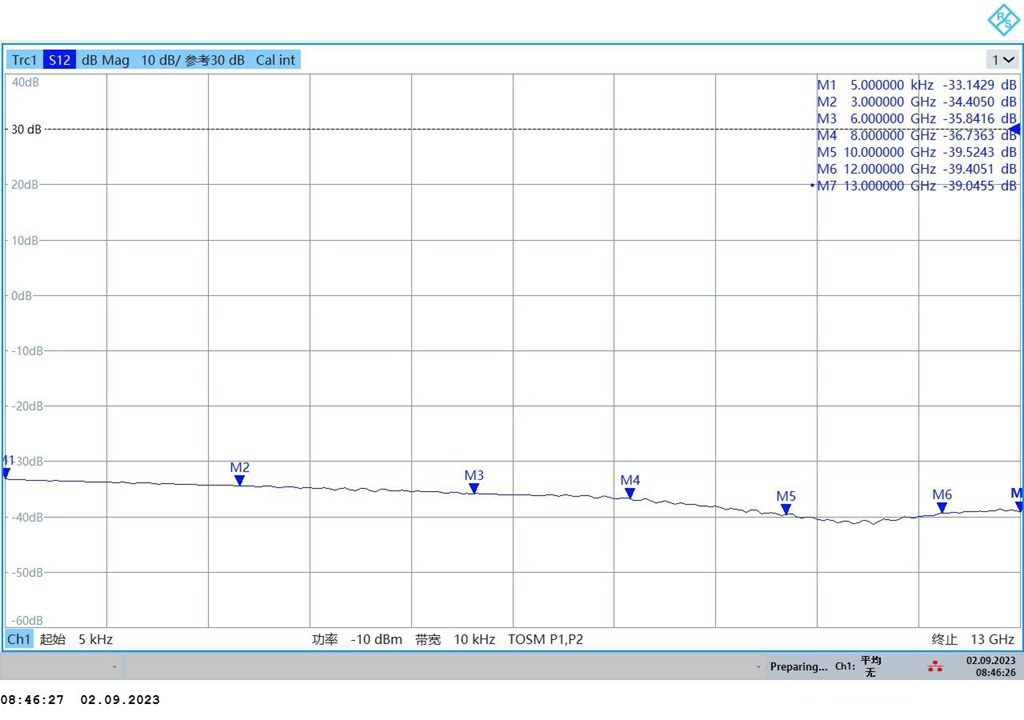

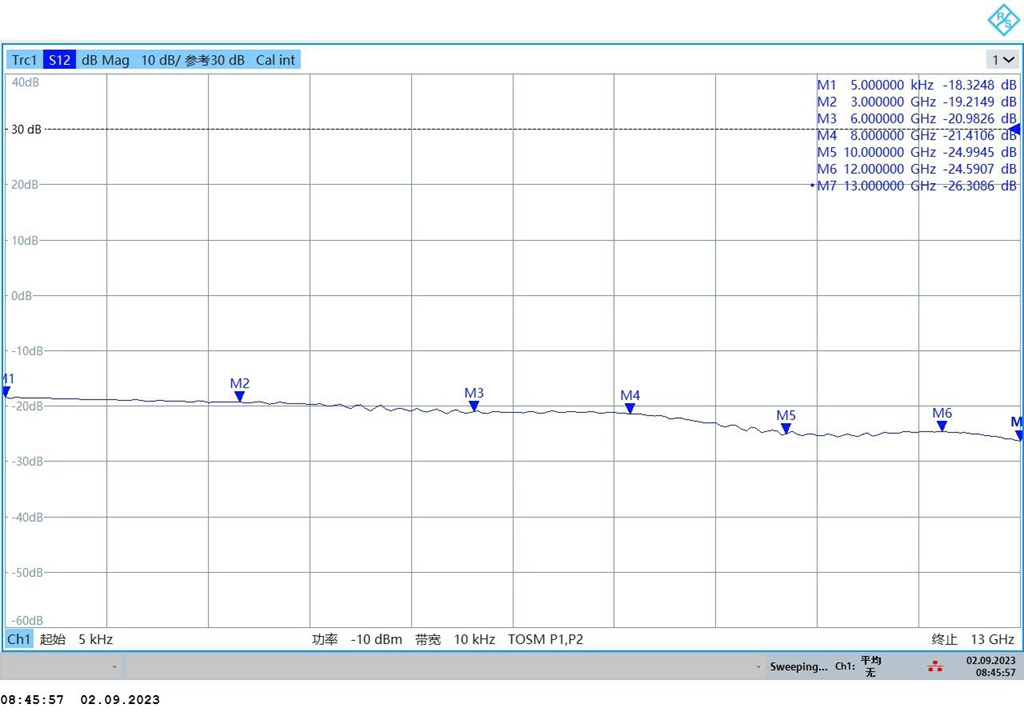

Testing Curve S12:
- Initial insertion loss:
V1-V6: set to 000000
V1-V6: set to 000001
V1-V6: set to 000010
V1-V6: set to 000100
V1-V6: set to 001000
V1-V6: set to 010000
V1-V6: set to 100000
V1-V6: set to 111111
