DC12V 1CH 315MHZ Wireless Intelligent Remote Control Switch Transmitter Receiver for Lights Enteance Guard

DC12V 1CH 315MHZ Wireless Intelligent Remote Control Switch Transmitter Receiver for Lights Enteance Guard

Description:
This product is for remote typrs like switch, pump, socket, LED, audio, door, garage door,alarm, car, MP3, and other security and monitoring products. It is for DIY. The power supply is 12V. There is a independent relays for signal output. There are open ,closed and common end that have no voltage.It is applied for the following conditions. With 12V output; Series connection to the other circuit to control the switch with the open and closed end of the output end.( recommended 3V-250V, 0.1A-10A).

Specifications:
Remote Control Switch:
- Operating Voltage: DC12V (12V 3A battery)
- Operating Frequency: 315 MHz
- Shock resistance: 4.7M
- Operating Temperature: -30°C ~ +70°C
- Humidity: <95%
- Size: 60*30*11mm
- Modulation: ASK
- Encoding: Encoding group or welding
- Distance: 30m

Receiver:
- Operating Voltage: DC12V
- Operating Frequency: 315 MHz
- Working: Self-locking, Interlock,inching
- Operating Temperature: -30°C ~ +70°C
- Humidity: <95%
- Size: 55*31*17mm(inner board); 81*38*22mm(with shell)
- Code mode: Smart learning
- Output: 1 channel relay signal output
- With shell
- Max. load: inductive<=3.5A,Resistive current<=6A

Package included:

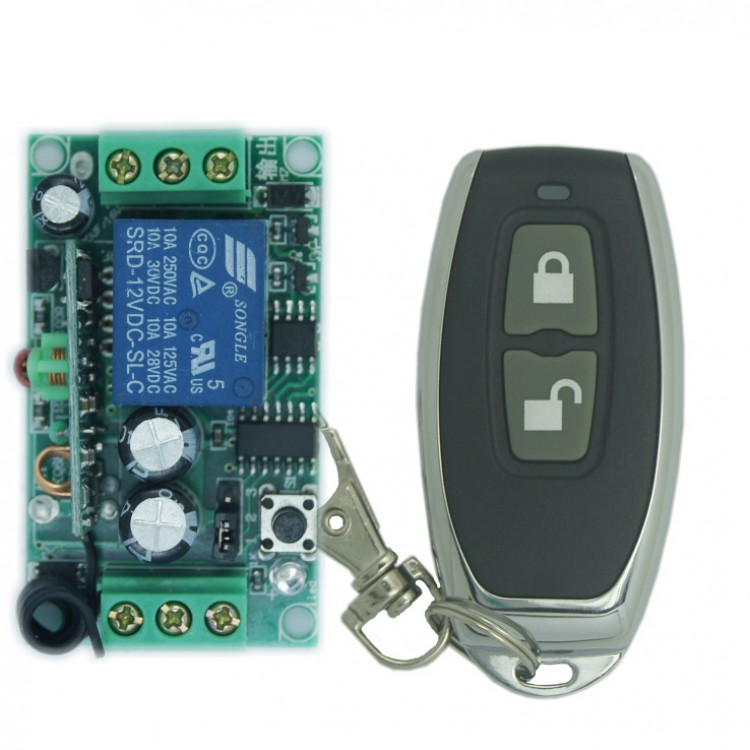

- Remote Control Switch x 1
- Receiver x 1
