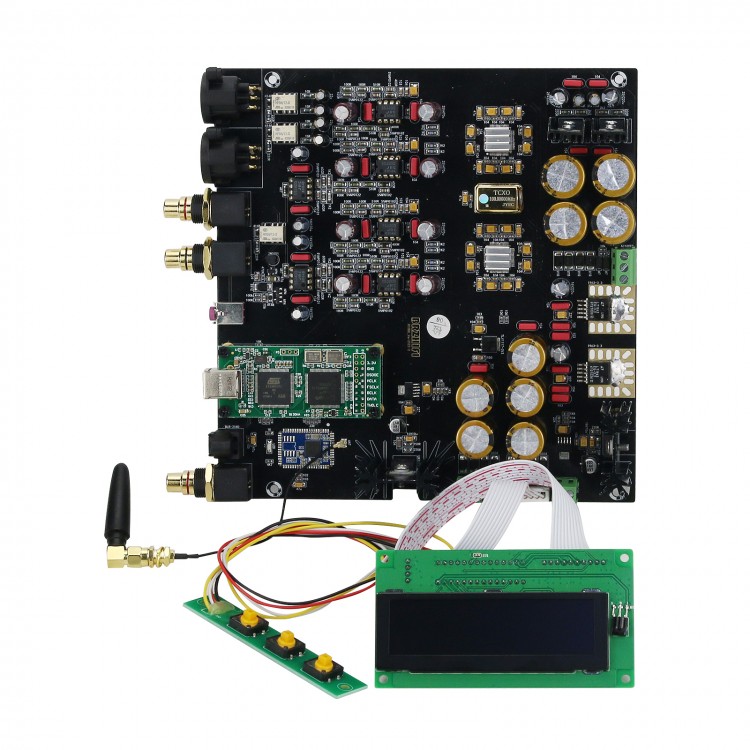

DC300 Dual ES9038PRO DAC Board Standard Version for Coaxial Fiber Optical Inputs

DC300 Dual ES9038PRO DAC Board Standard Version for Coaxial Fiber Optical Inputs

Features:
- Standard Version: Support coaxial and fiber optical inputs
- Dual ES9038PRO: There are two pieces of ES9038PRO, and every piece with 8 DAC cores for higher resolution.
- Military-grade PCB: Premium four-layer painted PCB board in size of 178 x 182mm.
- It only support I2S output (DSD format is available).
- Output Ports: Balanced output, RCA output, and 3.5mm headphone output interfaces

Component Introduction:
- Crystal: 100M TCXO 0.1PPM golden version crystal oscillator
- Display Screen: large screen 3.12 inch OLED display
- Op amp: NE5534*6
- Chip resistor: MMA0204 wafer patch
- Other Components: LT voltage stabilizer, WIWA capacitors, Japanese high-end filters

Download Drive Here:
- For versions bellow WIN10:https://pan.baidu.com/s/14hGsffUyEePSgtcx1gH6yQ
  Code: da0w
- For versions bellow WIN7: https://pan.baidu.com/s/1FRe6wfaLZzAOrV80VU51yA
  Code:qzjg

Specifications:
- Supported Sample Rates: 44.1Khz 48Khz 88.2Khz 96Khz 176.4Khz 192Khz 352.8Khz 384Khz
- Output Format: I2S 32bit or DSD64,DSD128 - On Windows DSD256,DSD512 too
- Oscillators: 2 Low Phase Noise TCXO
- Dimensions: 30 x 69mm

Package Included:
- 1 x ES9038PRO DAC Board
- 1 x Display Screen

Note: DSD output enable line to signal an incoming DSD stream. The card supports output mode only. NO Drivers needed for Mac OSX 10.6+ and Linux with UAC2 compliant kernel. KS/Wasapi/WDM/ASIO Drivers for MS OS XP to Win8 32-64bit included at no fee. Upon Request The user can provide a custom USB VID-PID, a custom Device Name and a custom CodeSign Certificate for WDM drivers. For old applications the max sample rate can be configured to 192Khz Technical indicators: DSD512, DXD 384k. A supports DSD Native (source code) and DoP dual mode. DSD Native with ASIO can support very high audio specifications, and DoP is basically no longer needed.
