DC5V-20V Pyroelectric Infrared PIR Motion Sensor Detector Module TDC 718

Availability: Out Of Stock

  • Price:$5.74
  • Price in reward points: 57 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $5.63 $5.51 $5.34 $5.11 Contact US
Quantity:

DC5V-20V Pyroelectric Infrared PIR Motion Sensor Detector Module TDC 718

Features:

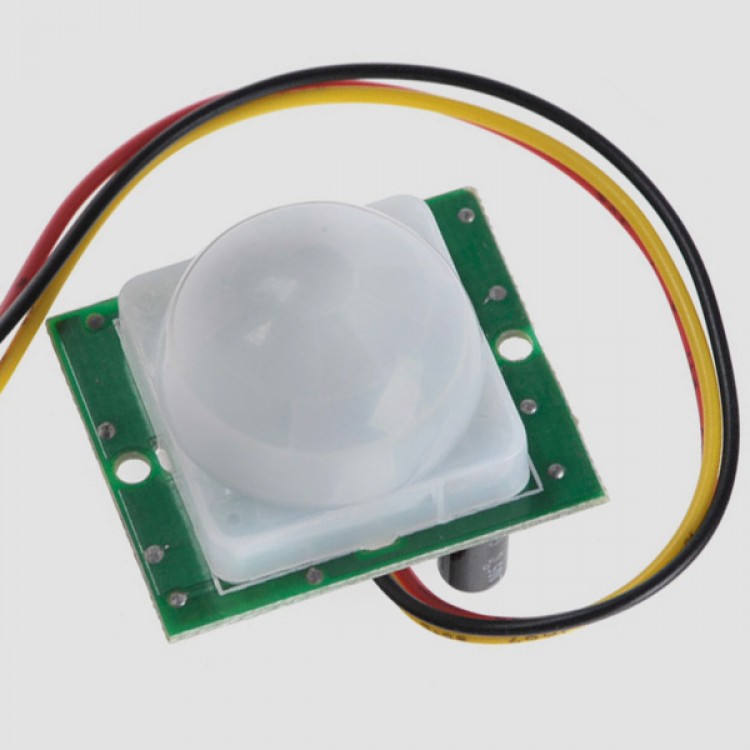

- Infrared Pir Motion Sensor with control circuit board
- The sensitivity and holding time can be adjusted
- Detecting Range: Approx. 7m / 23 feet
- Detecting Angle: Less than 100 degrees
- Working Voltage Range: DC 5V- 20V
- Quiescent Current: Less than 50uA
- Level Output Voltage: High 3V / Low 0V
- Working Temperature: -15 ~ +70℃
- Trigger Method: L unrepeatable trigger / H repeatable trigger
- PCB Size: Approx. 32mm x 24mm / 1.3 x 0.9 inch
