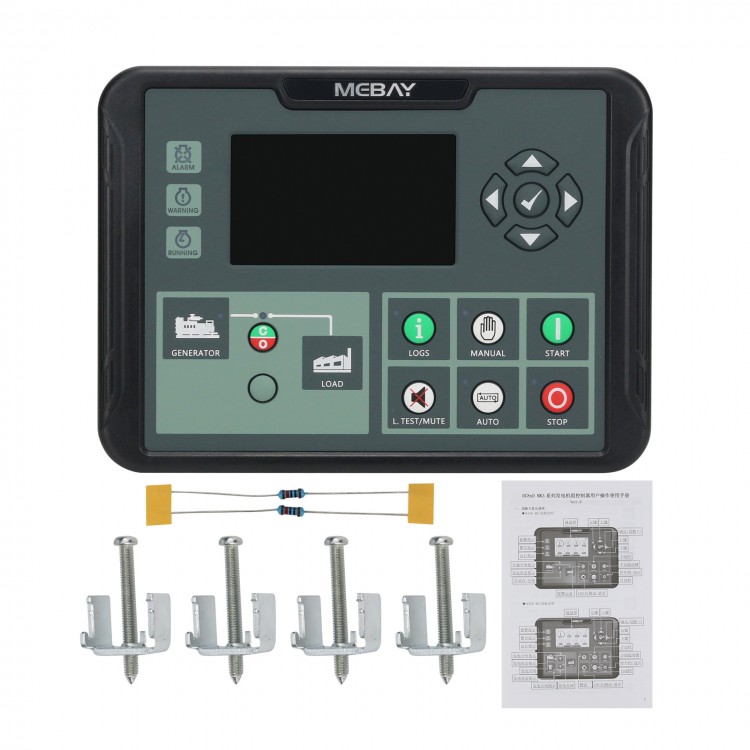

DC80DR MK3 Start Stop Diesel Generator Controller Module LCD Display PC RS485 Monitoring Control Board Genset Part

Availability: In stock, usually dispatched in 1 business day

  • Price:$144.00
  • Price in reward points: 1440 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $141.12 $138.24 $133.92 $128.16 Contact US
Quantity:

DC80DR MK3 Start Stop Diesel Generator Controller Module LCD Display PC RS485 Monitoring Control Board Genset Part


Description:
- This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as well as data setting.
4.3inch colorful LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can display variousfaults in the same time that the genset will be stopped once it can’t work smoothly.
- There are Simplified Chinese, Traditional Chinese, English, Spanish, Russian interface options, more language can be set according to user’s request. All the parameters can be configured through the front face buttons or use programmable interface by RS485 or USB to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.


DC8XD SeriesDifference:
DC80D MK II: used for single machine automation. Start/Stop through remote start signal.
DC82D MK II: Based on DC80D MK II, it adds Mains monitoring and AMF (Mains/Generator automatic switching control), especially suitable for the automation system composed by mains and genset.
DC80DR MK II: Based on DC80D MK II, it adds RS485 port.
DC82DR MK II: Based on DC82D MK II, it adds RS485 port.

Specification:
- Working voltage
- DC8V----36V Continuous
- Power consumption
- Standby:24V:MAX 1W
- Working:24V:MAX 5W
- AC Voltage Input:1P2W 30VAC-276VAC(ph-N),  2P3W 30VAC-276VAC(ph-N), 3P4W 30VAC-276VAC(ph-N)
- Rotate speed sensor Frequency
- 200-10000Hz
- MAX Accumulating Time
- 99999.9Hours(Min Store time:6min)
- Working condition:-20-65℃
- Storage condition:-40-85℃
- Protection Level: IP54:when waterproof rubber gasket is added between controller and its panel
- Overall dimension:241mm*177mm*45mm
- Panel cutout: 220mm*160mm

AC voltage input:
1 phase 2 wire: 20VAC-276VAC(ph-N)
2 phase 3 wire: 20VAC-276VAC(ph-N)
3Phase 4 wire: 20VAC-276VAC(ph-N)
