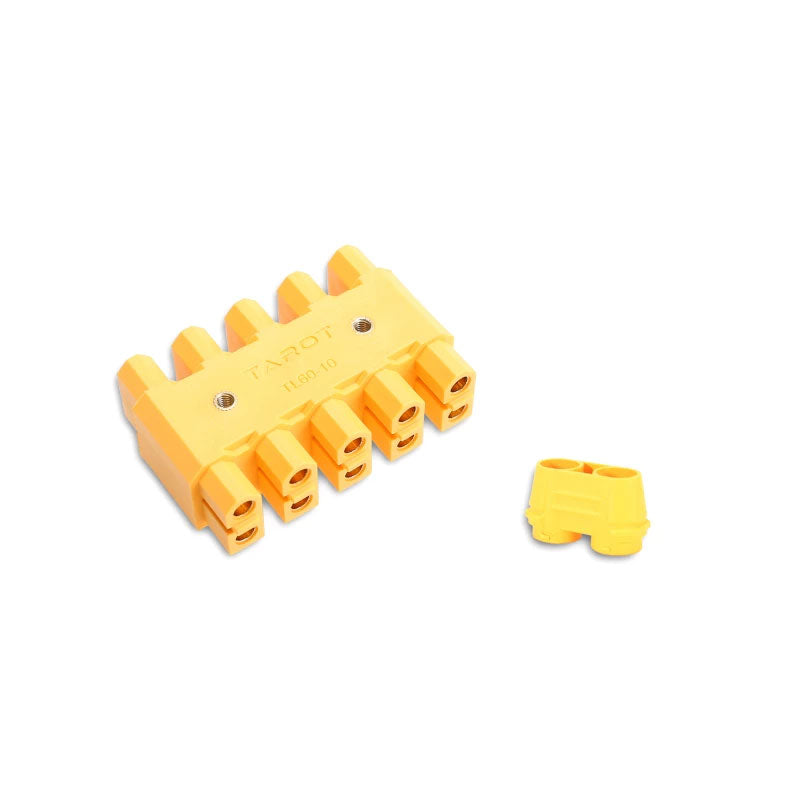

Tarot TL60-10H Power Distribution Board 1 Input 10 Outputs XT60H Compatible Gold-Plated Copper for RC Drone

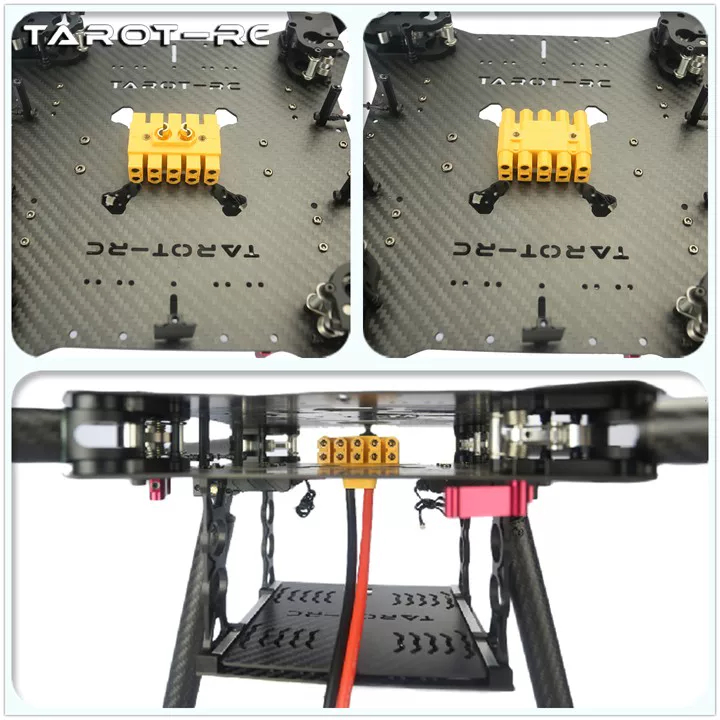

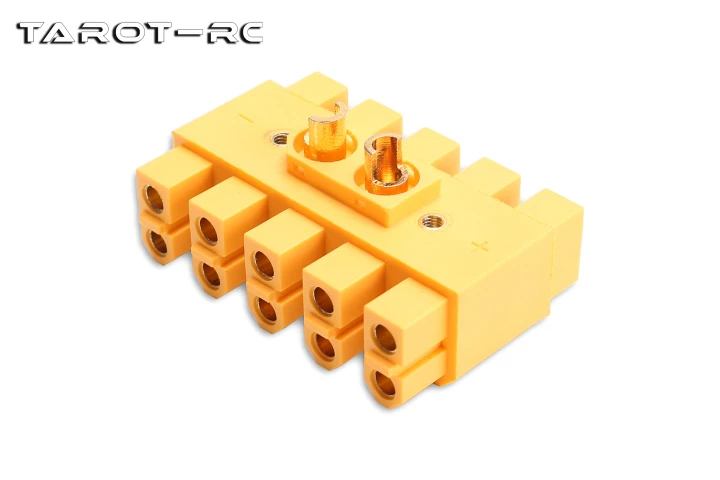

The Tarot TL60-10H is a 1-input, 10-output power distribution module designed for medium and large multi-rotor drones. It supports power distribution to drones and other applications requiring up to 10 output connections.

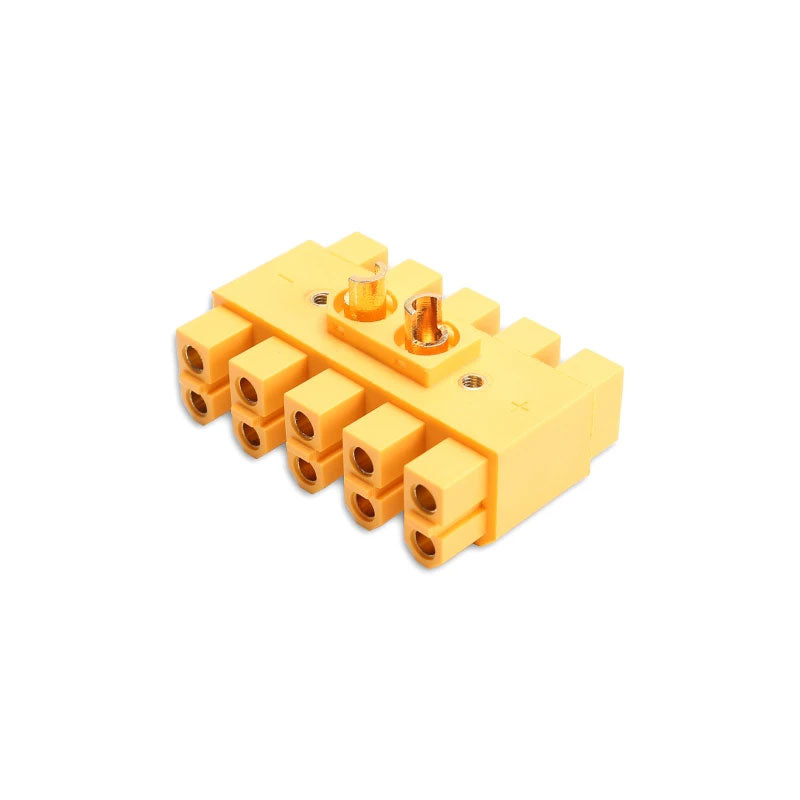

The housing features an integrated injection-molded design, while the internal positive and negative conductors are formed from solid copper with gold-plated contact surfaces. The module supports a continuous current of 150A and a peak current of up to 200A.

* Solid Copper Conductors: The positive and negative power distribution paths use solid, integrated copper construction.

* Gold-Plated Contacts: Gold-plated connector contact surfaces help provide reliable electrical connections.

* Integrated Housing: The injection-molded housing offers a clean, finished appearance.

* Integrated Protective Sleeve: The protective sleeve installs directly without requiring heat-shrink tubing, simplifying assembly.

* Separated Soldering Areas: Flat soldering pads and a partitioned protective sleeve help reduce the risk of short circuits and facilitate soldering.

* UL 94 V-0 Flame Rating: The housing material is specified as UL 94 V-0 flame-retardant.

* High Current Capacity: Supports 150A continuous current and up to 200A peak current.

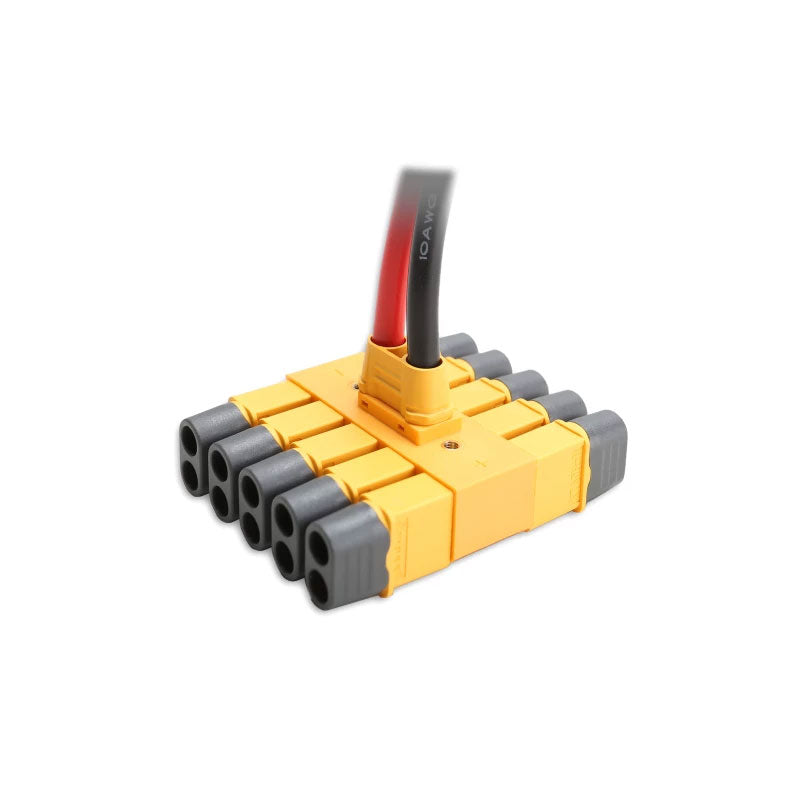

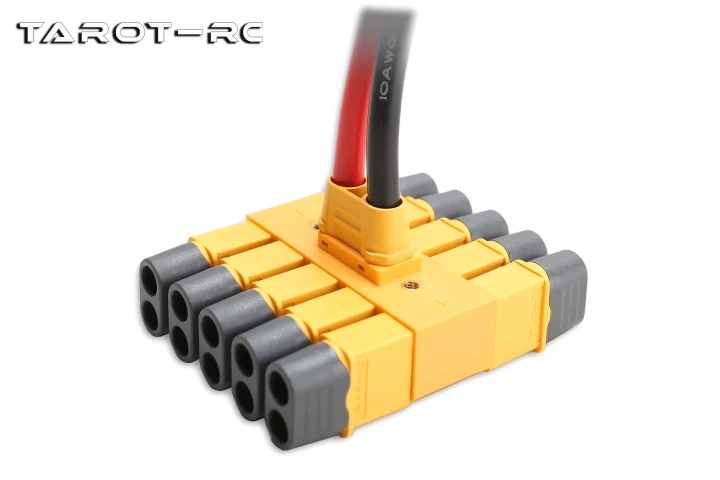

* Connector Compatibility: Compatible with XT60 and XT60H male connectors.

* Model: TL60-10H

* Product Type: Power Distribution Module

* Input/Output Configuration: 1 Input, 10 Outputs

* Continuous Current: 150A

* Peak Current: Up To 200A

* Conductor Material: Solid Copper

* Contact Finish: Gold-Plated

* Housing: Injection-Molded

* Flame Rating: UL 94 V-0

* Connector Compatibility: XT60/XT60H Male Connectors

* Module Weight: Approximately 50g

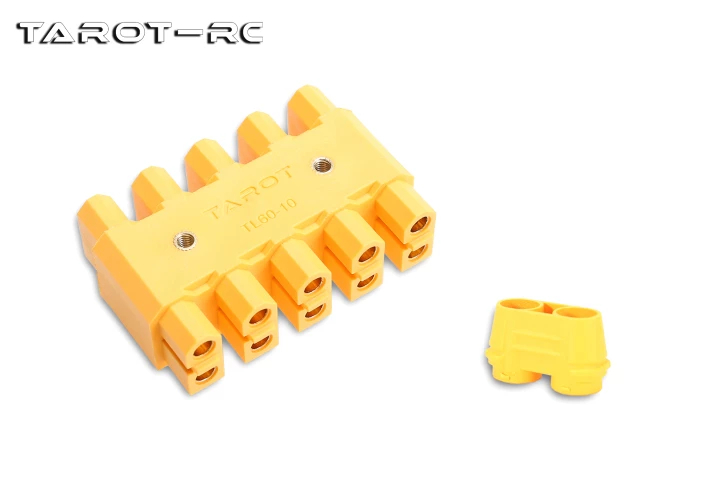

* TL60-10H Power Distribution Module x 1

* Series 90 Protective Sleeve x 1

* M3 x 5mm Round-Head Screws x 2

* Package weight: 0.15kg

* Due to the high thermal mass of the solid copper conductors, a 100W soldering iron is recommended for soldering the main power leads.

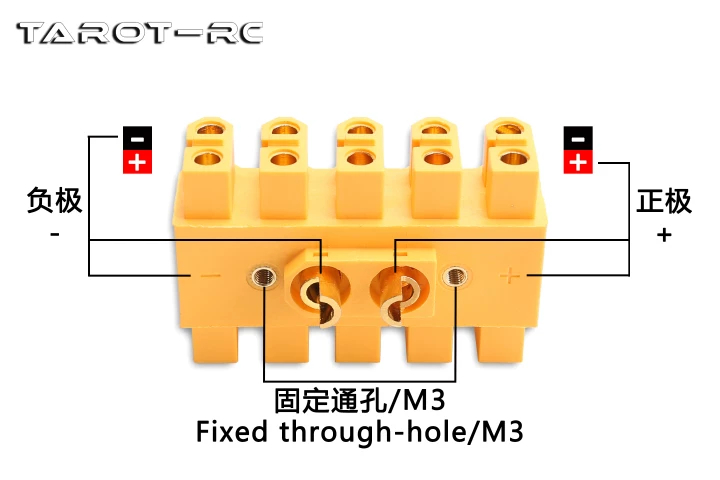

* Before powering on the module for the first time, independently verify the power input polarity and output voltage. Ensure that all electrical connections and output voltages are correct before connecting any downstream equipment. The company shall not be held responsible for any damage caused by improper connection or use of this product.
