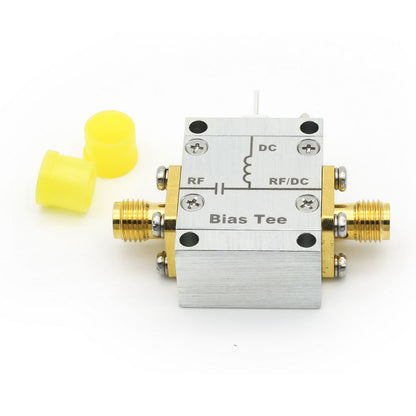

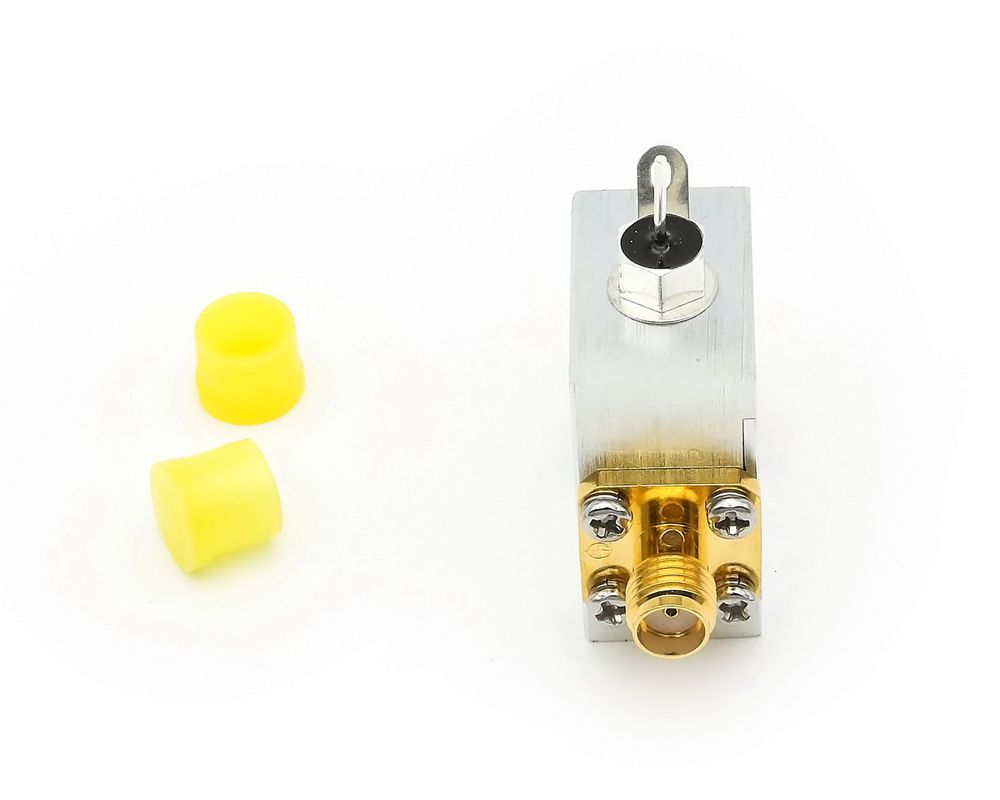

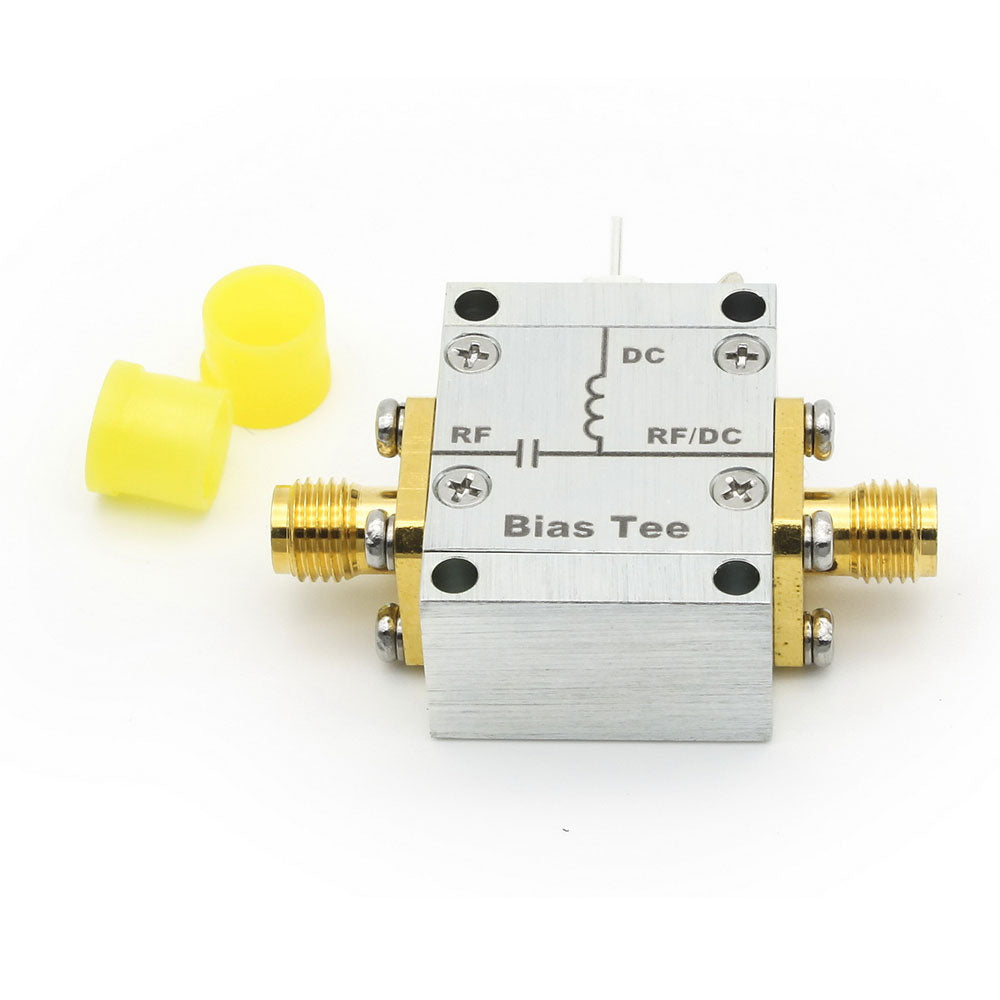

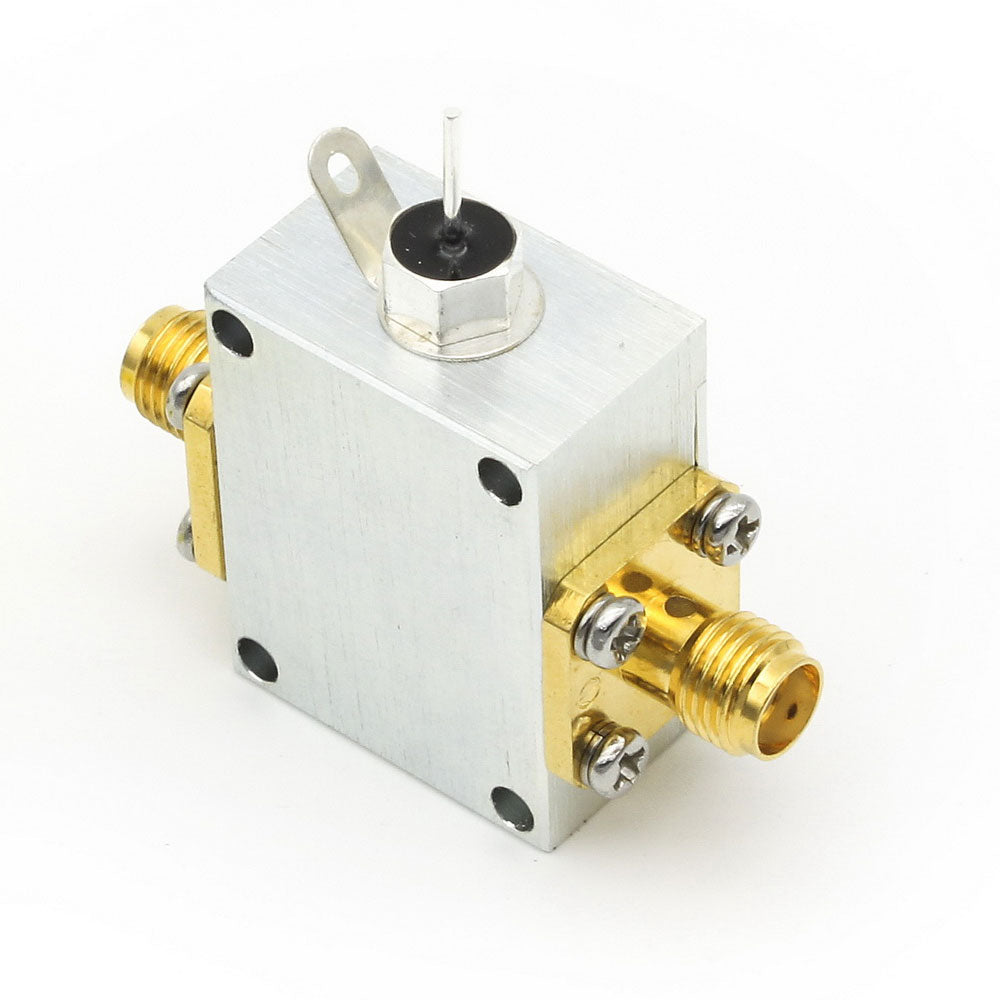

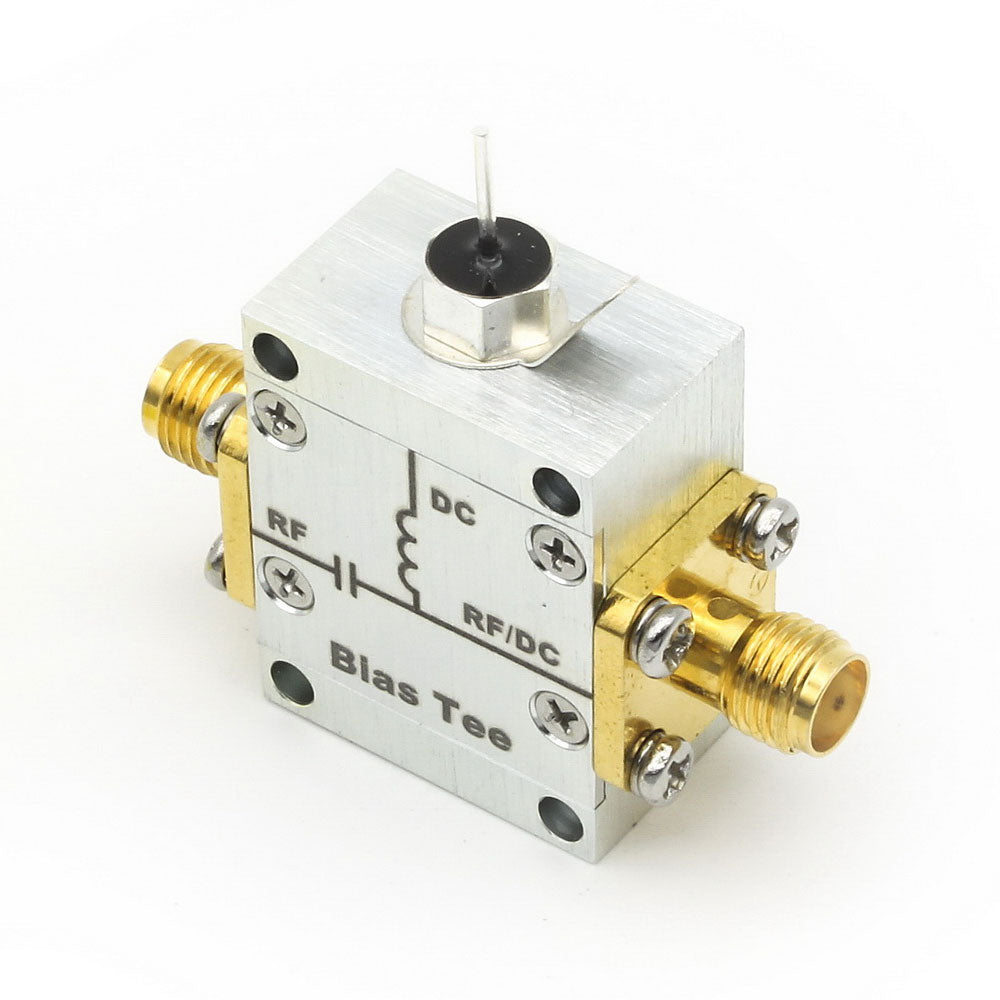

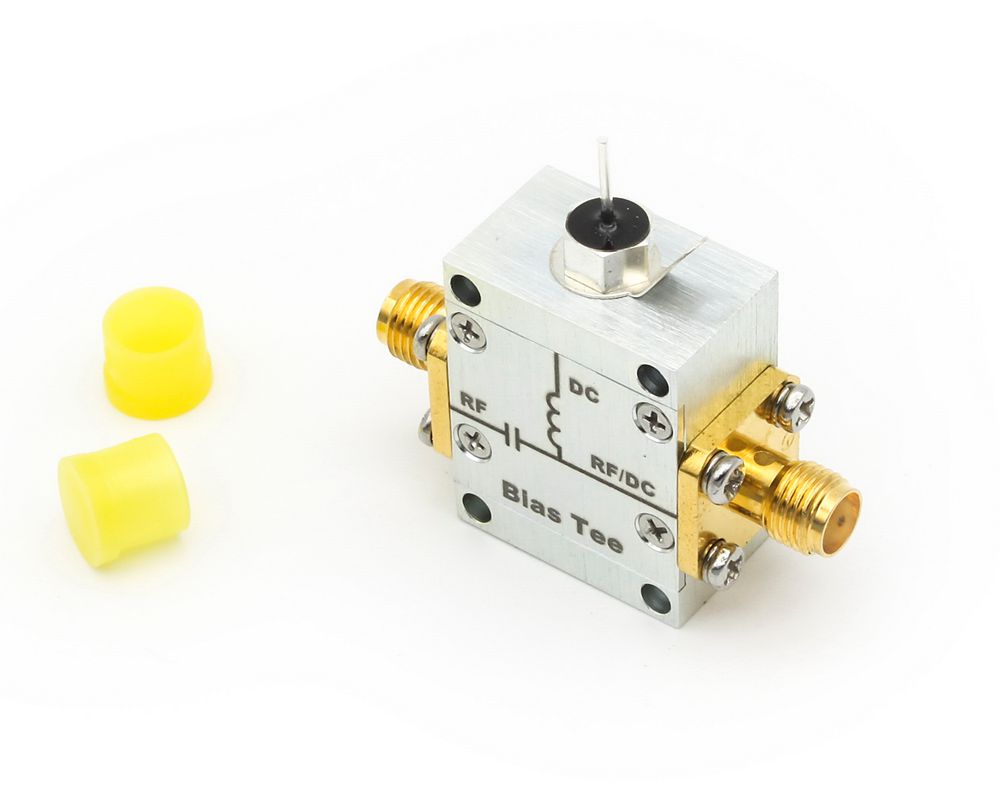

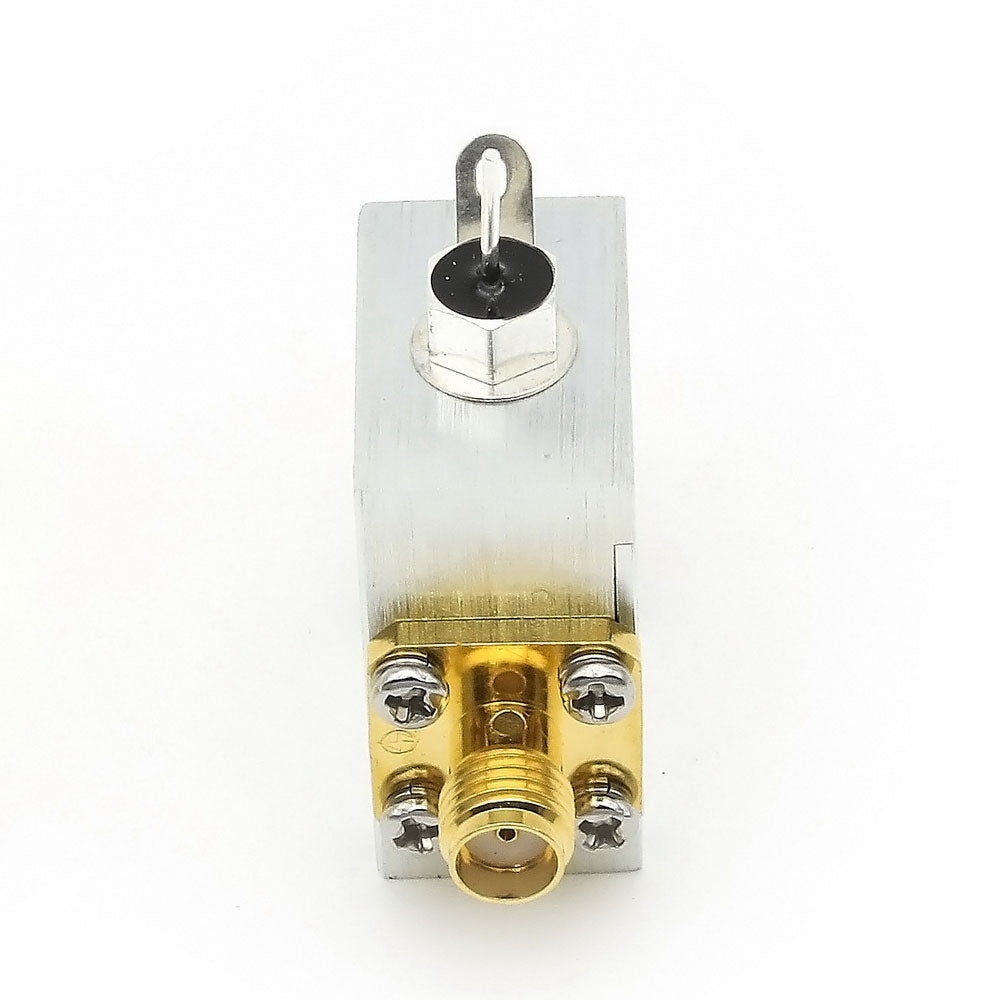

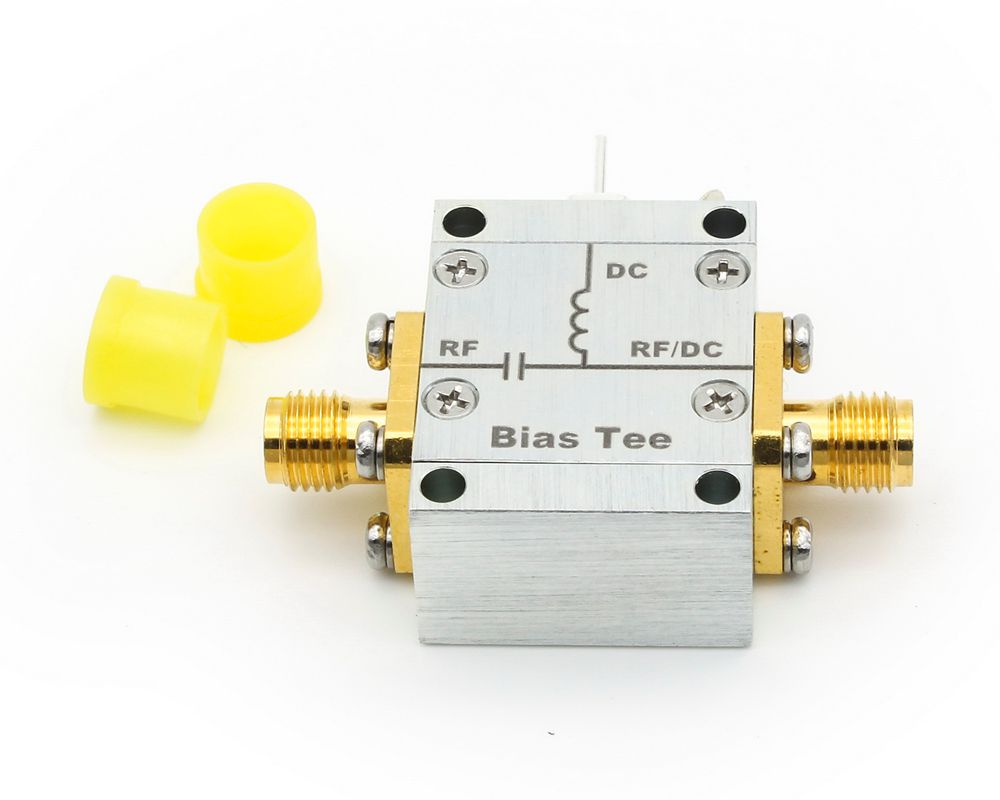

0.01-8GHz 50ohms DC Bias Tee RF Feedback High Current DC Block with SMA Female to Female Connector

0.01-8GHz 50ohms DC Bias Tee RF Feedback High Current DC Block with SMA Female to Female Connector

Specification:
- Impedance: 50ohms
- Frequency response: 0.01 - 8GHz
- Insertion loss: 1.2dB (max)
- SWR: <1.3
- Maximum DC block voltage: 50V
- Maximum RF power: 2W
- Current: 2A (max)
- RF-DC isolation: ≥30dB
- Temperature range: -40℃ to 80℃
- Connector: SMA female to female connector

Package Included:
- 1 x Bias Tee
