Dual-Lens 1MP HD Industrial Endoscope Camera Waterproof Oil-Resistant Pipe Probe + 3m Waterproof Cable

Optional Configurations:
* Camera Module (without Cable)
* Camera Module + 3m Waterproof Cable

Features:

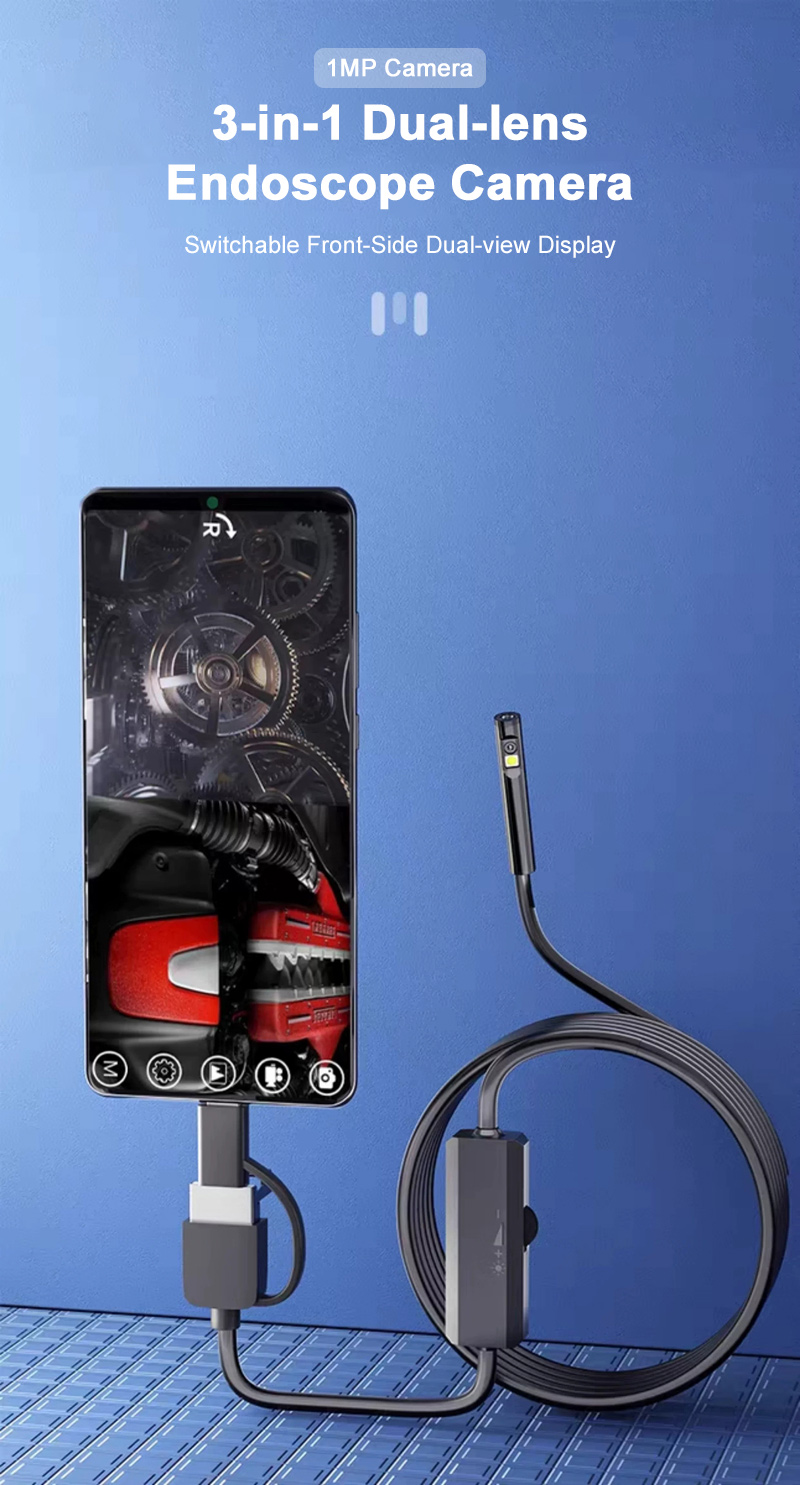

1MP Endoscope Camera
* Dual lens
* Switchable front-side dual-view display

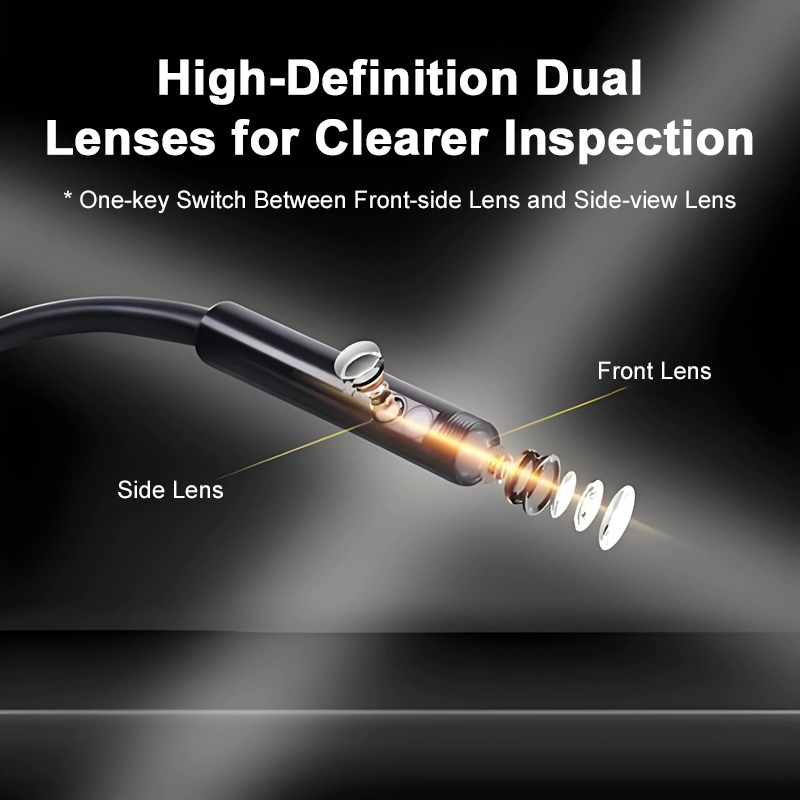

High-Definition Dual Lenses for Clearer Inspection
* One-key switch between front-side lens and side-view lens

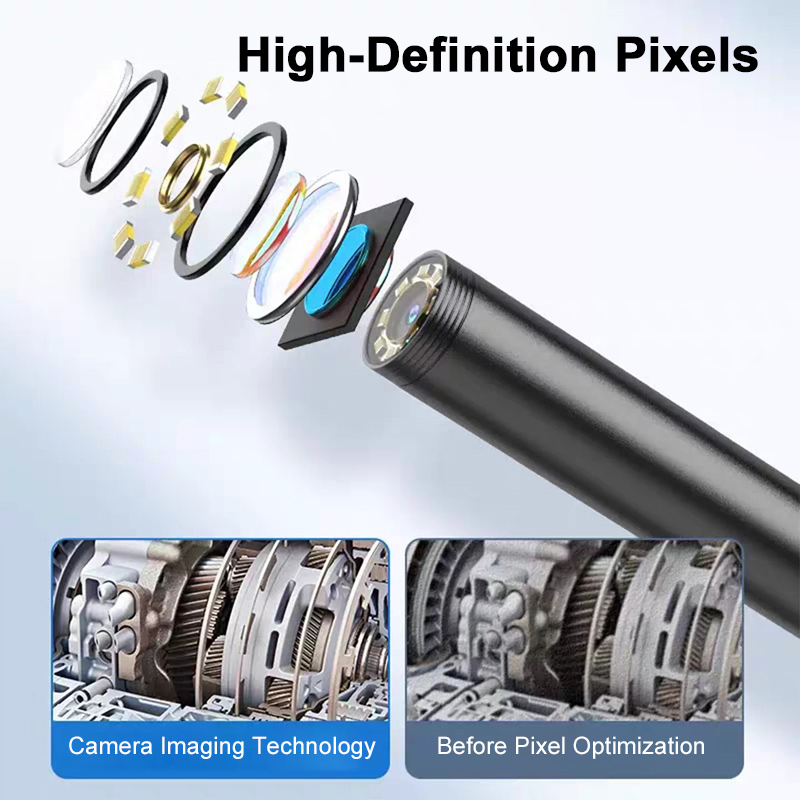

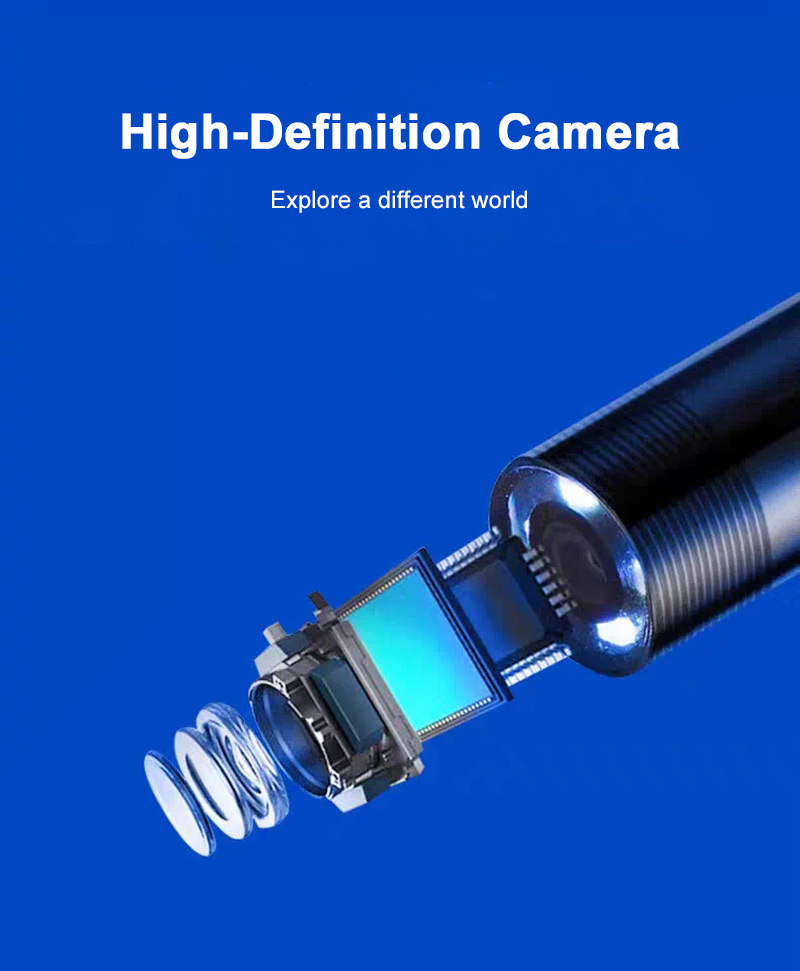

High-Definition Camera
* Explore a different world

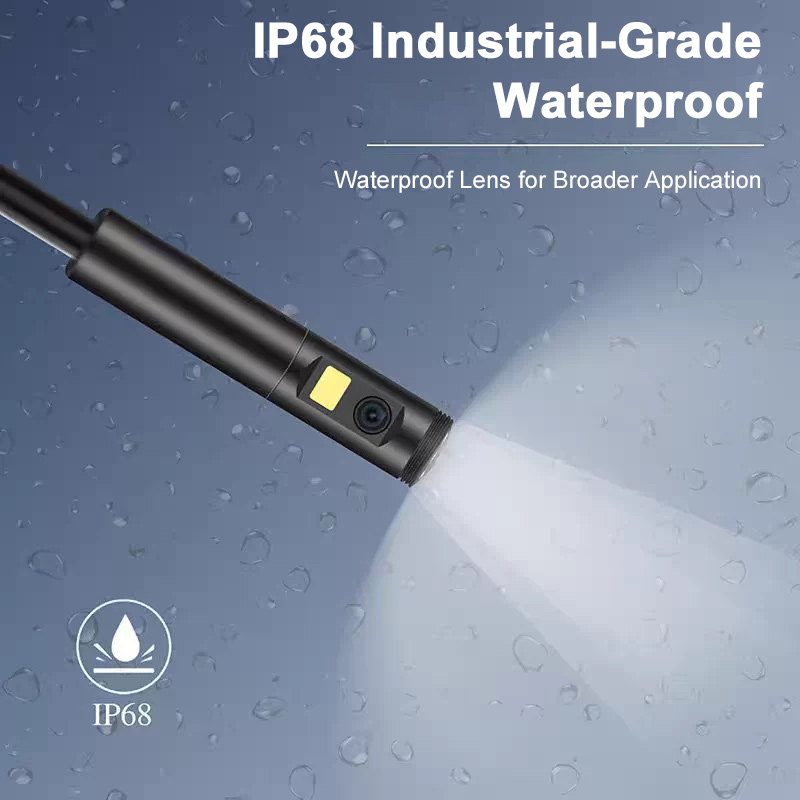

IP68 Industrial-Grade Waterproof
* Waterproof lens for broader application

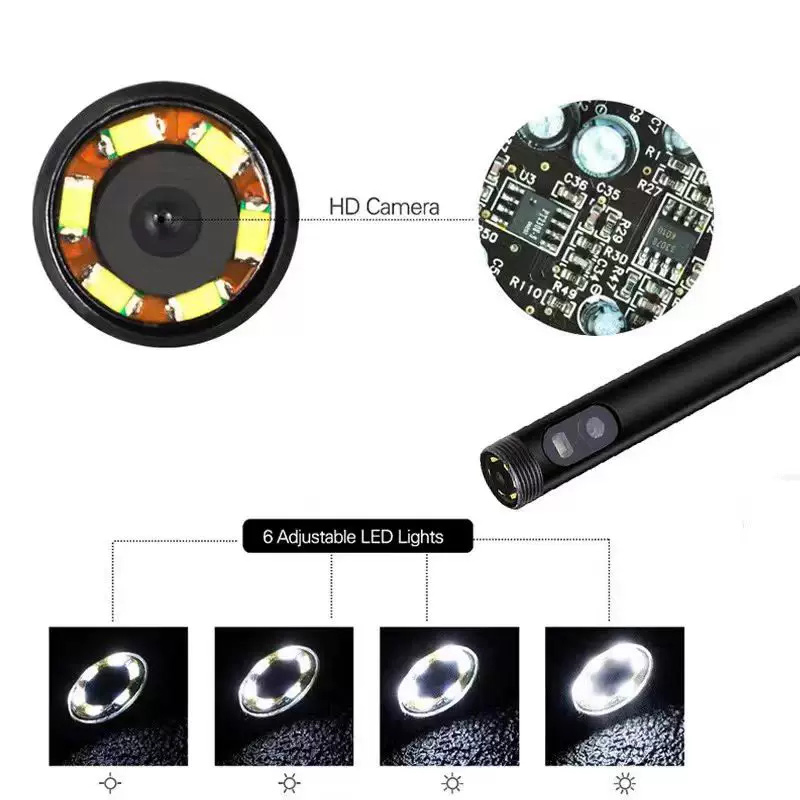

Adjustable Brightness
* Adjust brightness and it can deliver clear view even in dark environments.

Wide-range Applications for Fine Observation
* Suitable for inspecting various locations that cannot be directly observed by naked eyes. Its output video signal can be conveniently displayed.

Product Parameters:

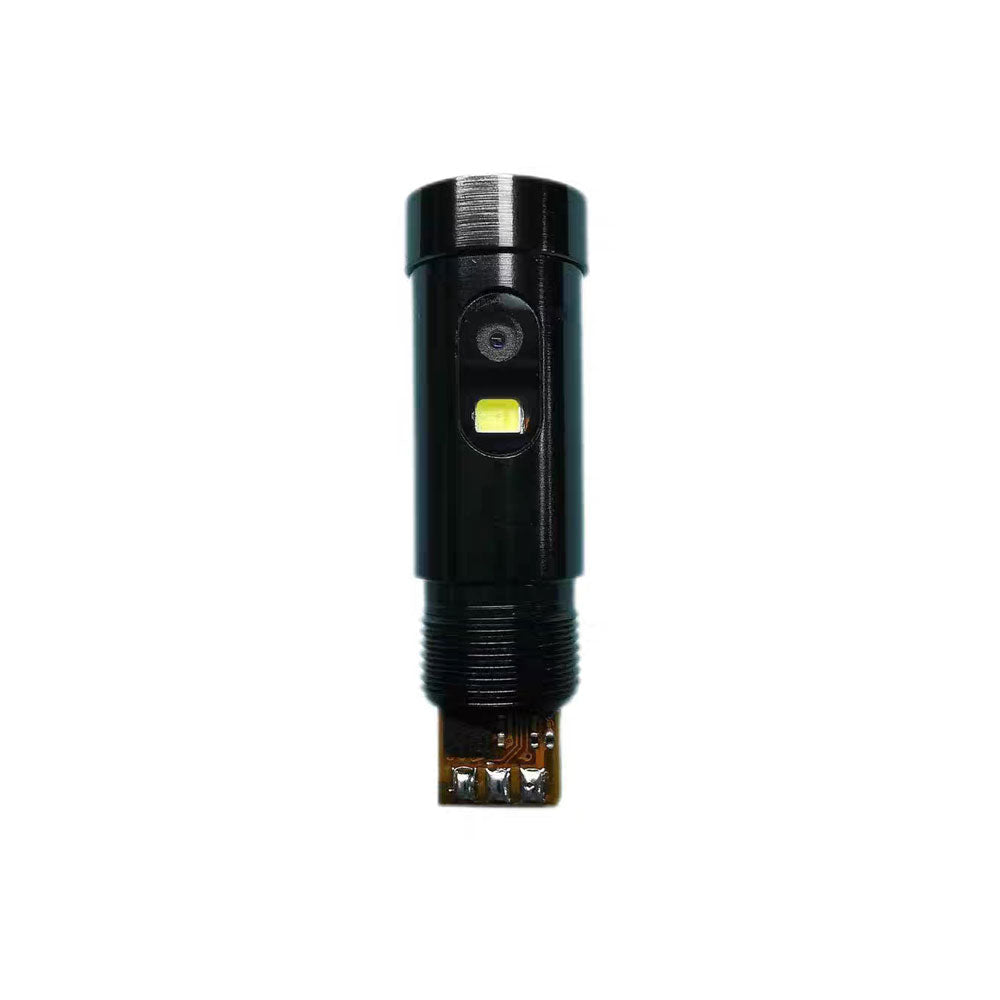

* Item Name: USB2.0 3-in-1 Endoscope Camera Module
* Sensor: 1/9" COMS Sensor
* Resolution:
   • Main/Sub Camera: 1280 (H) x 720 (V)
   • Dual-lens lit simultaneously (480P), Main/Sub Camera lit individually (720P). Main/Sub Camera can be switched by key button.
* Pixel Size: 1.4μm x 1.4μm
* Lens Angle 1: 88°
* Lens Size: 8mm
* Max Video Frame Rate: 15fps at 720p
* Lens Angle 2: 76°
* F-number: 2.8
* Dynamic Range: 68.4dB
* Max SNR: 36.4dB
* Auto Exposure Control/Auto Gain Control/White Balance: Supported
* Focus Distance:
   • Main camera: 3cm-9cm, Shooting range at 3cm: 2.5 x 4.7cm;
   • Sub-camera: 2cm-6cm, Shooting range at 2cm: 2 x 3.6cm
* Interface/Wiring: USB2.0 3-in-1 cable

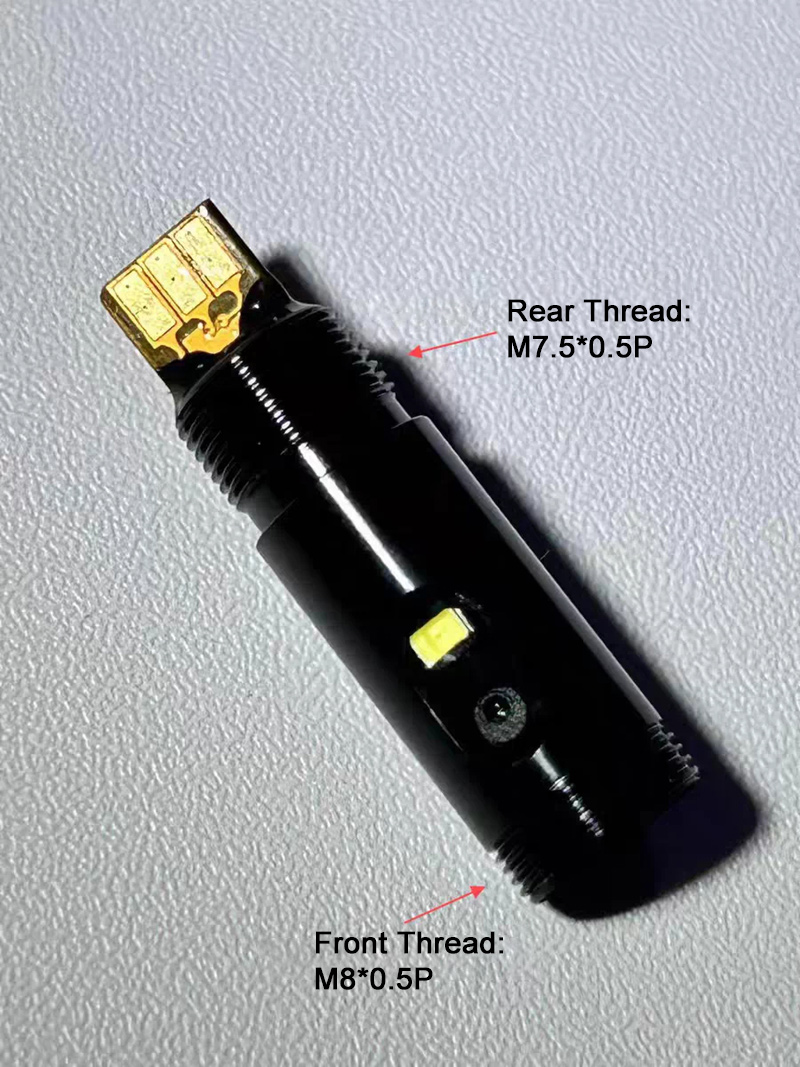

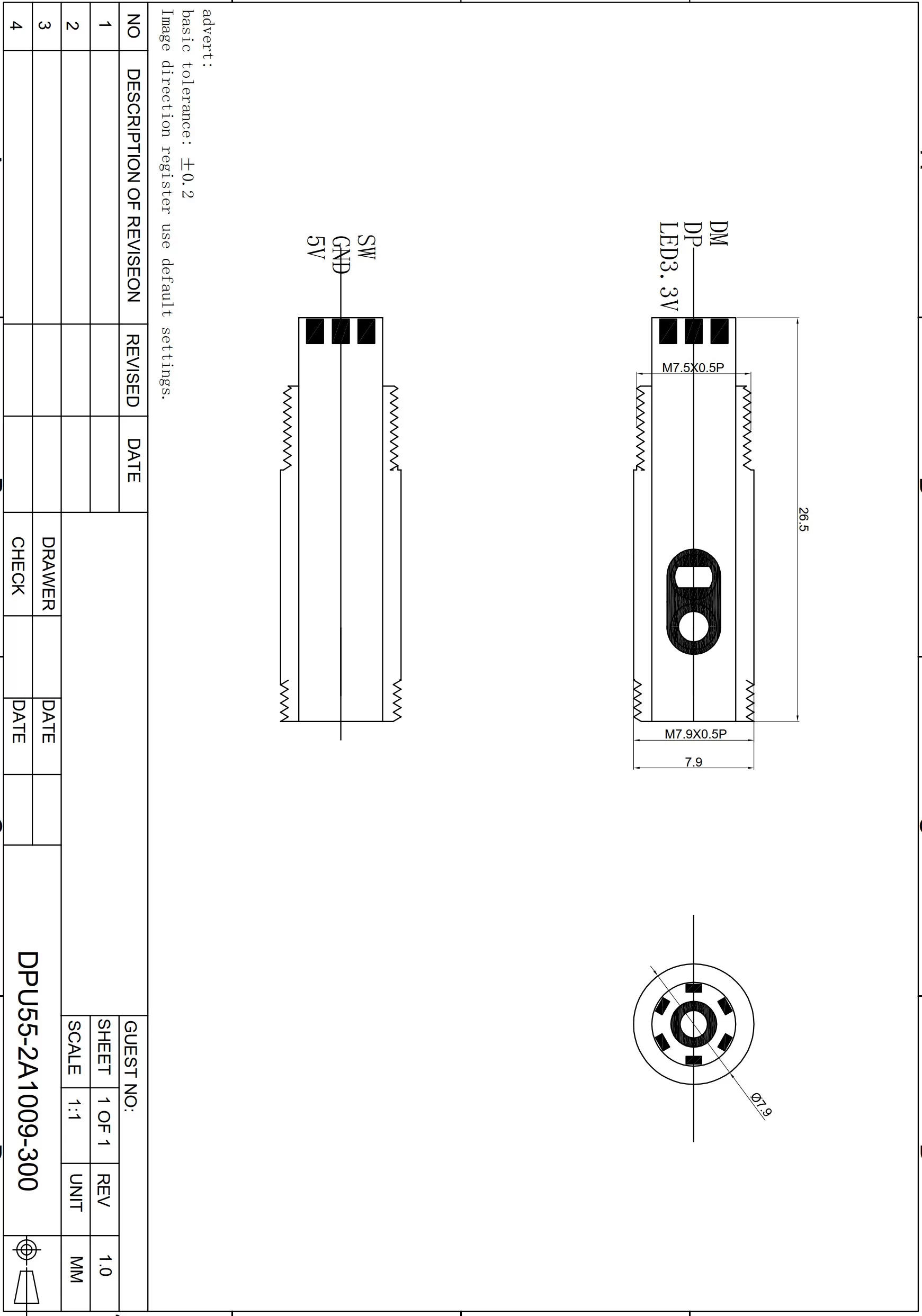

* Dimensions (L x W x H): 26.5mm x φ7.9mm
* Operating Temperature: 0°C-50°C
* Supported System: Windows XP, Windows 7, Android
* ADC Accuracy: 10-bit
* LED: 6+1pcs White SMD Chip LED, 6000-7000K
* Temperature Range: -30°C to 85°C
* Power Supply: 2.6-3.0V
* Operating Voltage: AVDD2.8 DVDD1.2V
* I/O: IOVDD1.7-3.0
* Power Consumption: 110-160mA
* Function & Application: Pipeline inspection, automobile maintenance and macro shooting

Packing List (Depending on Selected Configuration):

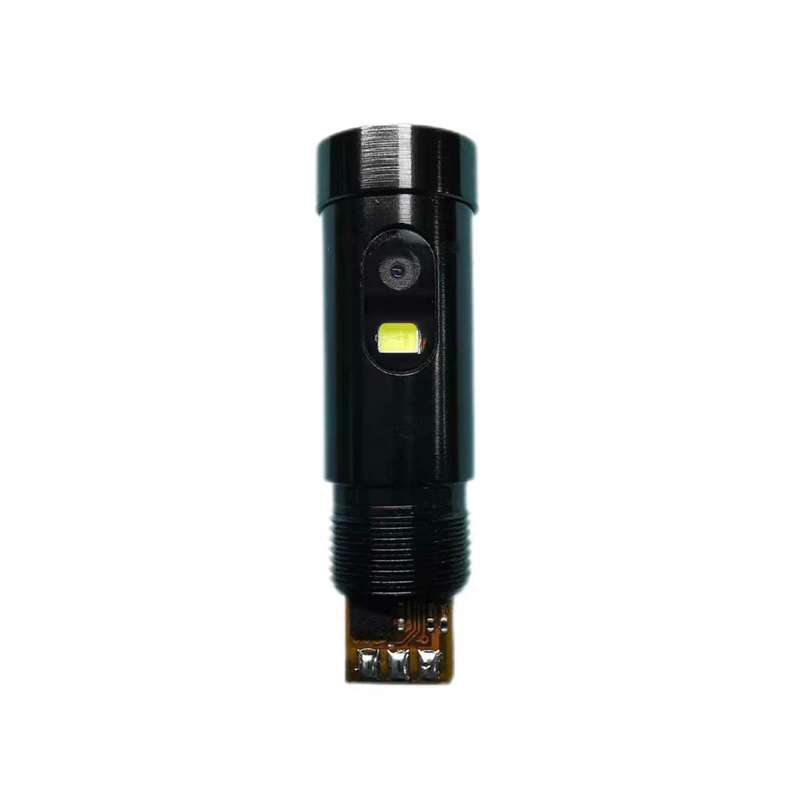

Camera Module (without Cable):
* 1 x Camera Module

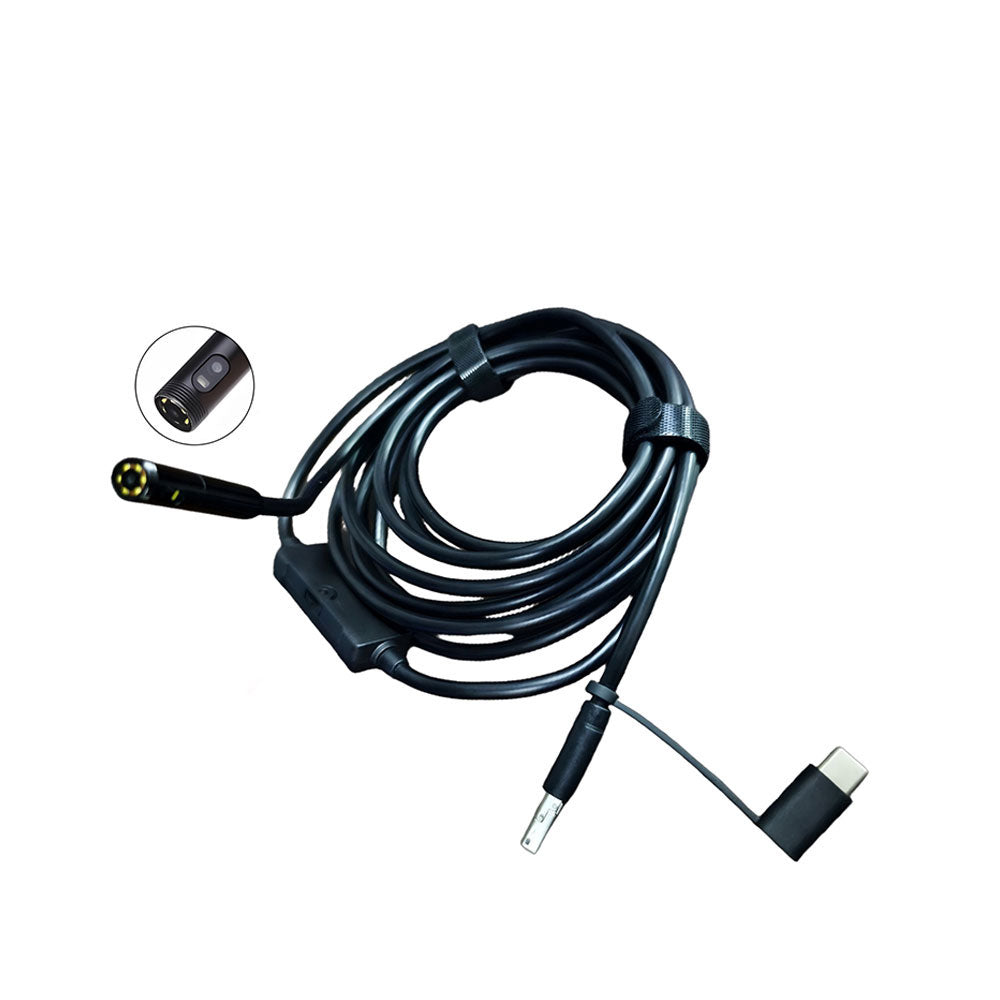

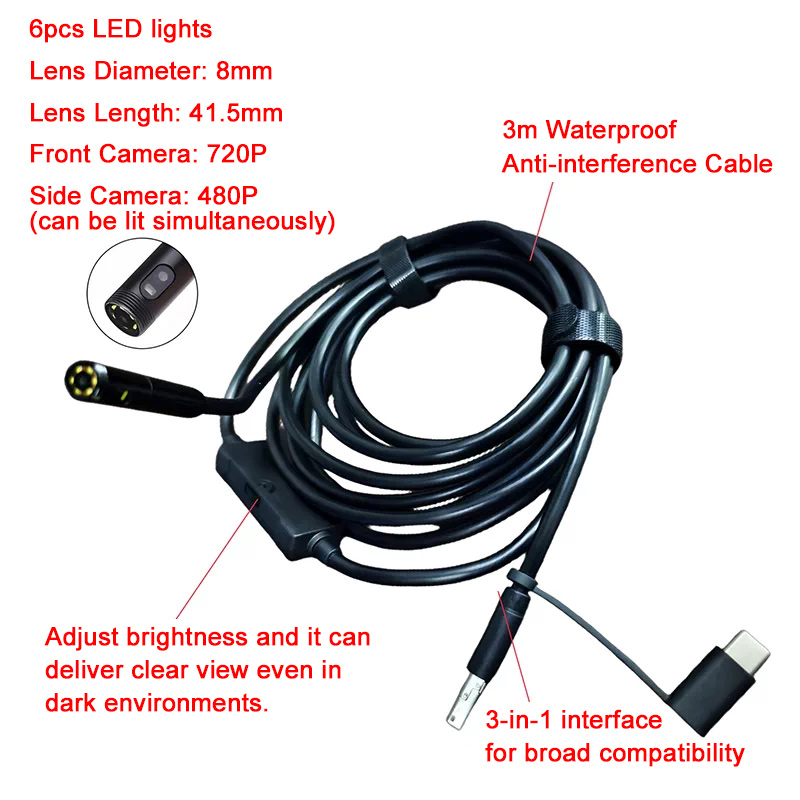

Camera Module + 3m Waterproof Cable:
* 1 x Camera Module + Cable

Packaging Details:
* Package weight: 0.15kg
