10MHz - 3GHz 1W 50ohm Active RF Antenna Switch Low Insertion Loss DC Feed RF Switch for GPS/Beidou

10MHz - 3GHz 1W 50ohm Active RF Antenna Switch Low Insertion Loss DC Feed RF Switch for GPS/Beidou

Test Example:
- https://pan.baidu.com/s/1mAxhJjwebOfU_vT9JNg6yw
- Passwords: WYDZ

Specification:
- Input output impedance: 50ohm
- High isolation: 60dB (typical value)
- Low insertion loss: 1.0dB (typical value)
- RF signal power: 1W

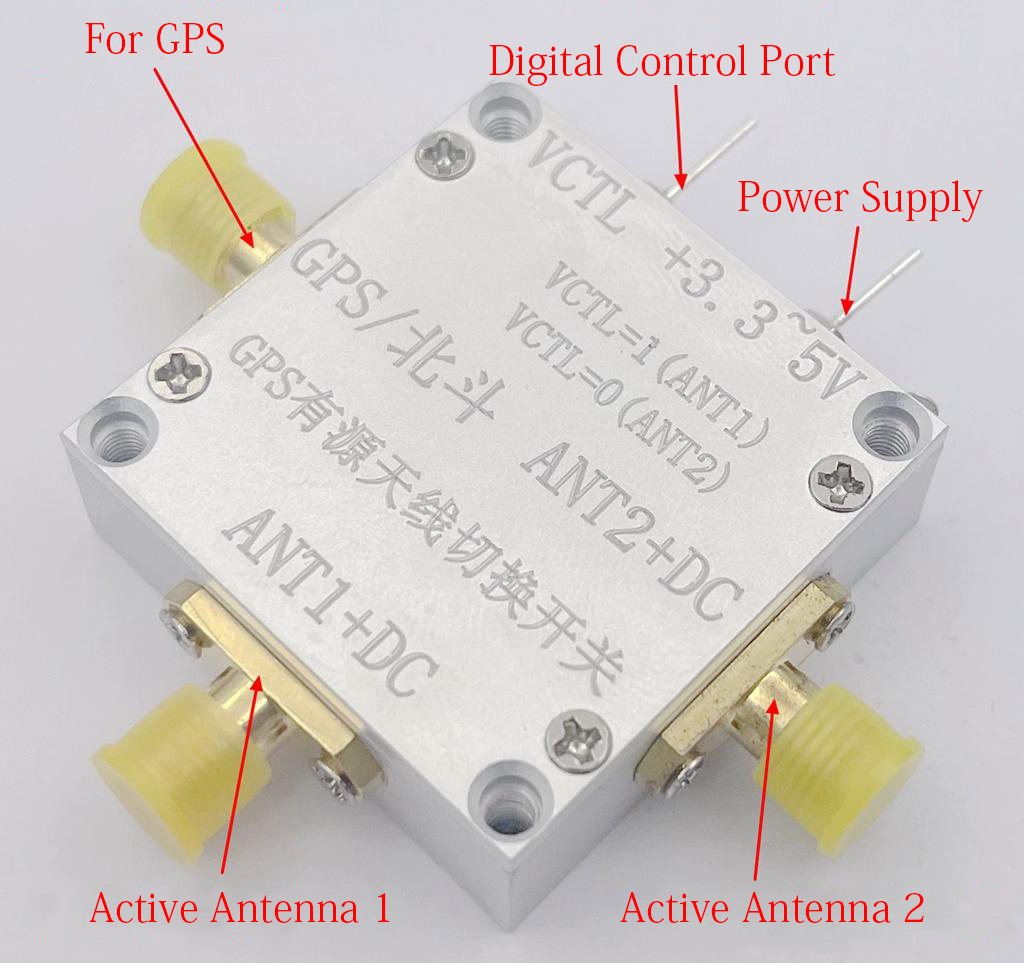

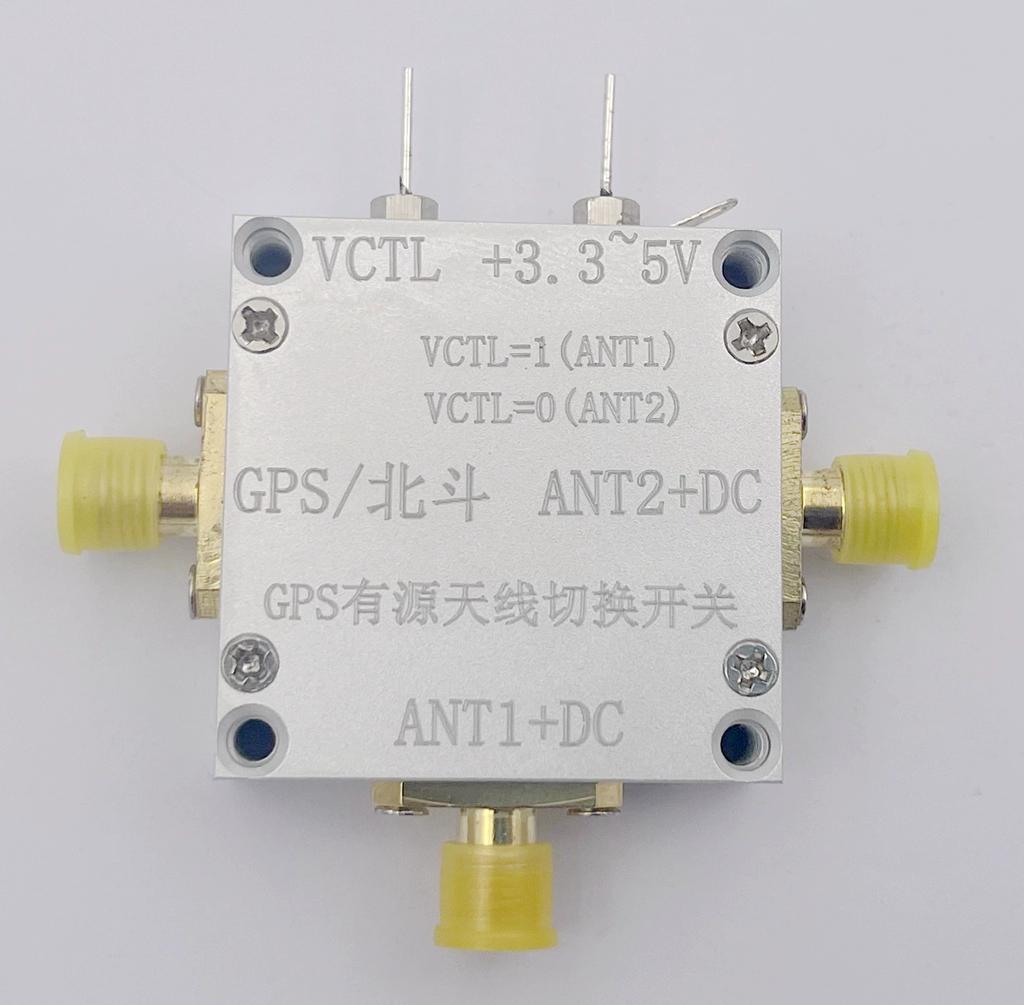

- Port definition:
  Power supply: 3.3 V to 5 V
  VCTL: 3.3 V or 5 V
  GPS/Beidou: RF signal + DC (available from 3V to 12V)
  ANT1 + DC: Connected to the active antenna, including DC feed (available from 3V to 12V)
  ANT2 + DC: Connected to the active antenna, including DC feed (available from 3V to 12V)

Package Included:
- 1 x RF Switch
