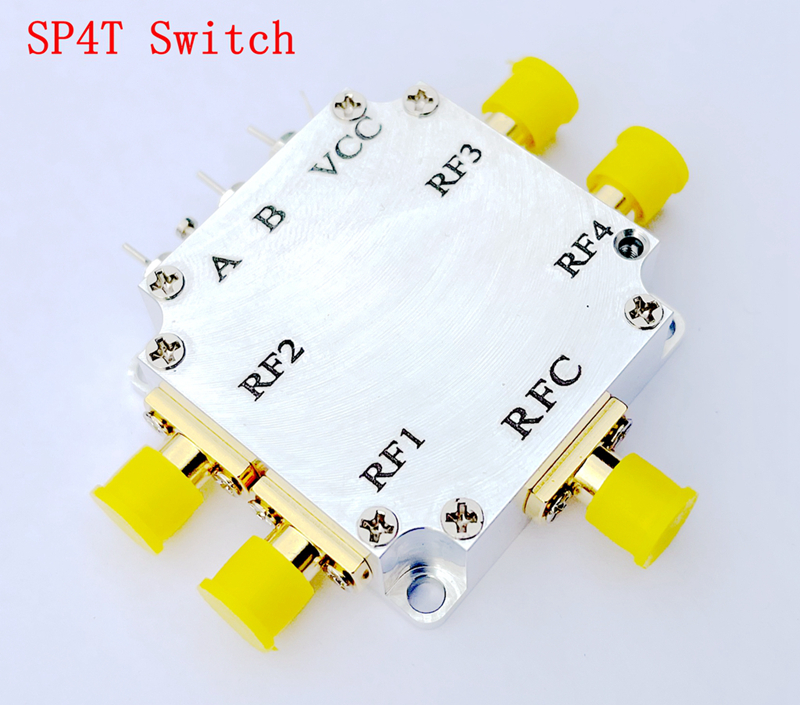

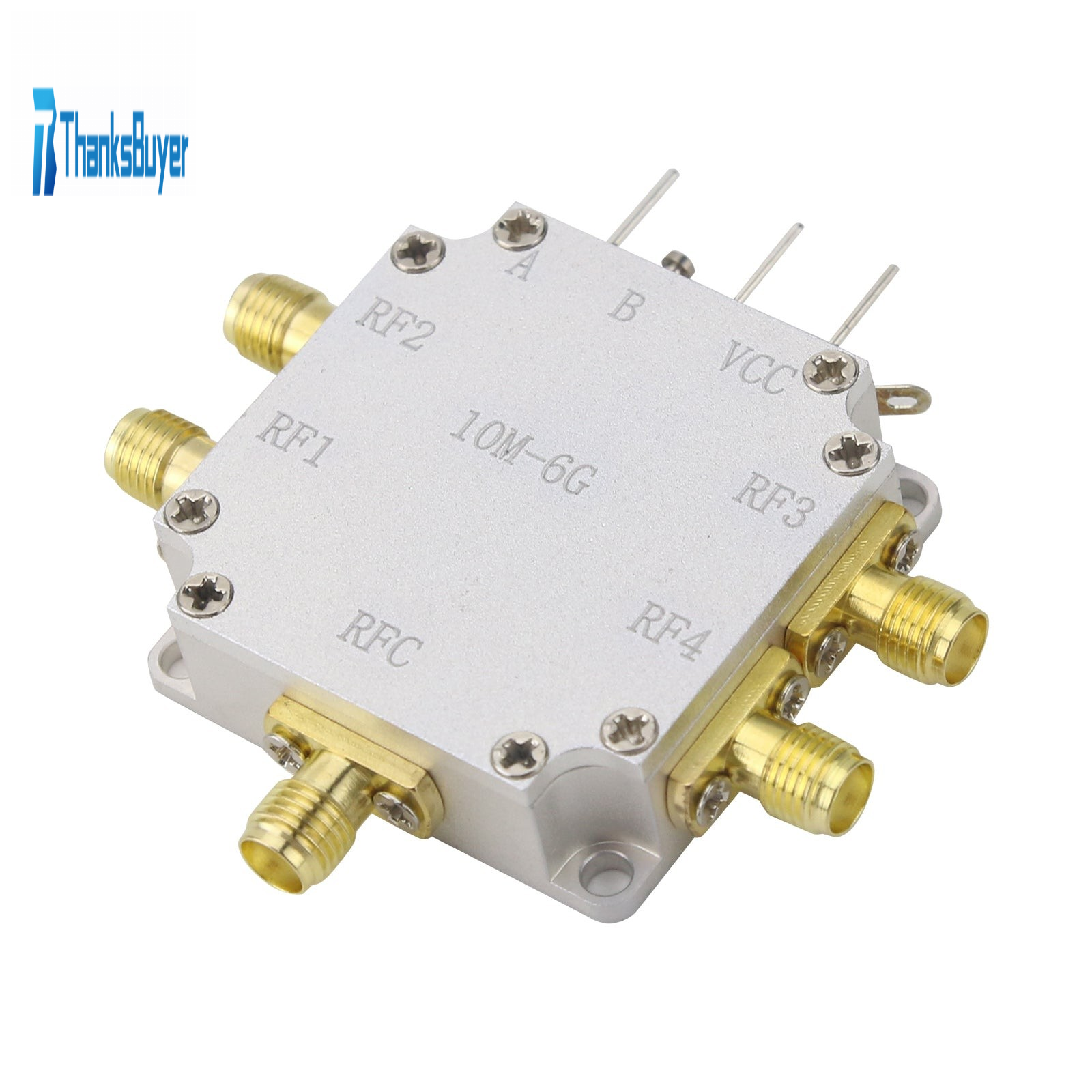

10MHz-6GHz SP4T Switch Electronic RF Switch with Shell Small Size High Isolation Low Insertion Loss
Verfügbarkeit für Abholungen konnte nicht geladen werden
10MHz-6GHz SP4T Switch Electronic RF Switch with Shell Small Size High Isolation Low Insertion Loss
Features:
1. Non-reflective 50Ω design
2. High isolation: 45dB (typical value at 2GHz)
3. Low insertion loss: 0.6dB (at 2GHz)
4. High power processing: 33dBm (through path); 27dBm (terminated path)
5. High linearity: 1dB compression (P1dB): 35dBm (typical)
6. Input third-order intercept point (IIP3): 58 dBm (typical)
7. Module size: 38 x 38mm/1.5 x 1.5"
8. Module weight: within 100G/0.2Lb

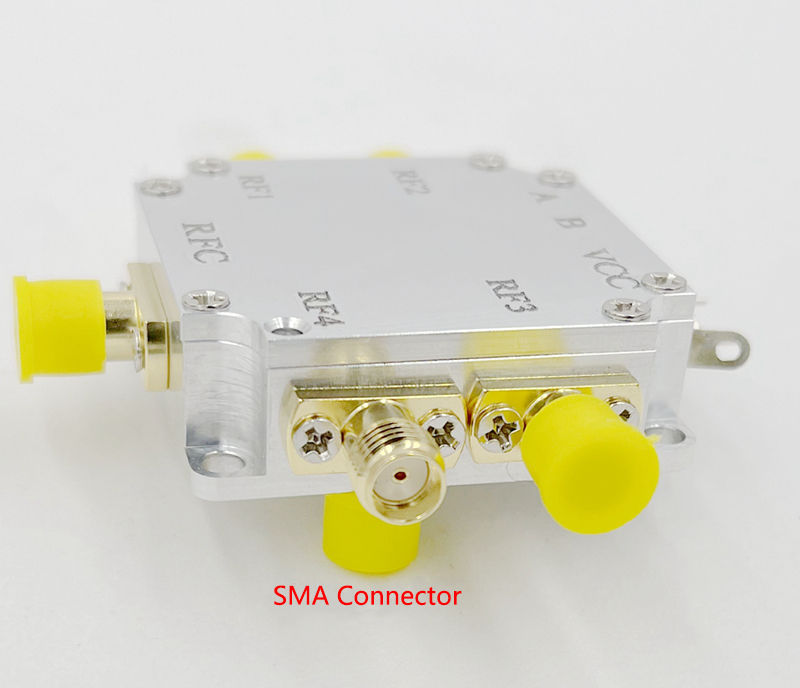

9. Interface SMA (female)

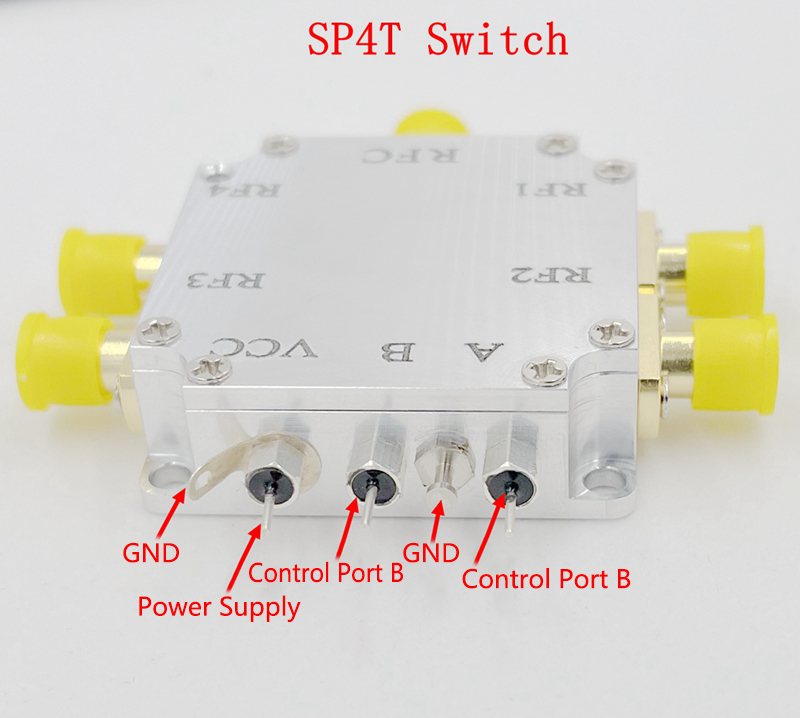

10. Control interface and power supply interface: feed-through capacitor (can be welded);
11. Shell: CNC aluminum alloy shell fully shielded
Application:
1. Base stations and portable wireless systems
2. CATV/DBS
3. Wireless local loop
4. Test Equipment
Package Included:
- 1 x SP4T Switch
Circuit Introduction:
1. Voltage of power supply: 3V-5V
2. Frequency: 0.1-6GHZ

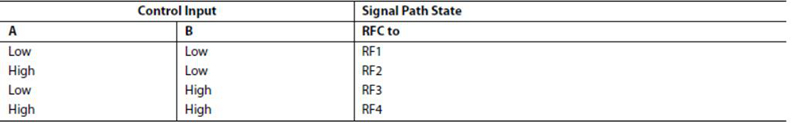

3. Control signal description (as pictured):
