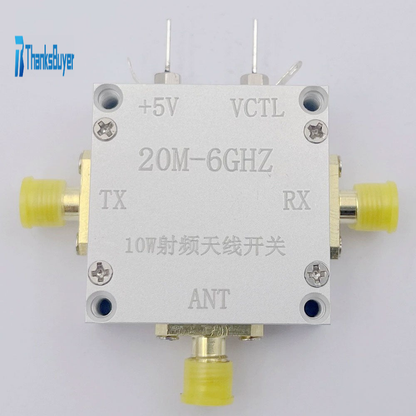

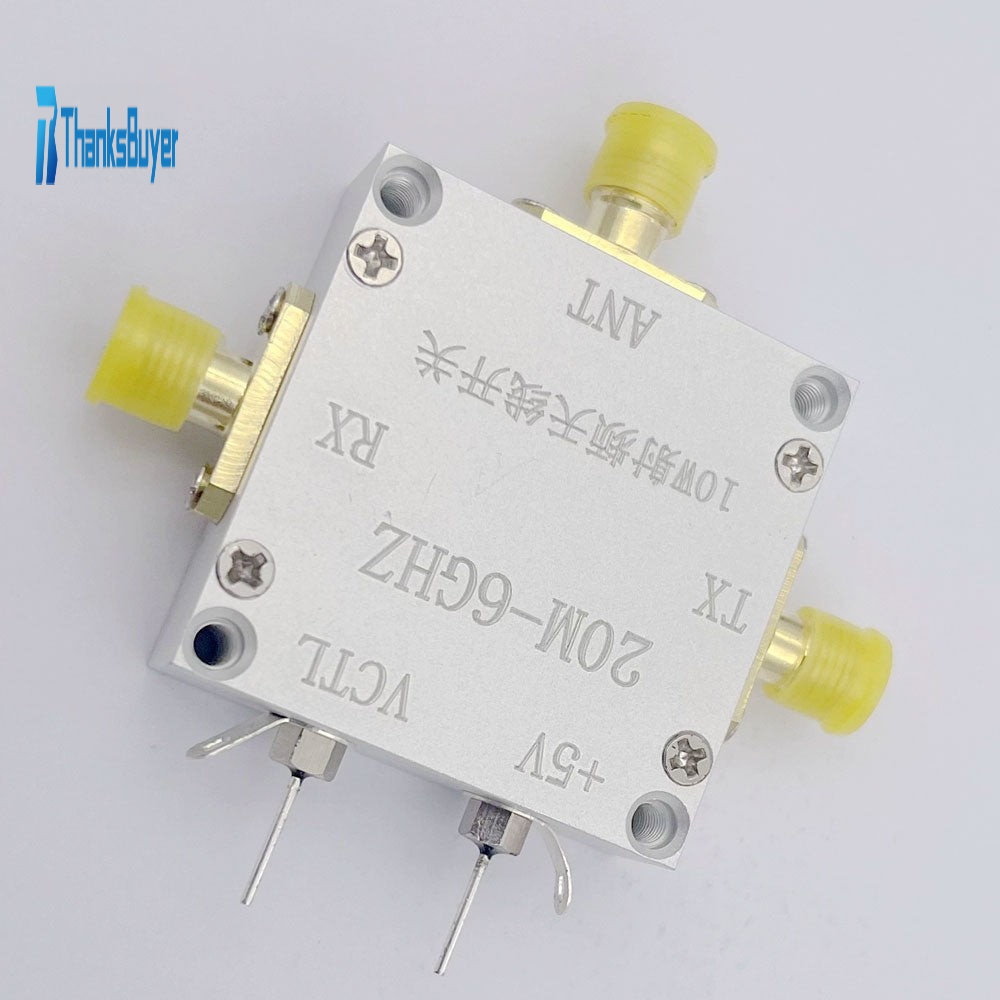

20MHz - 6GHz 10W 40dBm High Power RF Antenna Switch with SMA Female Connector for Transceiver System
Specification:
- Input and output impedance: 50ohm
- High isolation degree: 60dB (typical value)
- Low insertion loss: 0.8dB (typical value)
- High power process: 40dBm - 10W (constant power); 50dBm - 10W (pulse power)
- Single positive power supply:
Power supply: 3.3V - 5V
VCTL: 3.3V or 1.8V
Internal Switch Principle:
Package Included:
- 1 x RF Antenna Switch
Actual Measurement S21 Parameter:
- Insertion loss measurement:
- Isolation degree measurement:
