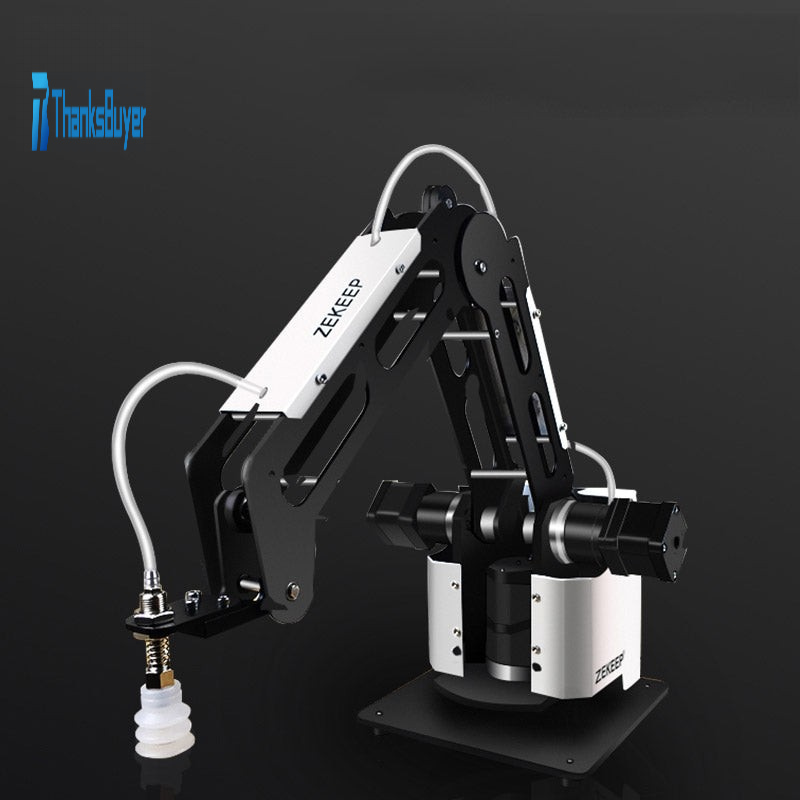

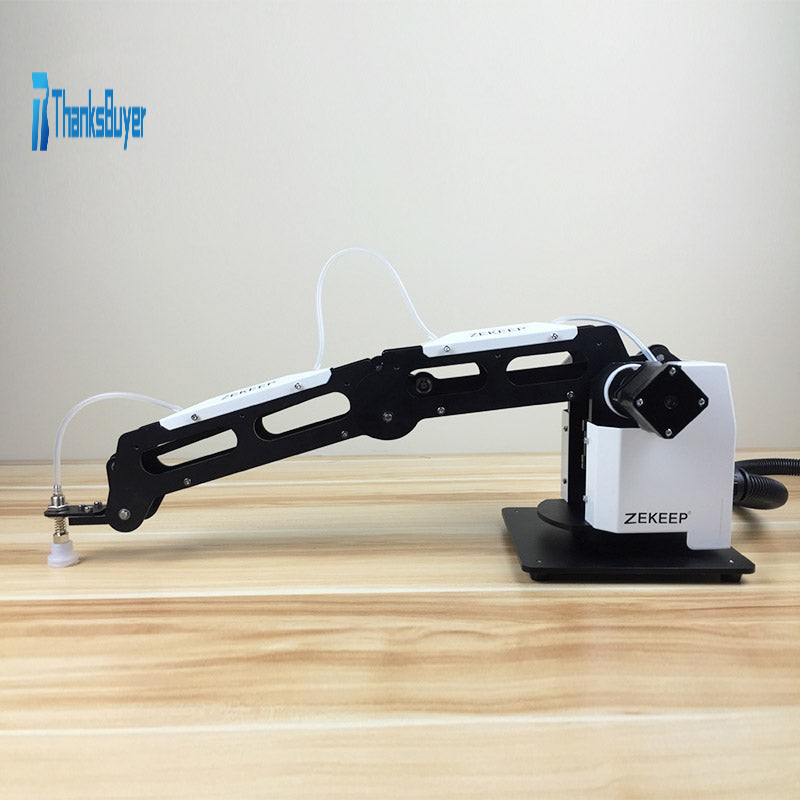

3-Axis Air Pump Mechanical Robot Arm Set Industrial Manipulator with Online PLC Controller Scale

3-Axis Air Pump Mechanical Robot Arm Set Industrial Manipulator with Online PLC Controller Scale

Working Parameters:
Number of axis: 3

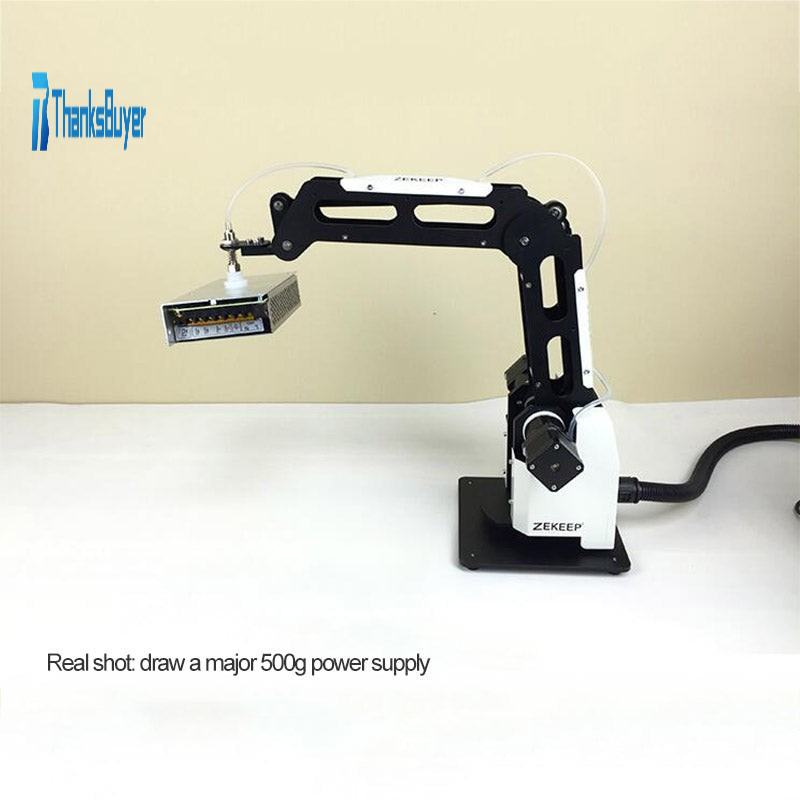

Load: 0.5kg
Maximum working diameter of mechanical arm (including end tray): Φ460mm
Power supply voltage: 220V, 50HZ
Power input: 24V / 8A
Power: 150W MAX
Operating temperature: -10 to +60℃
Product model: ZK-bot301

Axis Motion Parameters:
X axis base working range: ±160 degrees
Y-axis big arm working range: 0 to +120 degrees
Z axis small arm working range: -70 degrees to +10 degrees

Machine Physics:
Base size: length 180mm * width 180mm
Body material: 6061 aluminum alloy, anodized
Control box size: length 260mm * width 160 * height 80mm
Packing specification: length 490mm * width 320mm * height 380mm

Stepper Motor Parameters:
Holding torque: 0.4N*M
Rated voltage: 24V
Rated current: 1.7A
Step angle: 1.8°
Number of phases: 2

Planetary Reducer Parameters:
Reduction ratio: 1:10
Maximum output torque: 5N*M
Backlash: less than 15 arc minutes
Rated input speed: 3000

Package List:
-3 Set of Air Pump Mechanical Arms
-1 x Online PLC Controller
-1 x Electronic Scale
-1 x Adjustable Speed Production Line (1 meter)
