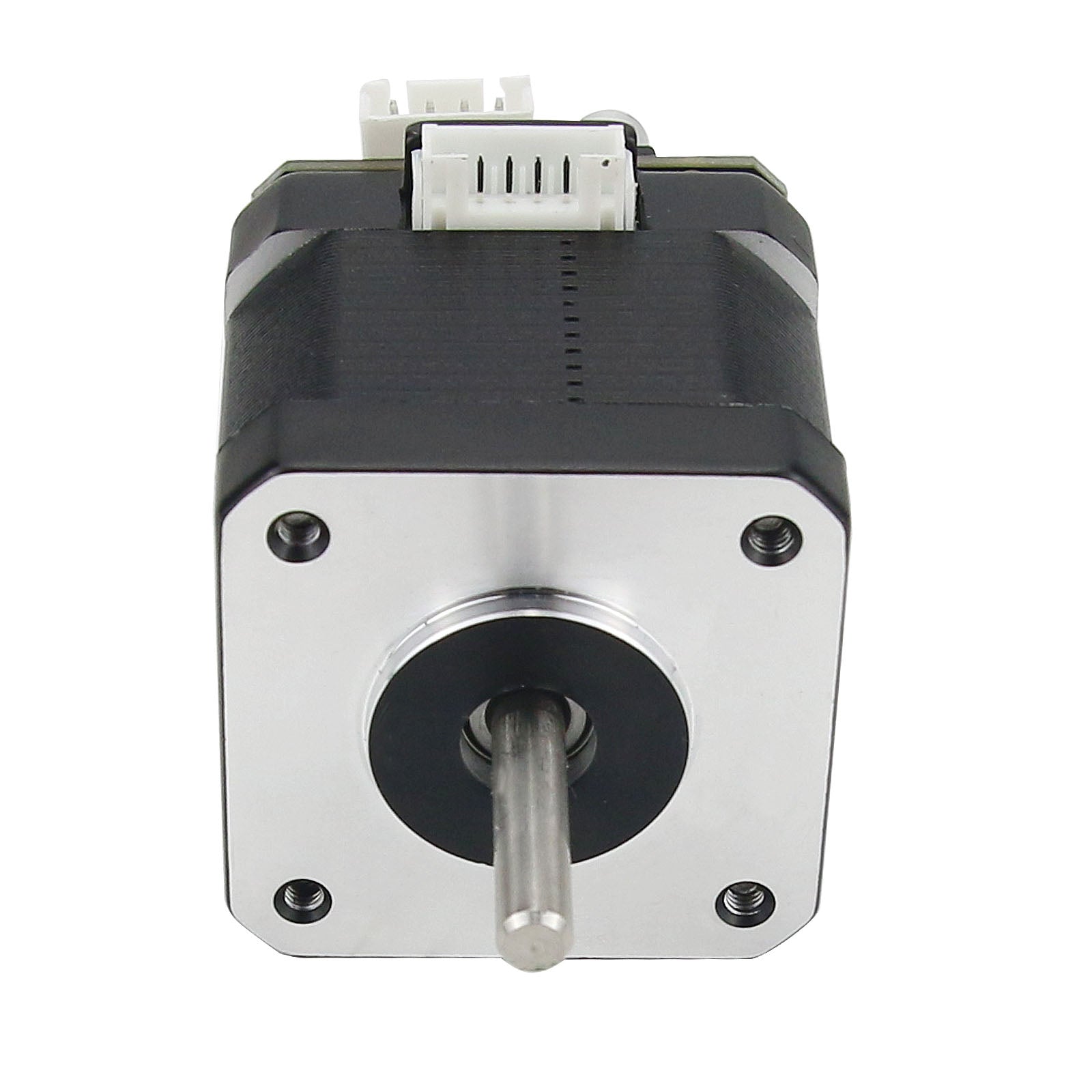

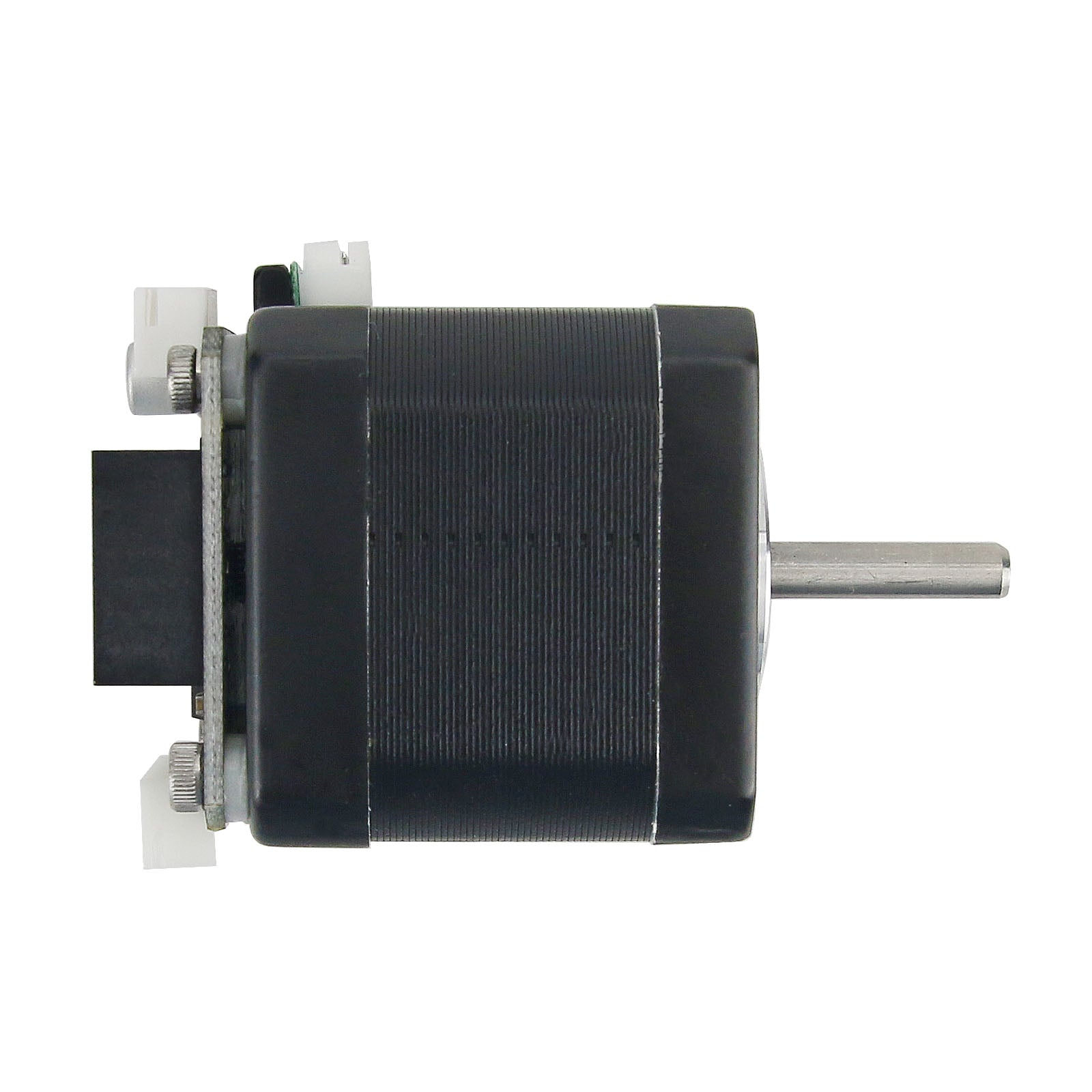

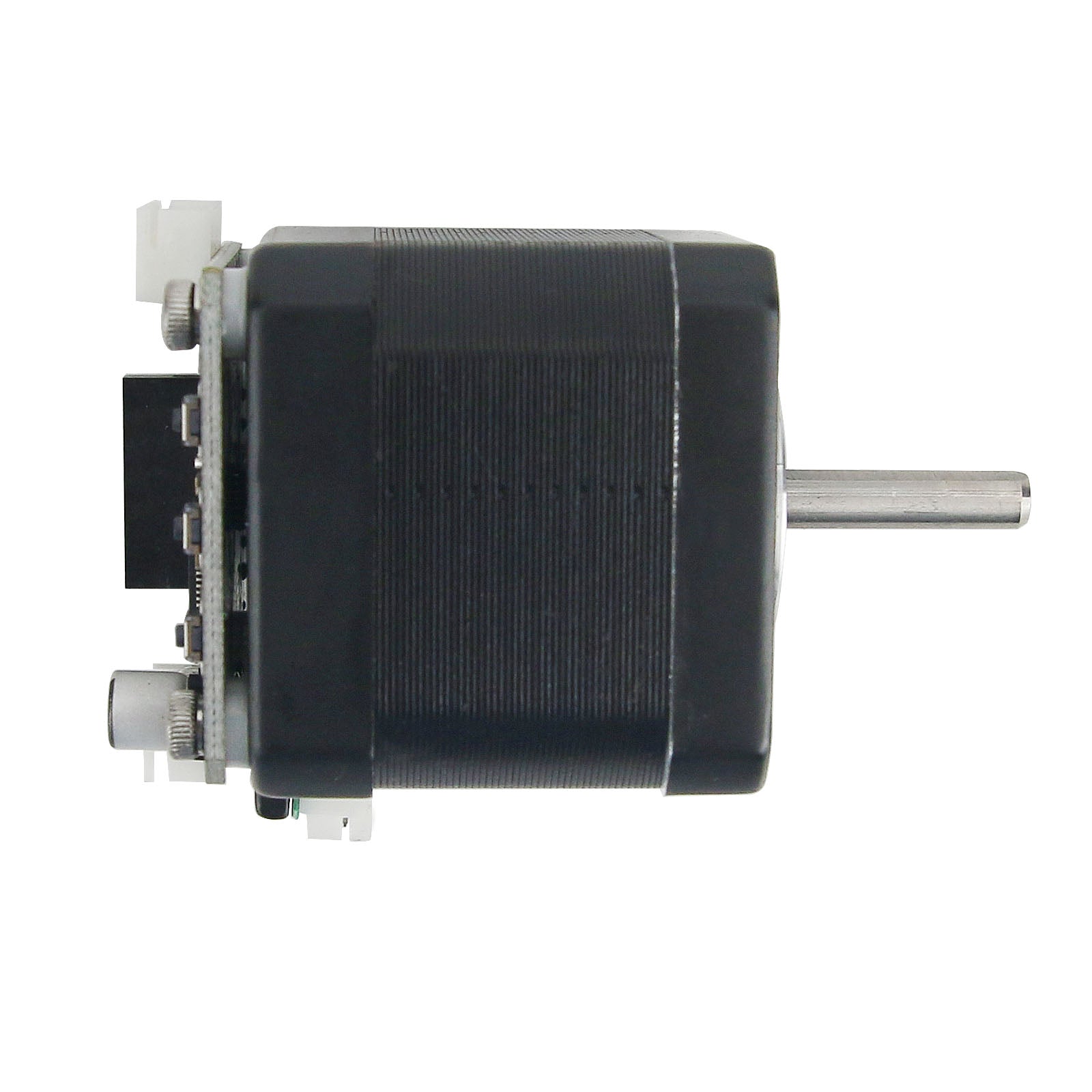

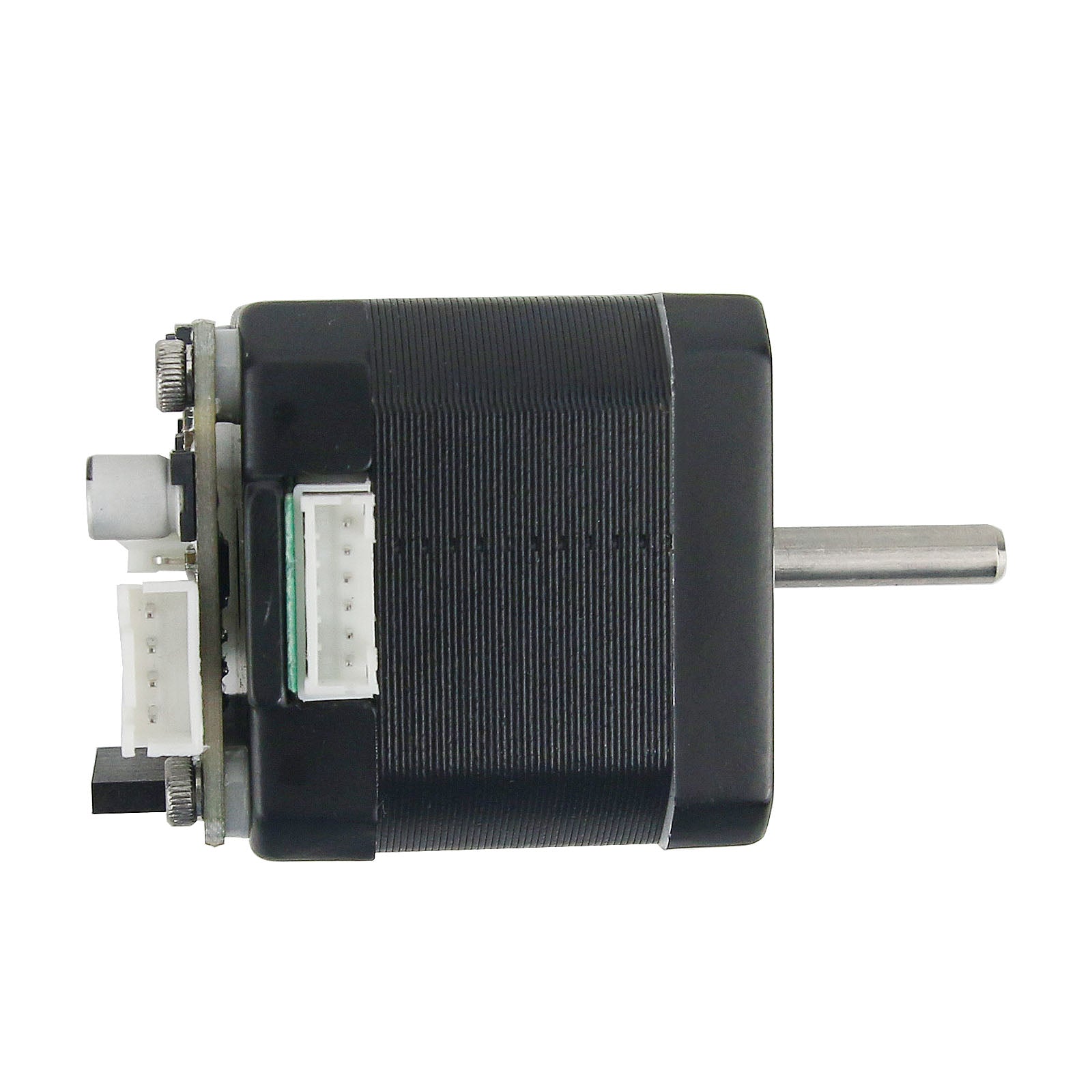

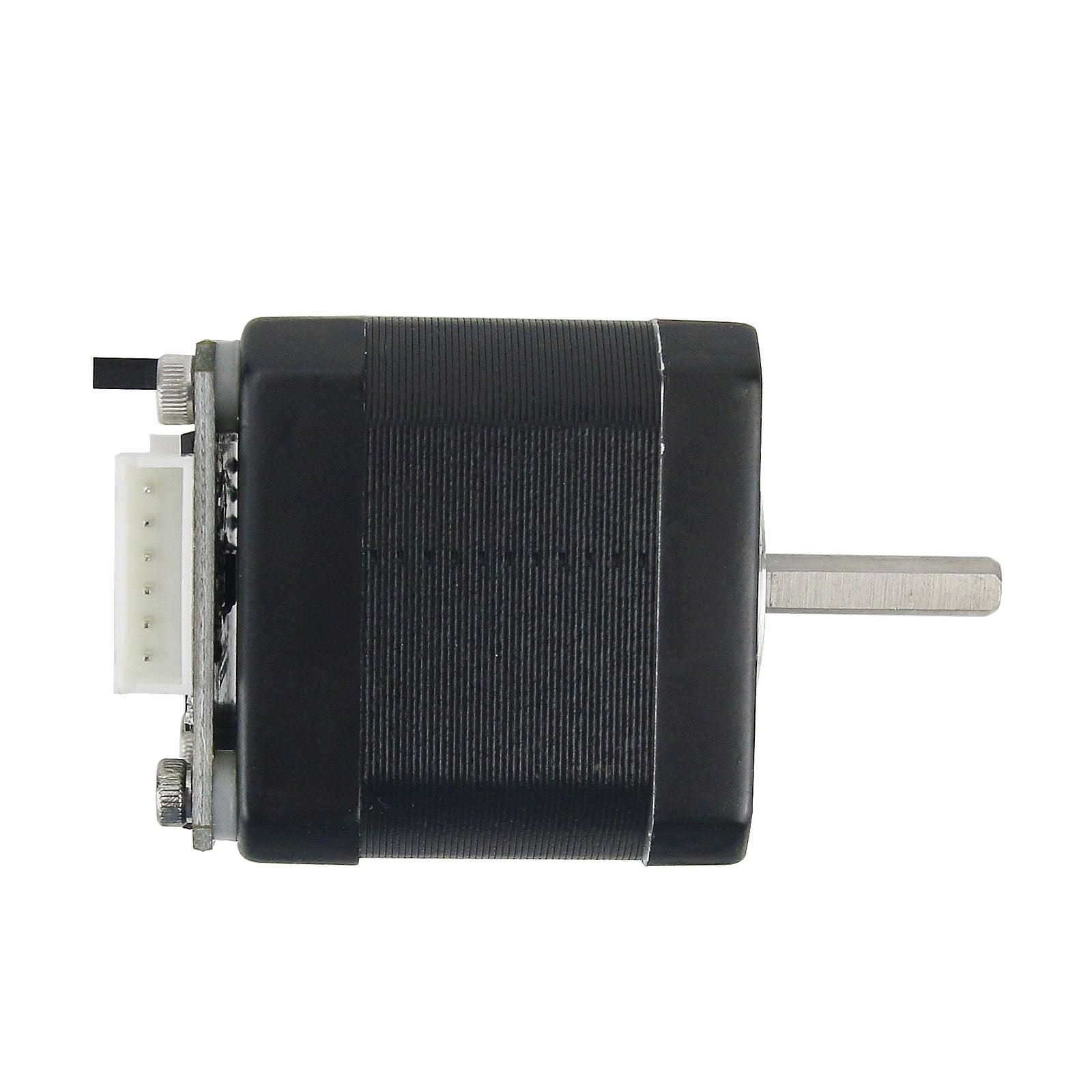

3D Printer STM32 42 Closed Loop Stepper Motor MKS SERVO42B Servo Motor with Adapter Board Display

3D Printer STM32 42 Closed Loop Stepper Motor MKS SERVO42B Servo Motor with Adapter Board Display

Description:
MKS SERVO42B closed-loop motor is a product independently developed by Makerbase to meet market demand. The closed-loop motor makes feedback of the rotation angle of the stepper motor to the drive circuit to detect whether every step should be taken, just to prevent step loss. If a step loss occurs, the closed-loop motor will make up for it based on the information returned. It is suitable for 3D printer manufacturers with high production precision requirements.

Features:
-The circuit board and stepper motor are installed and debugged, and the whole set is sold, plug and play.
-High-speed printing without losing steps.
-Low heat, high efficiency, more stable.
-Adopt SMT32 chip, higher frequency, higher speed, and cost-effective.
-Easy installation and simple structure.
-Adjust the parameters via the display, easy to operate.
-Closed loop motor with feedback.

Parameters:
Input voltage: 12V-24
Peak output current: ±2A
Closed loop feedback frequency: 6kHz
Accuracy: higher than 0.1125 degrees
Subdivision steps: 6,32,64,128,256 (default is 16 subdivision)

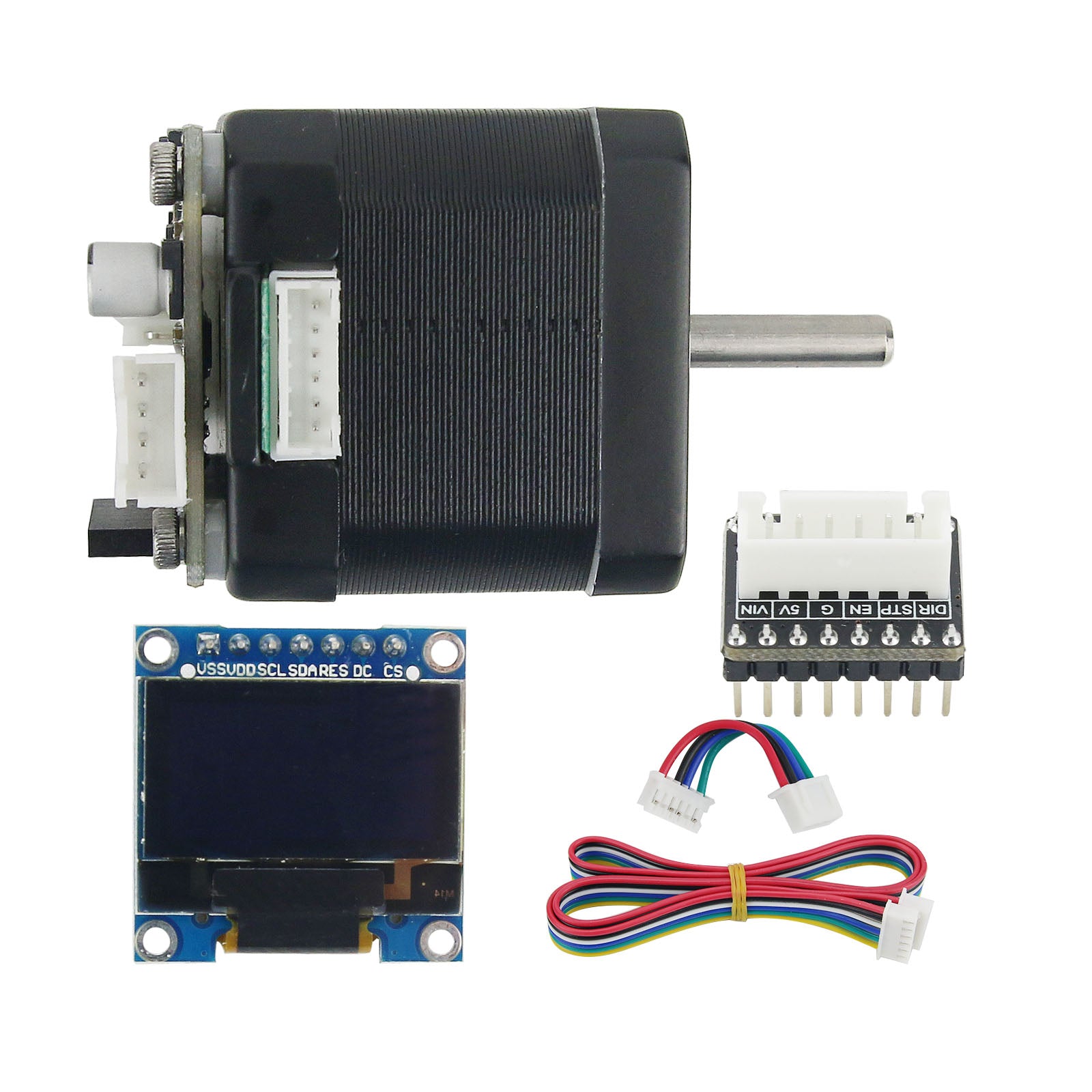

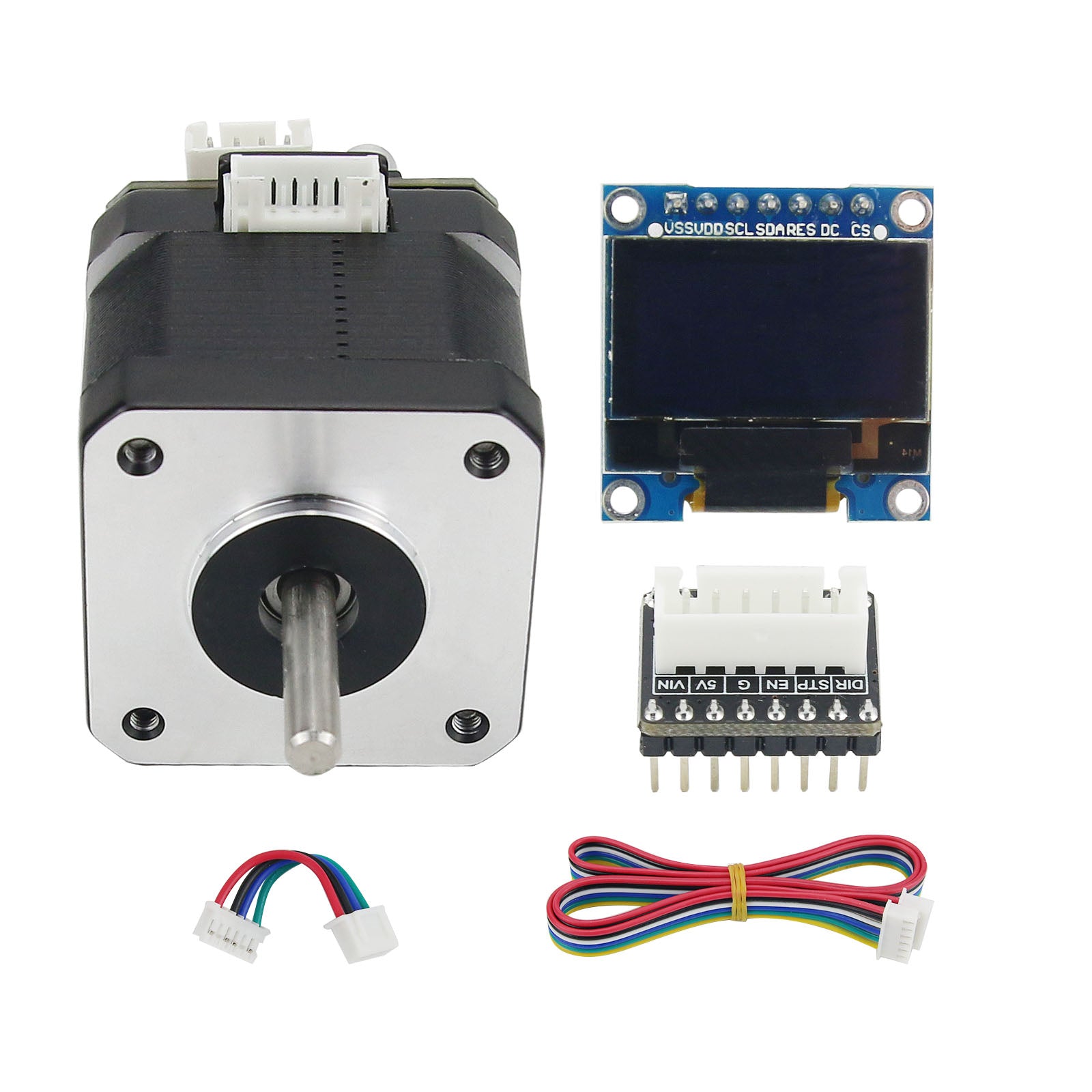

Package Included:

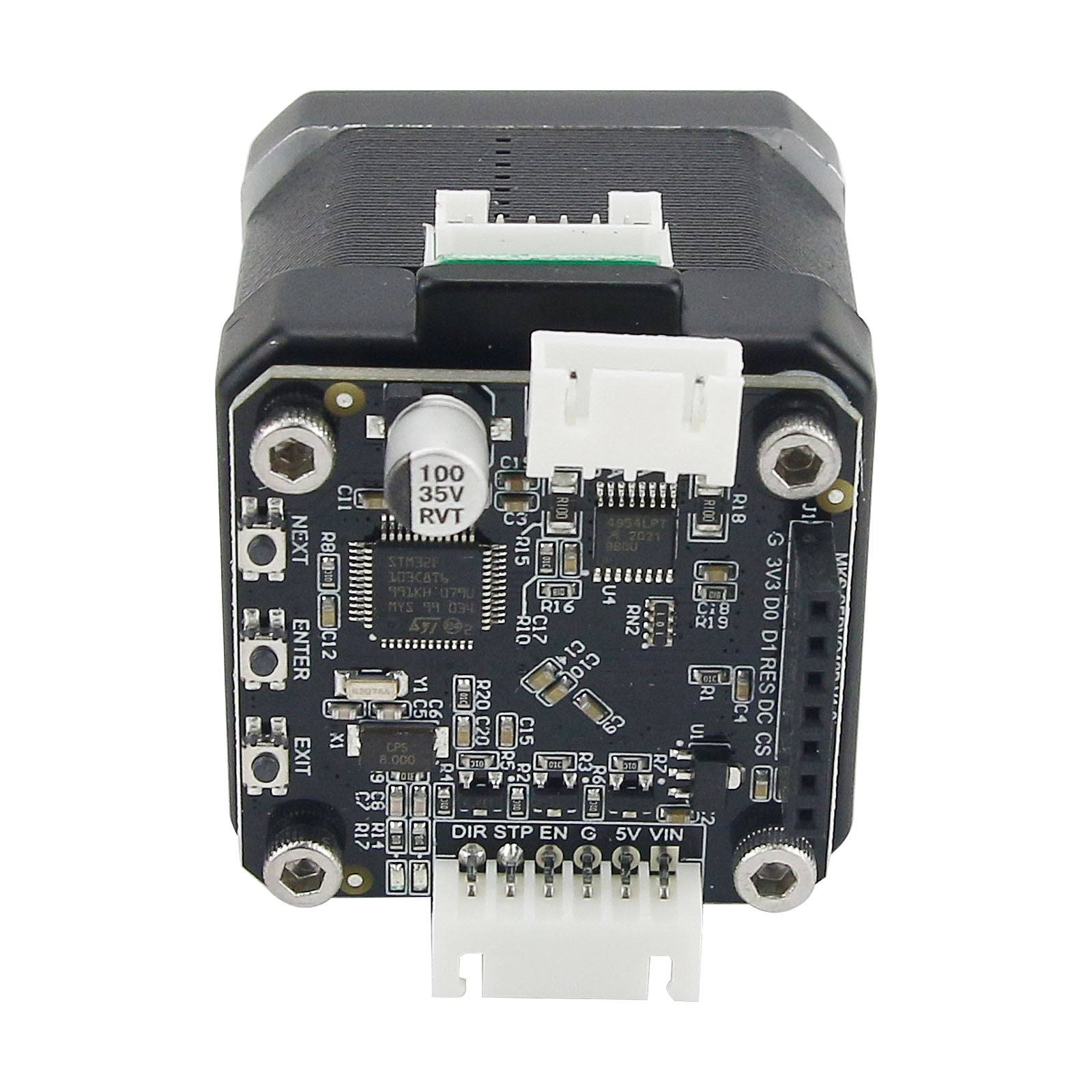

1 x MKS SERVO42B Module(Including 42 Stepper Motor)
1 x Motherboard Cable

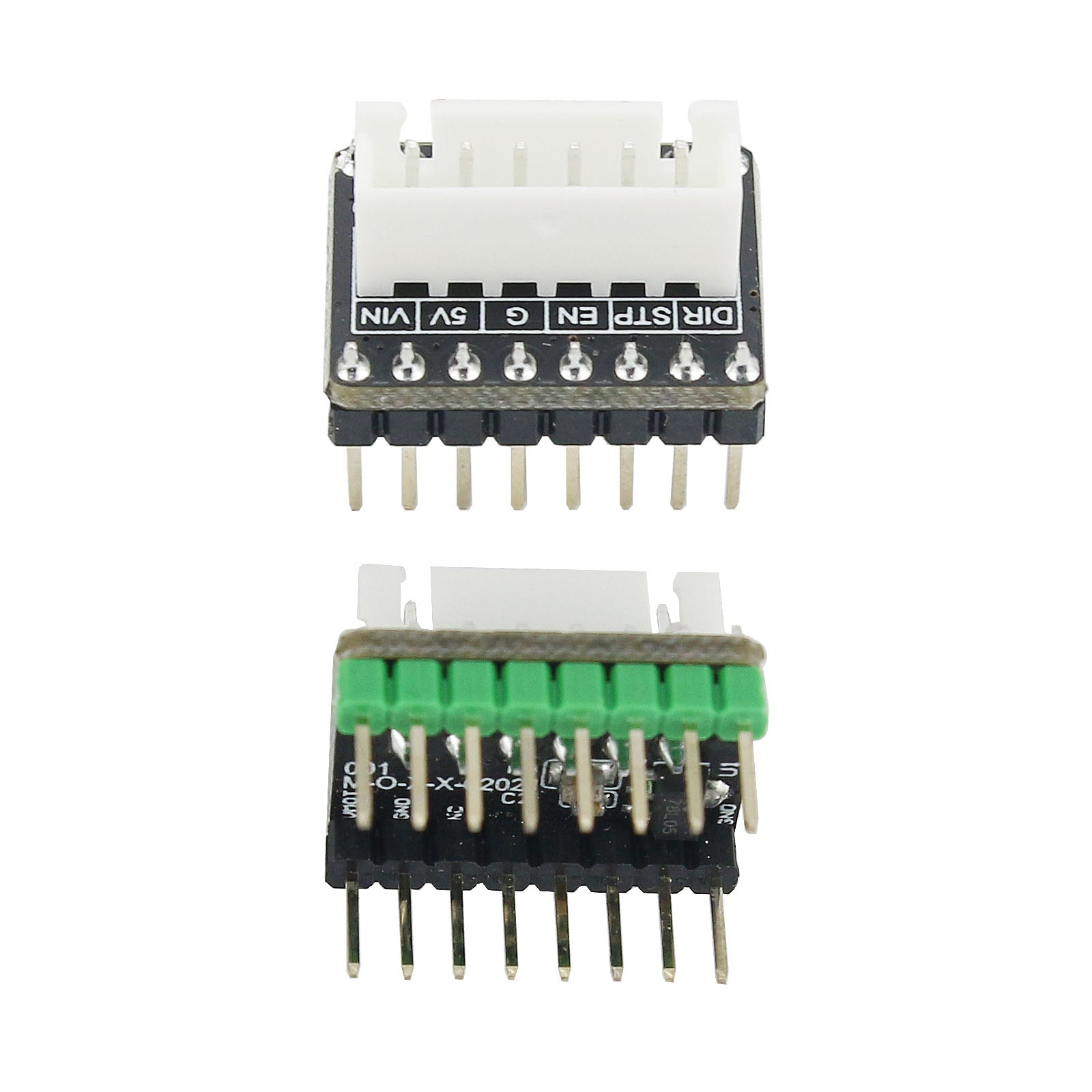

1 x Motherboard Adapter Board

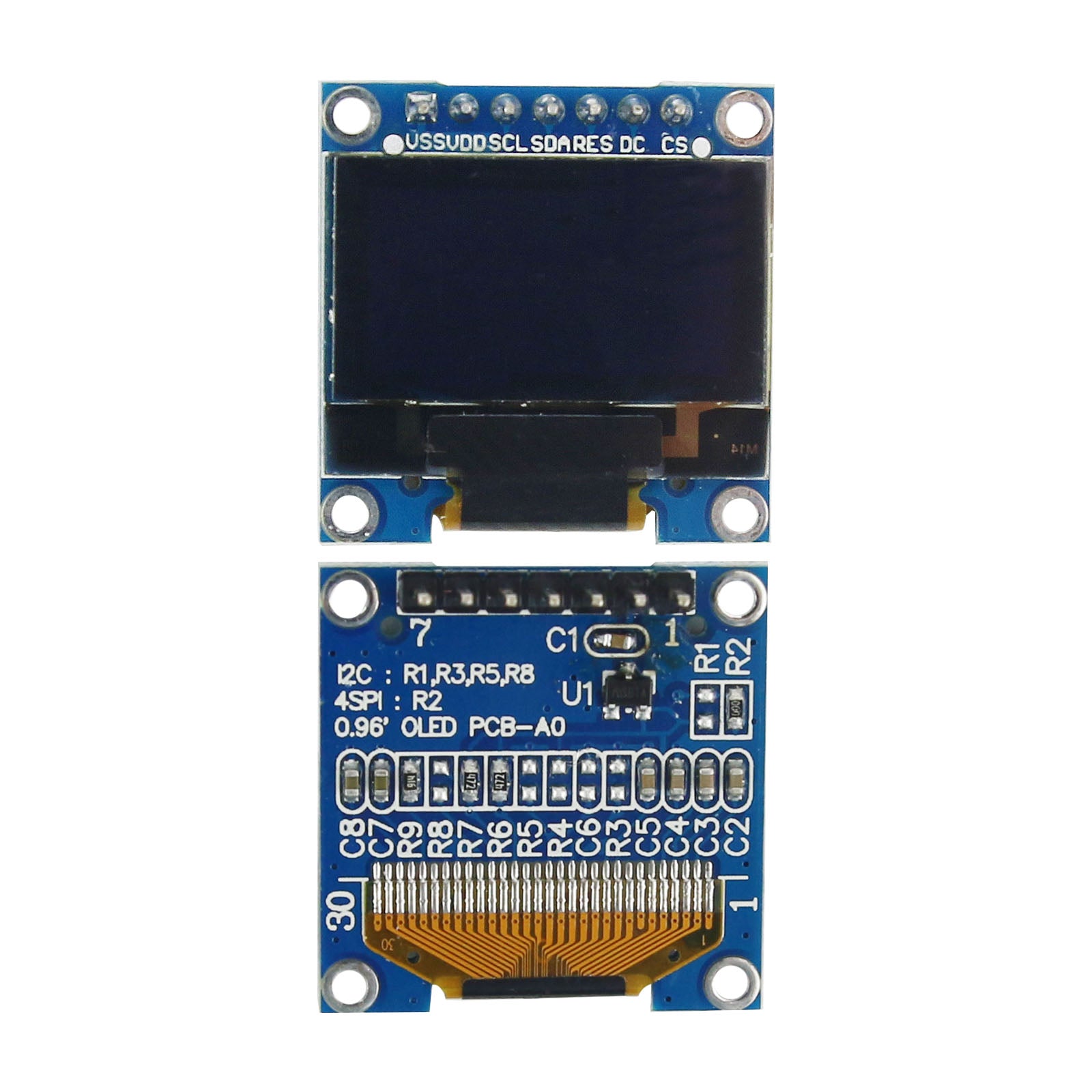

1 x 0.9 Inch 7 Pin OLED12864 Display

Note:
The wiring method of SERVO42B is the same as SERVO42A. The following picture shows the wiring of SERVO42A and motherboard.
