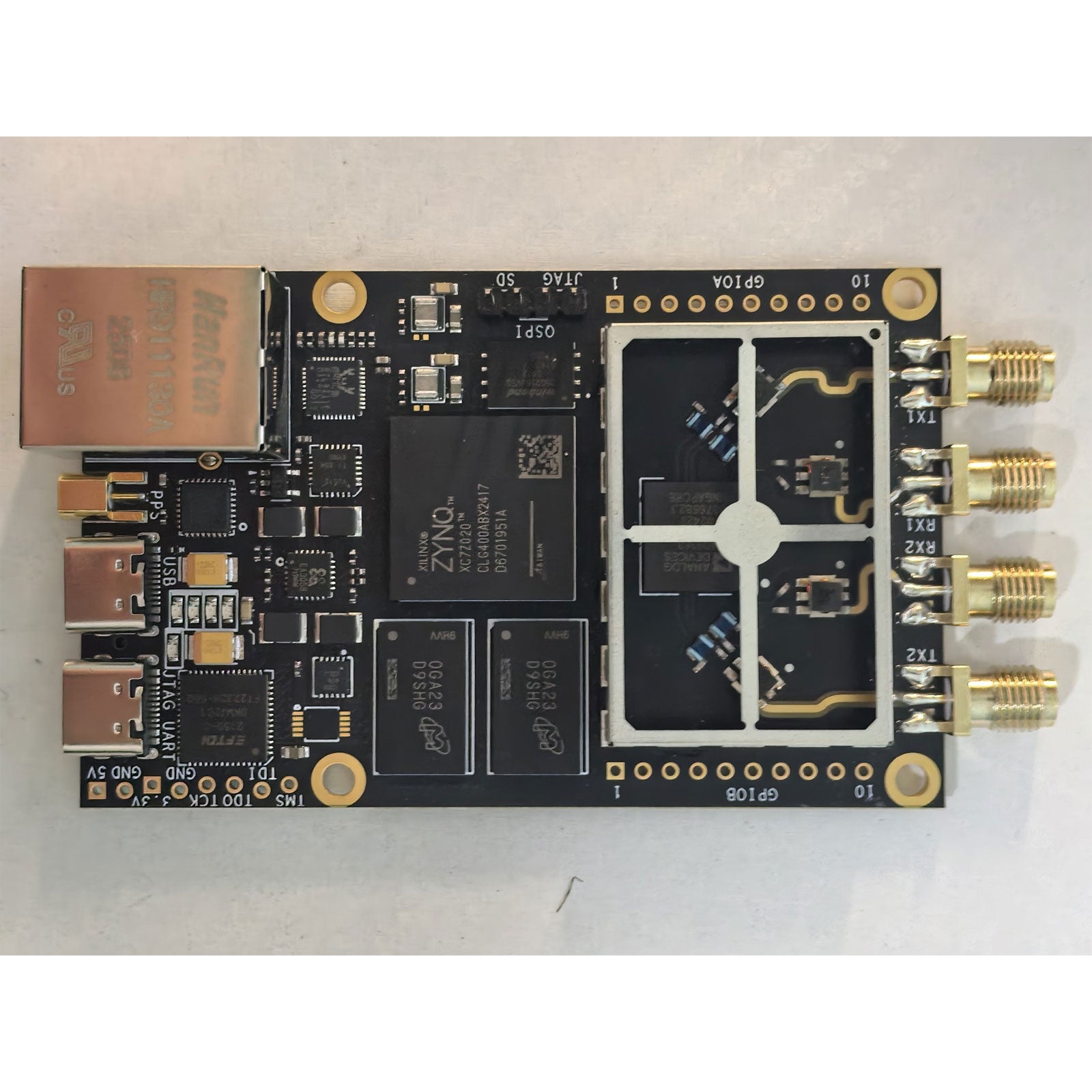

70MHz-6GHz XC7Z020-2CLG400I+AD9361 SDR Software Defined Radio Development Board Compatible with PlutoSDR

70MHz-6GHz XC7Z020-2CLG400I+AD9361 SDR Software Defined Radio Development Board Compatible with PlutoSDR

Features:
- Board size: about 5 x 8cm
- Imported balun matching, optimized RF routing, with transmission and reception performance infinitely close to FMCOMMS3.
- Two transmission channels, with a transmission power of 7dBm at 1G and -1dBm at 6G.
- Two receiving channels.
- 256Mbit QSPI flash.
- SD card interface.
- 1000M Ethernet interface.
- 1Gbytes PS side DDR3.
- Onboard JTAG and UART 2-in-1 interface based on FT2232.
- USB OTG.
- PL side GPIO x 16.

Key Parameters:
- RFIC: AD9361BBCZ/AD80305BBCZ
- Processor: XC7Z020-2CLG400I
- LO frequency: 70MHz - 6GHz

Package Included:
- 1 x SDR Development Board
