Aero Hand Open Smart Bionic Cable-Driven 16DoF Five-Finger Dexterous Hand (Left/Right Side) for TetherIA

1. Purchasers of this product need to possess certain mechanical operation and open-source development capabilities.

2. This is an open-source product. You can view detailed documentation and relevant tutorials on the GitHub platform and official website after purchase.

3. The hand assembly is manufactured via 3D printing. Minor burrs and layer ripples are normal phenomena and do not constitute quality defects.

This is a bionic dexterous hand specially designed for dexterous manipulation research, reinforcement learning (RL) and embodied intelligence. It breaks the high cost barrier of high-performance dexterous hands. With an overall weight under 400 grams and a fully open-source architecture, it simplifies and streamlines the verification of complex dexterous manipulation algorithms.

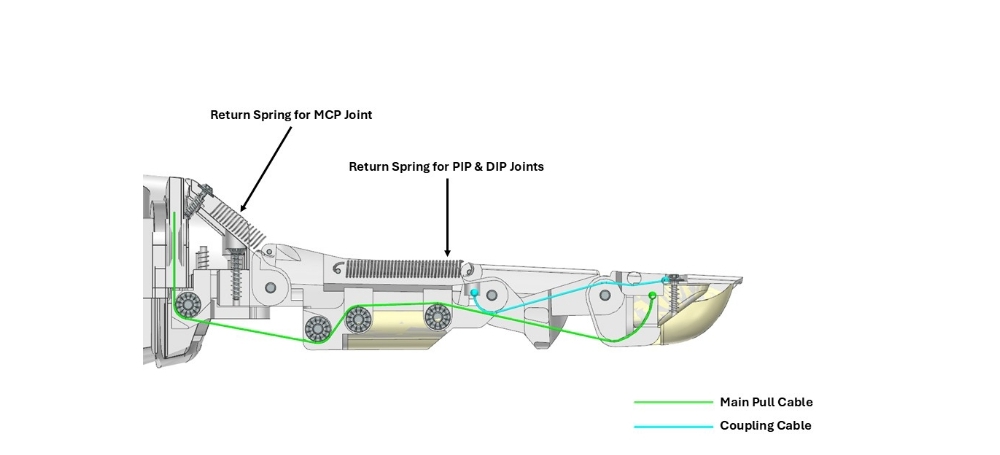

Aero Hand Open employs a tendon-driven actuation architecture in which each motor distributes force through low-friction cable pathways to multiple joints, delivering coordinated motion without increasing actuator count.

This shared tendon routing keeps the hand under < 400 grams, while the compliant cable runs absorb impact energy to cushion interactions with objects and users.

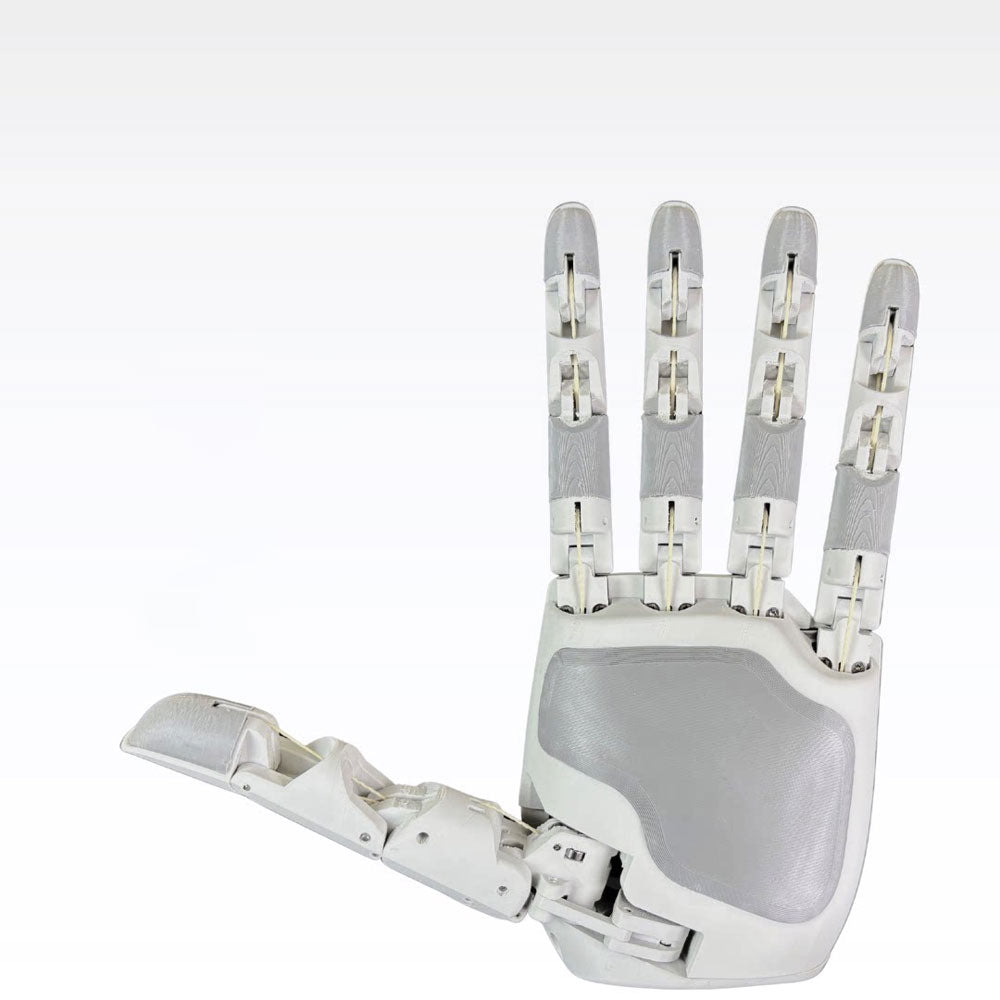

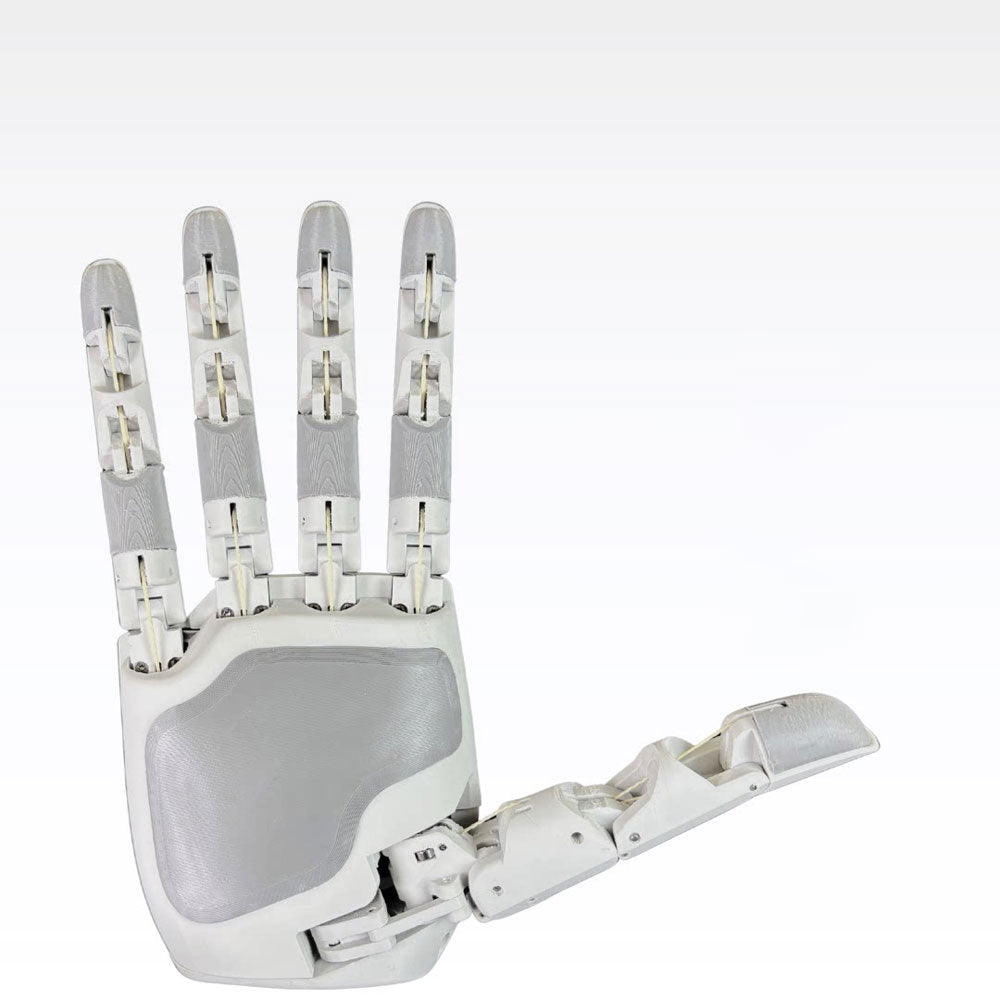

Aero Hand Open Bionic Five-Finger Dexterous Hand

* 16 joints (7 active degrees of freedom)

* Flexible and lightweight

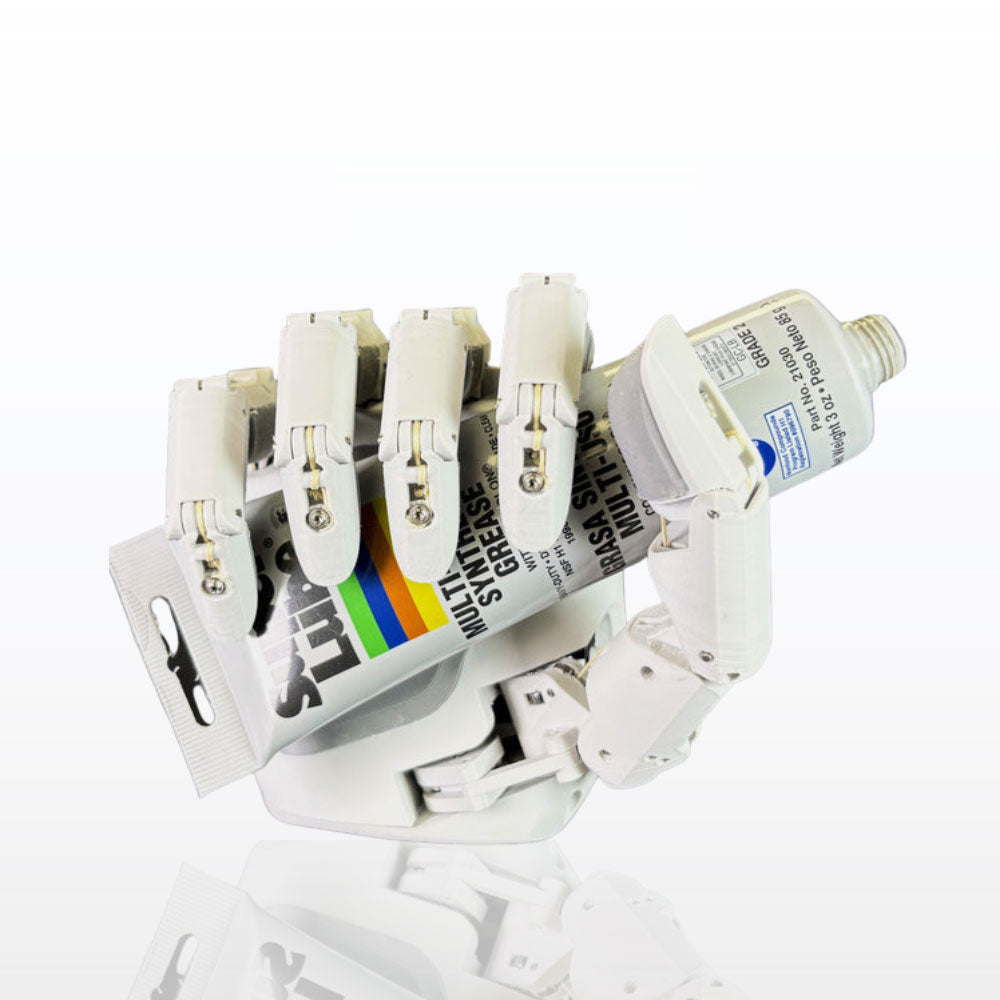

* Stable grasping of small objects

* 100% back-drivable

* Multi-modal control

* Verified through millions of cycle tests

Fine Manipulation Capability

* Picks up M5 screw

* Opens the canned beverage

* Picks up your cellphone

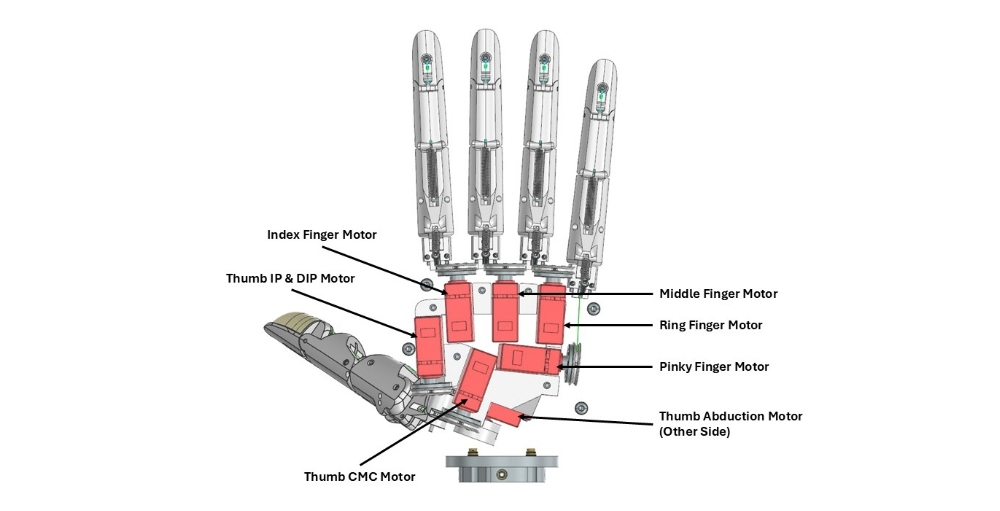

16 Joints (7 Motors)

* 7 motors drive 16 joints to recreate natural hand synergies.

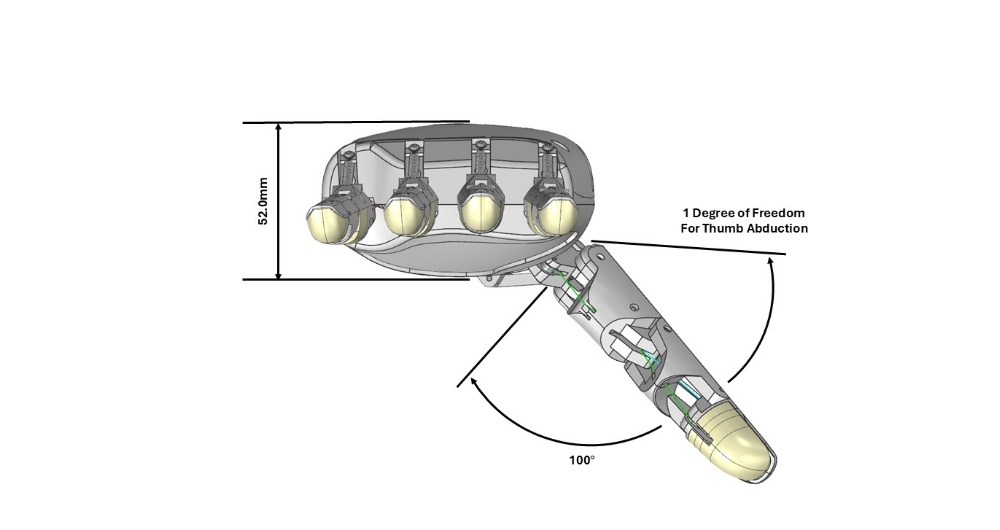

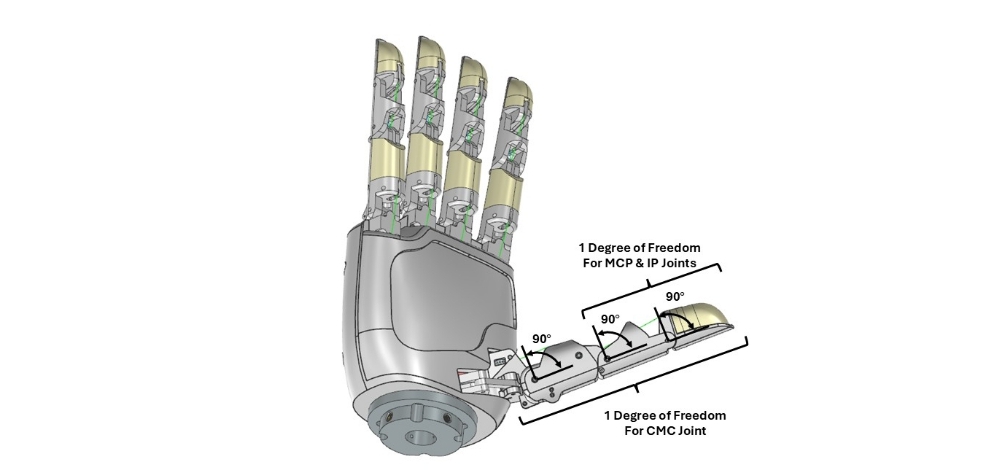

Dexterous Thumb

* 3 active thumb DoFs deliver opposition, pinch, and in-hand reorientation capabilities.

100% Back-drivable

* Cable routing and low gearing make the hand fully back-drivable for safe, responsive control.

Multi-Modal Control

* Supports position control, torque control, and inline tendon force sensing for adaptive manipulation.

Hand Payload, Stronger than It Looks

* The active load torque is 10 N per fingertip, sufficient to pull drill trigger and many other everyday objects.

* The hand lifted a full 5-gallon water jug very easily (~18 kg)!

Finger Speed - Fast and Precise

* Catching a Flying Tennis Ball

* Webcam-based teleoperation running on a regular laptop

Application Fields

* Research & AI Algorithm Development: Reinforcement Learning, Manipulation Policy and Sim2Real

* Robotics Education & Maker Development: Open-source, Modular, Reproducible, Disassemblable

* Embodied Intelligent Robot Integrated Solution: Lightweight, Modular, Easy to Integrate

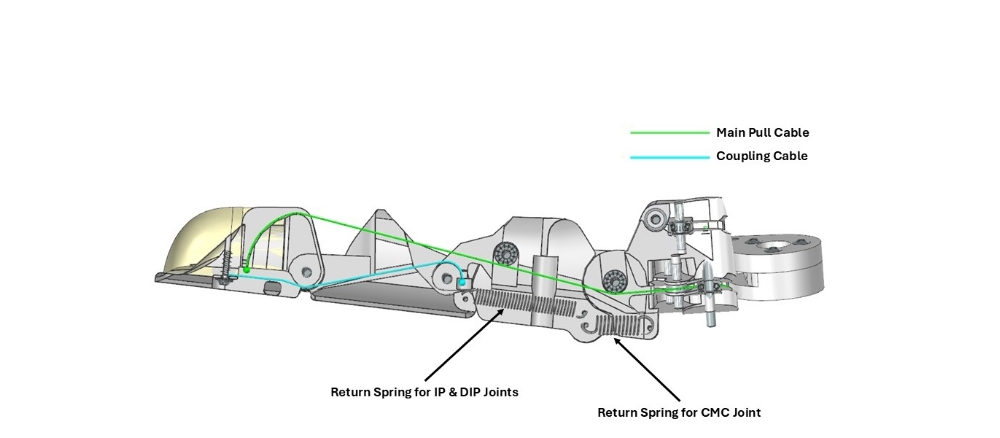

Bionic Tendon-Driven Design

* Tendon-driven structural design

* Single motor drives multiple joints

* Replicates coordinated muscle movements of the human hand

* Product Name: Aero Hand Open Dexterous Hand

* Overall Weight: < 400g

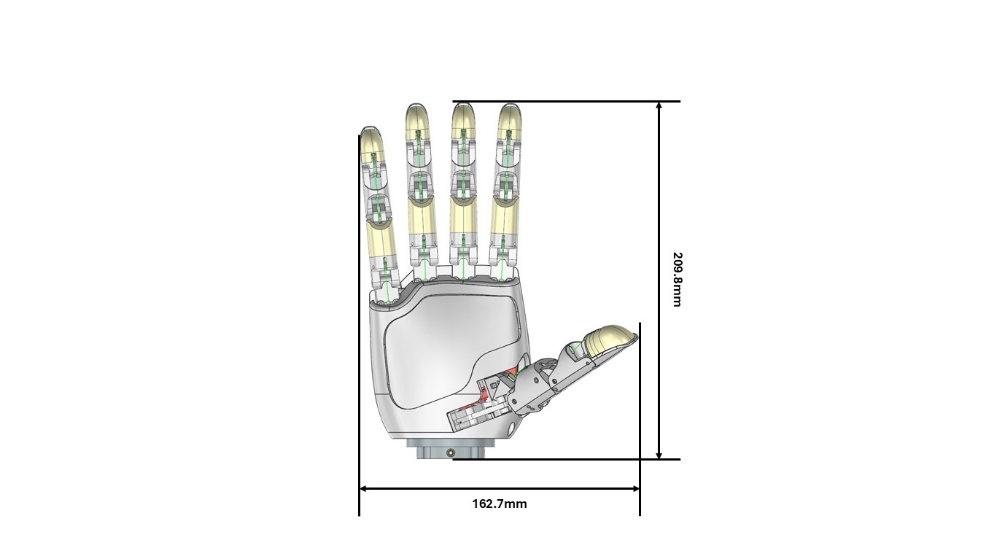

* Product Dimensions: 198mm x 95mm x 53.5mm

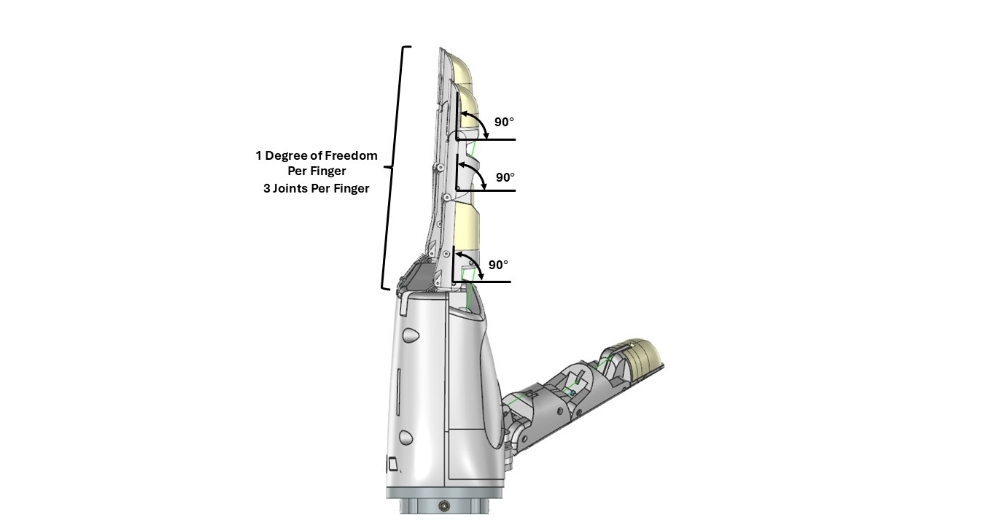

* Degrees of Freedom: 16 joints (7 active and 9 passive)

* Drive Mode: Hollow cup serial bus motor | Tendon-driven | Back-drive supported

* Thumb Configuration: 3 active degrees of freedom (opposition/grasping/reorientation)

* Tip Output Force: > 10N

* Opening & Closing Speed: > 1Hz

* Communication Interface: USB 2.0

* Main Control Chip (MCU): ESP32-S3

* Operating Voltage: 6V

* Maximum Operating Current: 8A

* Development Support: Python SDK, C++ Firmware

* Open Source License: Full open-source for hardware/firmware/software

* 1 x Assembled Hand

* 1 x Built-in PCB circuit board with XT30 and USB-C ports

* 1 x 6V DC 10A power adapter with 2-meter cable

* Package weight: 1kg

Q: Is there an operation tutorial?

A: Yes. You can visit the website for https://docs.tetheria.ai/docs/intro to view the complete operation tutorial for Aero Hand Open. Contact customer service to obtain the Chinese assembly guide file. You may also go to GitHub for https://github.com/TetherIA to check relevant open-source parameters.

Q: Is there a warranty period?

A: This open-source dexterous hand comes with a 3-month original manufacturer parts warranty. The warranty only covers manufacturing defects from the original factory within the warranty period. Damage caused by non-original factory defects such as modification and mis-operation is not covered by the warranty. Contact customer service for consultation if needed.
