AH101 50-1500MHz Amplifier Module RF Amplifier Board Fixed Gain 14dB Single Power Supply 27dBm

AH101 50-1500MHz Amplifier Module RF Amplifier Board Fixed Gain 14dB Single Power Supply 27dBm

Description:

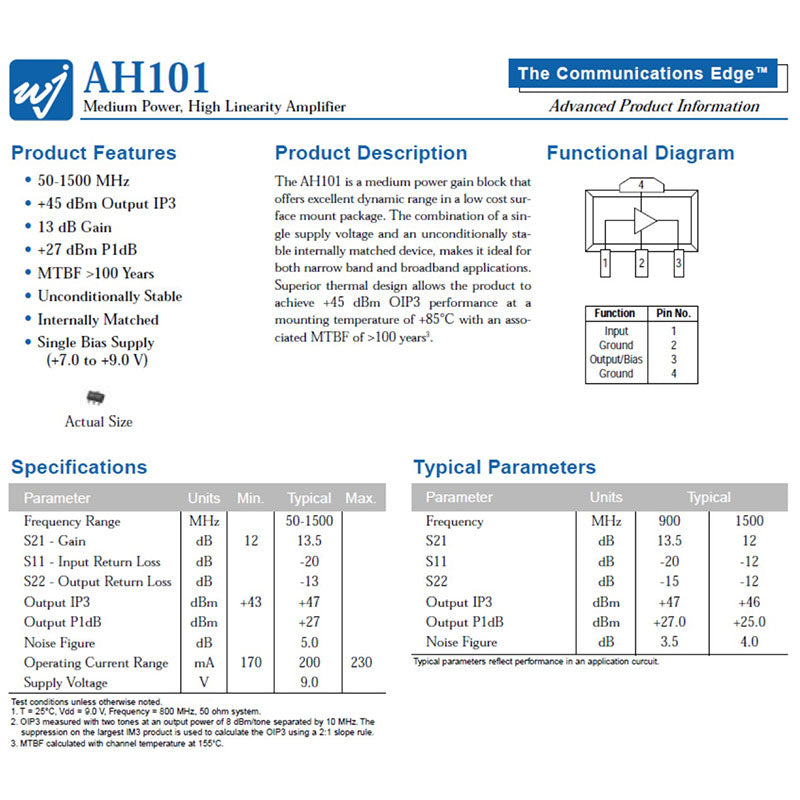

The AH101 is a medium power gain block that offers excellent dynamic range in a low cost surface mount package, The combination of a single supply voltage and an unconditionally stable internally matched device, makes it ideal for both narrow band and broadband applications. Superior thermal design allows the product to achieve +45 dBm OIP3 performance at a mounting temperature of +85℃ with an associated MTBF of >100 years³.

Parameter:

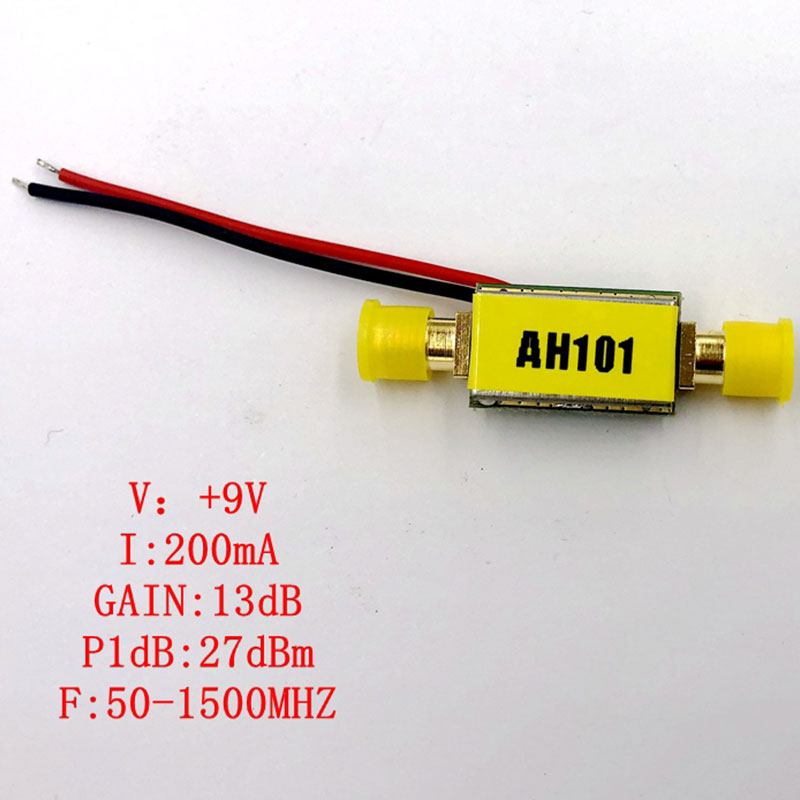

Power supply: 9V (200mA)
Gain: 13DB@0.9GHz

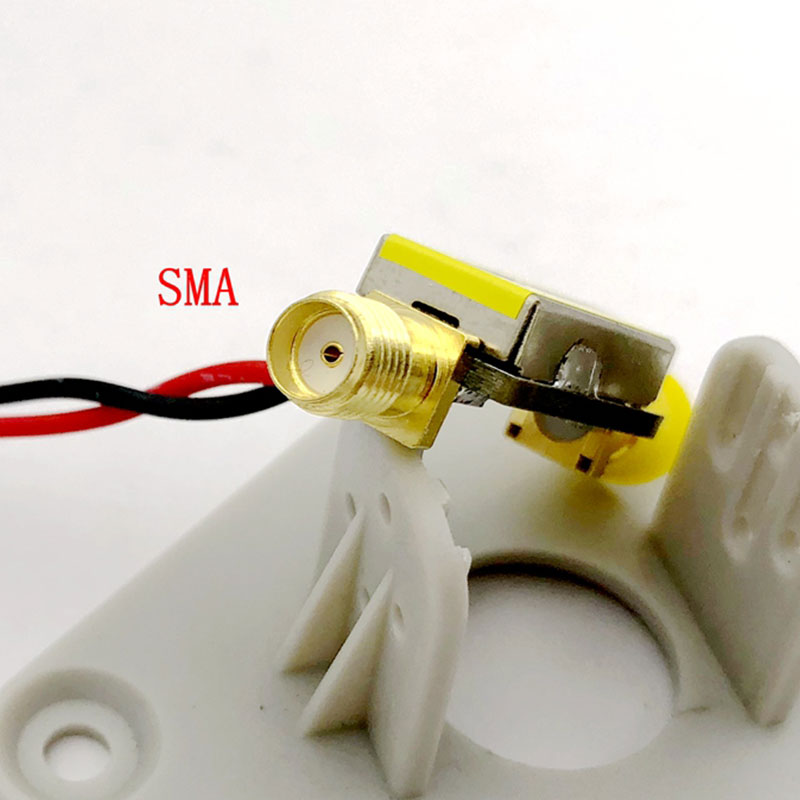

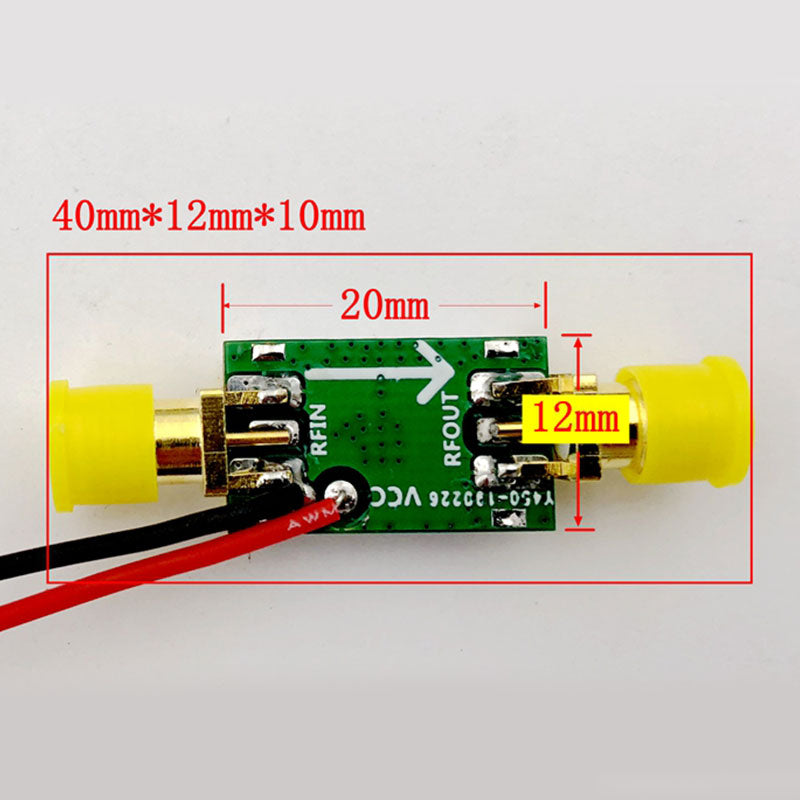

Size: length * width * height (40mm * 12mm * 10mm), includes a protruding SMA interface; length * width * height (20mm * 12mm * 6mm), not includes SMA interface
Noise figure: 3.5dB@900MHz
P1dB = 27dBm @ 900MHz
Working frequency: 50-1500MHz
Input and output impedance: 50Ω

Features:
50-1500MHz
+45 dBm Output IP3
13 dB Gain
+27 dBm P1dB
MTBF >100 Years
Unconditionally Stable
Internally Matched
Single Bias Supply (+7.0 to +9.0 V)

Package Included:
1 x Amplifier Module
