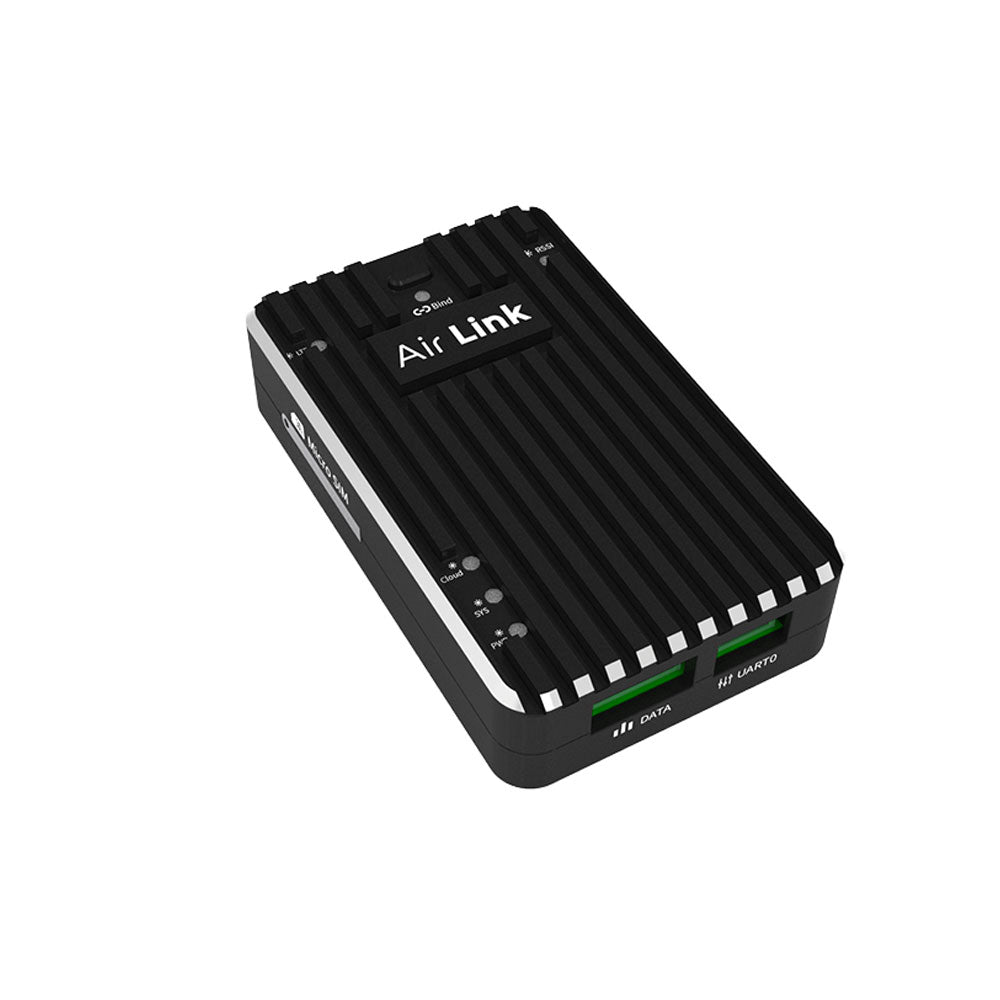

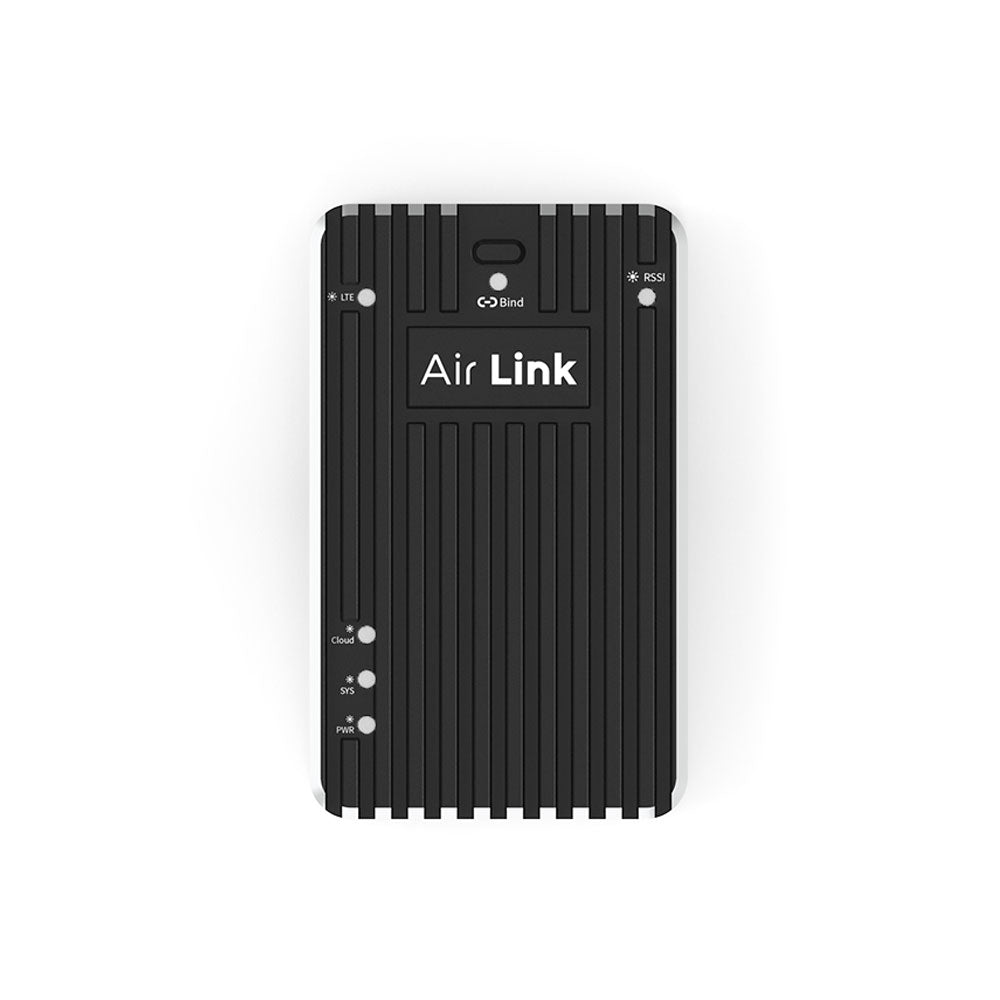

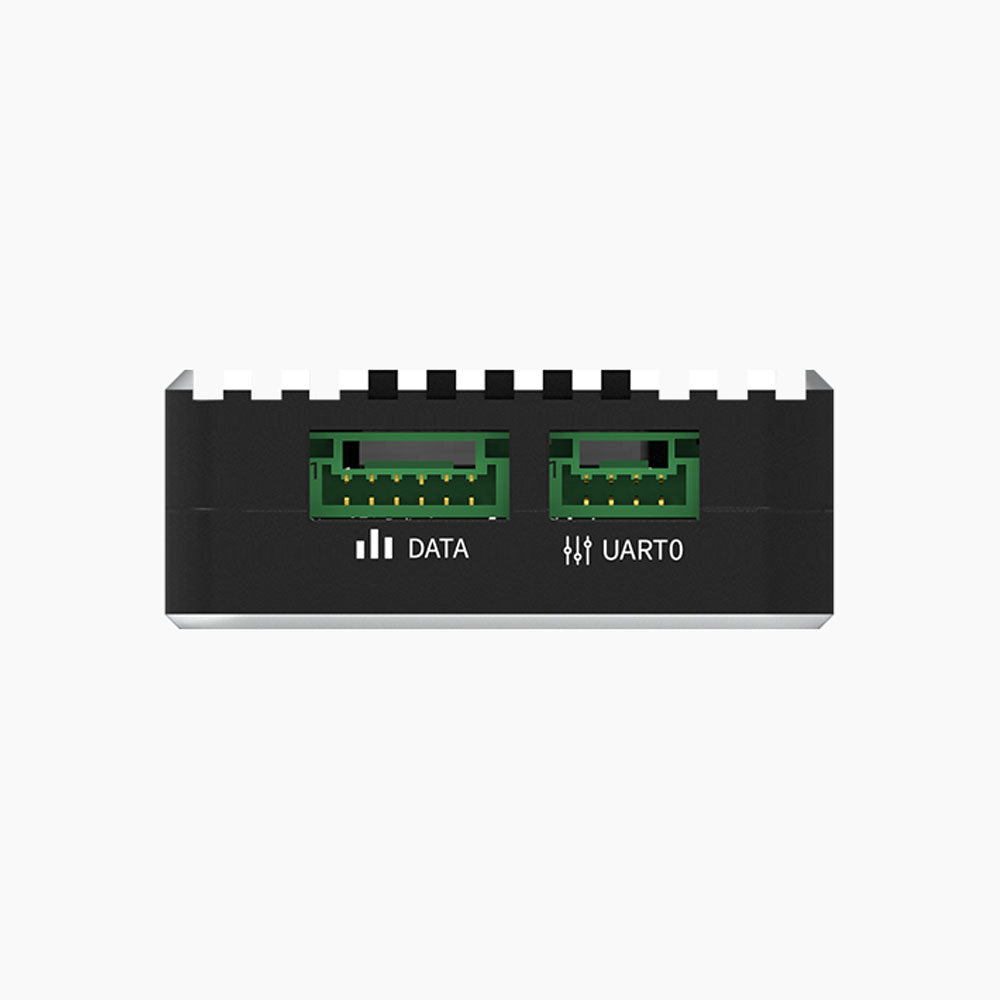

Air Link 4G UAV Radio Telemetry Communications Module Data Transmission for 4G/3G/2G Network Black

Air Link 4G UAV Radio Telemetry Communications Module Data Transmission for 4G/3G/2G Network Black

Specifications:
- Network Type: 4G/3G/2G
- Network Frequency:
  LTE (FDD): B1, B3 and B8
  LET (TDD): B38, B39, B40 and B41
  DC-HSPA+/HSPA+/HSPA/UMTS: B1, B5, B8 and B9
  TD-SCDMA: B34 and B39
  EDGE/GPRS/GSM: 900/1800MHz
- Network Speed:
  DC-HSPA+: Downlink 42 Mbps. Uplink: 5.76 Mbps.
  LTE TDD: Downlink 112 Mbps. Uplink: 10 Mbps.
  LTE FDD: Downlink 150 Mbps. Uplink: 50 Mbps.
- Data Protocol: Mavlink1/2
- Communications Delay: 20-40ms
- Flight Control: Support for V5+, V5 Nano, Pixhack and Pixhawk
- Flight Control Hardware: Support for PX4/ Ardupilot
- Antenna Interface: MMCX Inner Hole
- Input Voltage: 5V
- Operating Temperature: -10℃ to 60℃
- Size: 54.5 x 33.5 x 13.5mm
- Weight: 42g

Package Included:
- 1 x Air Link Module
- 2 x Air Link Antennas
- 2 x Data Cables for Flight Control V5+ V5 nano
- 1 x Data Cable for Flight Control V5/V3/V2
- 1 x Data Cable for Flight Control Pixhawk

Note: Fees for CUAV Cloud service is not included in the price. Please contact us for extra price and details.
