B210 SDR Development Board PCIE Version Software Defined Radio Support for UHD/GNURADIO/MATLAB/LABVIEW

B210 SDR Development Board PCIE Version Software Defined Radio Support for UHD/GNURADIO/MATLAB/LABVIEW

Description:
- PCIE B210 = PCIE to USB + TQTT B210 + GPSDO + SIM Writer

PCIE B210 Benefits:
- The software is fully compatible with the official USB version of B210 and fully supports open source or commercial software such as UHD, for GNURADIO, for MATLAB, for LABVIEW, etc.
- Because it integrates PCIE to USB, it directly runs the USB signal cable on the board, which is very stable and efficient. Manifested as slightly higher sampling rate and able to run at a stable speed for a long time.
- The integrated GPS tame clock, also known as GPSDO, can run software radio communication experiments such as SRSRAN that require very strict clock accuracy.
- Thanks to the integration of GPSDO, it can be used for applications with timestamps, achieving remote time synchronization, and can be used in wireless positioning and TDOA experiments.

Package Included:
- 1 x B210 Board

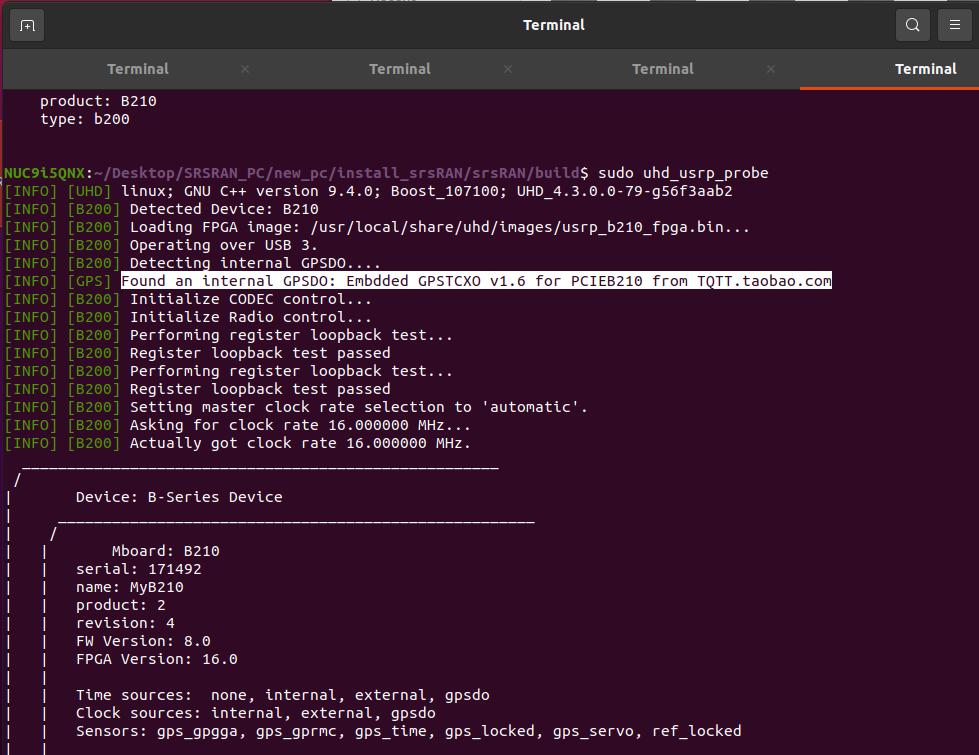

Run uhd_usrp_probe to identify with our customized GPSTCXO:

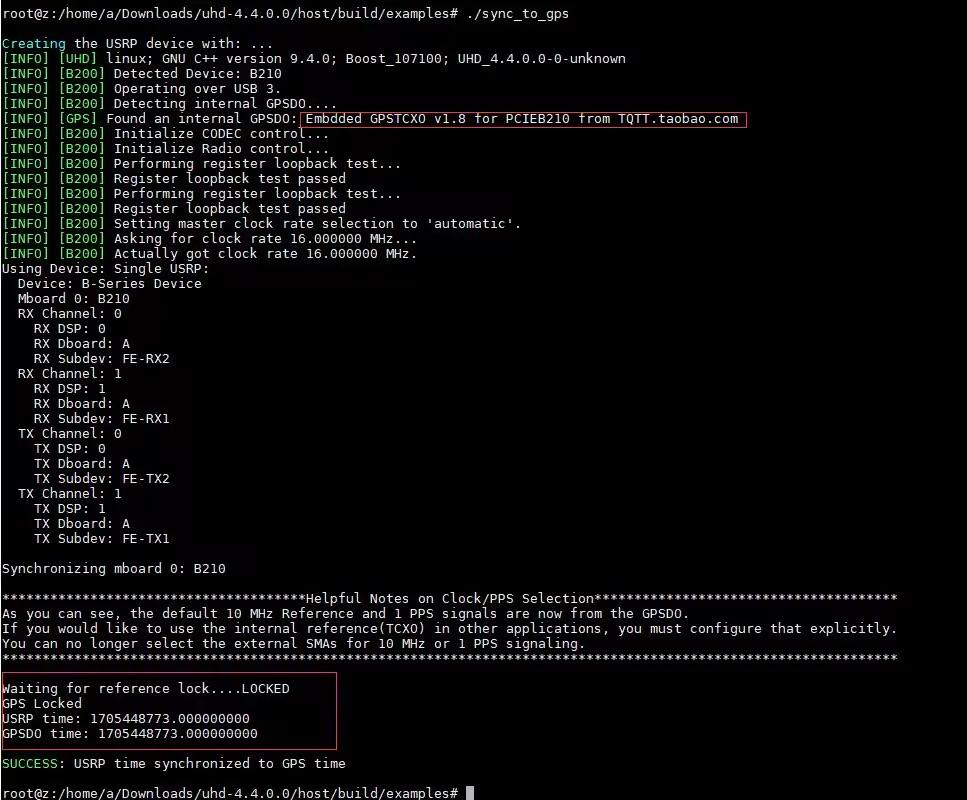

Run sync_to_gps to identify GPS with our customized GPSTCXO, lock GPS and synchronize PC time successfully:
