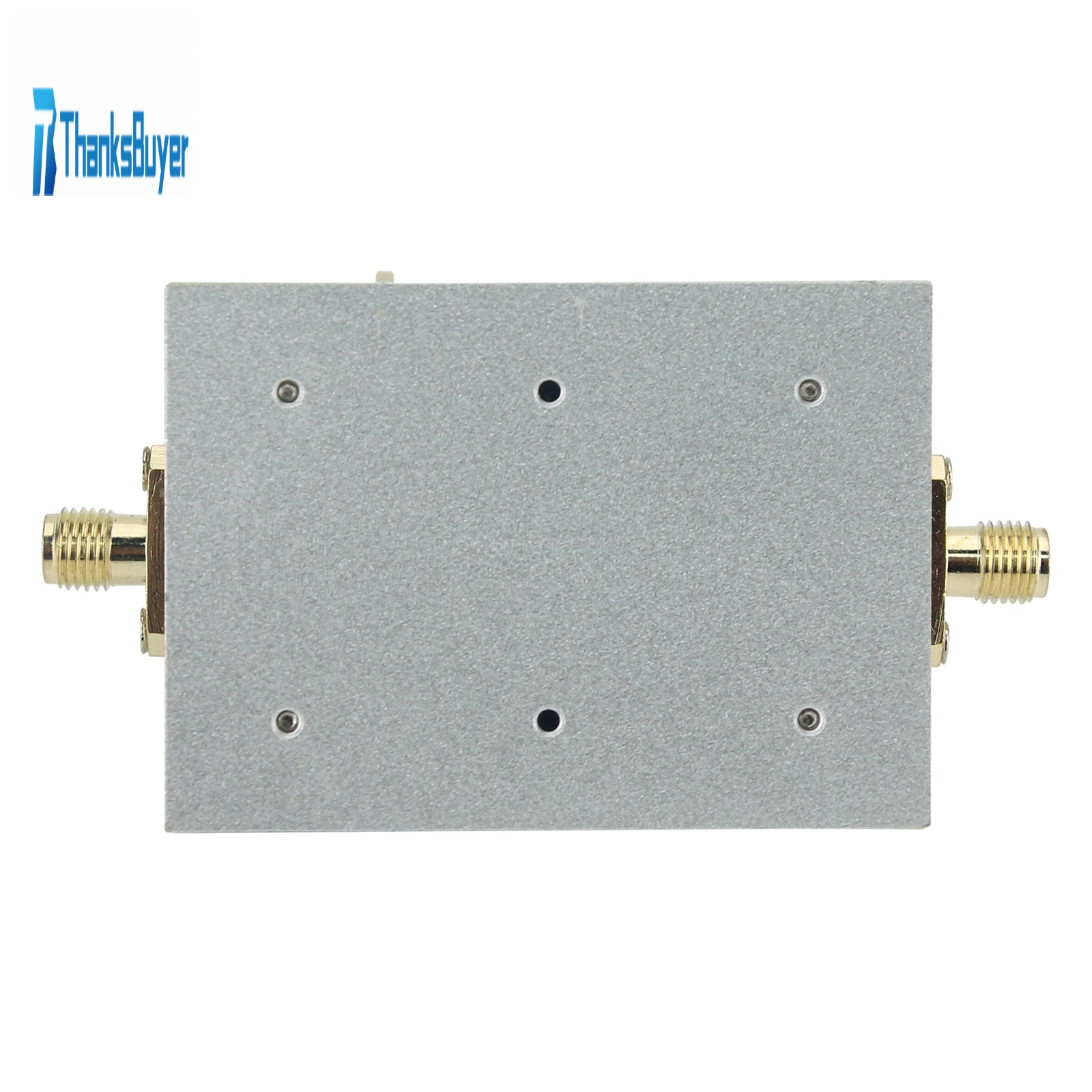

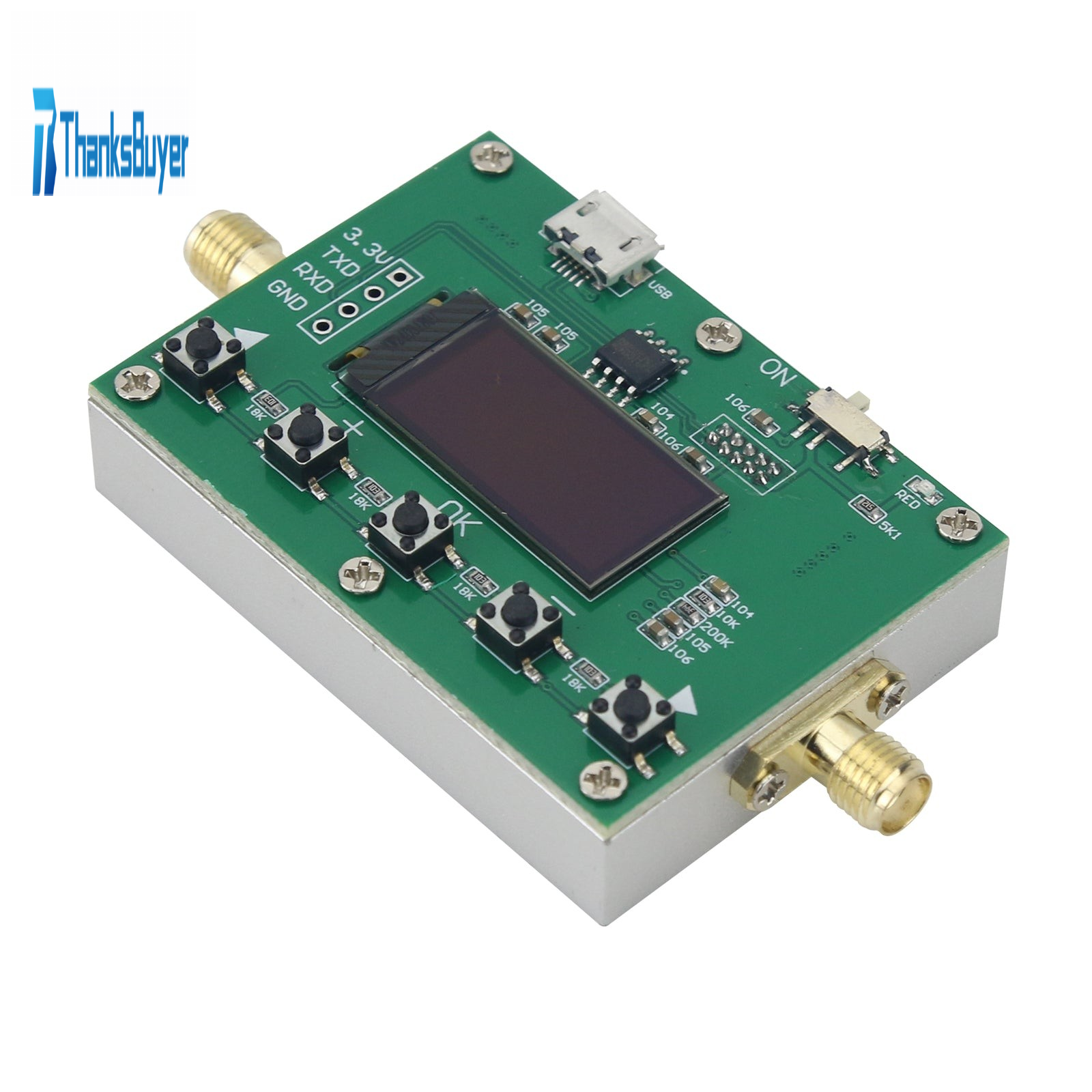

DC5V LF-6G 0-31.75dB Adjustable RF Signal Attenuator Module 0.25dB Step OLED Display with SMA Female Connector

DC5V LF-6G 0-31.75dB Adjustable RF Signal Attenuator Module 0.25dB Step OLED Display with SMA Female Connector

Description:
- The digital attenuator can adjust the signal level of the circuit in 0.25dB steps without interrupting the circuit. It can also be used as an internal attenuator for equipment to adjust the power level in the test system. It has a small size, high precision, stable and reliable, etc., the attenuation is displayed by OLED, and the attenuation can be controlled by the host computer.

Features:
- The product is compact and easy to carry.
- Adopting CNC aluminum alloy shell, beautiful and elegant.
- An uninterrupted circuit in the form of a 0.5dB step control circuit with a signal level.
- Adopting OLED display to reduce attenuation.
- Wide range of applications and strong applicability.

Specification:
- Working frequency: LF-6GHz
- Attenuation adjustment range: 0 - 31.75dB
- Attenuation step: 0.25dB
- Voltage: DC5V
- Insertion loss: ≤1.5dB (larger insertion loss for high frequency end)
- SWR: ≤1.4
- Attenuation precision: ±0.25dB max
- Rated power: ≤1W
- Connector type: SMA female connector
- Temperature range: -10℃ to 50℃ (operating); -40℃ to 70℃ (storage)
- Size: 55 x 40 x 16.5mm (excluding the connector length 9mm)
- Net weight: 57g
- Input and output impedance: 50ohms

Package Include:
- 1 x RF Attenuator Module
- 1 x USB Cable
