EV2400 EV2300 Upgraded Battery Programmer Bqstudio UAV Battery Repair Communication Box SMBUS Tool

EV2400 EV2300 Upgraded Battery Programmer Bqstudio UAV Battery Repair Communication Box SMBUS Tool

Description:
In addition to the standard version's functions, the upgraded version protects output 3ch signals (5pcs signal pins), ensuring signal stably output and isolated. It is suitable for drone, TI power chip metering debugging and maintenance. IIC interface has been pulled inside and can be easily communicated online.

Features:
1. Support IIC, SMBUS, and HDQ communication
2. Three-color status light indicates three states (power supply, communication, usb data)
3. Support subsequent upgrade firmware and support unpacking chips
4. Directly use an USB data cable to communicate with a computer
5. Small size and easy to carry
6. Protect output signals
7. External 3.3V reference power supply can be provided

Supported Devices:
1. Gauge
bq34z100G1, bq35100, bq34110, bq34210, bq27220, bq27320, bq27421G1A, bq27421G1B, bq27441G1A, bq27441G1B, bq27411G1A, bq27421G1A, bq27421G1B, bq27421G1D, bq27411G1A, bq27411G1B, bq27425G1, bq27425G2A, bq27425G2B, bq27426G1, bq27510G3, bq27520G4, sn27520L1, bq27530G1, bq27531G1, bq27532G1, bq27541v200, bq27541G1, bq27542G1, bq27545G1, bq27546G1, bq27621G1, bq27741G1, bq27742G1, bq78z100, bq27z561, bq78350, bq78350R1, bq28z610, bq40z370, bq40z50, bq40z50R1, bq40z50R2, bq40z60, bq4050, bq40z80, bq76920, bq76930, bq76940, bq33100

2. Charge
bq24188, bq24260, bq24296M, bq24298, bq24770, bq24773, bq24780S, bq25120, bq25600_600D_600C, bq25601, bq25601D, bq25700A, bq25703A, bq25713_APL, bq25871, bq25872, bq25882, bq25890_895, bq25892, bq25895M, bq25896, bq25898,
bq25898C, bq25898D, bq25910, bq25910_EVM854, bq25970_A1_EVM, bq25970_A1_M, bq25970_A1_S, bq25970_A1_SEB

3. Wireless Charging
bq50002, bq500212A, bq501210

Package Included:

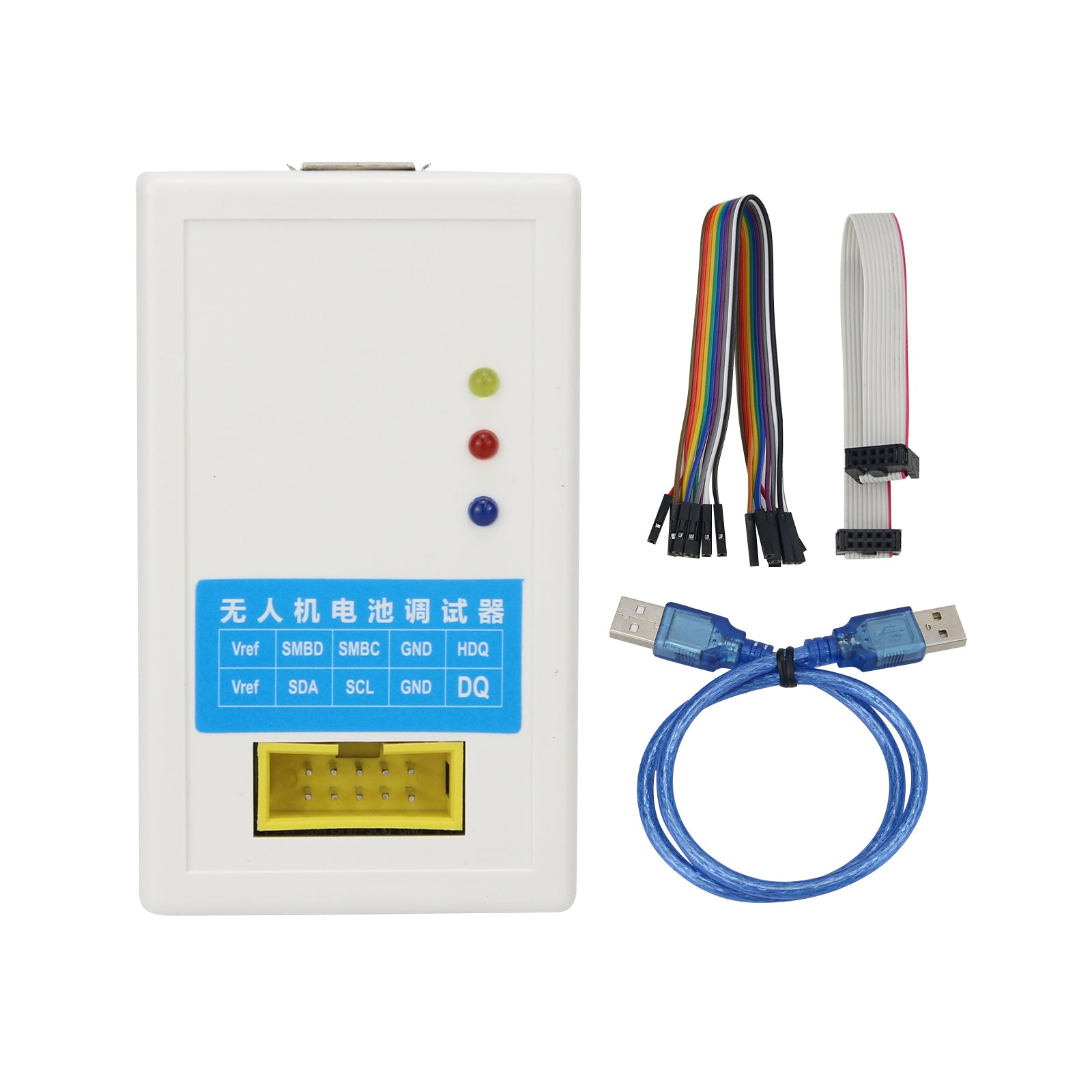

- 1 x Set of Battery Debugger

Note:
- Batteries are not included.
