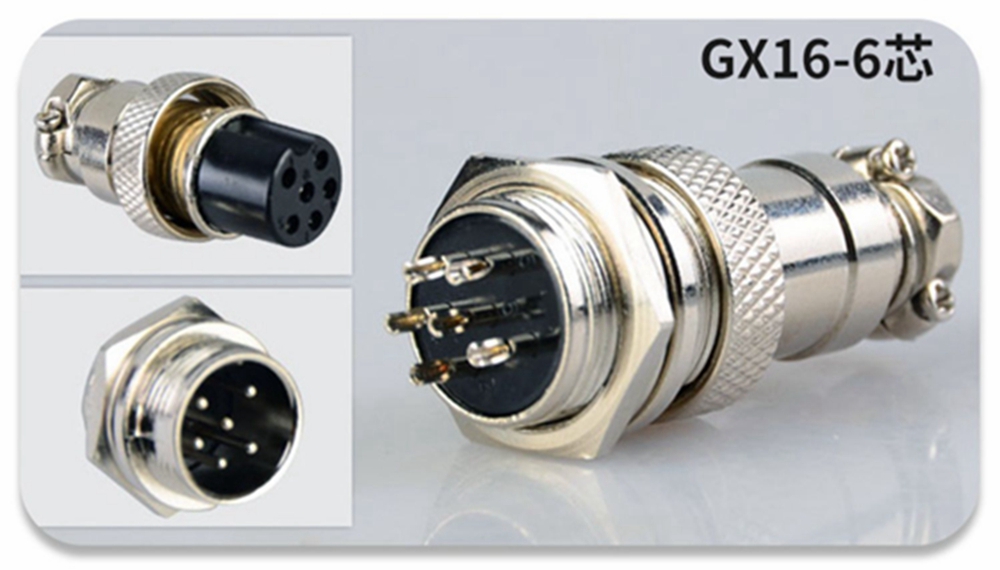

GX16 6-Pin Microphone Jack Female Connector Aviation Adapter Dust-proof and Rust-proof Aviation Plug

GX16 6-Pin Microphone Jack Female Connector Aviation Adapter Dust-proof and Rust-proof Aviation Plug

Description:
- This GX16 aviation plug is a finely crafted electromechanical component that connects electrical circuits, used for electrical connections between instruments and electronic equipment, and for direct or through-wall bulkhead connections between wires and cables.

Features:
- It is robust and durable, dust-proof and rust-proof.
- IP65 waterproof grade zinc alloy case
- High quality insulating black bakelite, good insulation, safe to use.

Parameter:
- Contact area material: Silver-plated copper
- Environmental temperature: -50℃ ~ 70℃
- Contact resistance: ≤0.0005ohm
- Atmospheric pressure: up to 4.4Kpa
- Rated current/voltage: 4A/125V
- Working voltage: 200V
- Withstand voltage: 1500V
- Insulation impedance: 1500Mohm
- Contact impedance: 3Mohm
- Contact hole diameter: 1.15mm

Package Included:
- 1 x 6-Pin Aviation Adapter
