HamGeek HM X300 Kintex-7 FPGA SDR Platform DC~6GHz 160MHz PCIe 10G Ethernet for Wireless Radar & Navigation

Features:
* The HamGeek HM X300 is a software-defined radio (SDR) platform based on Kintex-7 FPGA. It is suitable for next-generation wireless communication applications and can also be widely used in electronic warfare, radar, navigation, and other radio-related fields.
* Software-configurable to support various new radio standards and protocols.
* Built-in two microwave RF expansion slots, compatible with different microwave RF daughterboards, covering DC~6GHz carrier frequency and 160MHz signal bandwidth.
* Rich high-speed interfaces including PCIe, dual 10 GigE, and dual 1 GigE.

Performance Parameters:
1. Baseband Section:
* ADC Sampling Rate: 200 MS/s
* ADC Resolution: 14 bits
* DAC Sampling Rate: 800 MS/s
* DAC Resolution: 16 bits
* External Host Sampling Rate (16-bit data width): 200 MS/s
* Internal Reference Clock Accuracy: 2.5 ppm
* Optional GPSDO Accuracy: 20 ppb

2. Microwave RF Section:
Reception
* Noise Figure 10~20MHz: 3~4 dB
* Noise Figure 20~500MHz: 2~3 dB
* Noise Figure 0.5~1.5GHz: 2~4 dB
* Noise Figure 1.5~4GHz: 4~5 dB
* Noise Figure 4~6GHz: 5~7 dB
* Third-Order Intercept Point (RX) 10~35MHz: 4~10 dBm
* Third-Order Intercept Point (RX) 35~500MHz: 10~12 dBm
* Third-Order Intercept Point (RX) 0.5~1.5GHz: 8~13 dBm
* Third-Order Intercept Point (RX) 1.5~6GHz: 8~9 dBm
* RX IQ Imbalance: < -30 dBc

Transmission
* TX Output Power 10MHz~3.5GHz: >20 dBm
* TX Output Power 3.5~4GHz: 18~20 dBm
* TX Output Power 4~5GHz: 13~18 dBm
* TX Output Power 5~6GHz: 7~13 dBm
* Third-Order Intercept Point (TX) 10~500MHz: >40 dBm
* Third-Order Intercept Point (TX) 0.5~3GHz: >36 dBm
* Third-Order Intercept Point (TX) 3~5GHz: >20 dBm
* Third-Order Intercept Point (TX) 5~6GHz: >26 dBm
* TX IQ Imbalance: < -30 dBc

Development & Application:
* Operating Systems: For Linux, Windows
* Software Development Environment: GNU Radio, Matlab, LabVIEW
* Open Source Projects: OpenAirInterface, OpenLTE

Environmental Specifications:
* Power Supply: DC 12.5±3.5V
* Full Power Consumption: ≤7.5A at 12V
* Dimensions (WxDxH, 1U): 277mm x 217mm x 39mm
* Weight: 1.7±0.1kg

Packing List:
* 1 x HamGeek HM X300 SDR Platform

Packaging Details:
* Package weight: 5.5kg

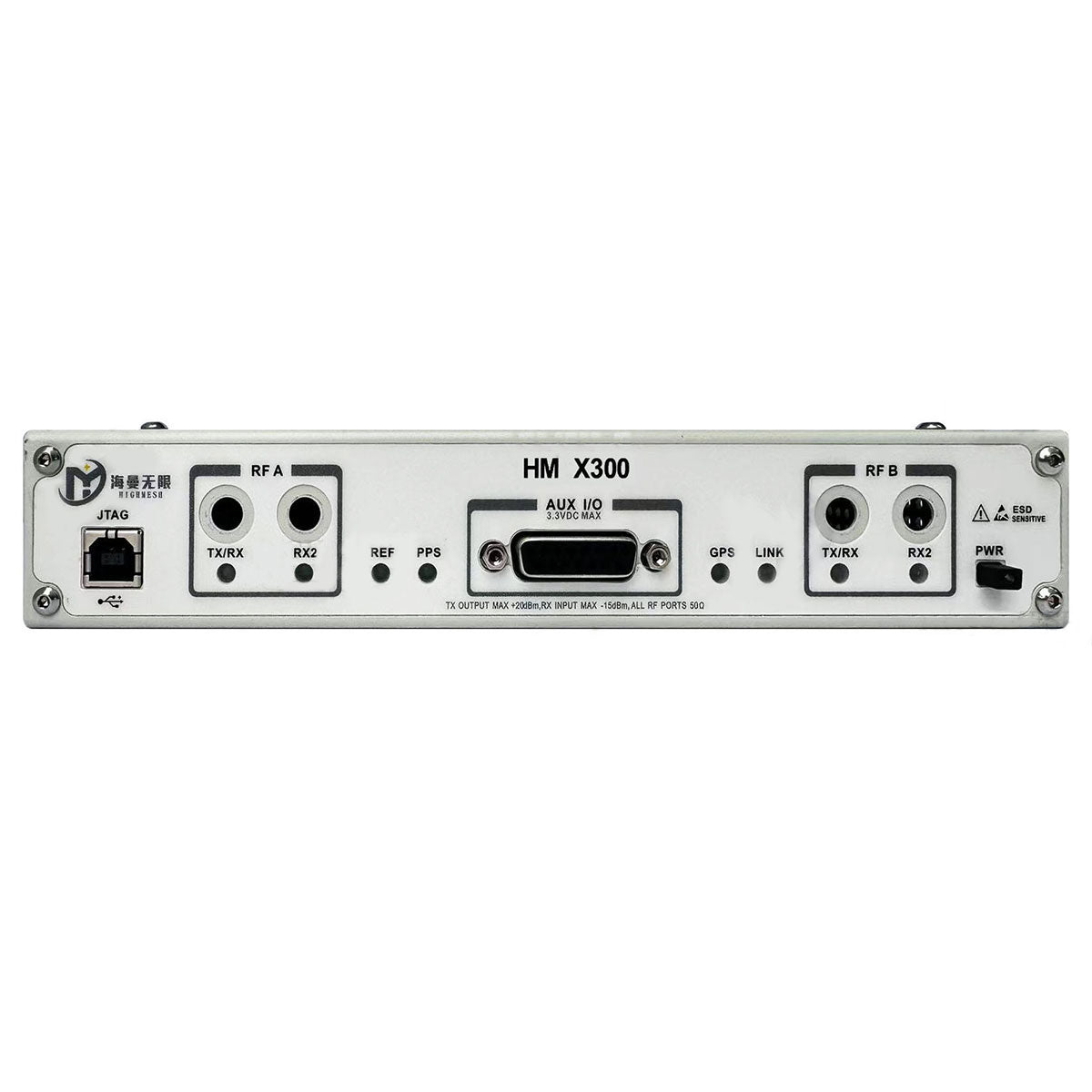

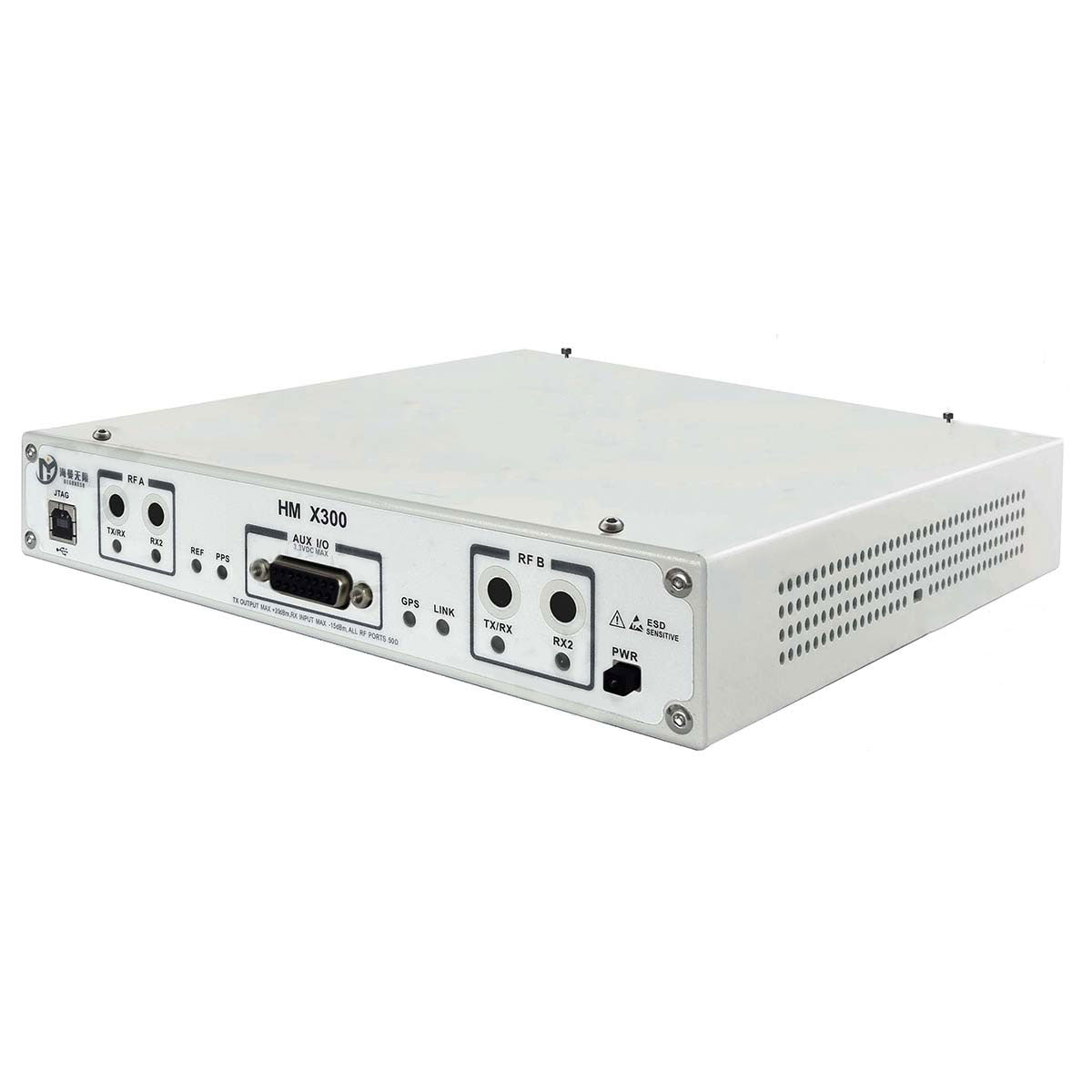

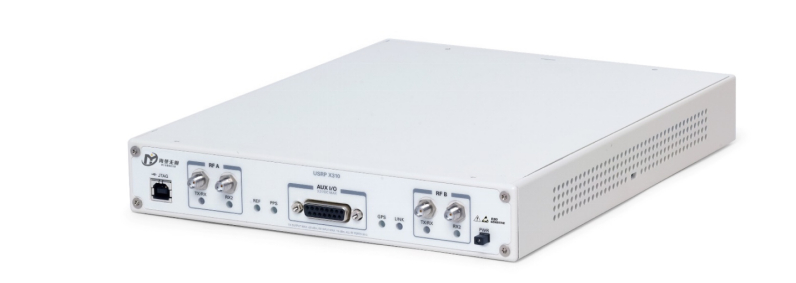

Front Panel (Introduced from left to right):
* JTAG: USB connector for on-board USB-JTAG programmer
* RF Group A TX/RX LED: Data transmission indicator for TX/RX channel on Daughterboard A
* RF Group A RX2 LED: Data transmission indicator for RX2 channel on Daughterboard A
* REF: Indicator for external reference clock lock
* PPS: Indicator for valid pulse-per-second (PPS) signal
* AUX I/O: 15-pin auxiliary GPIO connector on front panel
* GPS: Indicator for GPS reference lock
* LINK: Indicator showing host-device communication status
* RF Group B TX/RX LED: Data transmission indicator for TX/RX channel on Daughterboard B
* RF Group B RX2 LED: Data transmission indicator for RX2 channel on Daughterboard B
* PWR: Power switch

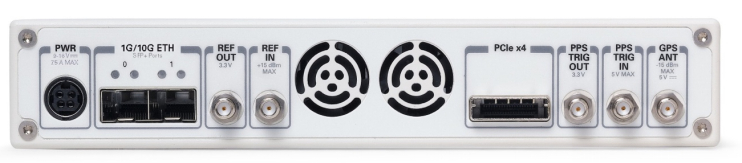

Rear Panel:
* PWR: Power connector
* 1G/10G ETH: SFP+ port for Ethernet interface
* REF OUT: Output port for reference clock
* REF IN: Input port for reference clock
* PCIe x4: Connector for wired PCI Express link
* PPS/TRIG OUT: Output port for PPS signal
* PPS/TRIG IN: Input port for PPS signal
* GPS ANT: Connector for GPS antenna
