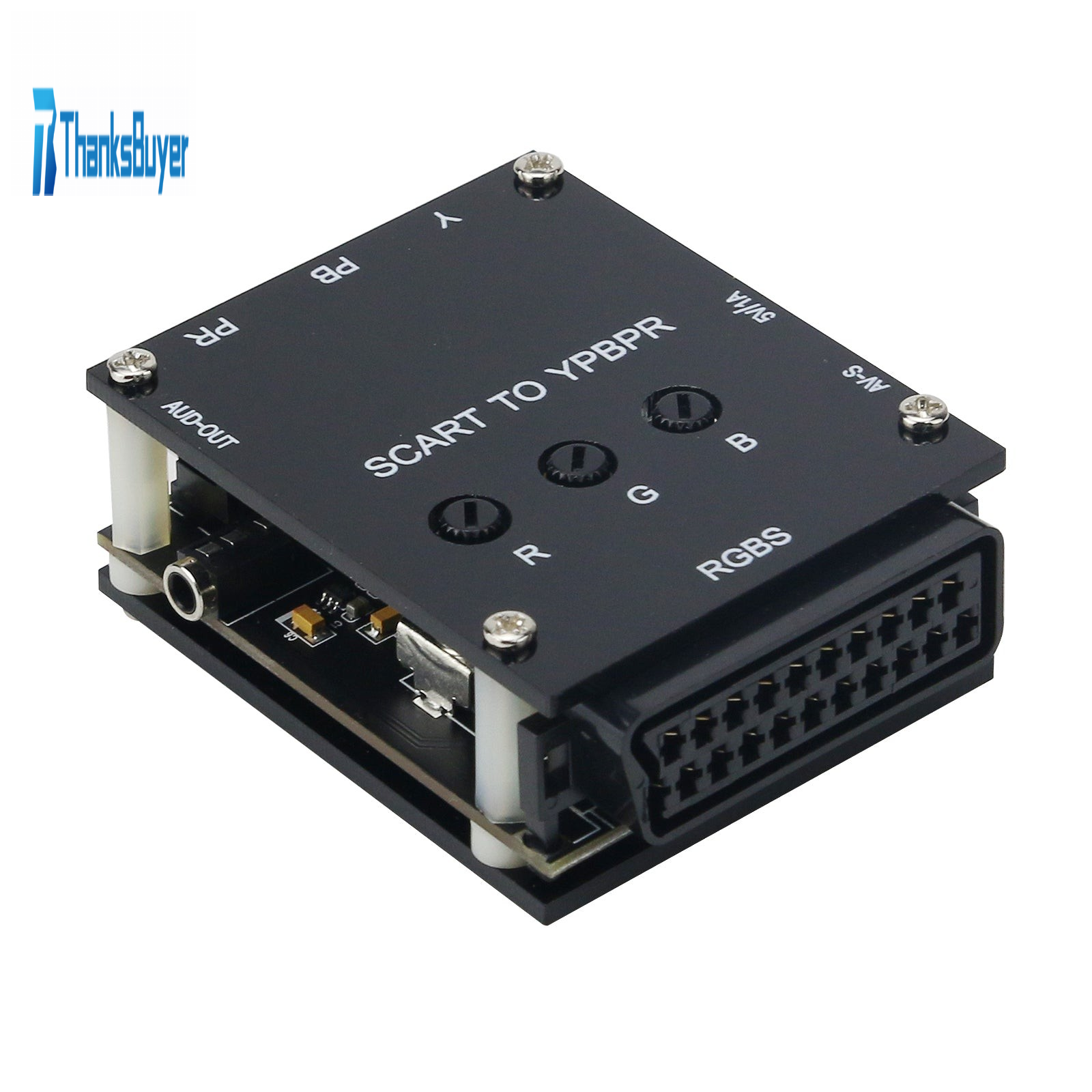

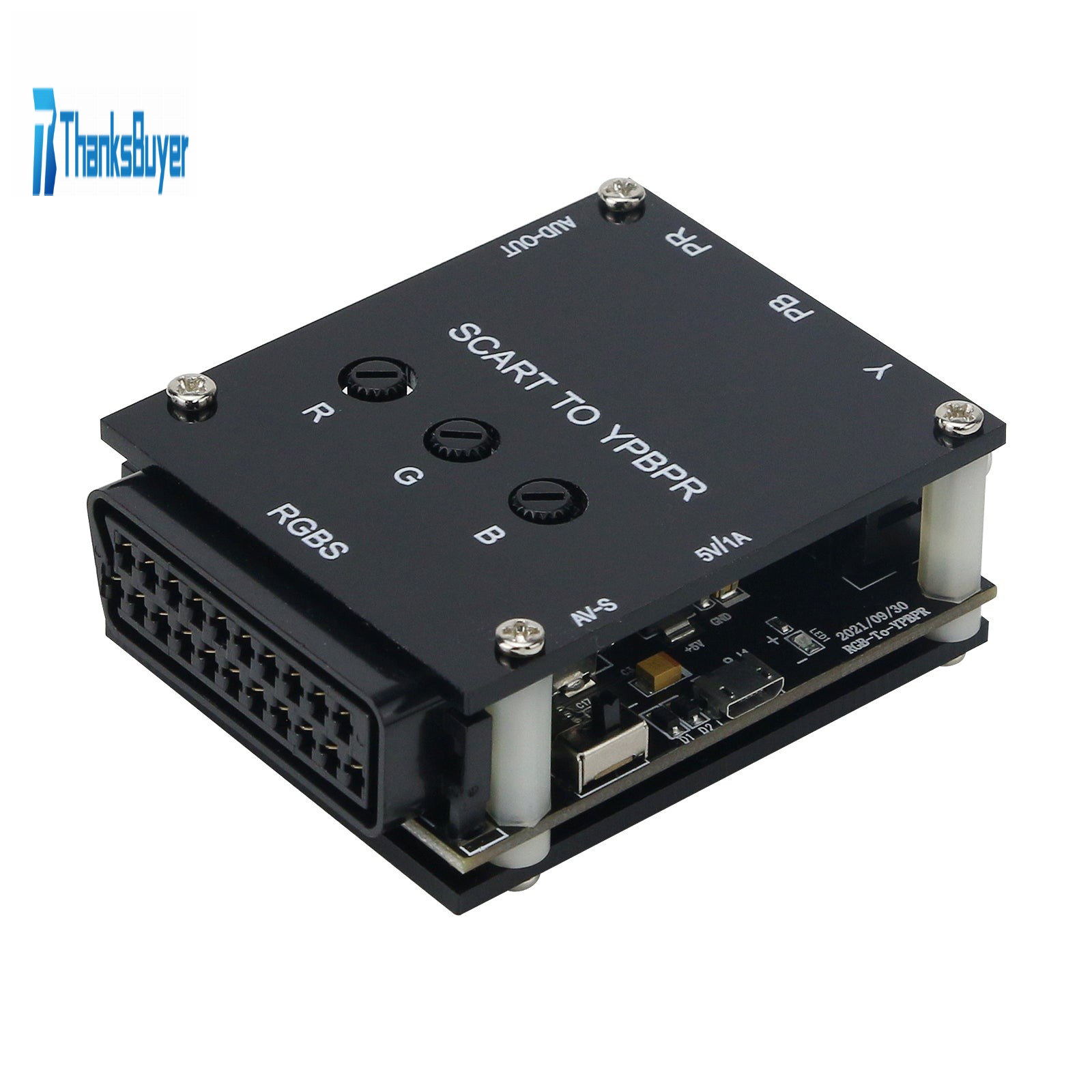

HamGeek Rgbs to Ypbpr Transcoder Game Video Transcoder Suitable for Home Console Arcade Boards

HamGeek Rgbs to Ypbpr Transcoder Game Video Transcoder Suitable for Home Console Arcade Boards

Description:
It is specialized designed for retro home console and Arcade boards. It uses high-quality transcode circuit to converting RGB signal to component Ypbpr signal, so users can connect to TV or other up-scaler like ODV.

Using the additional R, G, and B knobs on it, users can further fine-tune the output color degree of red, green and blue respectively to meet the needs.

Additionally, it has a specialized separation chip to split clean sync signal from input source to support both home console and Arcade boards.

Specifications:
- Power supply: micro-USB5V/1A
- Input port: SCART/raw wire input
- Signal: Analog signal source 240p/480i/288p/576i/480p/720p/1080i
- Output: YPbPr component via RCA connector
- Formats: Same as input signal
- Size: 75 x 57 x 26mm/3 x 2.2 x 1"
- Convert: One direction convert only, i.e. RGBS to Component

Package Included:
- 1 x Rgbs to Ypbpr Transcoder
