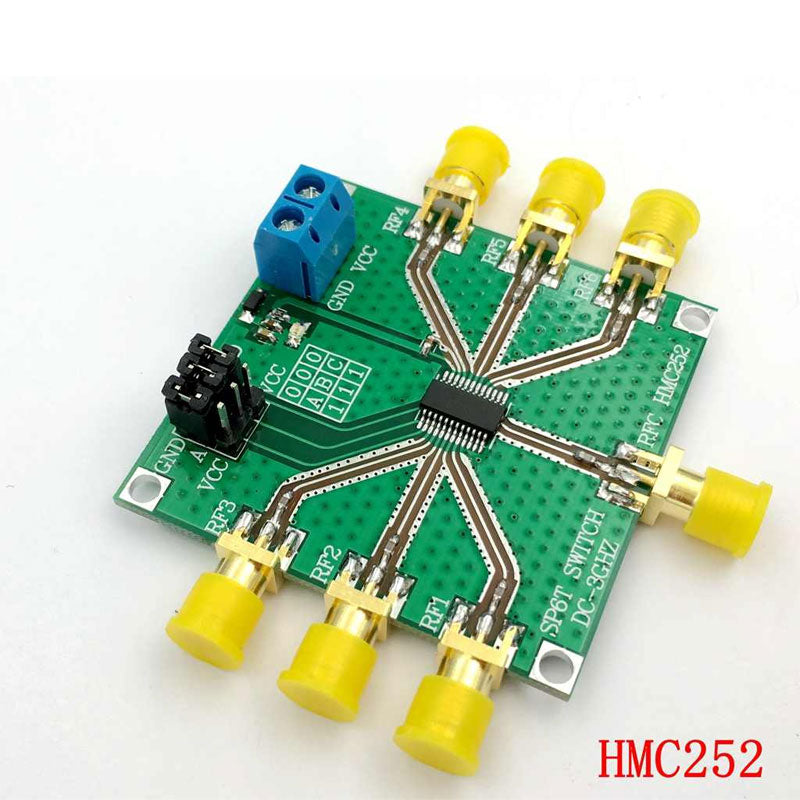

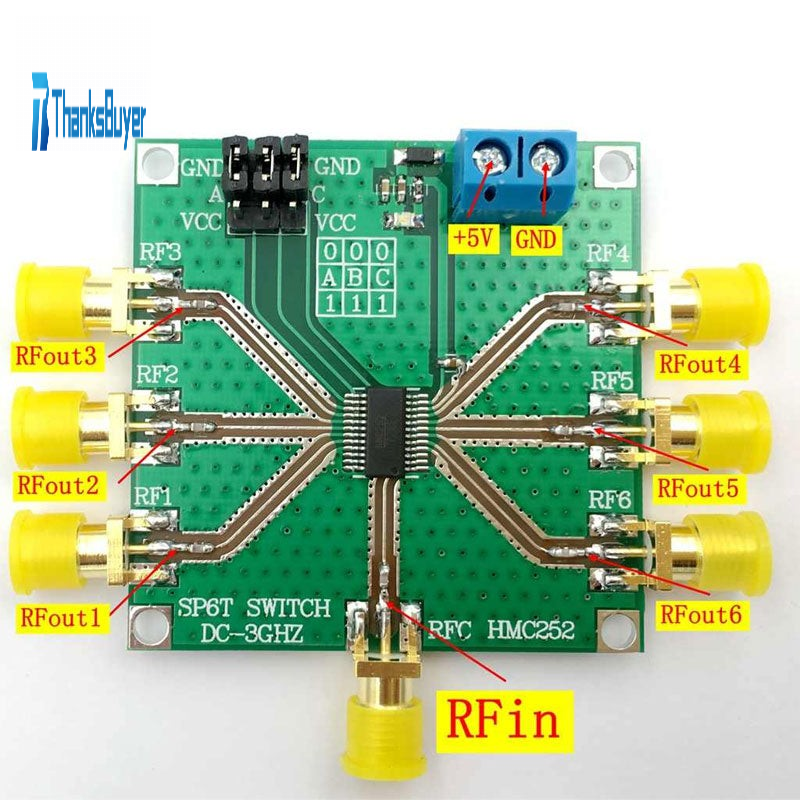

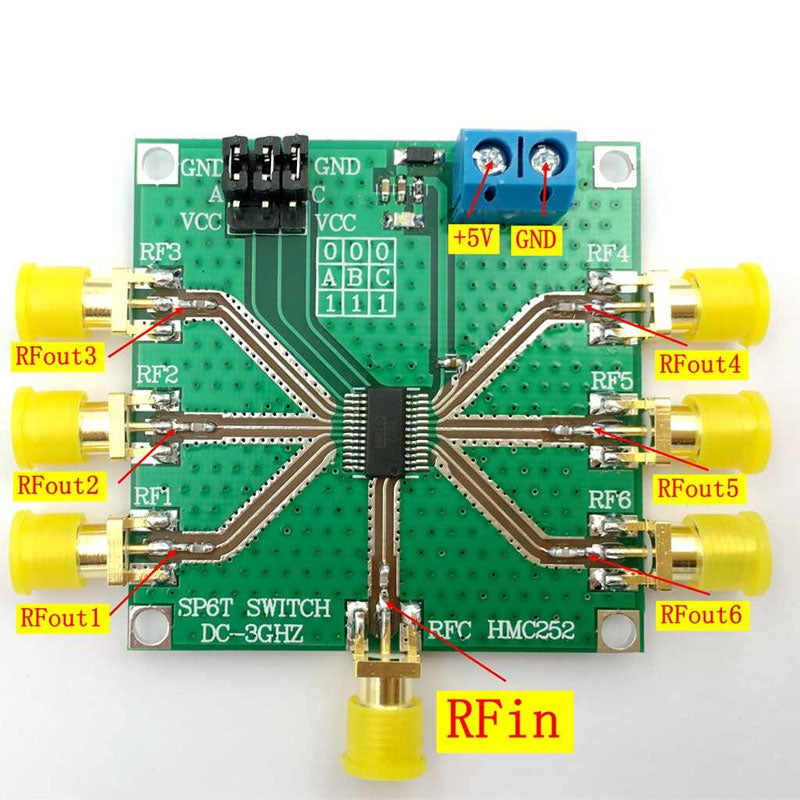

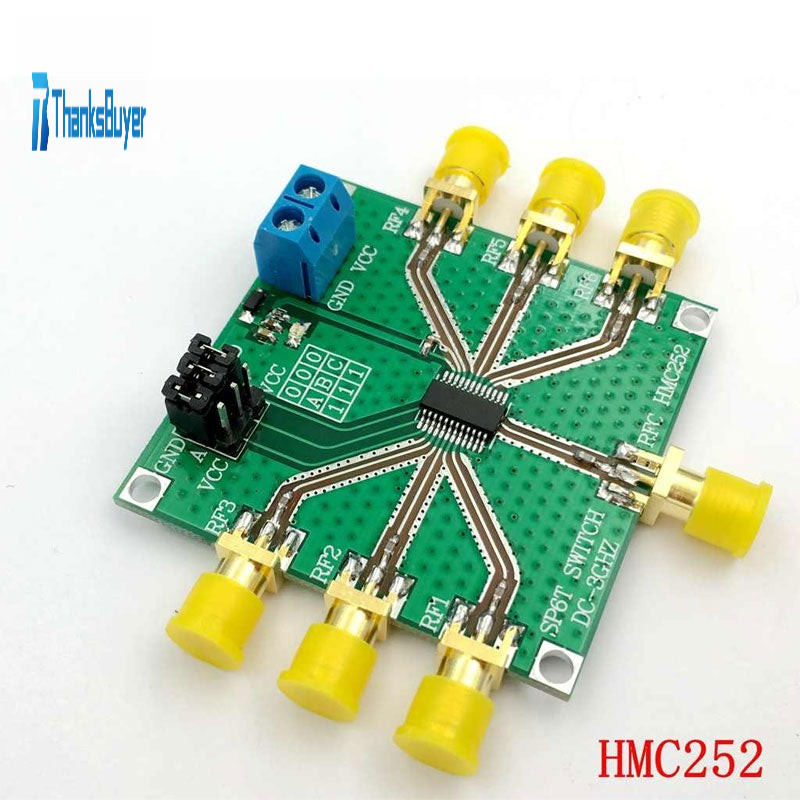

HMC252 DC-3GHz RF Single-Pole Six-Throw Switch Non-reflective SP6T Switch Integrated 3:6 TTL Decoder

HMC252 DC-3GHz RF Single-Pole Six-Throw Switch Non-reflective SP6T Switch Integrated 3:6 TTL Decoder

Description:
- HMC252AQS24E is a low-cost non reflective SP6T switch, packaged in a 24-pin QSOP, with a broadband operating frequency range from DC to 3.0GHz. This switch provides single positive bias and true TTL/CMOS compatibility. The switch integrates a 3:6 decoder, which only requires three control lines and one positive bias to select each path HMC252AQS24E SP6T can replace various configurations of SP4T and SPDT MMIC switches and logic drivers.

Features:
- Low insertion loss (2GHz): 1.0dB
- Single positive power supply: VDD= +3V to +5V
- Integrated 3:6 TTL decoder

Application:
- Base station
- CATV / DBS
- MMDS and Wireless Local Area Network
- Testing equipment

Package Included:
- 1 x RF Switch

Actual Measurement Curve:

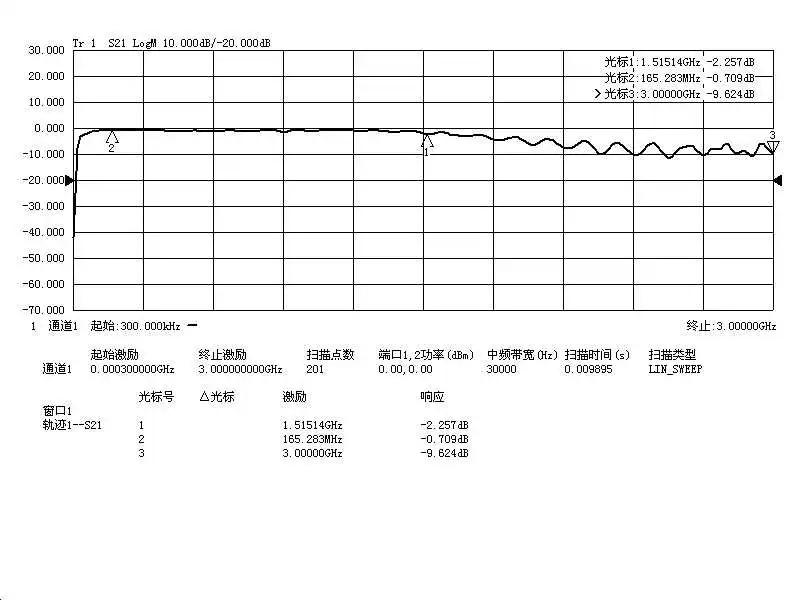

- The conduction S21 curve from RFC to RF1 is as follows:

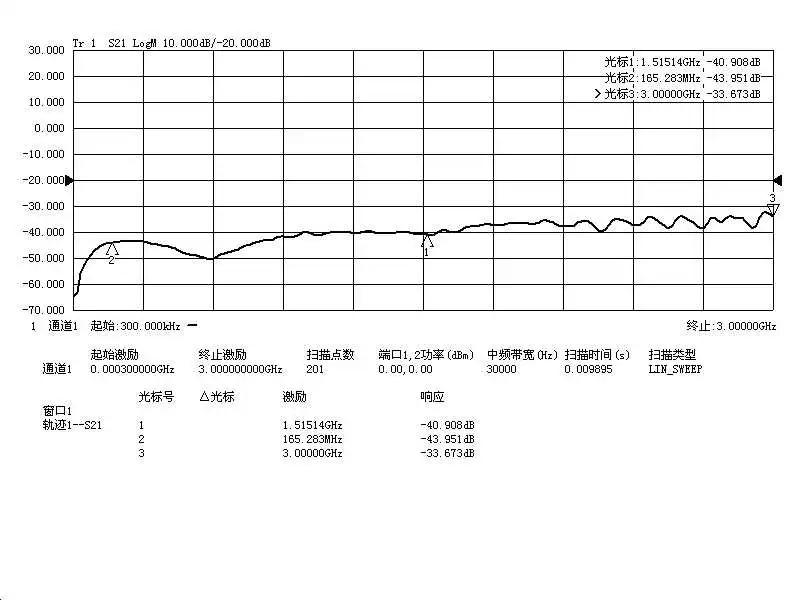

- The disconnection S21 curve from RFC to RF1 is as follows:
