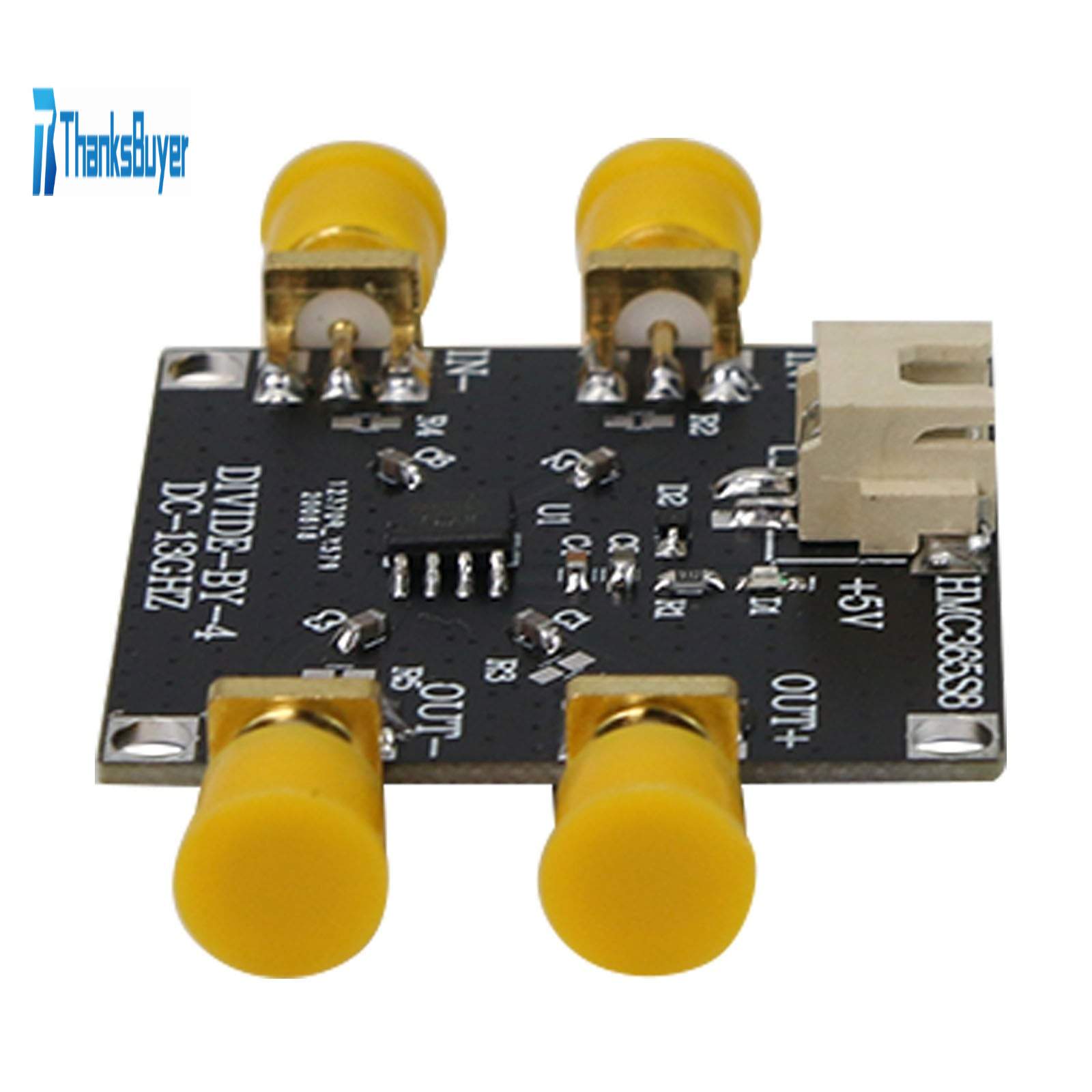

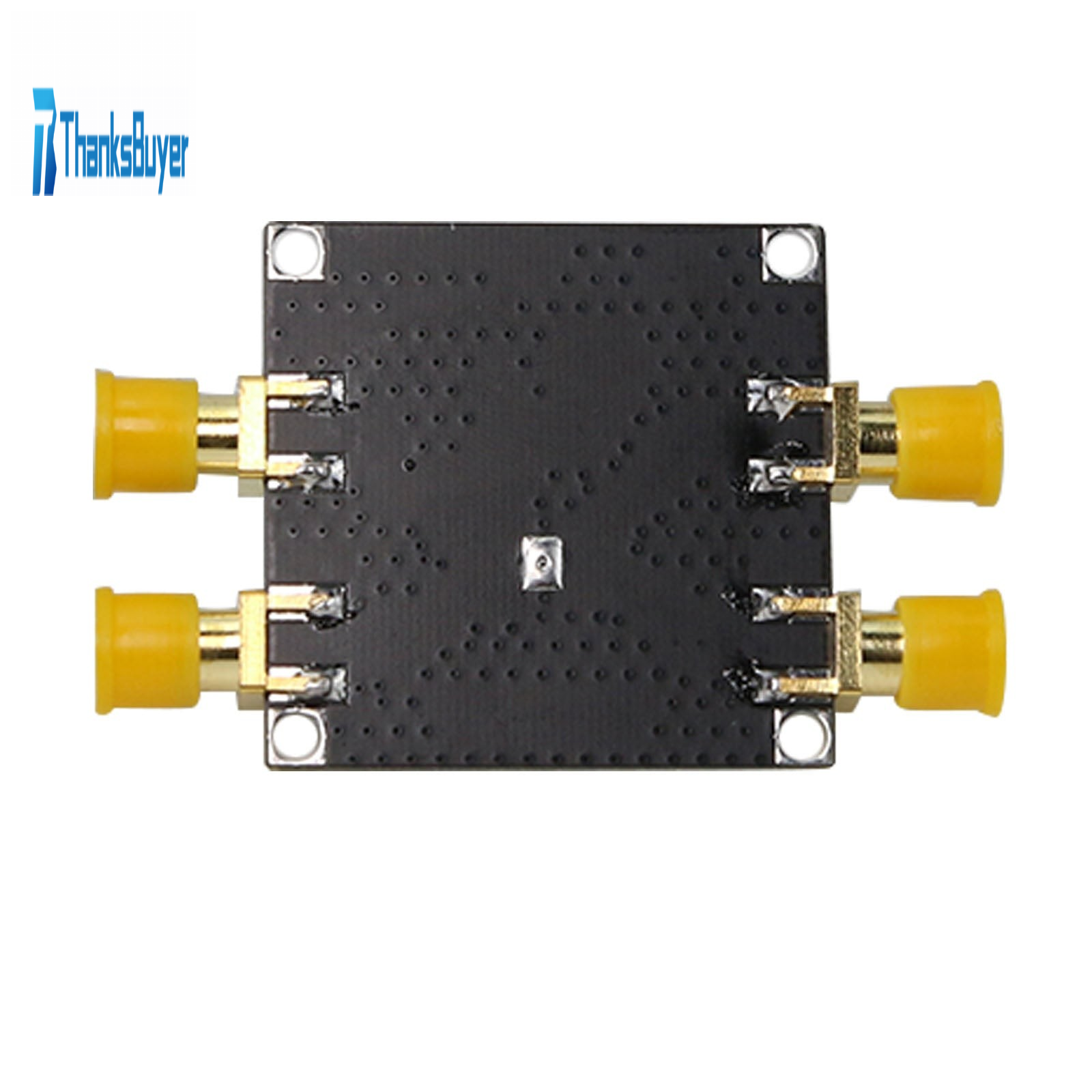

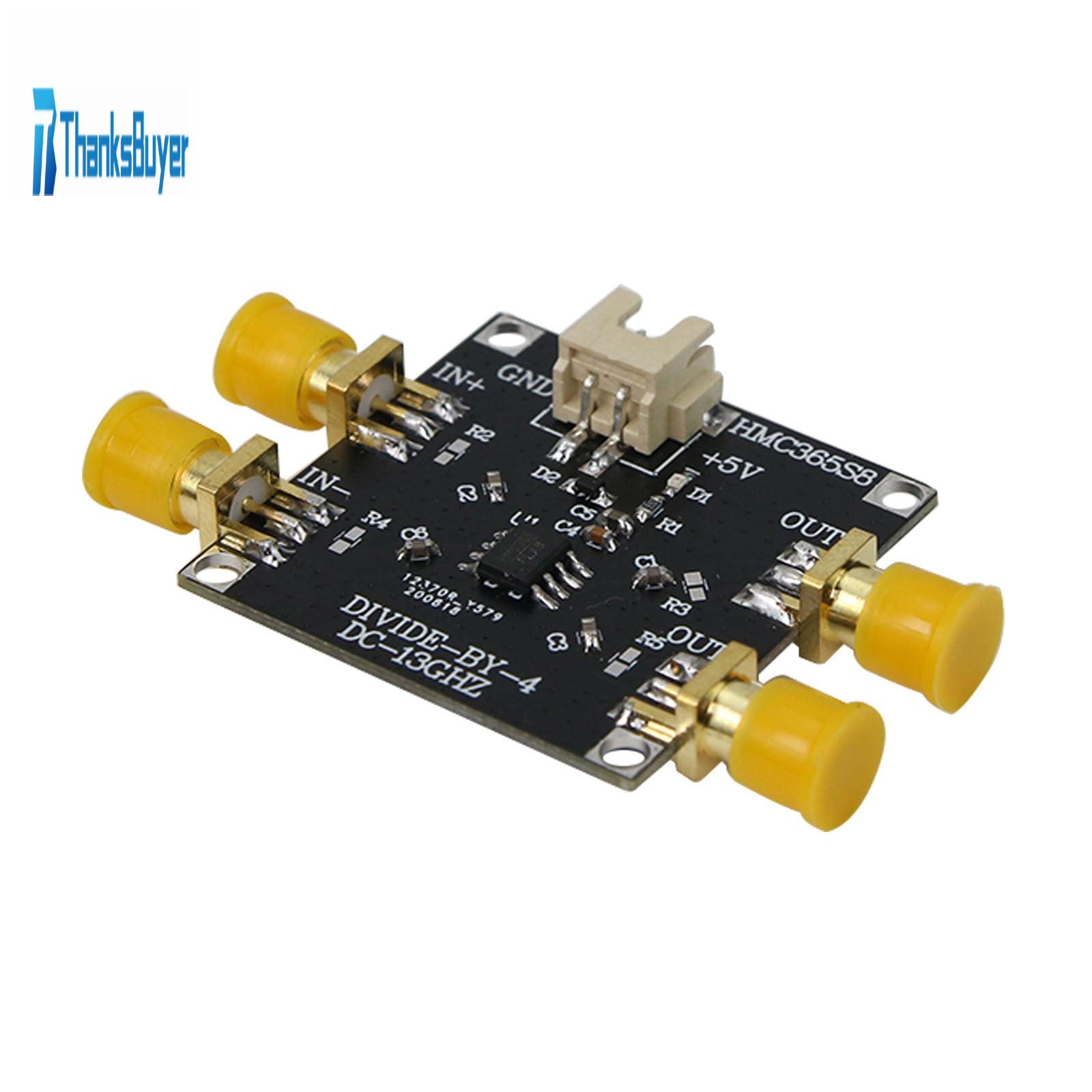

HMC365 Ku-band RF Frequency Divider 4 Frequency Division DC-13GHz PLL Pre-divider

HMC365 Ku-band RF Frequency Divider 4 Frequency Division DC-13GHz PLL Pre-divider

Specification:
Working frequency: 10M-13GHZ (when less than 10MHZ, can increase the coupling capacitance)
Input and output interface: SMA-50 ohm (outer spiral inner hole)
Circuit board size: 3.5*3.5cm (without protruding SMA)
Power supply: +5V (with input protection diode)
Frequency division number: 4 frequency division
Input and output interface: differential (if configured as single-ended, the other port is grounded)

Package List:
1 x RF Frequency Divider
