Hobbywing 10A UBEC DC-DC Regulated Ultra Battery Elimination Circuit Support 3-14S Lithium Battery Group Input

Hobbywing 10A UBEC DC-DC Regulated Ultra Battery Elimination Circuit Support 3-14S Lithium Battery Group Input

Description:

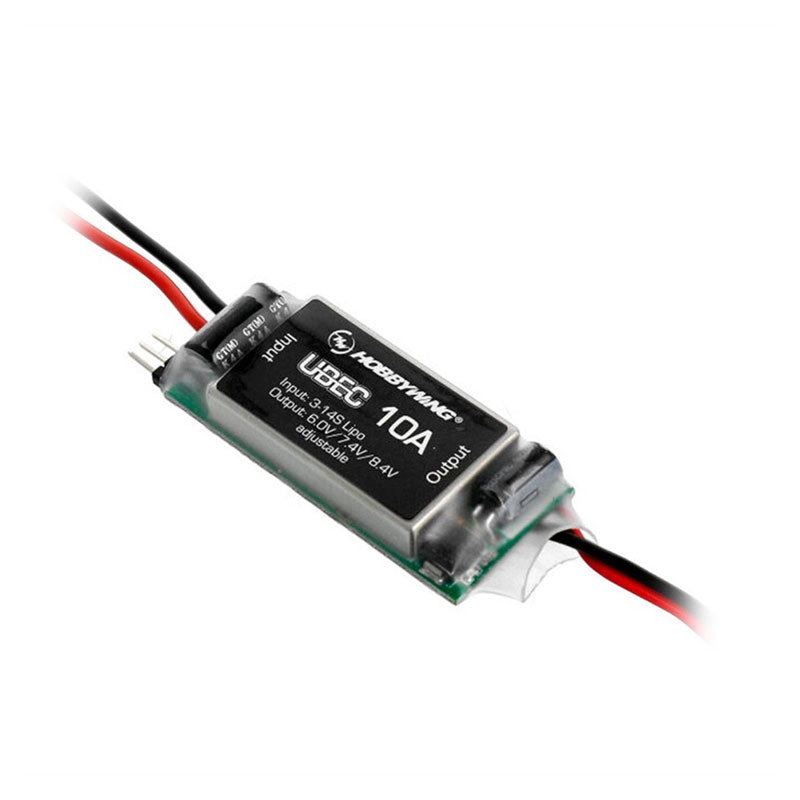

- This UBEC adopts DC-DC voltage regulator chip, with a conversion efficiency of over 90%. This UBEC can obtain DC voltage suitable for receiver and other equipment operation from 3-14S lithium battery pack, and stably provide 10A output current. The UBEC output voltage is adjustable in three levels (6.0V/7.4V/8.4V), which can meet the use of various voltage specifications for servos and electrical equipment. Simultaneously equipped with overcurrent protection, output short-circuit protection, and overheating protection, ensuring safety and stability.

Specification:
- Input voltage: 3 - 14S (number of lithium battery cells)
- Output voltage: 6.0V/7.4V/8.4V (adjust through jumper cap)
- Output current: continuous 10A, instantaneous 25A
- Product size: 55 x 25 x 12mm
- Net weight: 35g

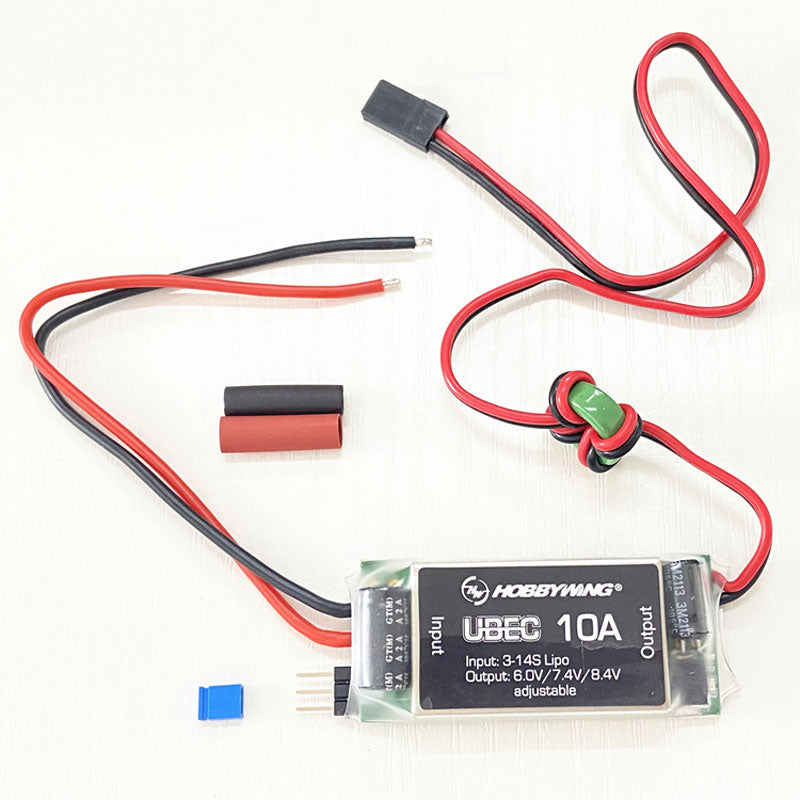

Package Included:
- 1 x UBEC
