Pair of 3G-SDI Audio and Video Fiber Optic Extender TX and RX Kit 1920x1080 20KM Long Distance Transmission

Description:

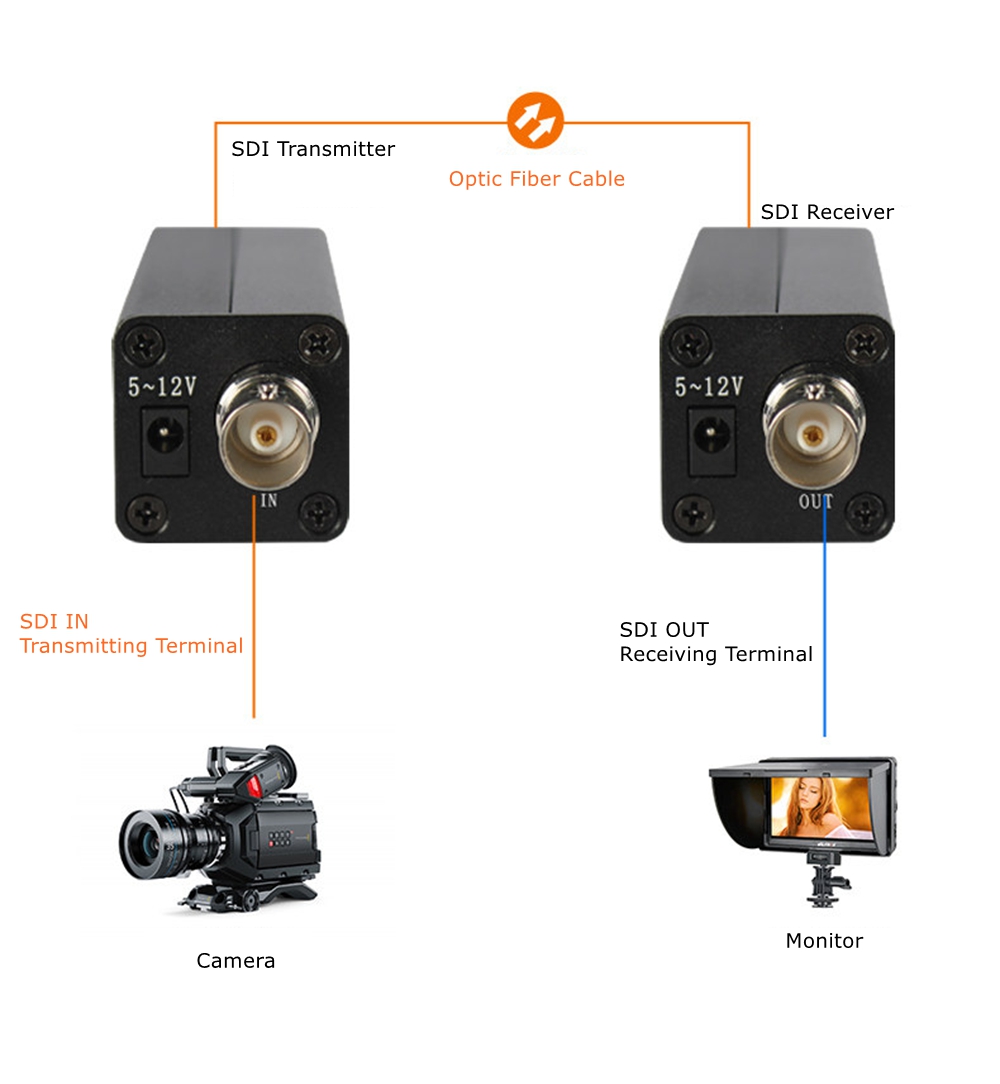

- The 3G-SDI Fiber Optic Extender Kit enables long-distance, high-quality video transmission over fiber, supporting uncompressed 3G-SDI signals with resolutions up to 1920x1080P at 60Hz. It uses LC single-mode fiber and hot-swappable SFP optical modules, providing a reliable and interference-resistant solution for professional SDI transmission.

- Compared to traditional coaxial cables, this fiber-based system offers lower attenuation, wider bandwidth, stronger anti-interference, and greater safety, making it ideal for complex environments and long-distance applications up to 20 kilometers. The system includes both transmitter and receiver units, with plug-and-play setup and LED status indicators for power and SDI signal detection.

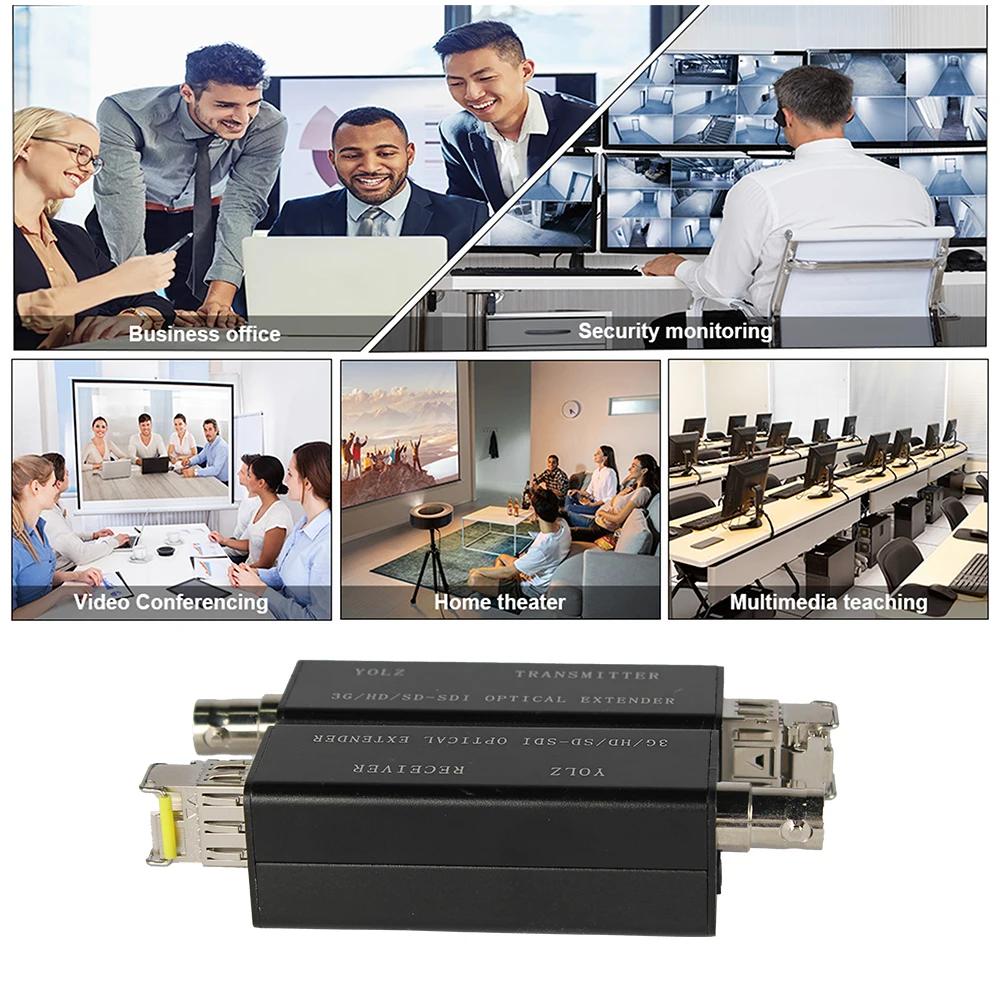

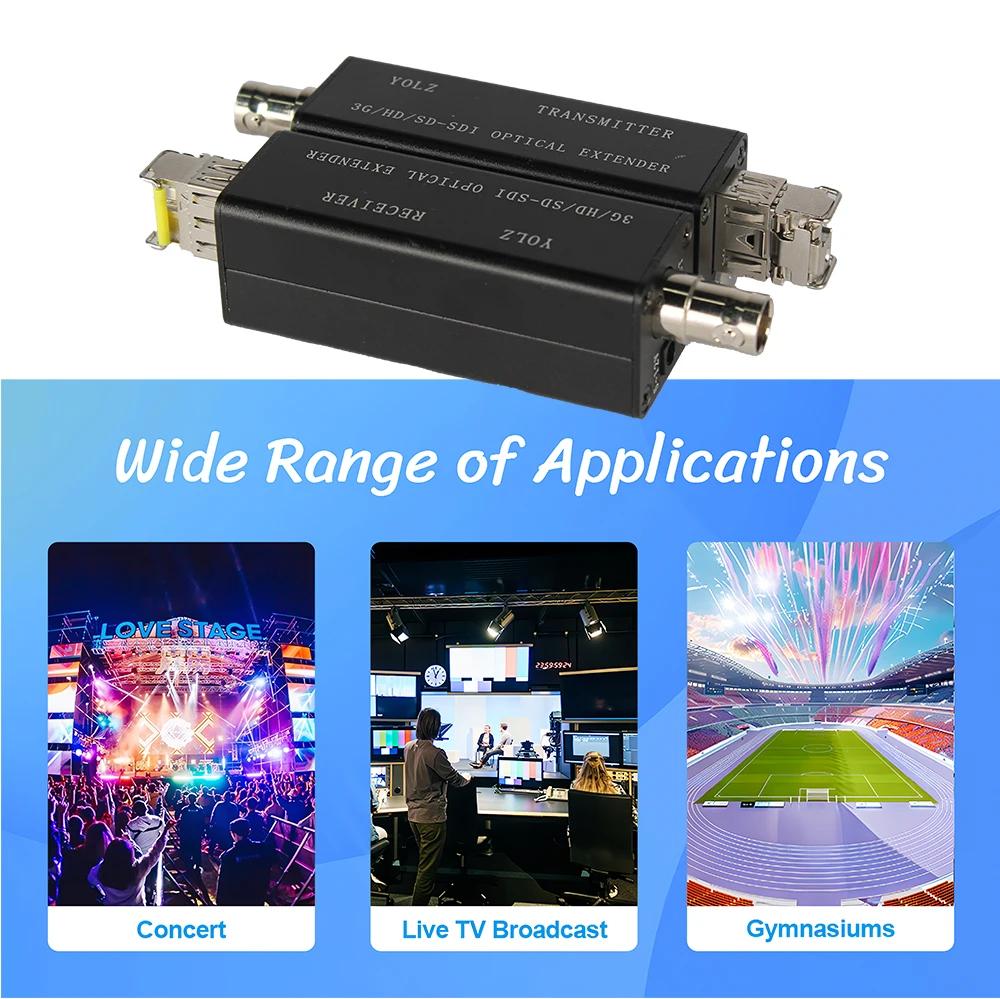

Applications:
- Video transmission in exercises and training fields
- HD surveillance systems over long distance
- Live broadcast and event production
- Outdoor performance video signal links
- Multimedia control centers and stadiums

Key Features:
- Supports 3G-SDI signals up to 1080p at 60Hz, compatible with SMPTE 424M for full SDI format coverage.
- Up to 20km over LC single-mode fiber and up to 300m over multi-mode fiber. Uncompressed, real-time signal transmission with no image degradation.
- Plug and play with hot-swappable SFP. Easy installation with no software required; supports live module replacement.
- Compact and efficient design: Aluminum housing, 110x25x25mm size, ultra-low power consumption ≤2W.
- Suitable for broadcast, security, and industrial use. Ideal for OB vans, studios, command centers, and outdoor video links.

Specification:
- Model: NQ-SCT300-T/R
- Optical port: LC port
- Video interface: SDI
- Power supply specification: DC 5 - 24V
- Resolution: 1920 x 1080 at 60Hz
- Storage temperature: -40℃ to 85℃
- Shell: metal shell
- Wavelength: 1310NM
- Working temperature: -20℃ to 70℃
- Product size: 110 x 25 x 25mm

Package Included:
- 1 x Transmitter
- 1 x Receiver
