Power Meter Pro HH_PM_M1 50nA-5A Current Analyzer 0.7V-12V Power Monitor Tester with Display

$183.60
$183.60
inkl. MwSt. Versand wird beim Checkout berechnet
Availability: 2000 auf Lager
SKU: 105921
Tags:
$183.60
$183.60

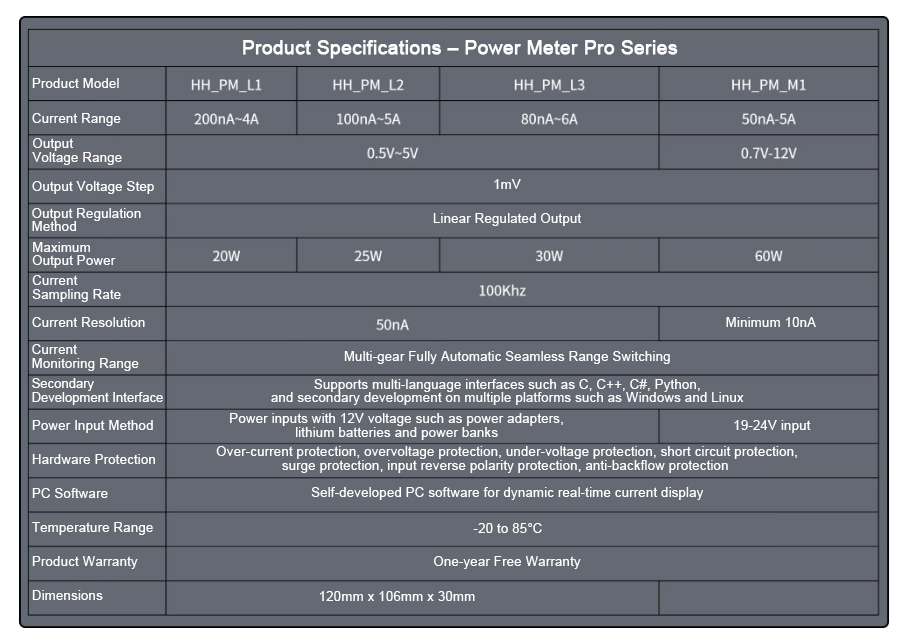

Available Models & Configurations
* HH_PM_L1 — Current Measurement Range: 200nA-4A
* HH_PM_L2 — Current Measurement Range: 100nA-5A
* HH_PM_L3 — Current Measurement Range: 80nA-6A

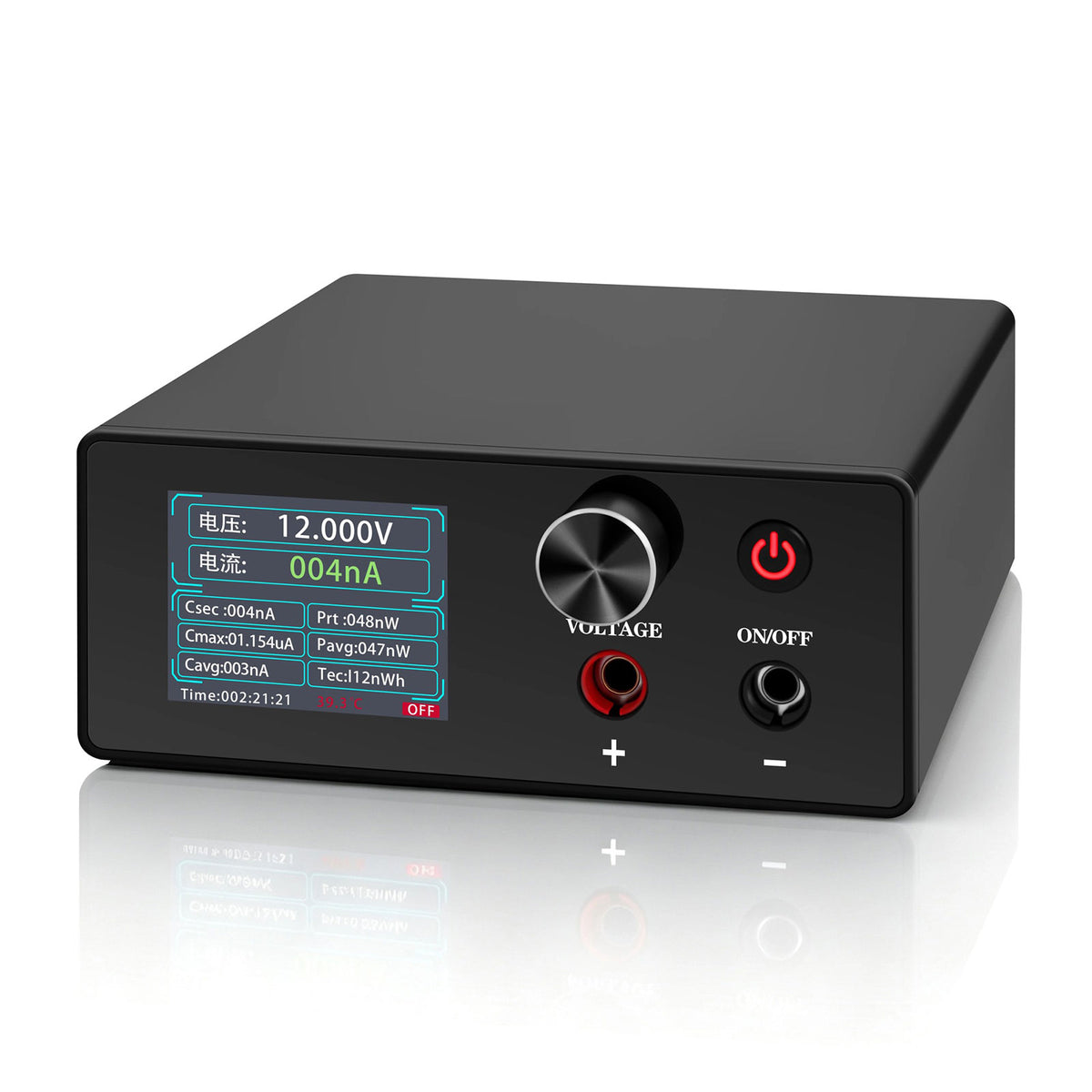

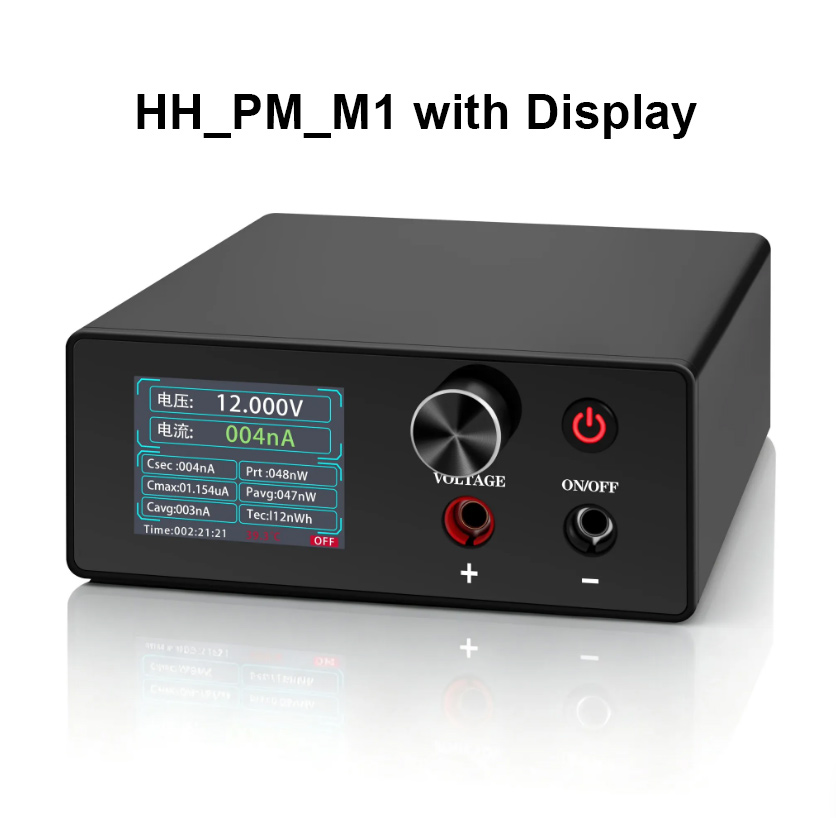

* HH_PM_M1 — With Display, Voltage Range: 0.7V-12V, Current Measurement Range: 50nA-5A

Features:

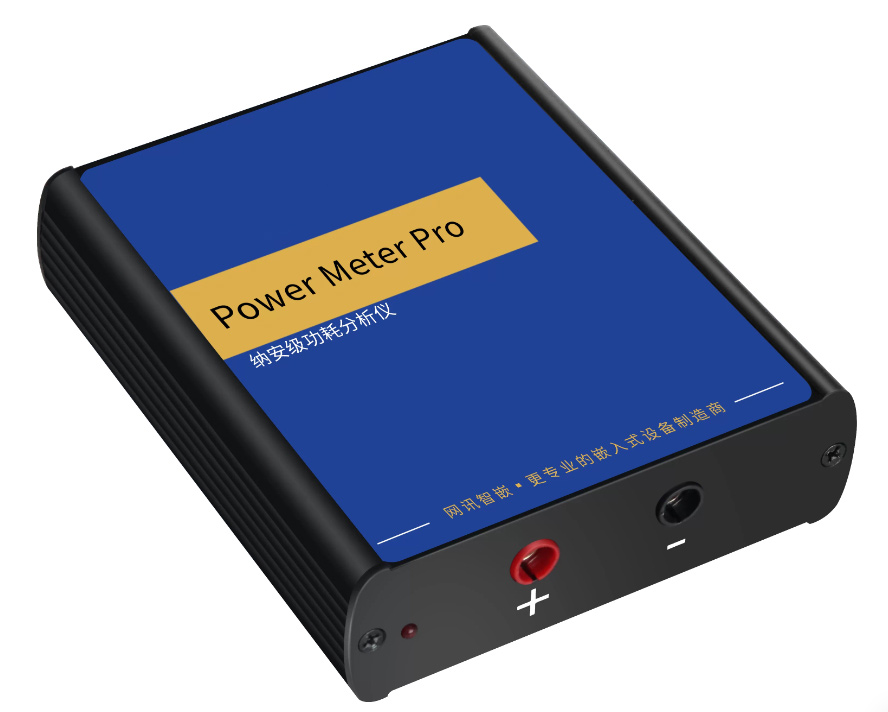

Power Meter Pro Nanoamp Power Consumption Analyzer
* HH_PM_L1: 200nA-4A
* HH_PM_L2: 100nA-5A
* HH_PM_L3: 80nA-6A
* HH_PM_M1: With Display, 0.7V-12V, 50nA-5A
* Linear Regulated Output
* Ripple: ≤1mV
* Dynamic Current Testing
* Nanoamp-Level Sampling Resolution
* 100kHz Sampling Rate

Comprehensive Hardware Protection
* Over-current Protection
* Overvoltage Protection
* Short-circuit Protection
* Under-voltage Protection
* Surge Protection

Typical Applications
1. Low-Power Products
* Microcontrollers (MCUs)
* Bluetooth Low Energy (BLE) Devices
* Computer Mice
* Wireless Devices

2. Internet of Things (IoT) Devices
* Zigbee, Wi-Fi and NB-IoT
* LoRa Modules
* 2G/4G/5G Devices

3. Mobile Devices
* Smartphones, Tablets and Laptops
* Wireless Scanners
* Data Collection Terminals
* Personal Digital Assistants (PDAs)

4. Wearable Devices
* Smartwatches
* Fitness Bands
* Smart Glasses

5. Battery-Powered Products
* Electric Toothbrushes
* Medical Devices
* Mobile Devices
* Smart Door Locks
* New Energy Applications
* Battery-Powered Equipment

PC Software:
* Visible-Window Data Statistics: Calculates the maximum current, minimum current, average current, average power consumption, and other parameters within the currently visible waveform window.
* Global Data Statistics: Calculates the maximum current, minimum current, average current, average power consumption, and other parameters across all recorded sampling data.
* True 100kHz Sampling Rate: View real sampling data in detail. Zoom in on the waveform to accurately inspect the data and timestamp of each sampling point. The time interval between consecutive sampling points is 10µs, corresponding to a sampling rate of 100kHz.
* Smooth and Efficient PC Software: During extended real-time sampling, the PC software reportedly uses approximately 6.8% CPU utilization. Compared with competing software that may consume as much as 70% CPU, it is designed to provide a smoother user experience.

Package Contents:
* 1 x Power Consumption Analyzer
* 1 x USB Cable (Type-B to Type-A)
* 1 x 12V Power Adapter
* 2 x Power Cables with Alligator Clips

Packaging Details:
* Package weight: 0.55kg

Note:
* Batteries are not included in the package.
