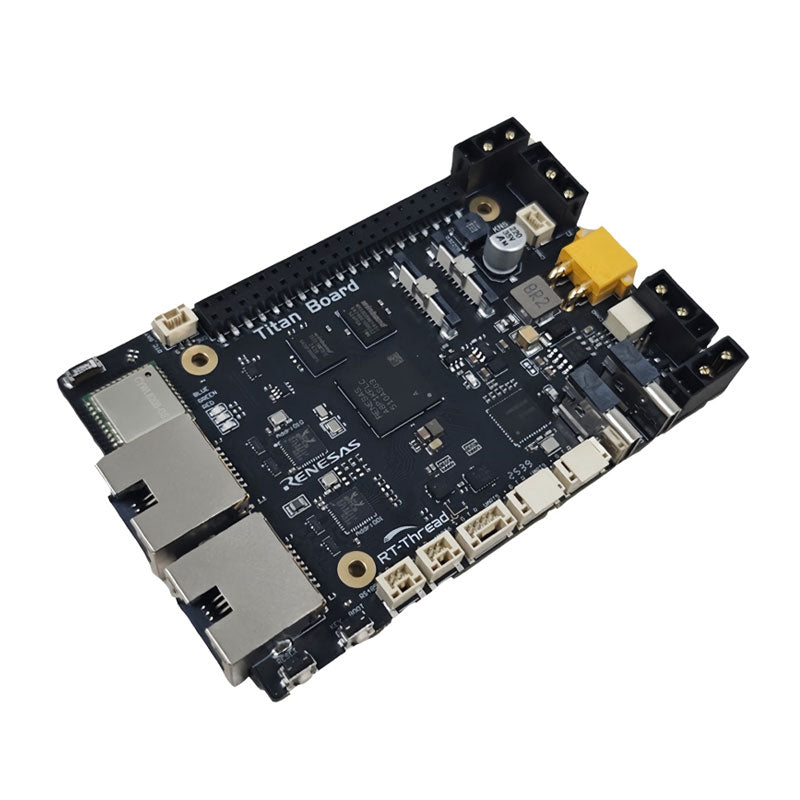

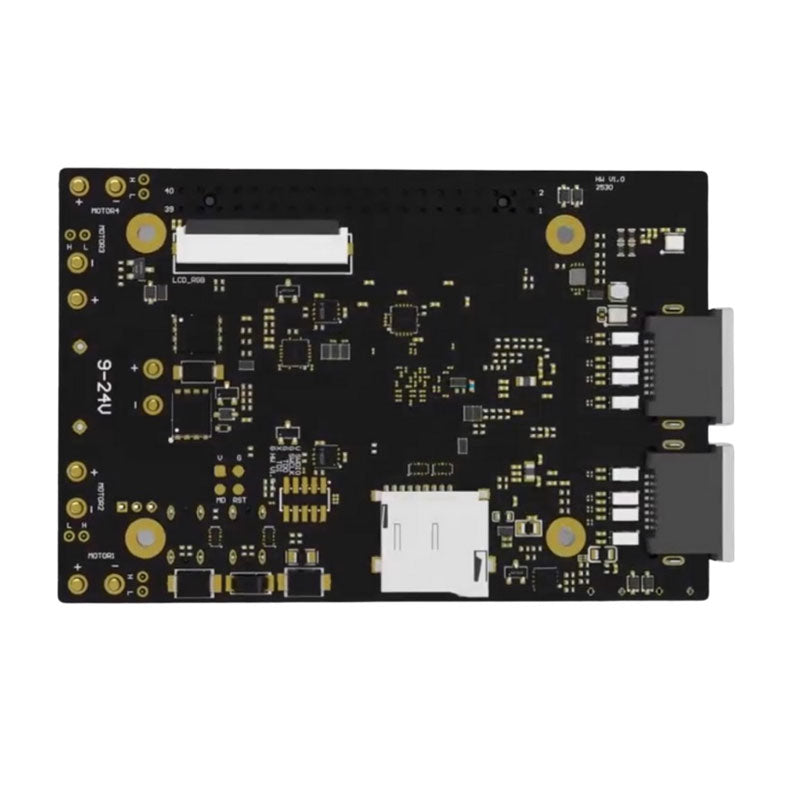

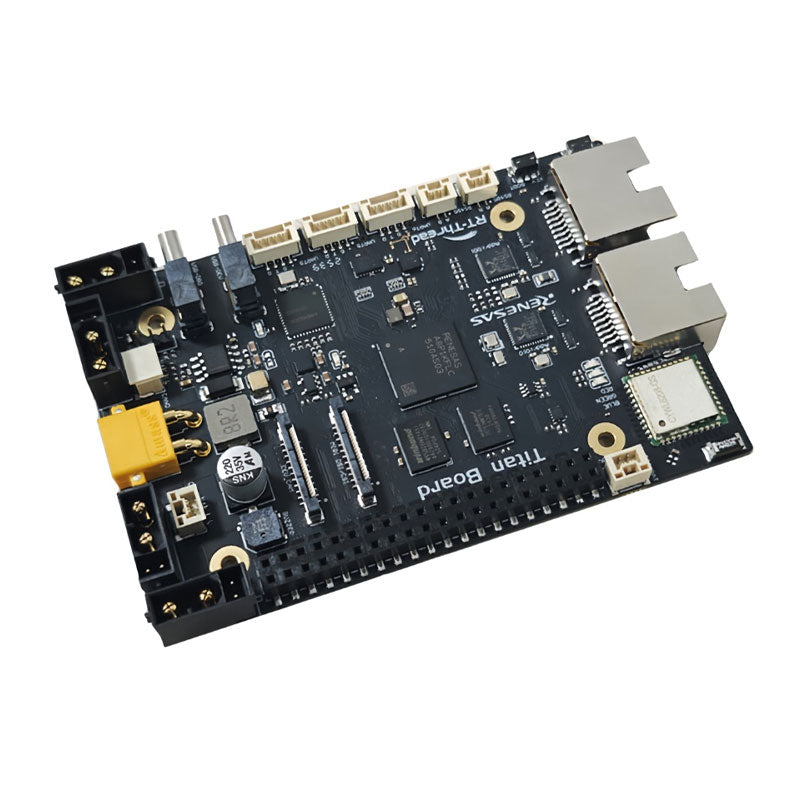

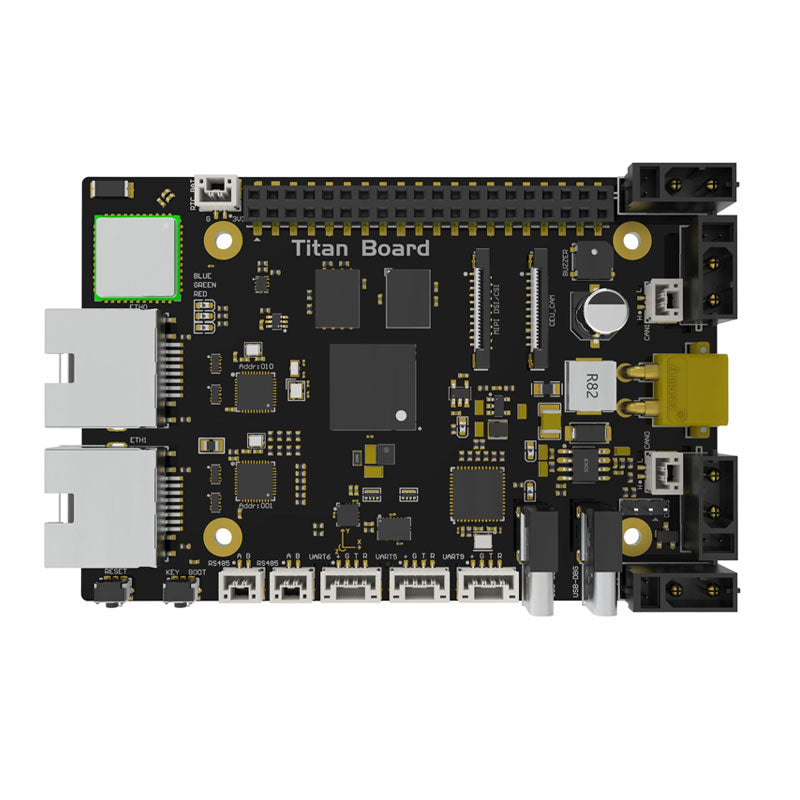

RT-Thread RA8P1 Titan Board Dual Core 256GOPS High Performance AI-Accelerated MCU Development Board with Camera Module

Description:
- The RT-Thread RA8P1 Titan Board provides engineers with a flexible and comprehensive development platform to help developers gain a deeper experience in the AI field. It is also the first hardware product from RT-Thread to support for RPMsg-Lite dual-core communication solution.
- This series achieves 256GOPS Al performance, breakthrough CPU performance of over 7300 CoreMarks, and advanced artificial intelligence (AI) capabilities through a single chip, supporting voice, visual, and real-time analysis of AI scenarios.

Powerful Processing Performance:
- The Titan Board is equipped with a 1GHz Arm Cortex-M85 and a 250MHz Arm Cortex-M33 dual-core RA8P1 chip. It is a 32-bit AI acceleration microcontroller (MCU) featuring the high-performance for Arm Cortex-M85 (CM85) with vector extensions for Helium and the integrated NPU for Ethos-U55. The RA8P1 enables AI in edge devices with low latency, low power consumption, and enhanced security, supporting AI application scenarios such as voice interaction, visual recognition, and real-time analysis.

User-Friendly Learning Environment:
- It provides a simple and easy-to-use development environment and sample projects, enabling beginners to quickly get started. There is also abundant documentation available for developers to learn from.

Expandability:
- The board offers a rich set of expansion interfaces, such as CEU camera, MIPI-CSI/DSI, RGB565, Raspberry Pi-compatible IO, CAN motor interface, DBUS, etc. Users can connect other peripherals or modules such as Ethernet, CAN, sensors, actuators, etc., to create more complex application scenarios. Based on the RA8P1 Titan Board, you can develop projects such as:
  Embedded Neural Network Models: for Yolo-Fastest
  Lightweight GUI Graphics Library: for LVGL
  Lightweight Multi-core Communication: for RPMsg-Lite

Specification:
- CPU: for Arm Cortex-M85 & Arm Cortex-M33
- GPU: D/AVE 2D
- NPU: for Ethos-U55 NPU
- Master frequency: 1GHz M85 & 250MHz M33
- Processing craft: advanced 22nm ULL process
- Storage: 1MB MRAM, 2MB SRAM
- RAM: 32MB W958D8NBYA5I
- ROM: 64MB W35T51NWT
- USB Type-C power supply: support 5V 1A input
- DC power supply: support 9-24V input
- Camera interface: FPC22Pin for CEU; FPC22Pin for MIPI CSI
- Display interface: FPC22Pin for MIPI DSI screen interface; FPC40Pin for RGB565 screen interface
- Communication network interface: CYW43438 module for WiFi; RJ45 network port x 2 for Gigabit Ethernet
- Sensor: BMI088 for IMU; IST8310 for magnetometer
- TF card slot: 4bit SDIO, support SDR25
- CAN motor interface: CAN0*2, CAN1*2
- DBUS interface: PH2.0 3Pin
- Onboard debugger: DAP-Link
- For Raspberry Pi expansion: 40Pin expansion interface
- Buttons: BOOT & user button, RESET
- LED light: LED x 3

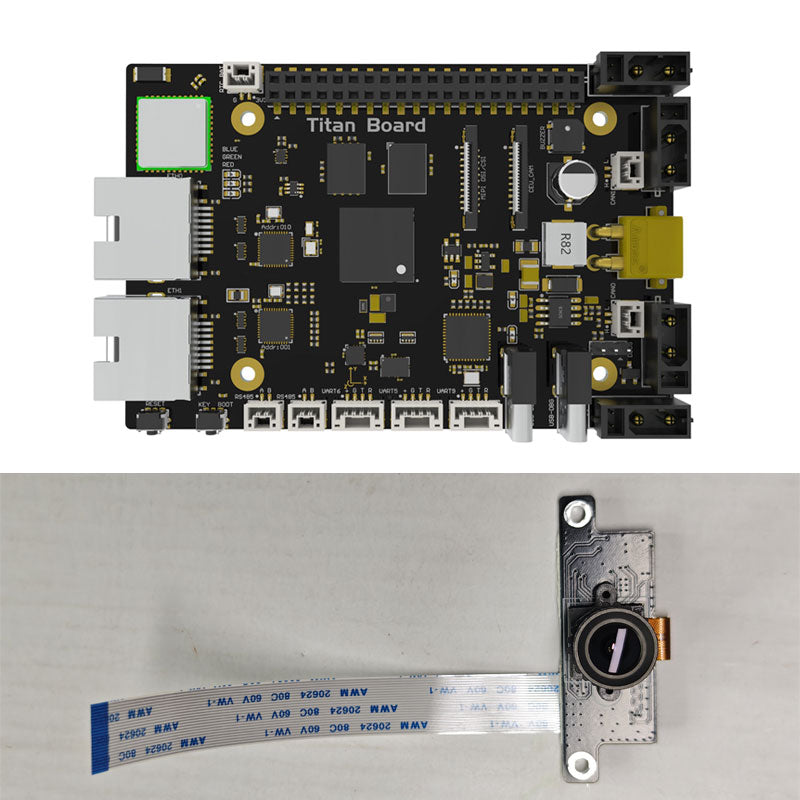

Package Included:
- 1 x Development Board
- 1 x Camera Module
