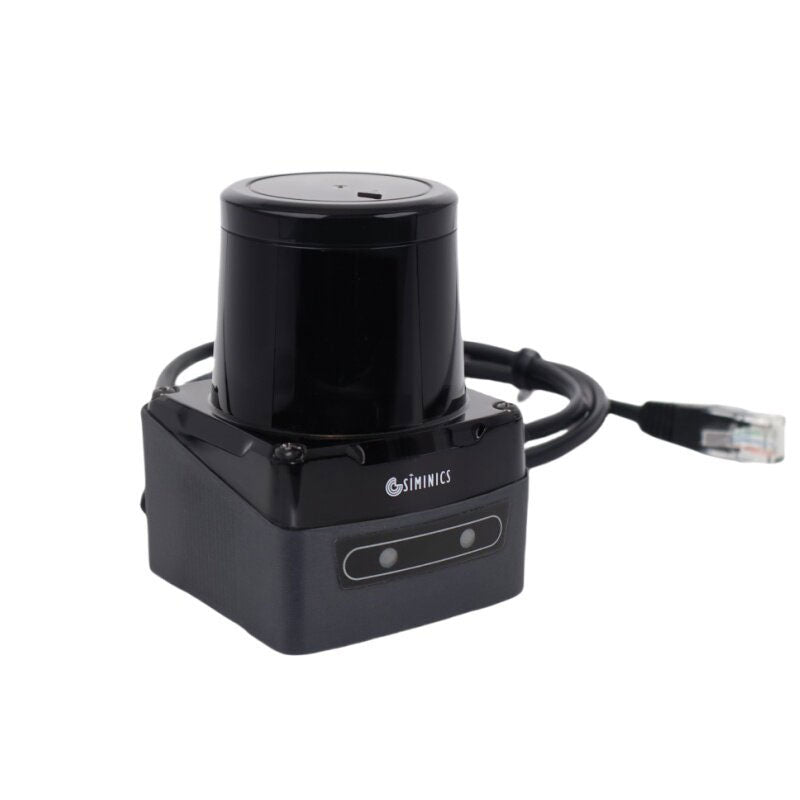

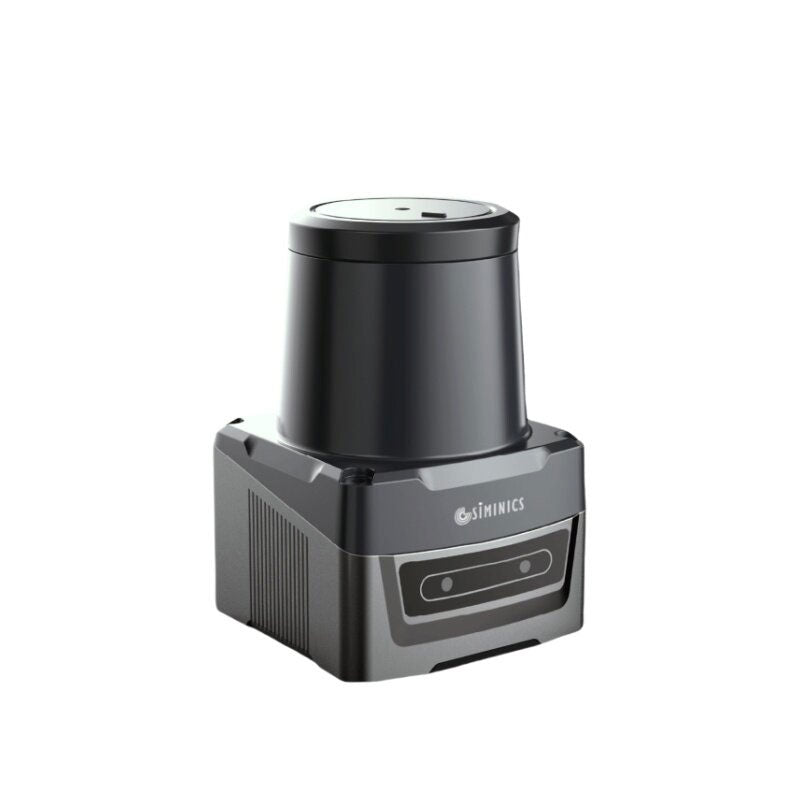

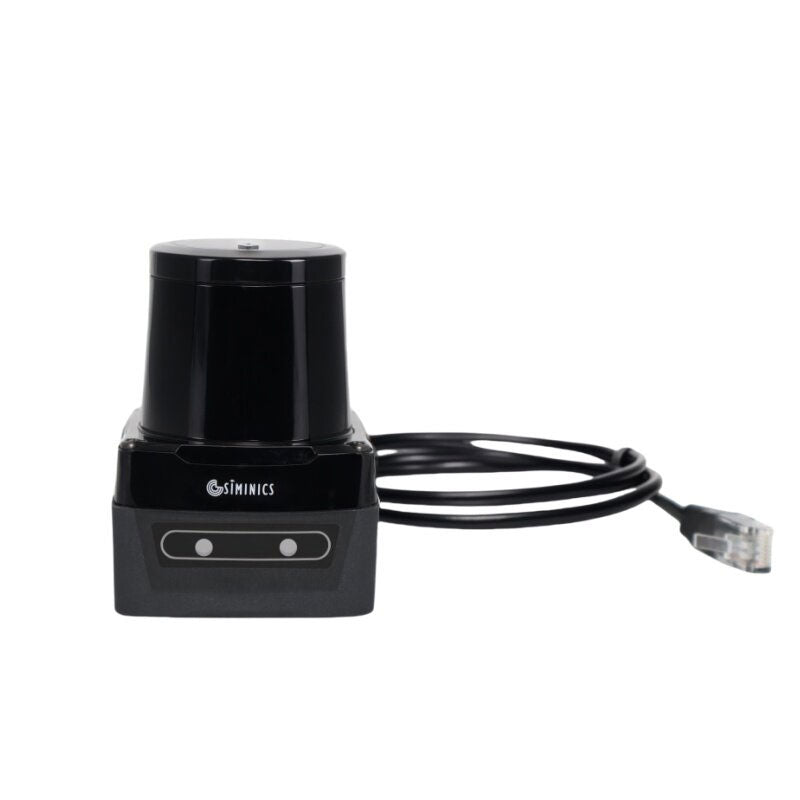

SIMINICS PAVO2E-LS-15H/PAVO2E-LS-25H 15m/25m POE Lidar 2D TOF Radar Sensor for Large Screen Projection Interactive Wall

* PAVO2E-LS-15H 15m Range

* PAVO2E-LS-25H 25m Range

PAVO2E series is the second-generation LiDAR product developed for interactive scenarios. It adopts a unique POE (Power over Ethernet) power supply method. Only one Ethernet cable is required to complete power supply and data transmission. This makes on-site wiring more convenient and efficient, especially for multi-lidar setups, enabling more flexible deployment.

PAVO2E series features a maximum measurement distance of 15m/25m, an angular resolution of 0.16°, and a scanning frame rate of 25Hz. Meanwhile, the device housing meets the IP67 protection rating and supports outdoor operation. It performs excellently in shopping malls, exhibition halls and outdoor interactive applications.

2D TOF LiDAR Sensor

* For large-screen projection and interactive wall and floor.

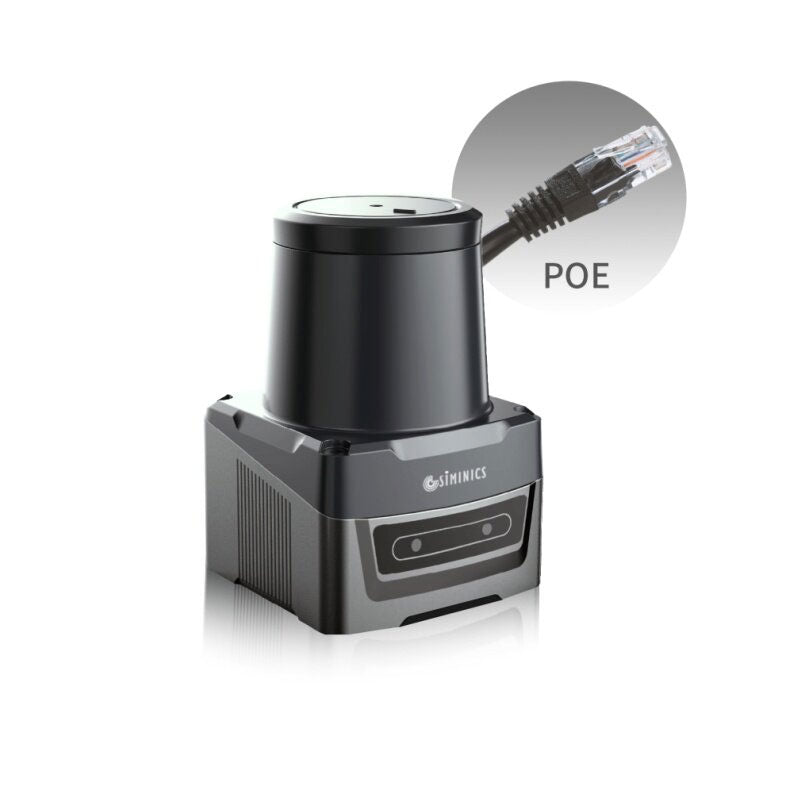

POE Power Supply

* The POE power supply eliminates separate power cords, greatly reducing wiring complexity, and brings greater convenience especially for complex multi-lidar cascading scenarios.

Maximum 15m/25m Measurement Distance

* PAVO2E series delivers reliable measurement with a 280° scanning angle and 25Hz scanning frame rate within a 15m/25m distance range.

Higher Reliability and Stability

* The newly upgraded optical-mechanical architecture boosts motor reliability by 5 times compared with the previous generation. With an IP67 protection rating, it can withstand harsh outdoor environments.

Applications

* Theme Parks

* Interactive Teaching

* Exhibition Hall Interaction

* Shopping Mall Interaction

Basic Information:

* Product Name: Single-line TOF LiDAR

* Model: PAVO2E-LS-15H, PAVO2E-LS-25H

Measurement Characteristics:

* Detection Range:

   ** PAVO2E-LS-15H: 0.1-15m at 90% reflectivity; 0.1-5m at 10% reflectivity

   ** PAVO2E-LS-25H: 0.1-25m at 90% reflectivity; 0.1-8m a 10% reflectivity

* Repeat Accuracy: ±30 mm

* Scanning Range: 280°

* Angular Resolution: 0.16°

* Scanning Frame Rate: 25Hz

Optoelectrical Characteristics:

* Power Supply Voltage (Standard POE Power Supply): DC 36-57V

* Operating Current: 0.03A/48V (Typical)

* Laser Light Source: 905nm, Laser Class 1

* Power Consumption (Typical Value): 1.5W

Others:

* Data Transmission Interface: Ethernet 100BASE-TX

* Start-up Time: <10s

* Ambient Light Resistance: >80000lx

* Operating Temperature: -10°C to 55°C

* Storage Temperature: -30°C to 75°C

* Vibration Test: 10-55Hz, amplitude 0.75mm, XYZ three axes, 2 hours per axis; 50-200Hz, 196m/s² (20G), sweep speed 2min/cycle, XYZ three axes, 2 hours per axis

* Service Life: 5 years (motor service life)

* Ingress Protection Rating: IP67

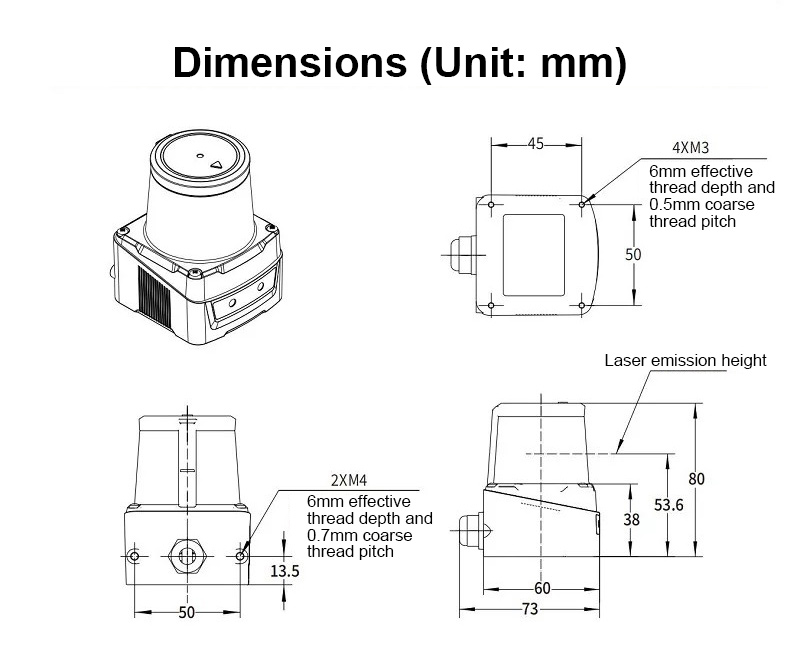

* Dimensions: 60mm x 60mm x 80mm

* Weight: 180g (excluding cable)

* 1 x Lidar Sensor

* Package weight: 0.35kg
