AX58100 EtherCAT Slave Development Board 16IO CIA402 Industrial Automation Controller Module

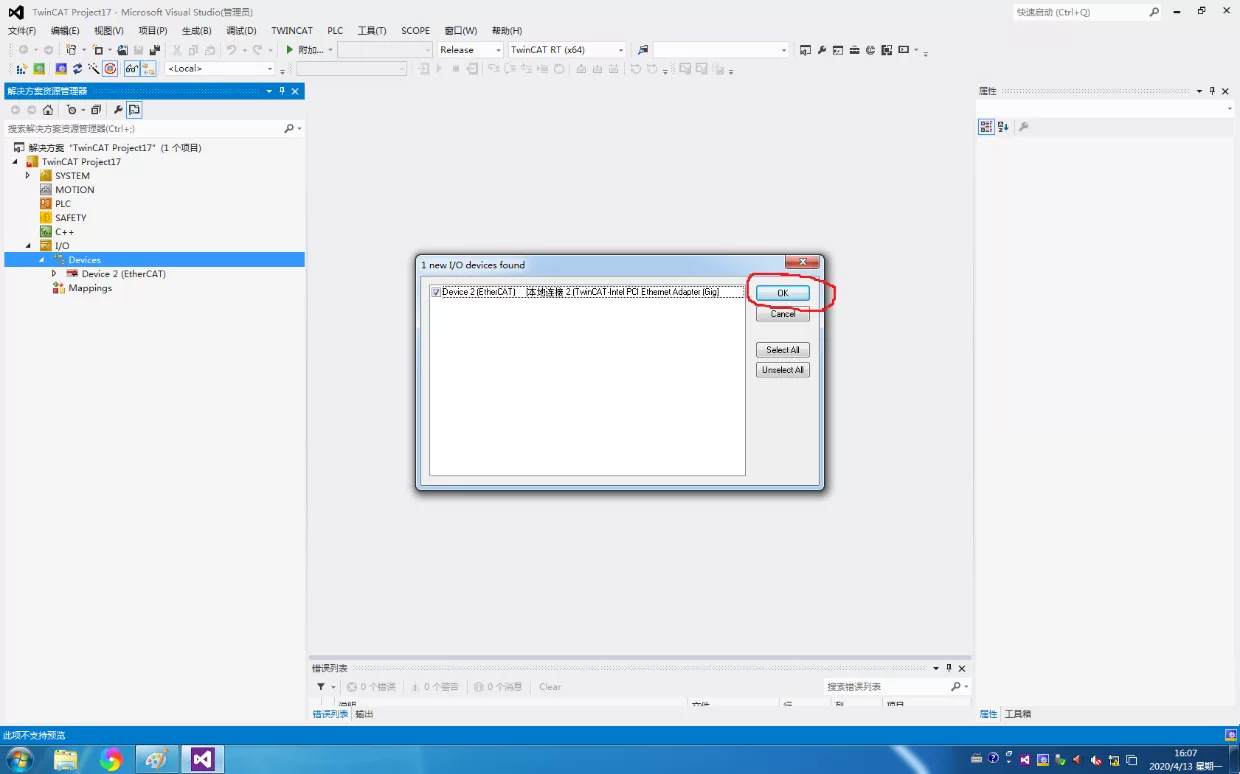

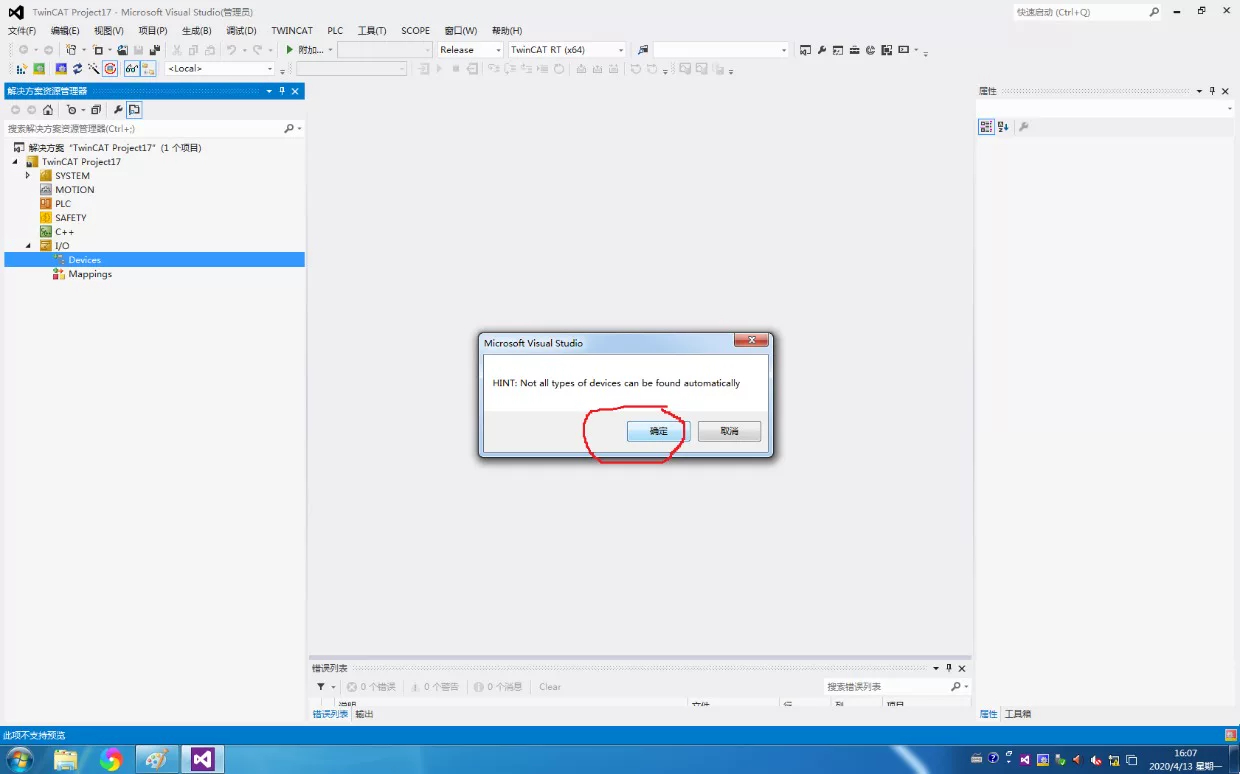

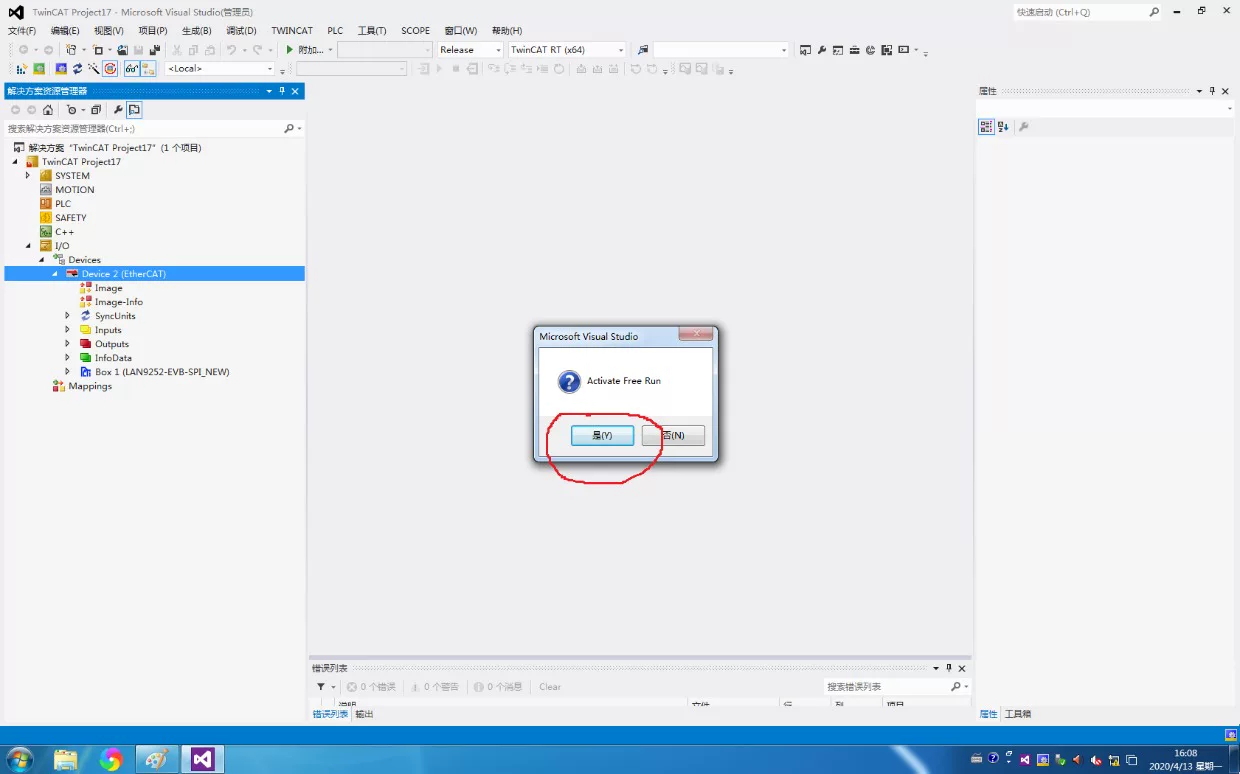

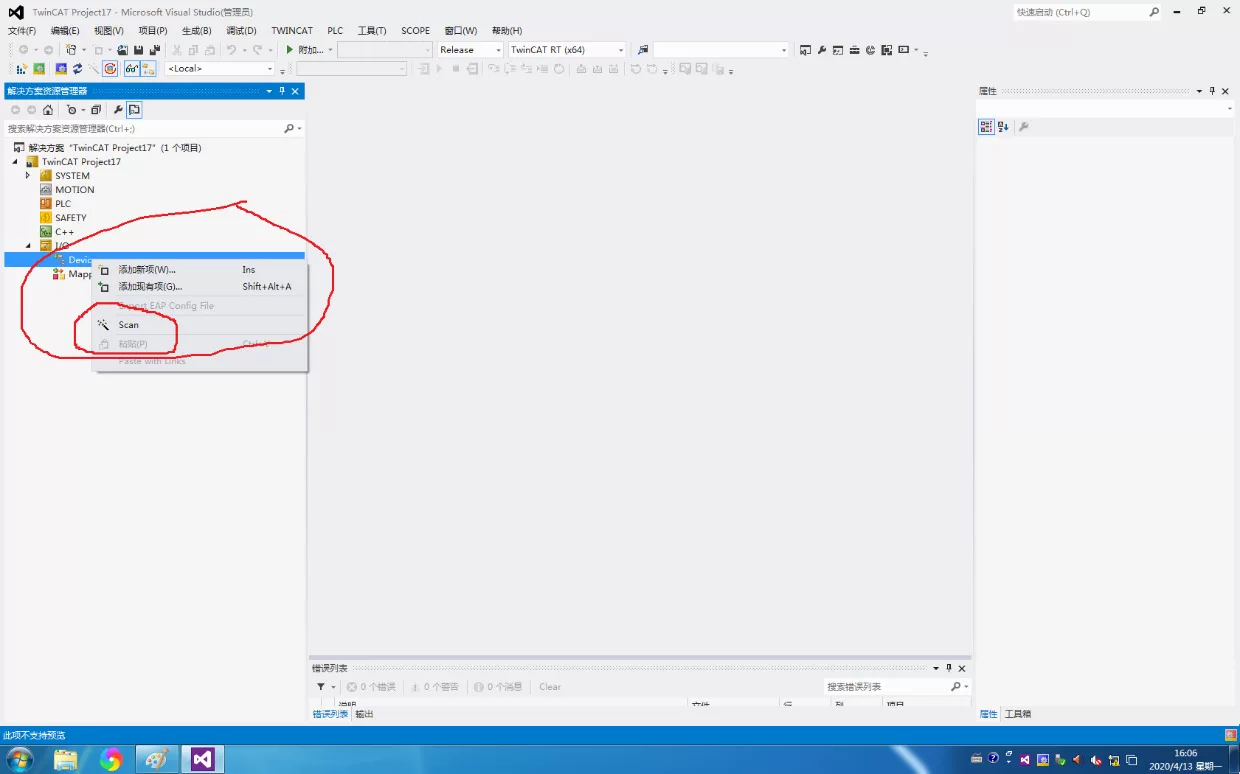

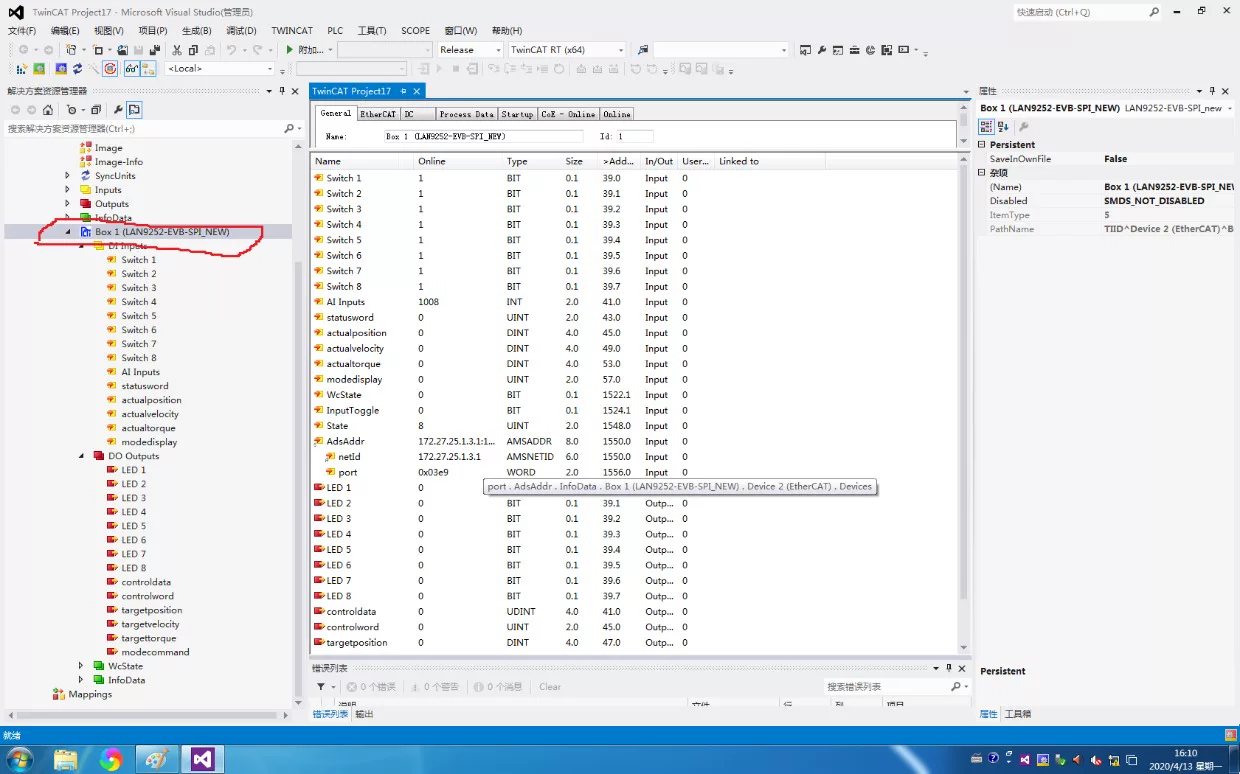

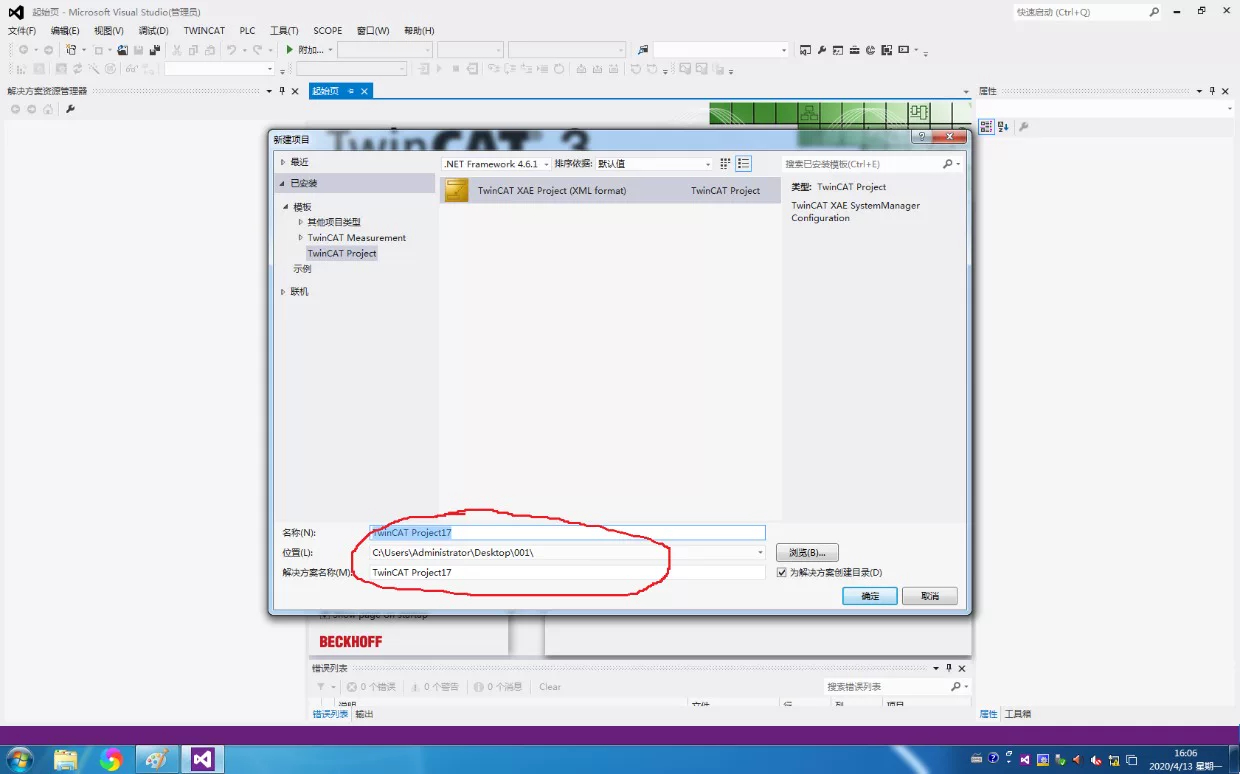

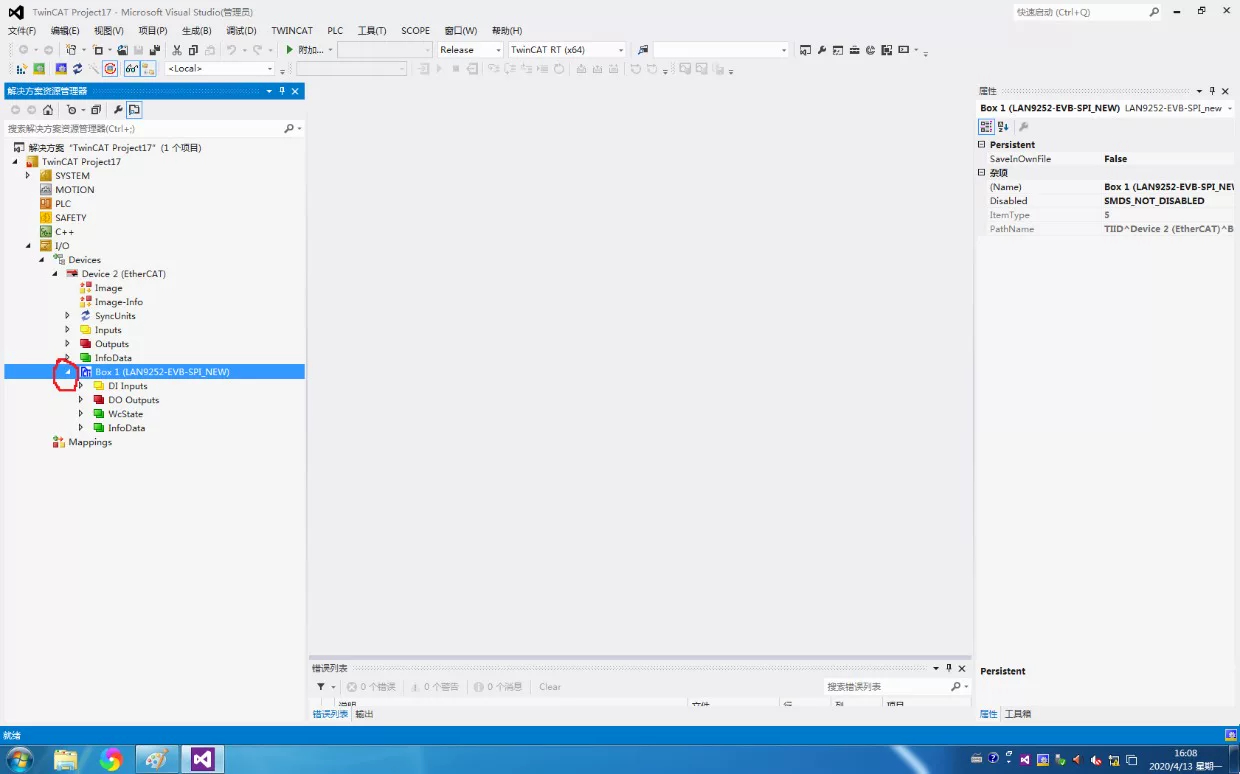

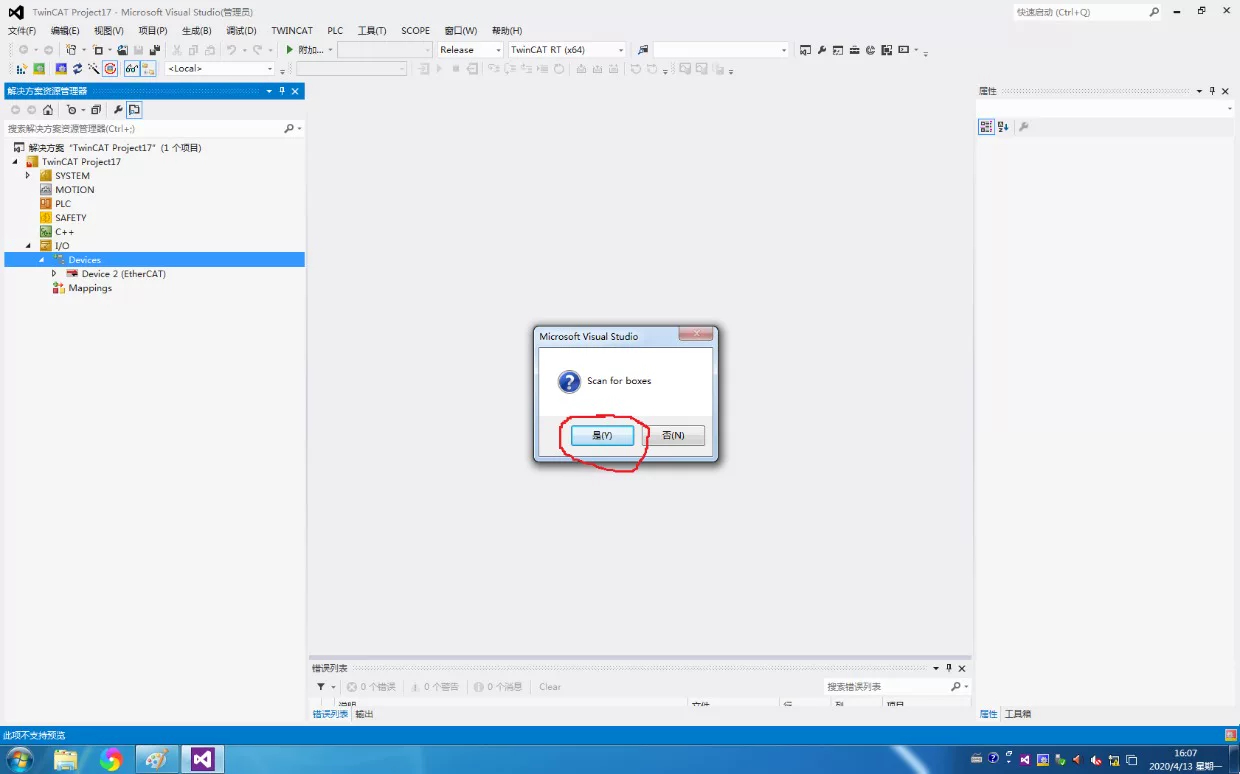

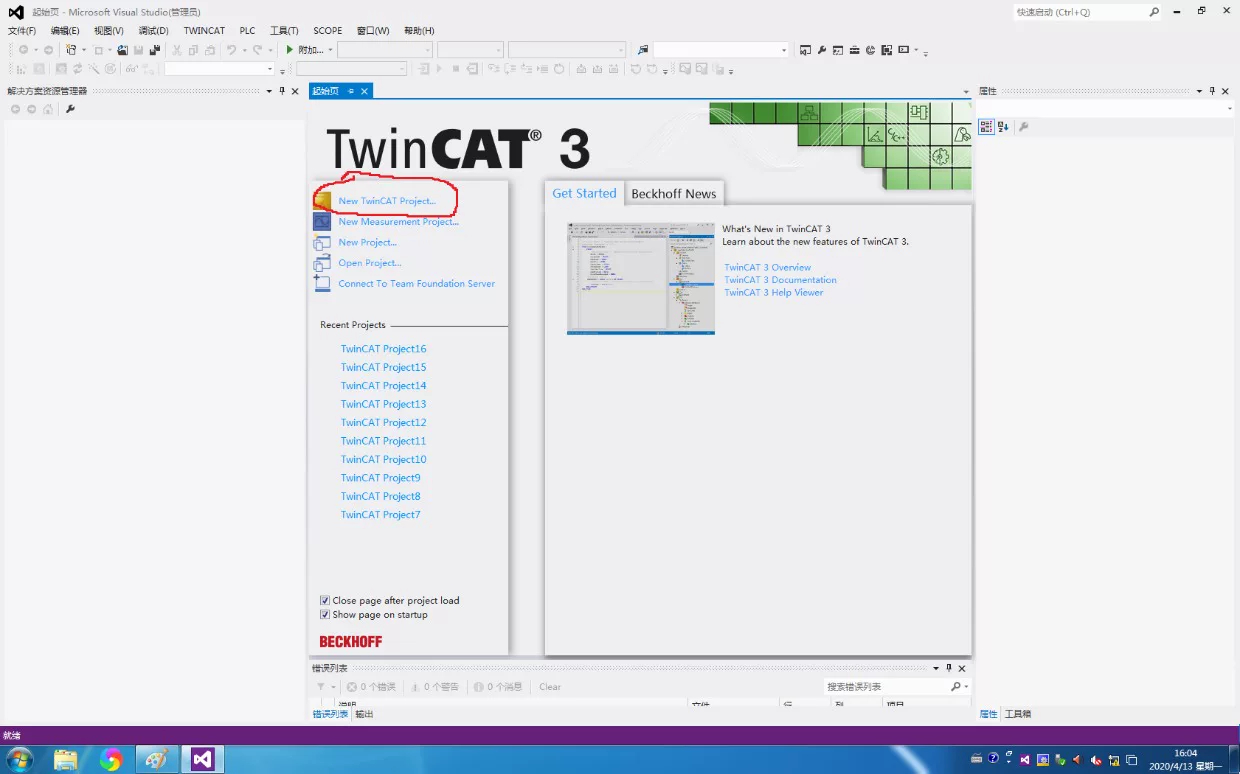

* TwinCAT3 software is adopted for the master station. TwinCAT only works with original network adapters (for Intel) installed on the computer.

* EtherCAT slave development board based on STM32F407ZGT6 + AX58100 architecture.

* Supports two communication methods: SPI interface and FSMC parallel interface.

* All AX58100 interfaces are exposed for easy connection with different controllers.

* Designed with 8-channel LED indicators and 8-channel buttons for convenient EtherCAT master communication debugging.

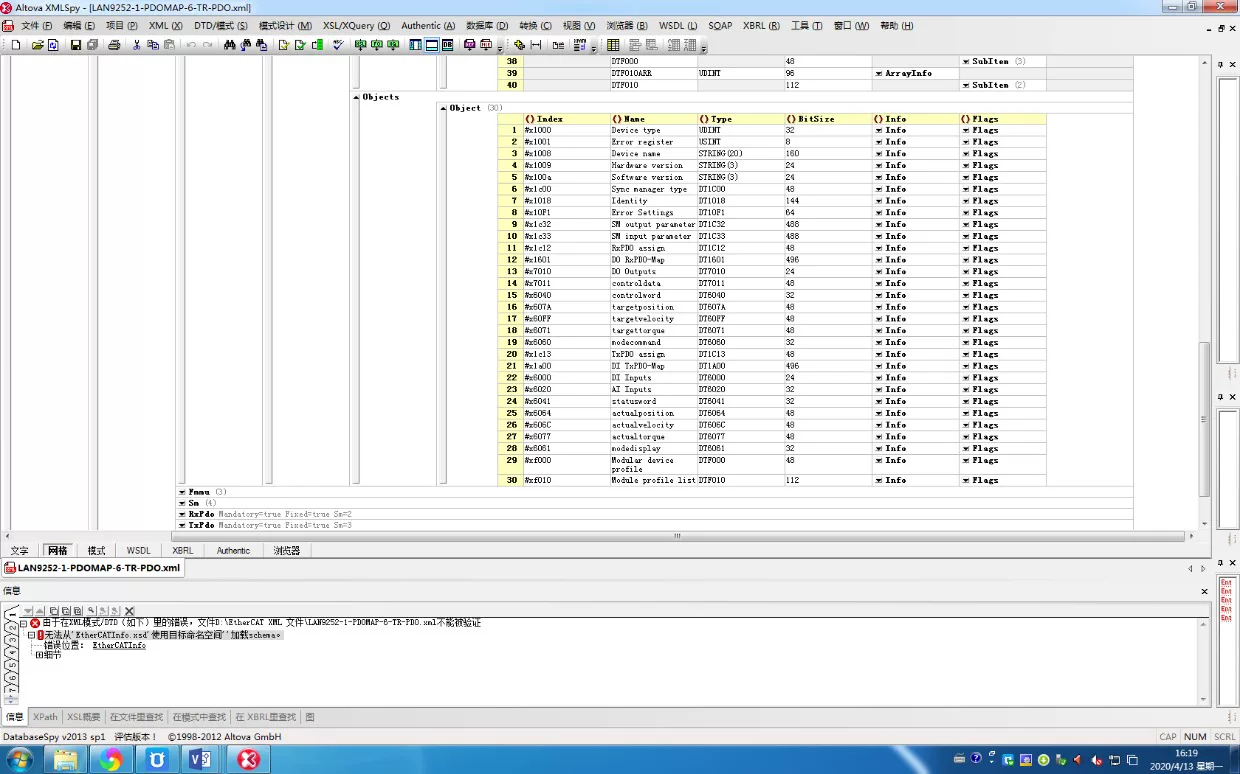

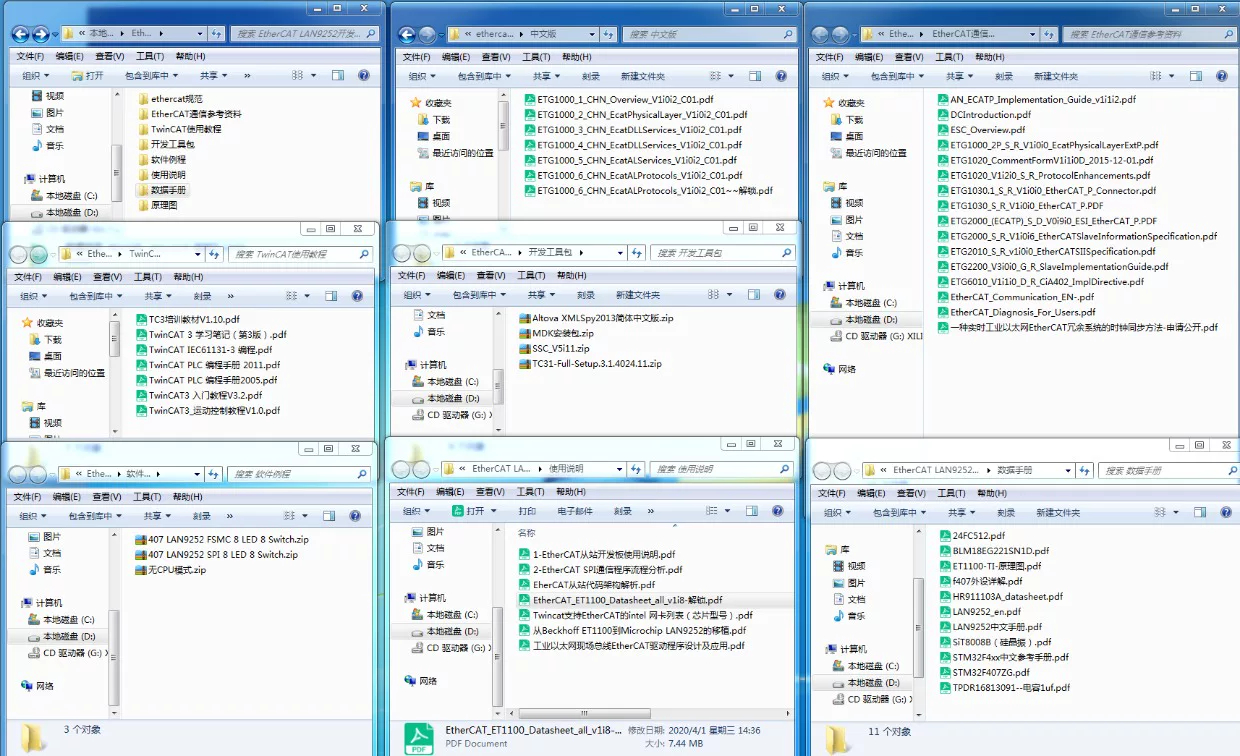

* Complete development resources are provided, including schematic, datasheets, master station TwinCAT3 software, EtherCAT protocol documents, Slave Stack Code Tool V5.11 for slave code generation, Altova XMLSpy 2013 (cracked version) for EtherCAT slave XML editing, and other related tools.

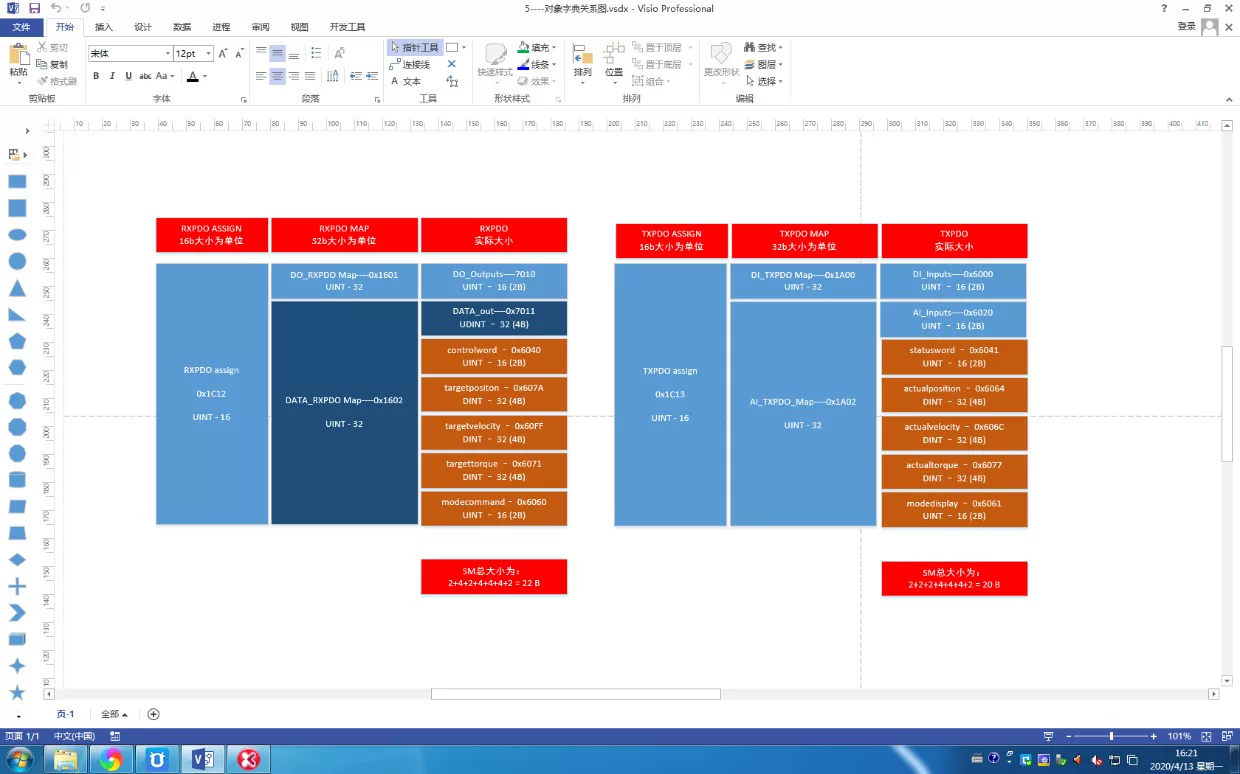

* Example projects include CIA402 communication examples, parallel interface I/O communication examples, and SPI I/O communication examples.

* 1 x EtherCAT Slave

* Package weight: 0.15kg
