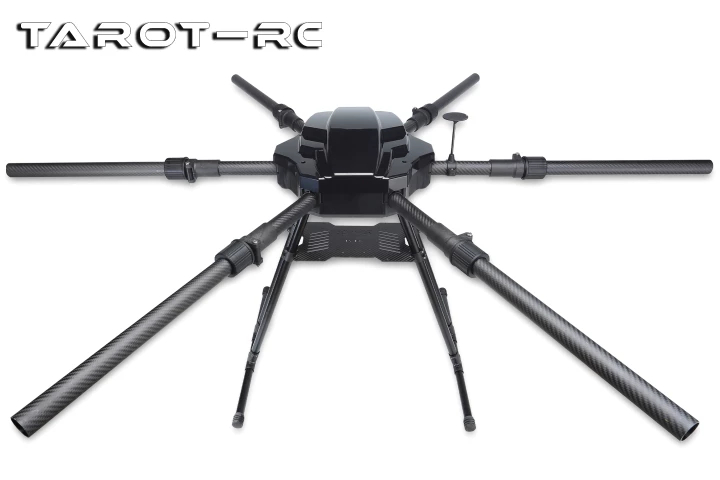

Tarot TL16H00 15KG Hexacopter Frame 1600mm 6-Axis Multirotor Training Drone Airframe Kit for UAV

The Tarot 1600mm Hexacopter Frame is designed for medium-sized Category IV training drones. Featuring a 1600mm wheelbase, this six-axis multi-rotor air-frame supports the installation of commonly available gimbals, microphones, payload release systems, and other accessories. It is suitable for a wide range of applications requiring high mobility, including surveillance, remote sensing, surveying and mapping, aerial reconnaissance, fire-ground observation, search and rescue, power line inspection, and agricultural monitoring.

* Integrated Airframe Design: One-piece fuselage with an enveloping foldable structure.

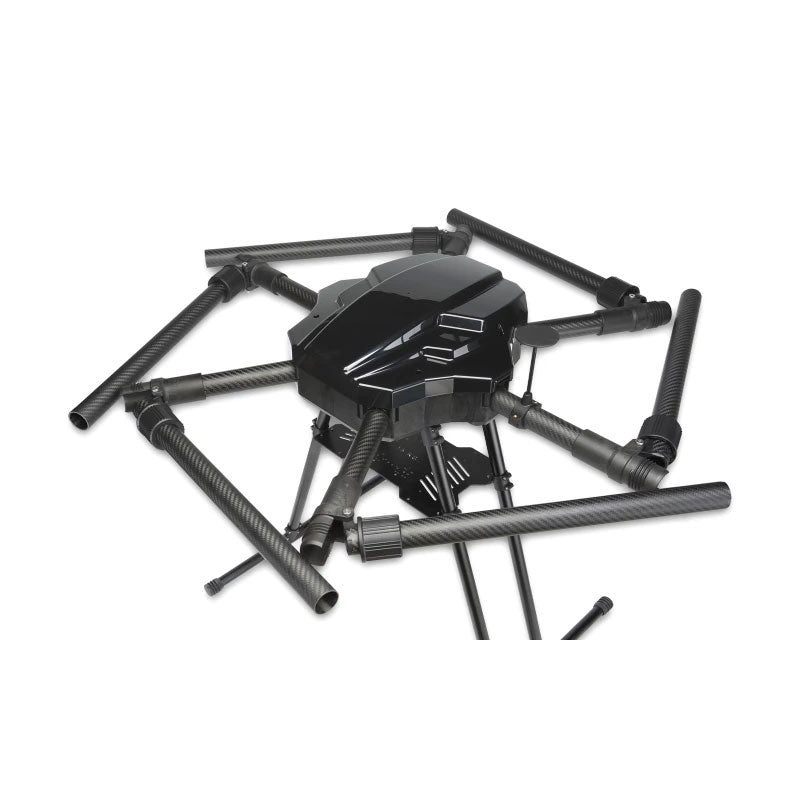

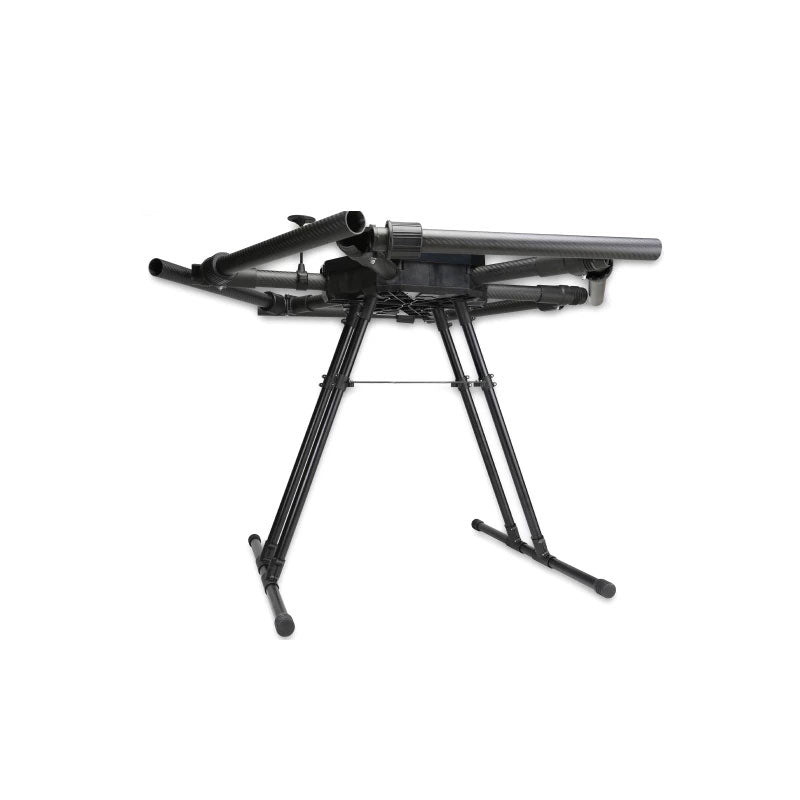

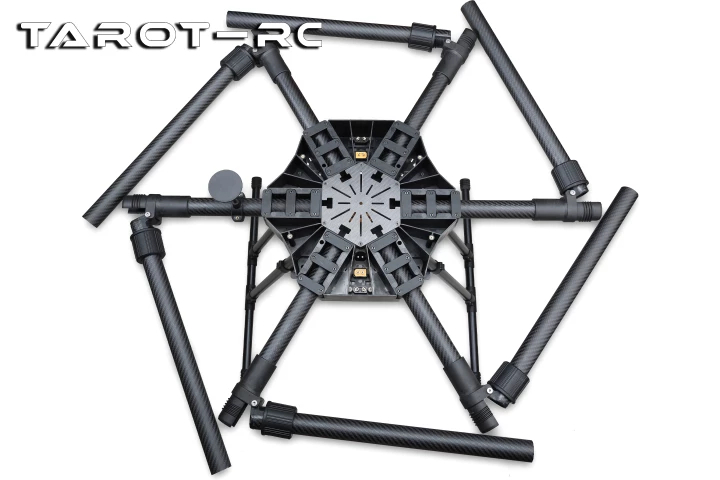

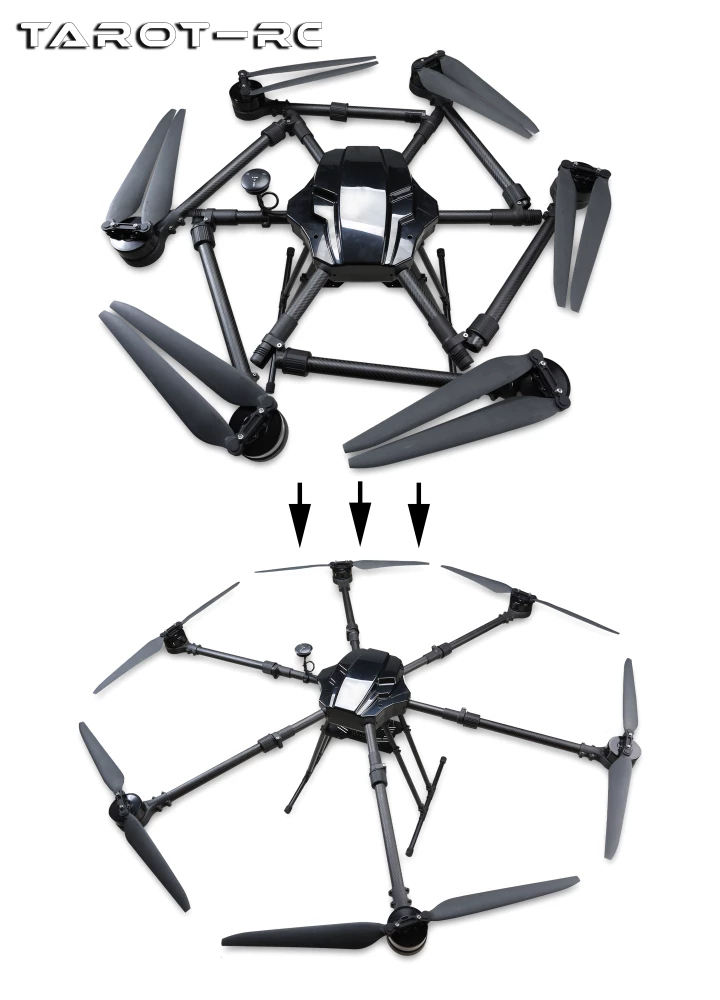

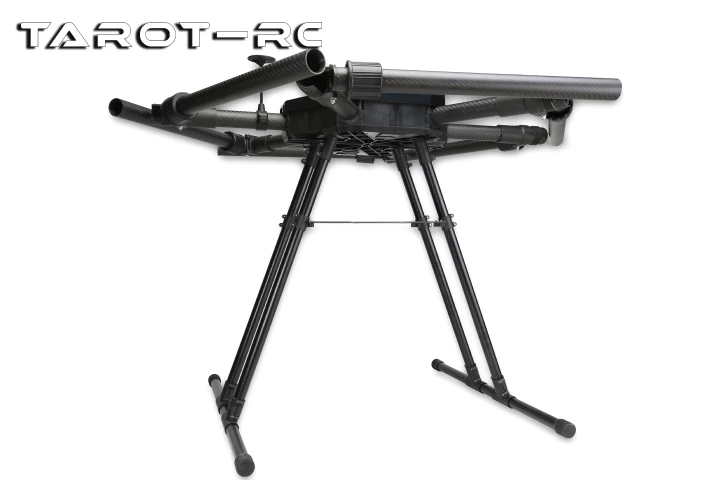

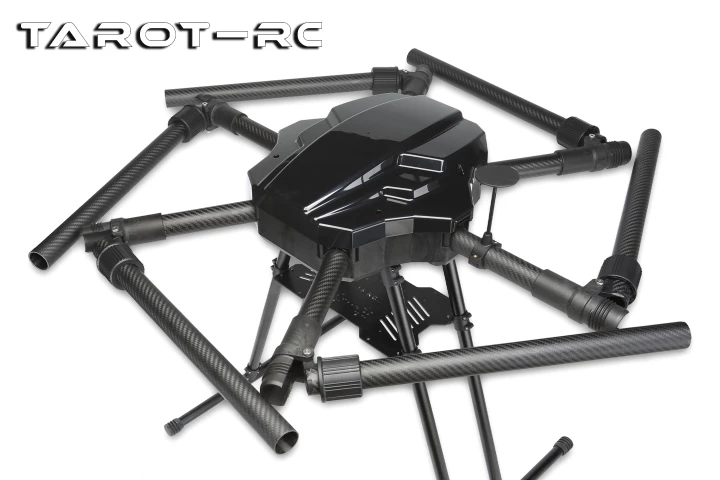

* Space-Saving Folding Mechanism: Knob-operated folding joints allow the arms to fold 360° counterclockwise, improving storage and transportation efficiency.

* Durable Composite Construction: The fuselage is injection-molded as a single piece from imported composite material containing 30% carbon fiber for enhanced structural strength and stability.

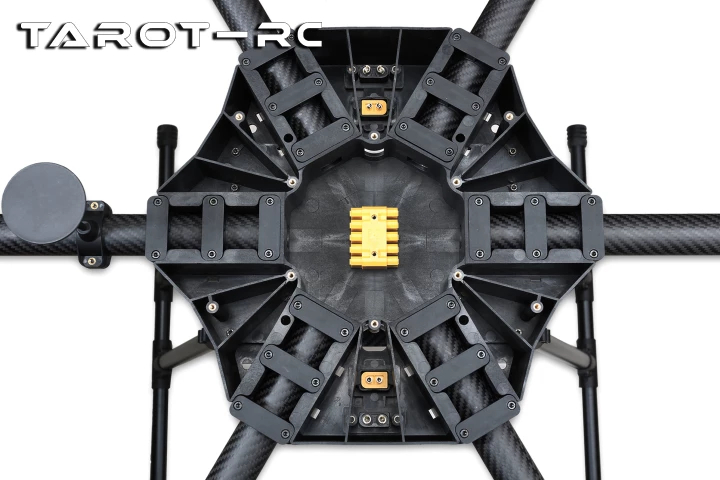

* Integrated High-Current Power Distribution Board: Equipped with the Tarot TL60-10H all-copper, gold-plated power distribution board. Its simplified installation design is compatible with mainstream flight controller systems.

* Reinforced Power Connectors: Features two XT90E-M battery power input connectors and two XT60E-F power distribution output connectors. The reinforced connector design allows convenient plugging and unplugging.

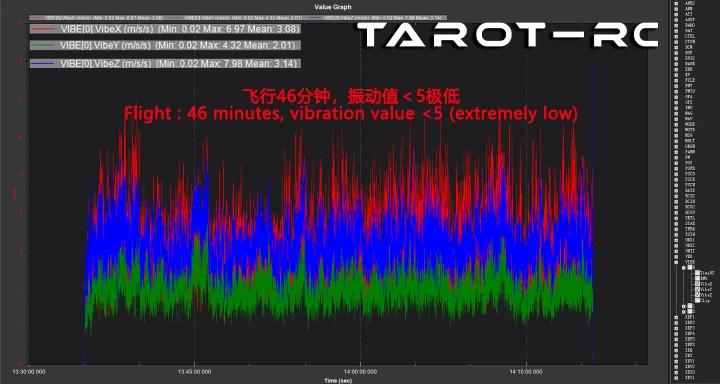

* Recommended Power System: Compatible with the Tarot high-performance propulsion package featuring 8120 motors and custom 80A ESCs. A flight endurance of approximately 46 minutes has been achieved in testing.

* 15kg Payload-Class Design: Designed for a wide range of flight applications requiring substantial payload capacity.

* Lightweight Frame: Net frame weight of only 2.34kg.

* Motor Mount: Tarot 30mm Motor Mount TL1813

* Motor: Tarot 12S/8120/95KV

* ESC: Tarot 80A/12S

* Propellers: Tarot 3011 30-Inch Folding CW/CCW Propellers TL100D38

* Battery: 22000mAh/6S x 2

* Frame Net Weight: 2.34KG

* Empty Weight: 10.3KG (Including Motors, Propellers, And ESCs)

* Takeoff Weight: 15.4KG

* Maximum Wind Resistance: Level 6

* Flight Distance: 4000m

* Flight Altitude: 3000m

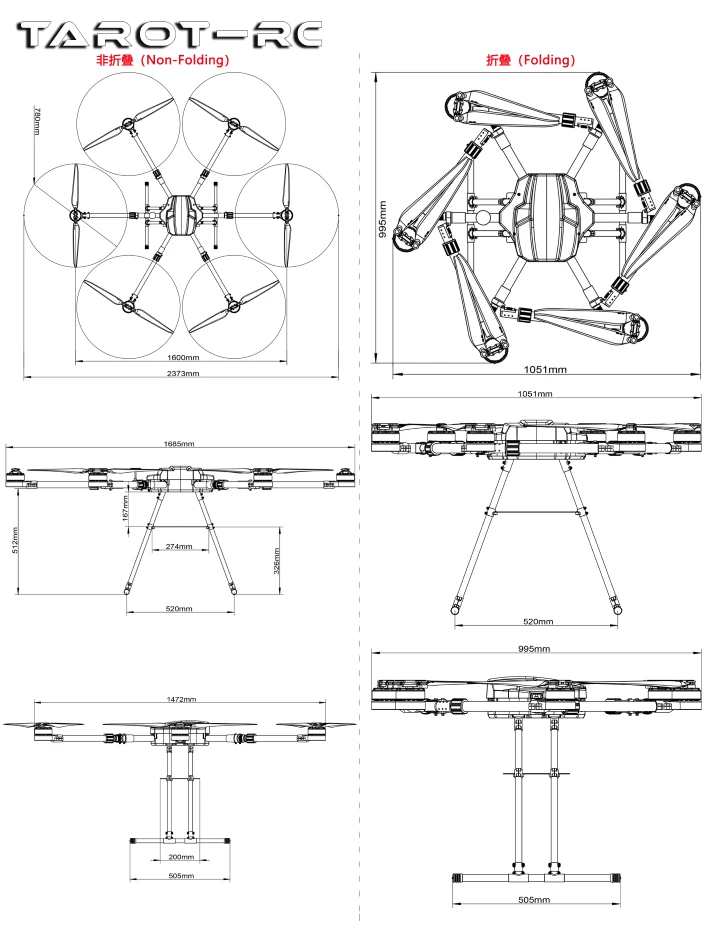

* Motor-to-Motor Wheelbase: 1600mm

* Unfolded Wingspan: 2373mm

* Folded Dimensions: 995 x 1051mm

* Center Plate Dimensions: 315 x 293mm

* Aircraft Height: 512mm

* Arm Tube Diameter: 30mm

* Landing Gear Tube Diameter (Horizontal/Vertical): 20mm

* Flight Modes: Self-Stabilization, Altitude Hold, Loiter, One-Key Return-to-Home, Etc.

* Test Environment: December 15, 2025, Sunny, 12°C, Level 3 Wind

* 1 x Tarot Hexacopter Integrated Frame (Frame Only)

* Package weight: 3kg
