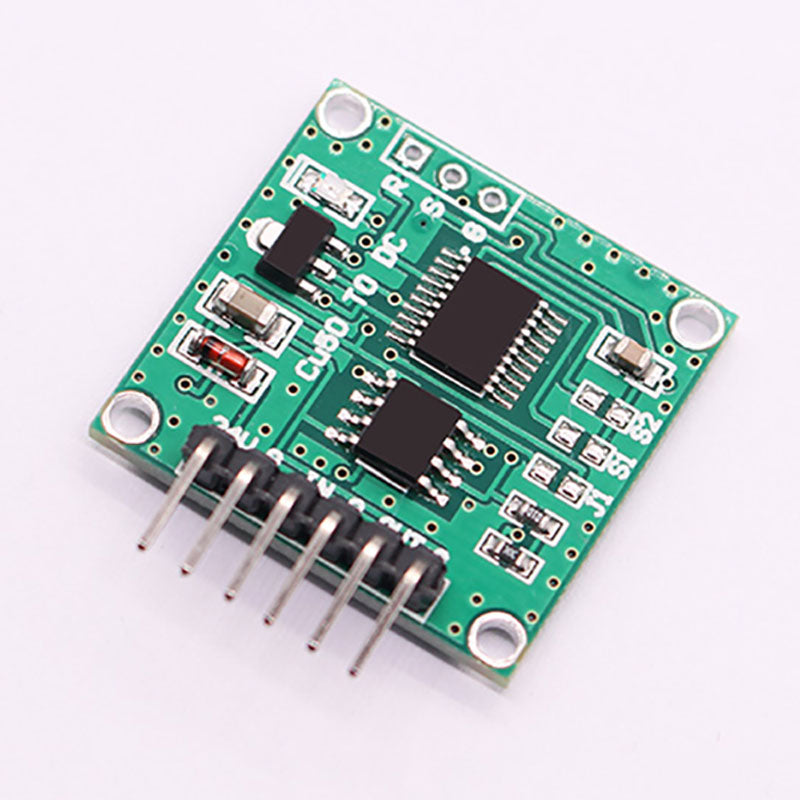

Temperature Transmitter Thermal Resistance To Voltage 0-5V 0-10V CU50 Module

Temperature Transmitter Thermal Resistance To Voltage 0-5V 0-10V CU50 Module

Description:
This is a linear conversion module, which converts the input thermal resistance signal into temperature (voltage signal) output through internal chip processing. There are two output voltage range options.

Module Parameters:
1. Working voltage: 9V ~ 24V
2. Input resistance: Cu50 thermal resistance
3. Output voltage: 0.00V-5.00V / 0.00V-10.00V
4. Temperature measurement range: -500℃ to +150℃
5. Output mode: S2 pad on the circuit board: open circuit (output 0.00V ~ 5.00V); short circuit (output 0.00V ~ 10.00V). The default is open. The S1 and J1 pads are not used
6. Scope of application: remote data acquisition and control equipment
7. Module Size: 26 * 23 * 10mm (LxWxH)

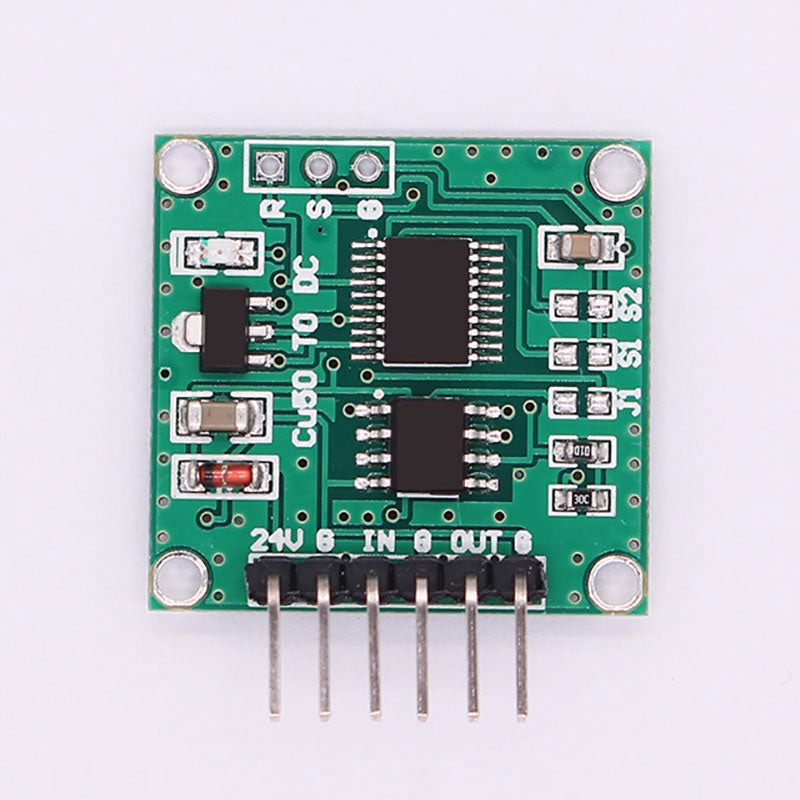

Module Interfaces:
24V: Power supply positive interface (9V ~ 24V).
G: Power ground connection.
IN: Thermal resistance positive interface.
G: Negative interface of thermal resistance.
OUT: Signal output interface (0.00V ~ 5.00V / 0.00V ~ 10.00V).
G: Power ground connection.

Note: When outputting 0.00V ~ 10.00V, the power supply voltage should be 15V.

Output (0.00V ~ 5.00V) & Resolution: 0.025V / ℃ (V / C)
Output (0.00V ~ 10.00V) & Resolution: 0.050V / ℃ (V / C)
Calculate the measured temperature formula: (output voltage (V) / resolution) -50℃ = measured temperature (℃).

Package Included:
- 1 x Temperature Transmitter Module
