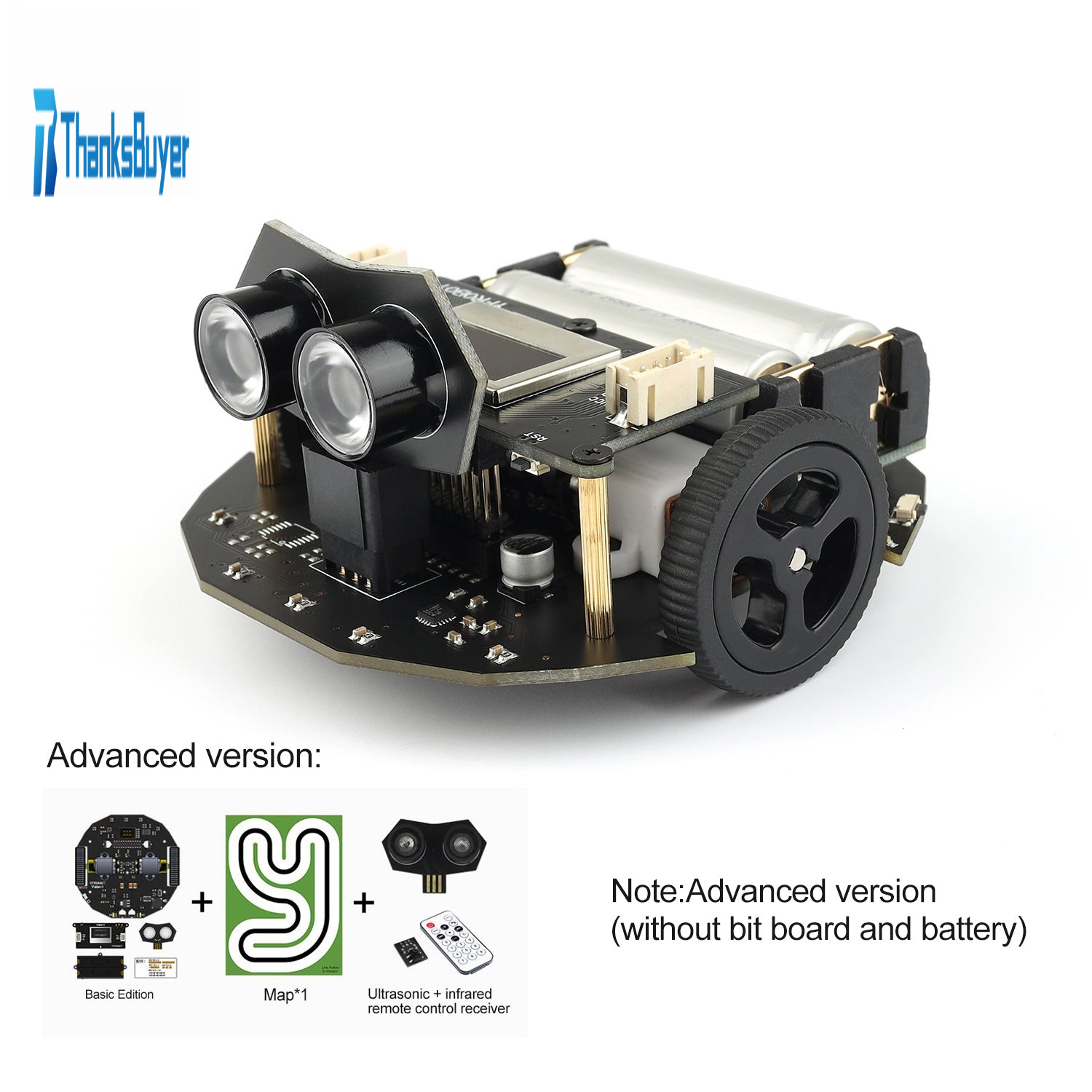

Valon-I Programming Robot Car Mobile Smart Car Kit Support for Arduino Line Patrol Advanced Version Unassembled

Valon-I Programming Robot Car Mobile Smart Car Kit Support for Arduino Line Patrol Advanced Version Unassembled

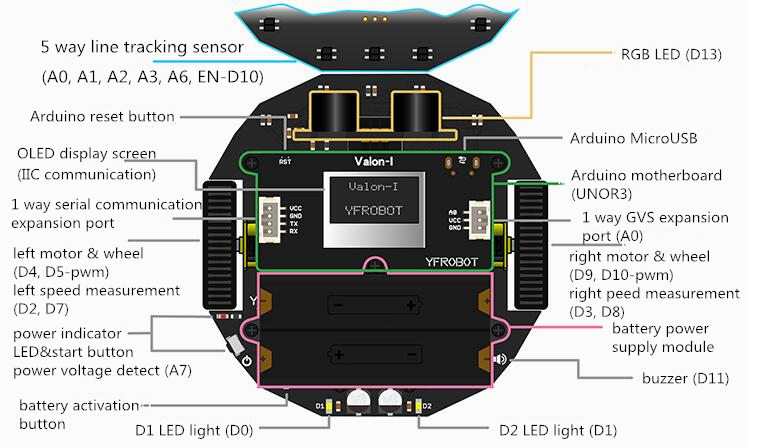

Specification:
Power supply voltage: 7.4V (normal dry batteries are not available)
Anti-reverse connection, anti-overdischarge, one-key activation of lithium battery module
One key start switch x 1
Power indicator x 1
Signal light x 2
Infrared line tracking sensor (digital signal) x 5
Buzzer x 1
Motor speed measurement x 2
Expansion port 3P port (GVS) x 1
Expansion port 4P serial port x 1
Motor voltage detection port x 1
Maximum motor speed: 600 rpm
Car size (length x width x height): 90*90*52mm
Net weight: 119g (excluding battery and sensor)

Features:
-Original imported driver, single-channel drive current up to 1.8A.
-Touch-controlled button + power management to replace the traditional mechanical switch, and the service life is longer.
-Metal tachometer motor outputs 100 pulses when the wheel rotates once.
-Integrated 5 protection functions: overload, over discharge, over charge, short circuit and reverse connection.
-Integrated Arduino controller, plug in the USB cable to download the program offline, on-board 0.96 inch OLED display.
-The connection between the battery box and the bottom board is that the male and female rows are plugged in, and they are tightly connected. Just tighten the fixing screws.
-Special slot for golden finger, long-term plugging and unplugging is not loose. The main board and the bottom board are connected with 0.8U gold-plated pin headers.

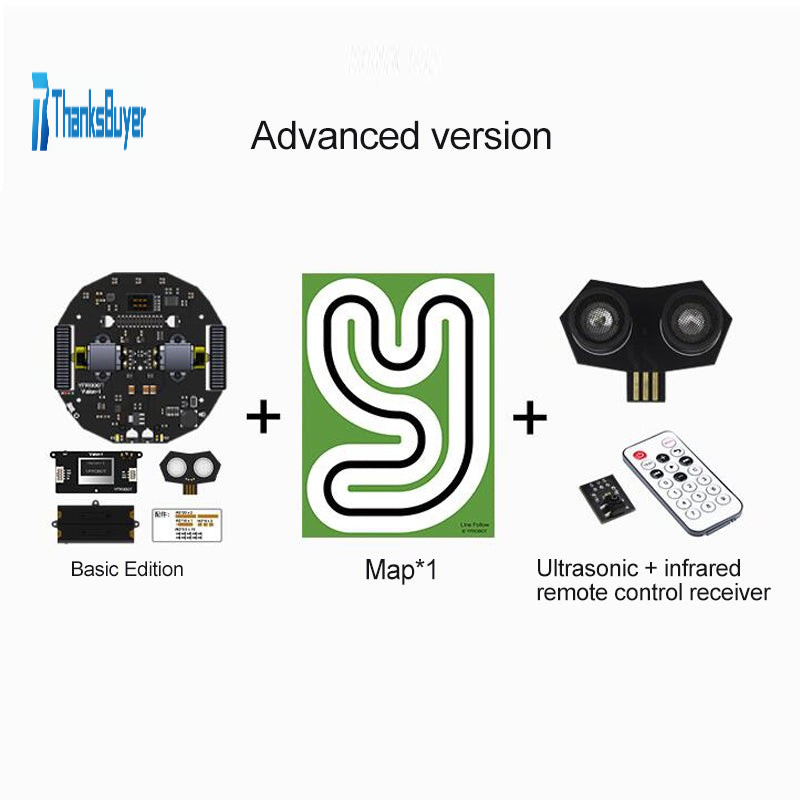

Package List:
-1 x Smart Car DIY Kit
-1 x Map
-1 x Infrared Receiver
-1 x Ultrasonic Module

Note:
-Not include the battery.
-The product is not assembled.
