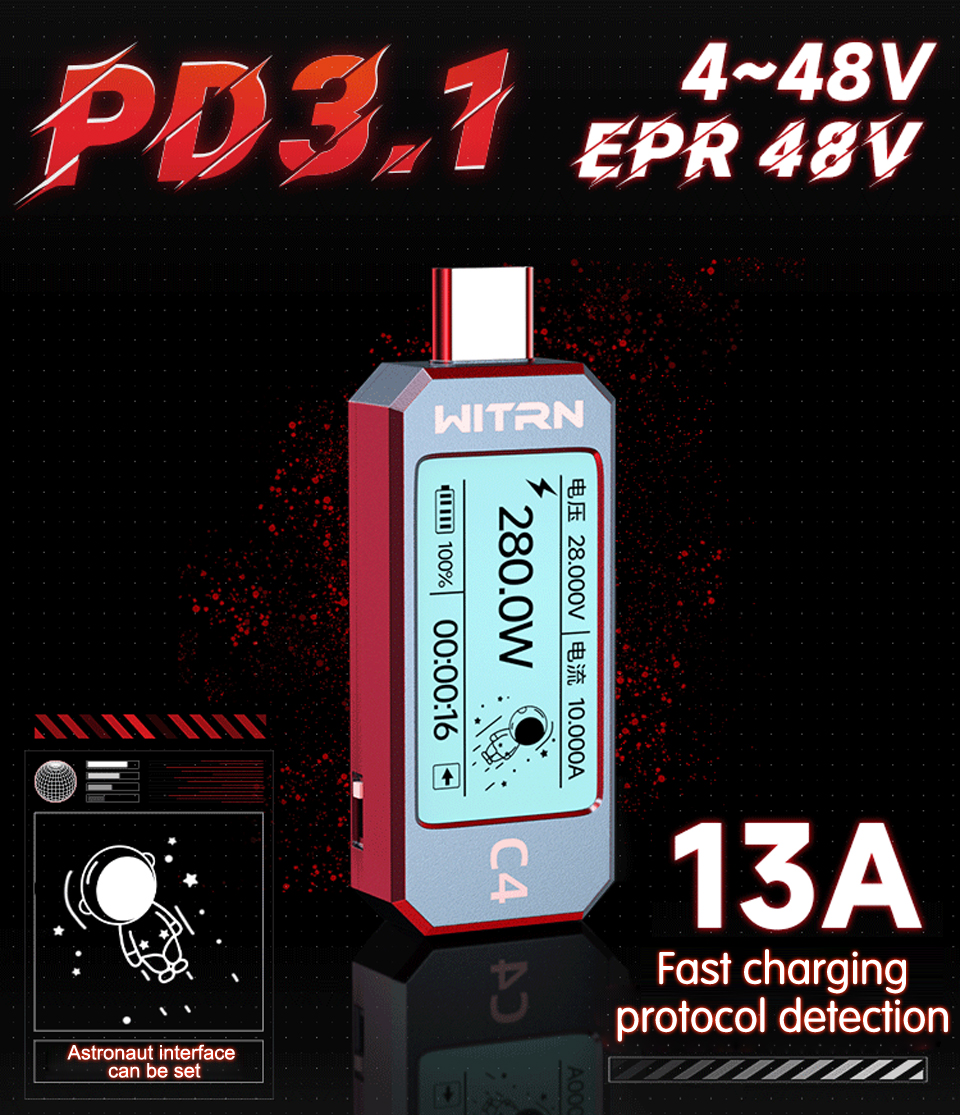

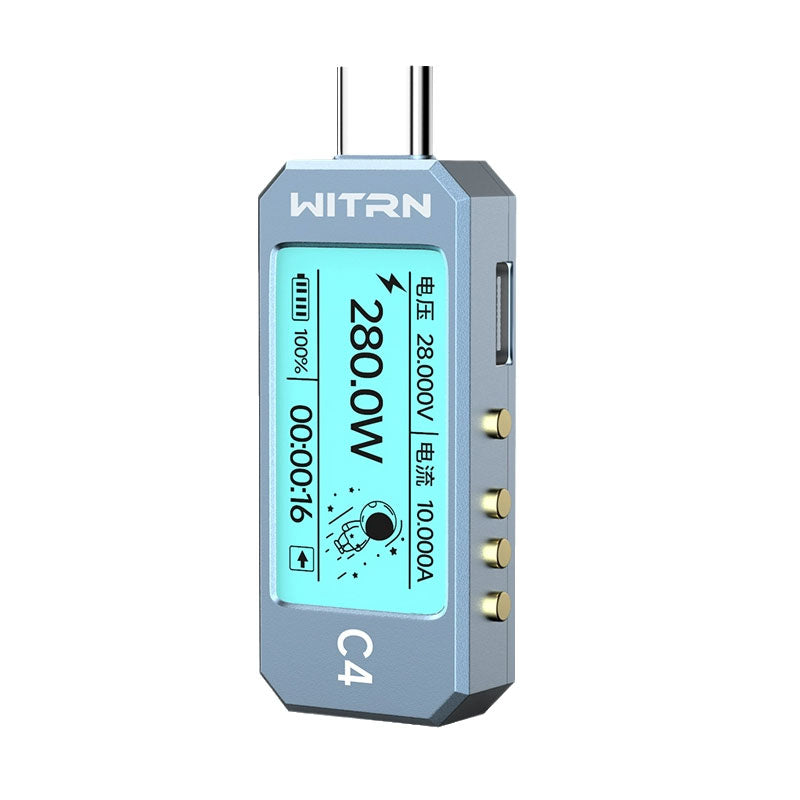

WITRN C4 Grey USB Tester Voltage Current Meter PD3.1 Fast Charging Detector EPR Decoy Power Meter

WITRN C4 Grey USB Tester Voltage Current Meter PD3.1 Fast Charging Detector EPR Decoy Power Meter

Specification:

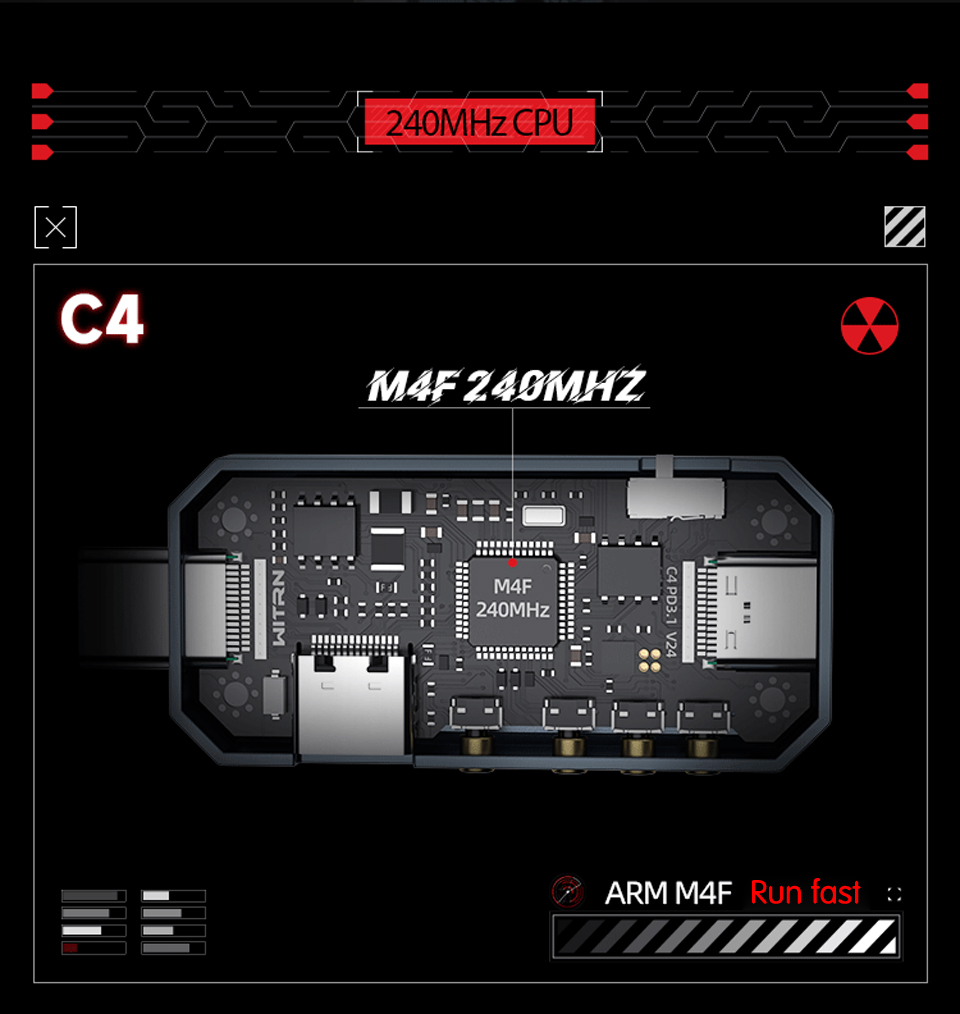

- Main control chip: M4F 240MHz
- Core ADC: INA237/228

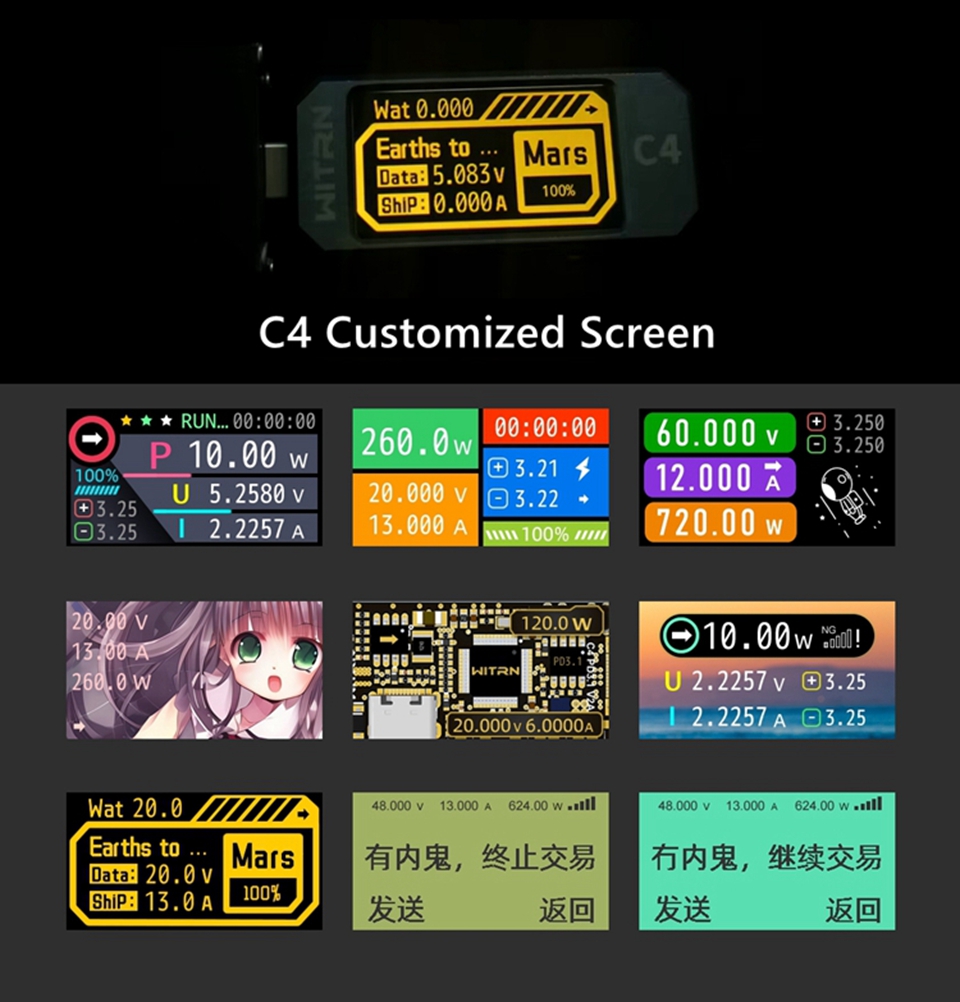

- LCD screen: 1.47-inch
- Power supply method: 48V full voltage power supply
- Sampling resistance: 0.003R
- Sampling method: high side sampling
- Capacity storage: Ferroelectric 10 billion times
- G-sensor: gravity rotating screen
- HID upgrade: M4F maternal USB

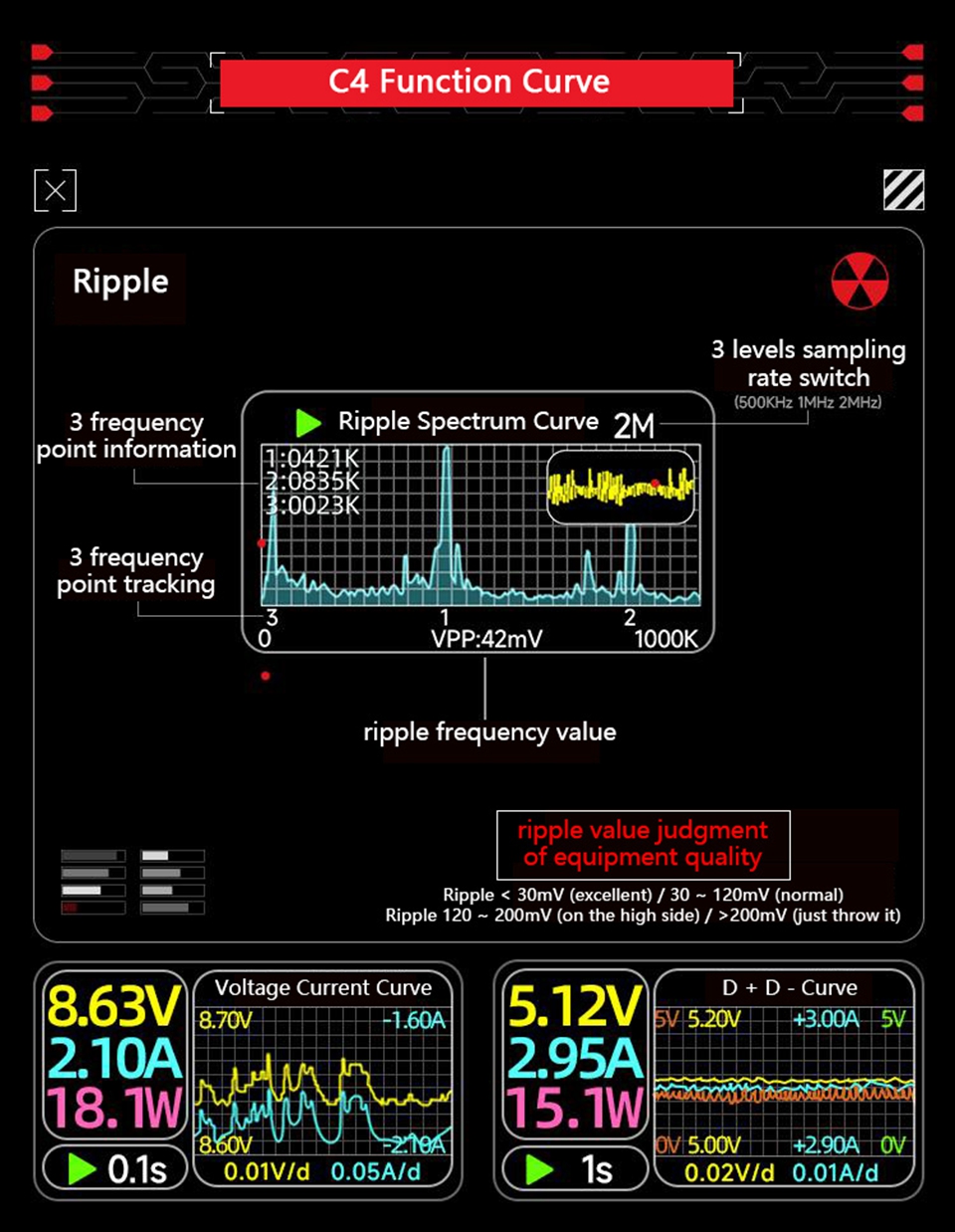

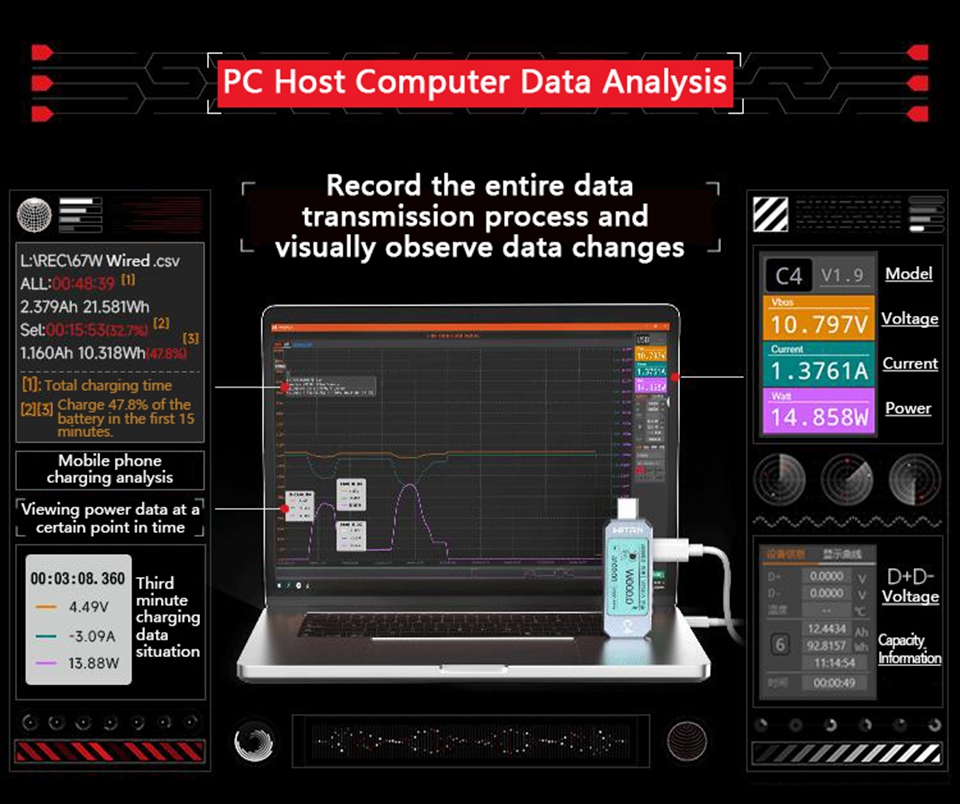

- USB online: support PC curve
- Type-C: 24P PD3.1 direction connection
- Working voltage: DC4 ~ 48V
- Working current: 0 ~ 6A (short-time peak 13A)
- Voltage resolution: 0.0001V
- Current resolution: 0.0001A

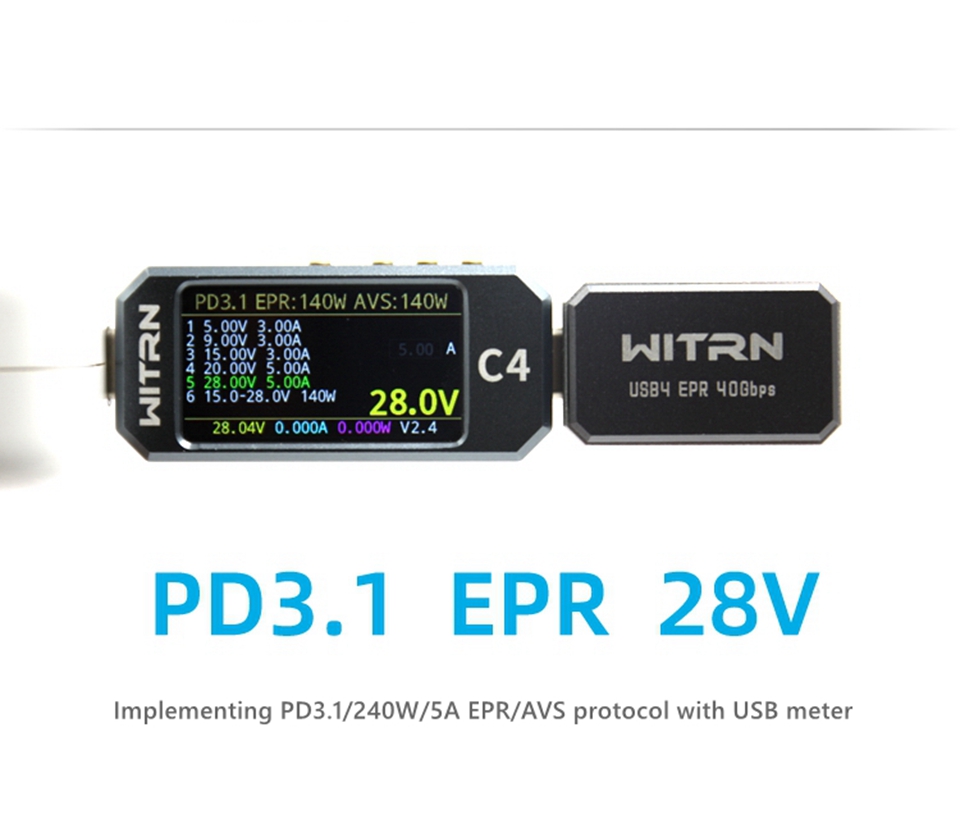

- PD3.1 protocol: 48V voltage decoy

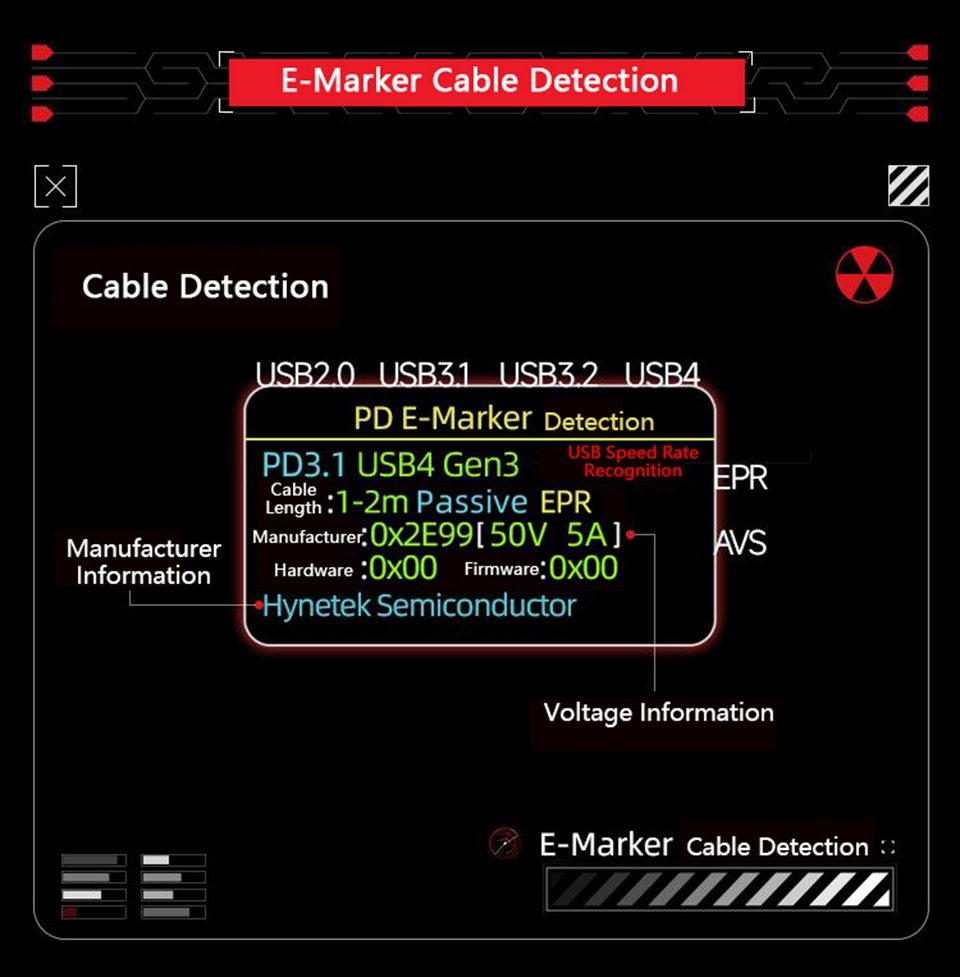

- E-Maker: 50V EPR

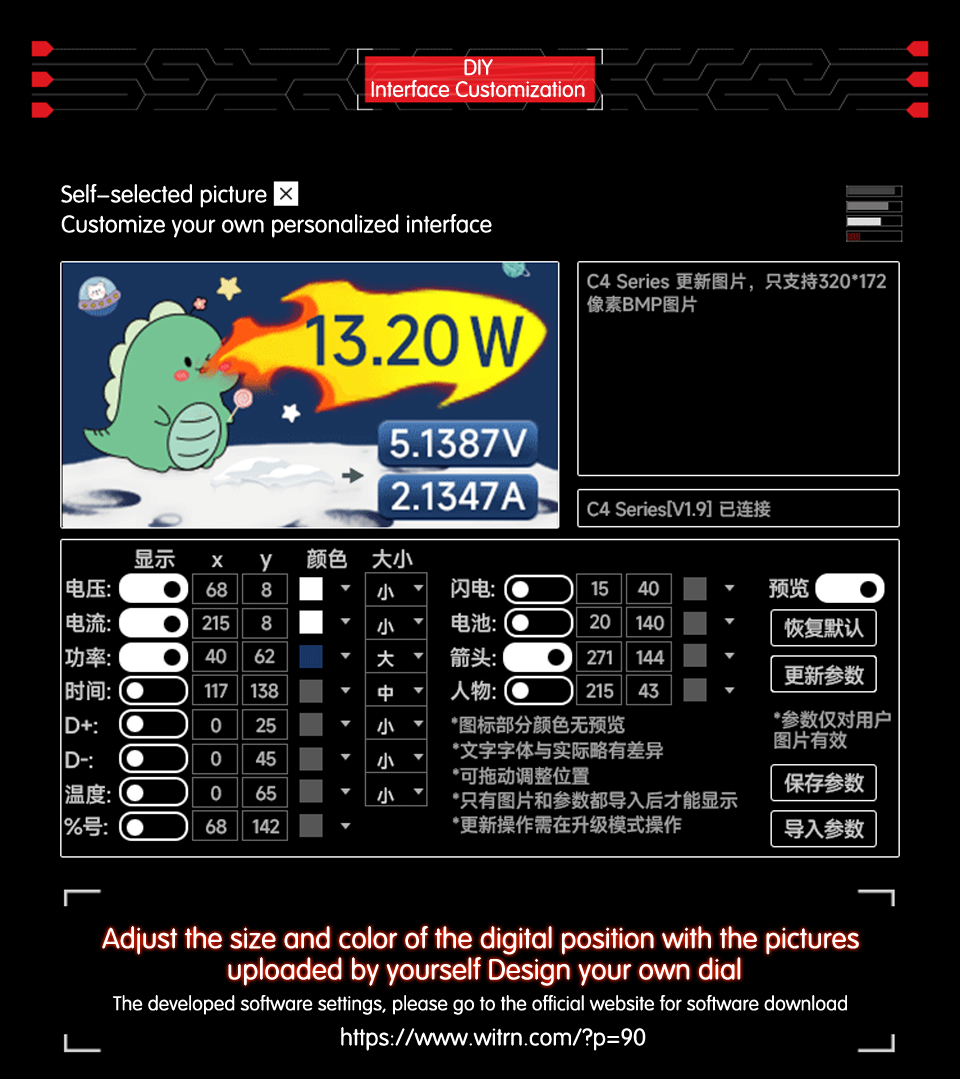

- Screen resolution: 320 x 172 IPS

Package Included:
- 1 x USB Tester
