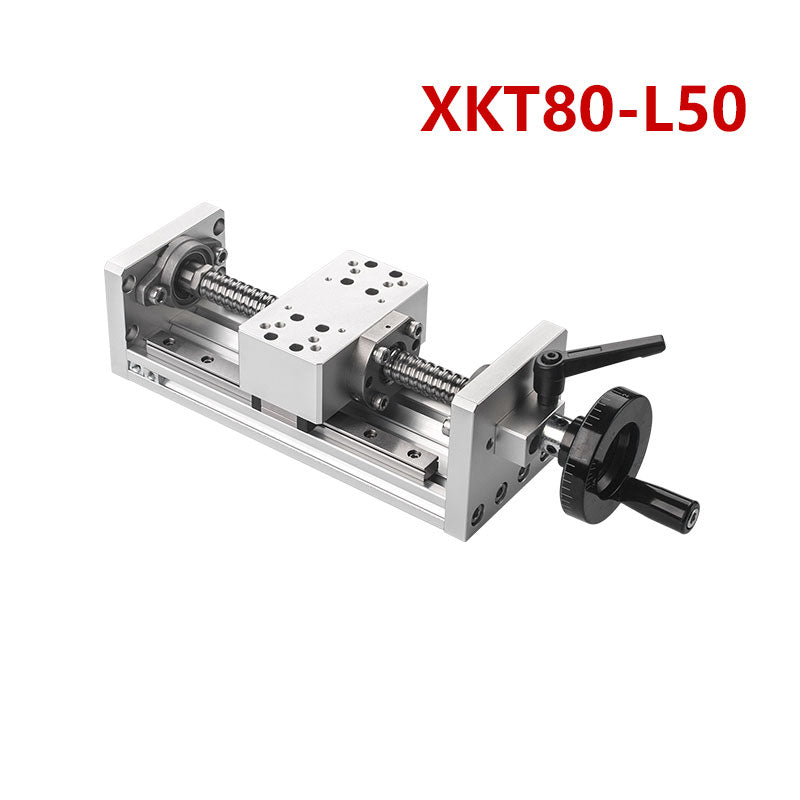

XKT80-L50 Manual X-Axis Ball Screw Slide Rail 50x90mm Table 50mm Stroke 50kg Load Linear Stage

Features:
* Industrial Dual Rail Design: Features a dual linear guide rail system combined with a high-precision ball screw for ultra-smooth and stable motion.
* Enhanced Locking Mechanism: Equipped with a high-grade aluminum alloy slotted locking structure that provides superior holding force and simplified installation.
* Heavy Duty & Zero Jitter: Engineered for high-load applications ensuring professional-grade stability with zero jitter during precision displacement.
* High Precision Ball Screw: Features a premium flange nut ball screw with up to 0.03mm repeatability for professional-grade accuracy.
* Dual Bearing Steel Rails: Equipped with a dual-track linear system to eliminate backlash and ensure superior stability under heavy loads.
* Ergonomic Manual Control: Includes a high-durability adjustment handwheel with a non-slip rotating handle for precise fine-tuning.
* 50kg Heavy Duty Capacity: Robust structural design supports a horizontal load of up to 50kg while maintaining smooth and effortless motion.
* Versatile Industrial Use: Widely applicable in electronics, automotive, and medical industries. Ideal for semiconductor production, smartphone assembly, and lithium battery manufacturing lines.

Packing List:
* 1 x Linear Stage

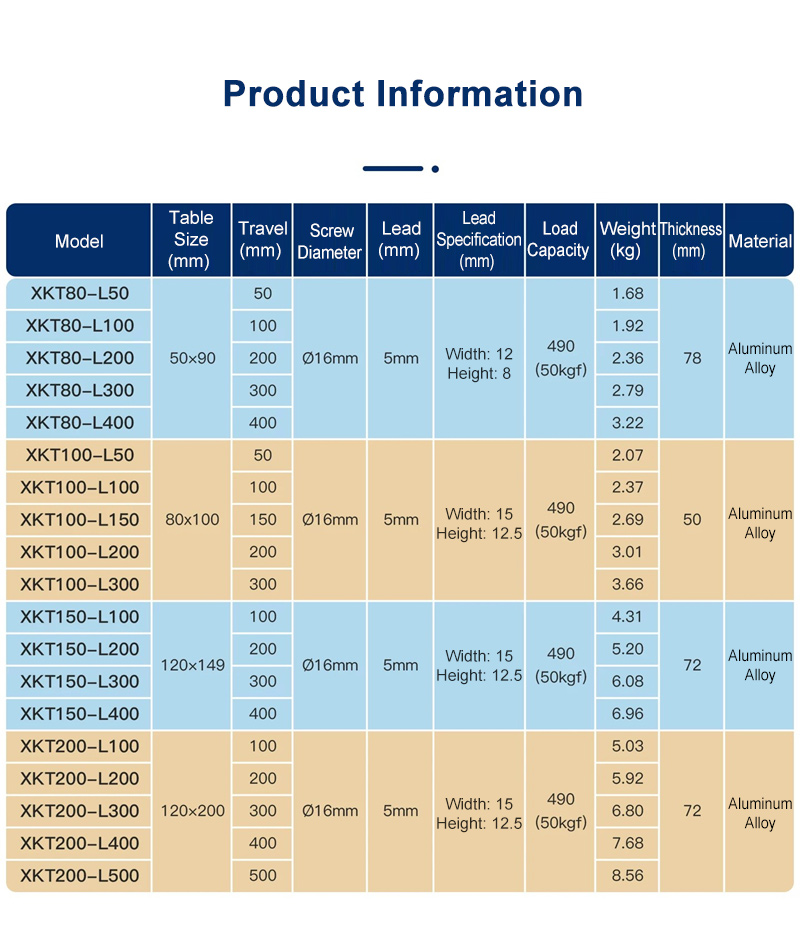

Package Weight (Depending on selected model):
* XKT80-L50: 2.18kg
* XKT80-L100: 2.45kg
* XKT80-L200: 2.92kg
* XKT80-L300: 3.38kg
* XKT80-L400: 3.84kg
* XKT100-L50: 2.44kg
* XKT100-L100: 2.77kg
* XKT100-L150: 3.12kg
* XKT100-L200: 3.47kg
* XKT100-L300: 4.15kg
* XKT150-L100: 4.68kg
* XKT150-L200: 5.6kg
* XKT150-L300: 6.52kg
* XKT150-L400: 7.44kg
* XKT200-L100: 5.4kg
* XKT200-L200: 6.32kg
* XKT200-L300: 7.23kg
* XKT200-L400: 8.14kg
* XKT200-L500: 9.05kg
