ZONRI AD7606C-18 8-Channel 18-Bit ADC Module 1MSPS DAS Parallel Simultaneous Sampling High Bandwidth

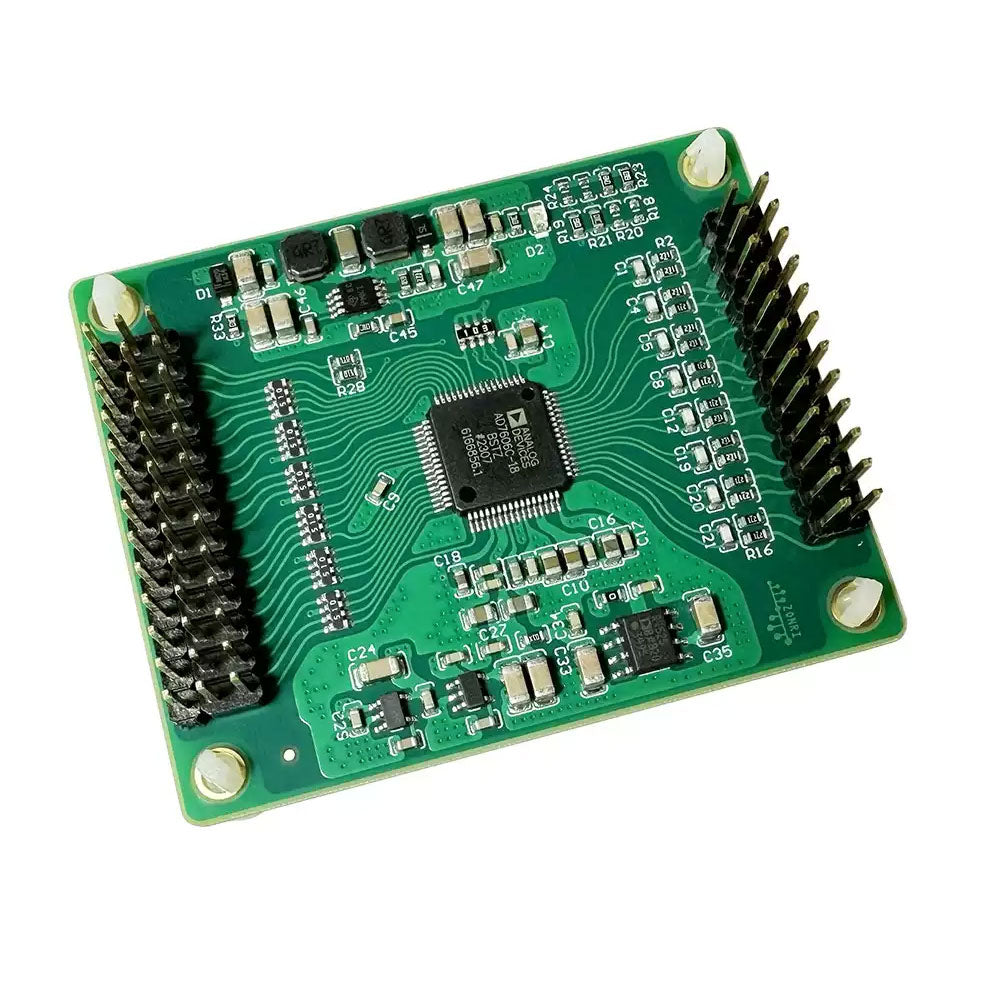

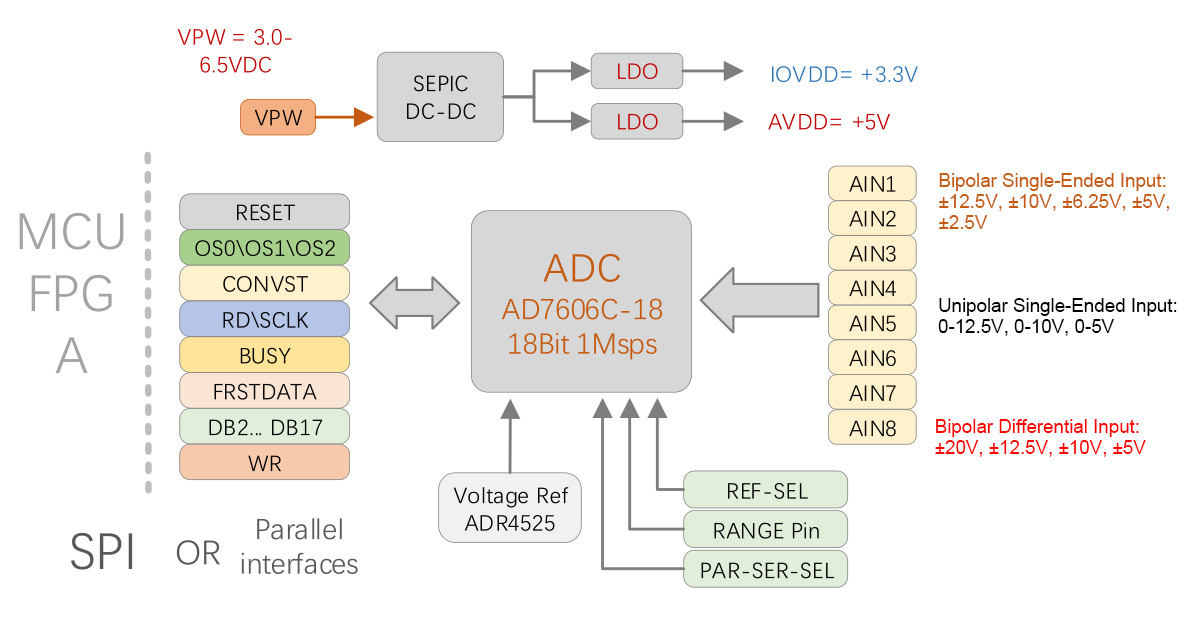

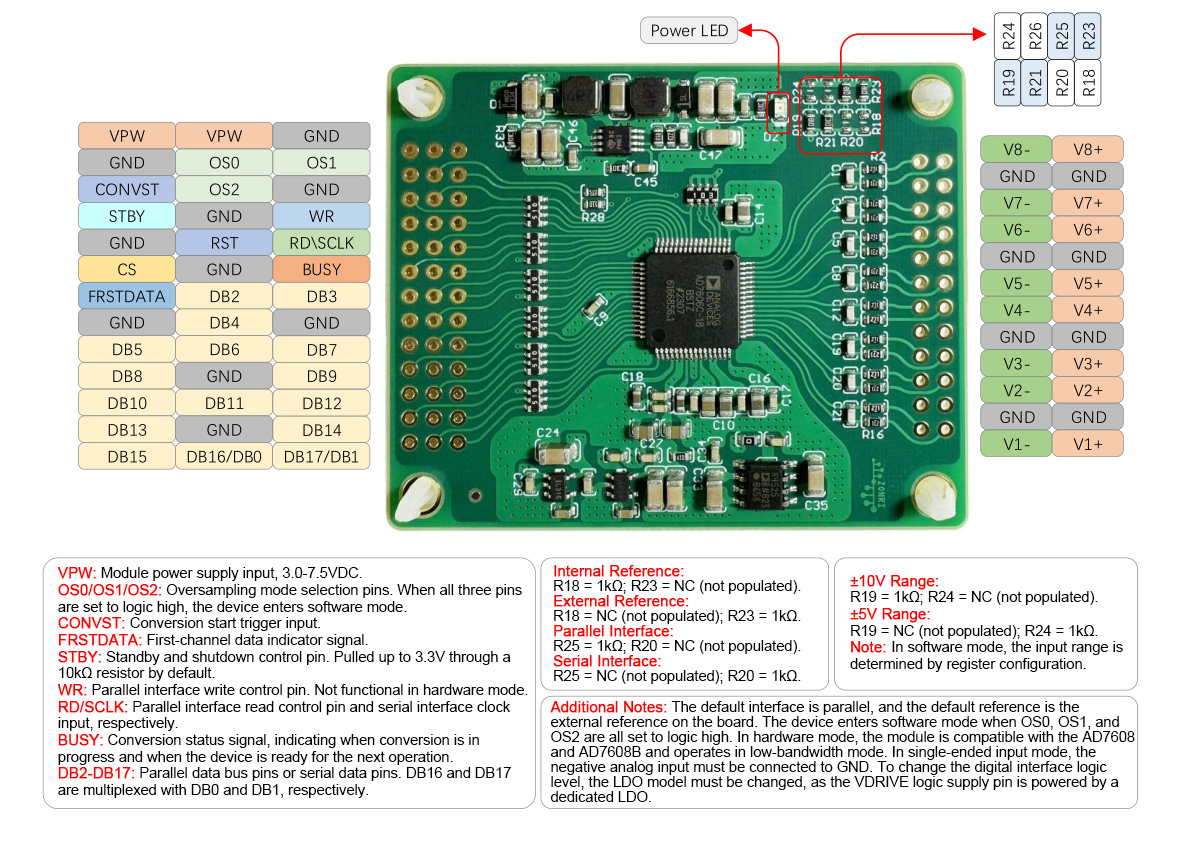

* 18-bit, 8-channel, single-ended/differential ADC module with a sampling rate of up to 1MSPS and a parallel interface.

* Wide single-supply voltage range: 3.0-6.5VDC. Typical operating current is 82mA at 5V and 1MSPS.

* Differential Input Ranges: ±20V, ±12.5V, ±10V, and ±5V.

* Single-Ended Input Ranges: ±12.5V, ±10V, ±6.25V, ±5V, ±2.5V, 0-12.5V, 0-10V, and 0-5V.

* High-bandwidth mode supported, with a -3dB bandwidth of 220kHz.

* Flexible digital filter configuration, with software-mode oversampling ratios of up to 256X.

* Analog input impedance: 1MΩ.

* Parallel or serial interface logic levels: 3.3V TTL.

* Brand: ZONRI

* Item Name: ZONRI ADC Data Acquisition Module

* Typical Applications: Building and Home Automation, Industrial Automation

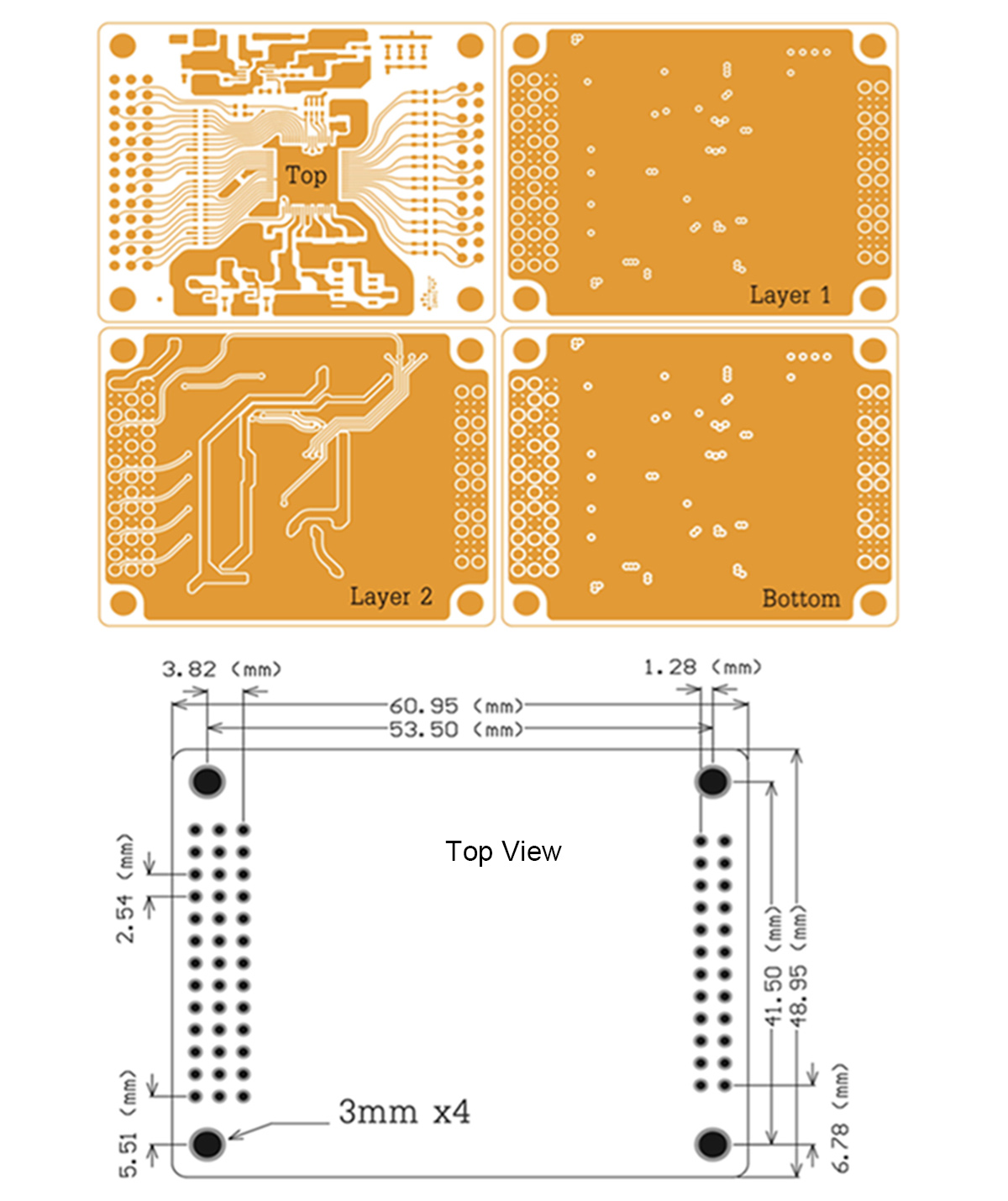

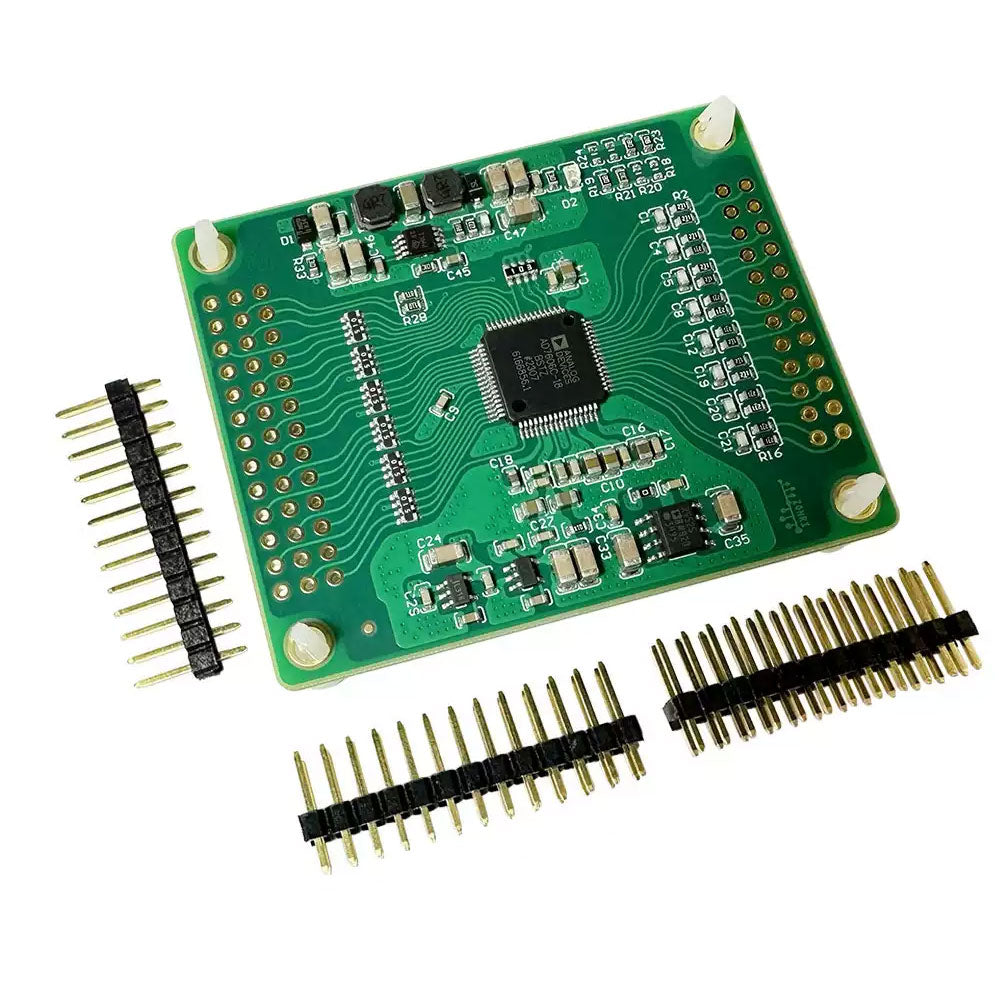

* 1 x AD7606C-18 ADC Module

* 1 x 2.54mm 2x13-Pin Header

* 1 x 2.54mm 1x13-Pin Header

* 1 x 2.54mm 2x12-Pin Header

* Package weight: 0.15kg

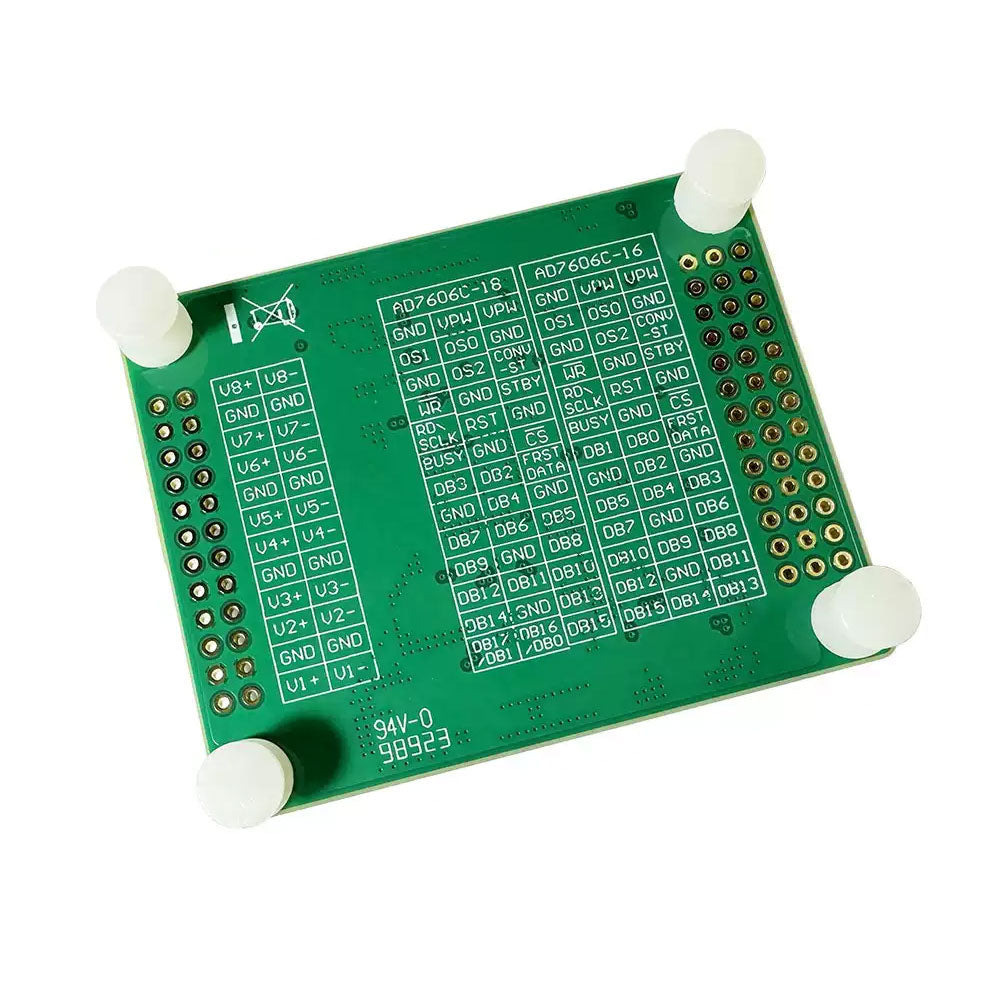

Q: Are the connectors soldered onto the module?

A: No. The connectors are supplied unsoldered.

Q: What are the differences between the AD7606C-18 and the AD7608?

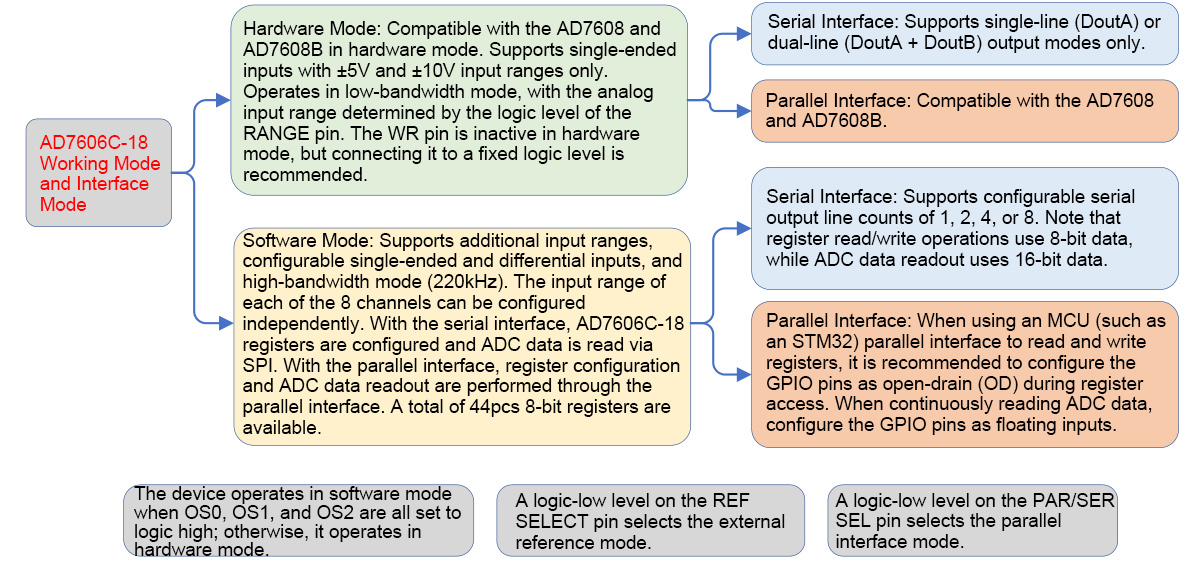

A: The AD7606C-18 is an upgraded version of the AD7608. It adds a software mode that allows ADC configuration via registers, enabling extended functionality such as multiple input ranges, higher analog bandwidth, and differential input support. For details, please refer to the AD7606C-18 datasheet. These additional features make ADC configuration and operation more complex.

Q: What are the differences between the AD7606C-18 and the AD7609?

A: In software mode, the AD7606C-18 supports differential inputs and can serve as an upgraded alternative to the AD7609.
