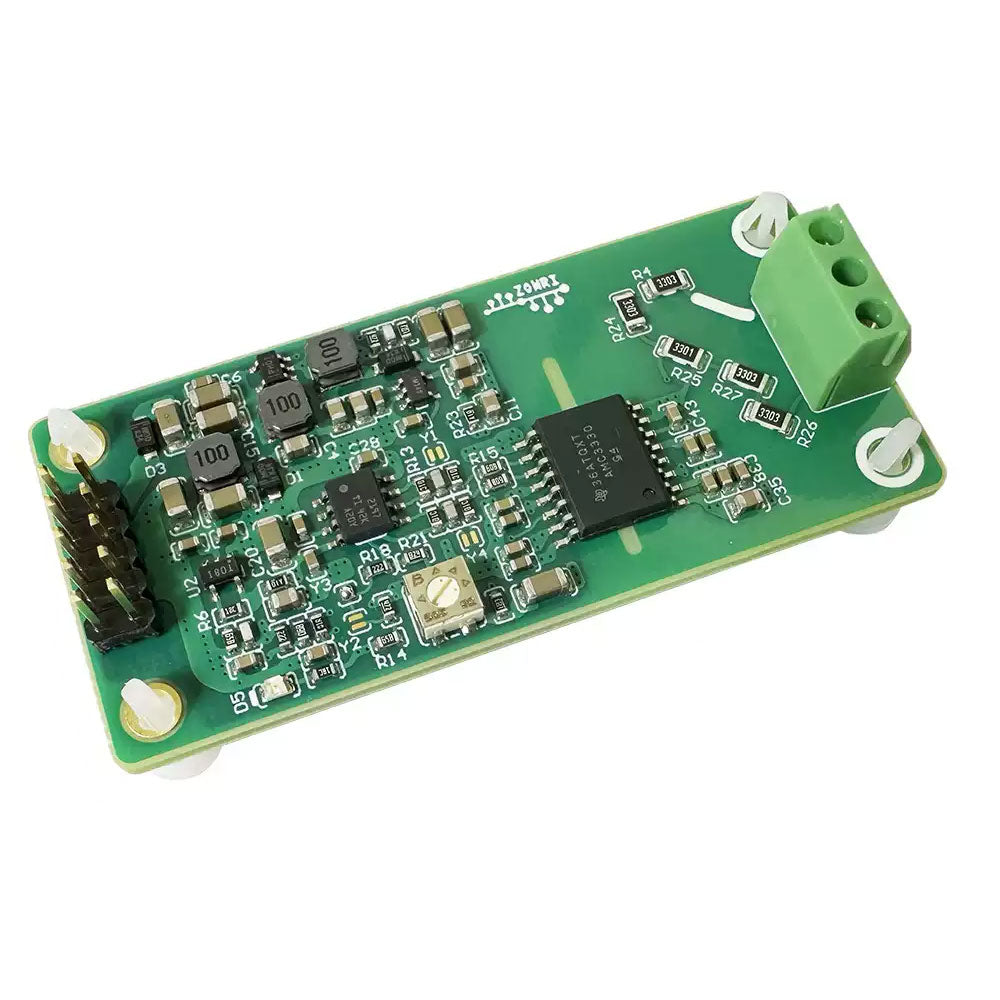

ZONRI AMC3330 Voltage Isolation Module ±400V Input Bipolar Unipolar Output Adjustable Zero Point

* High-performance voltage signal isolation module

* Single power supply (3.3-5.5VDC); typical supply current is 60mA at 5V

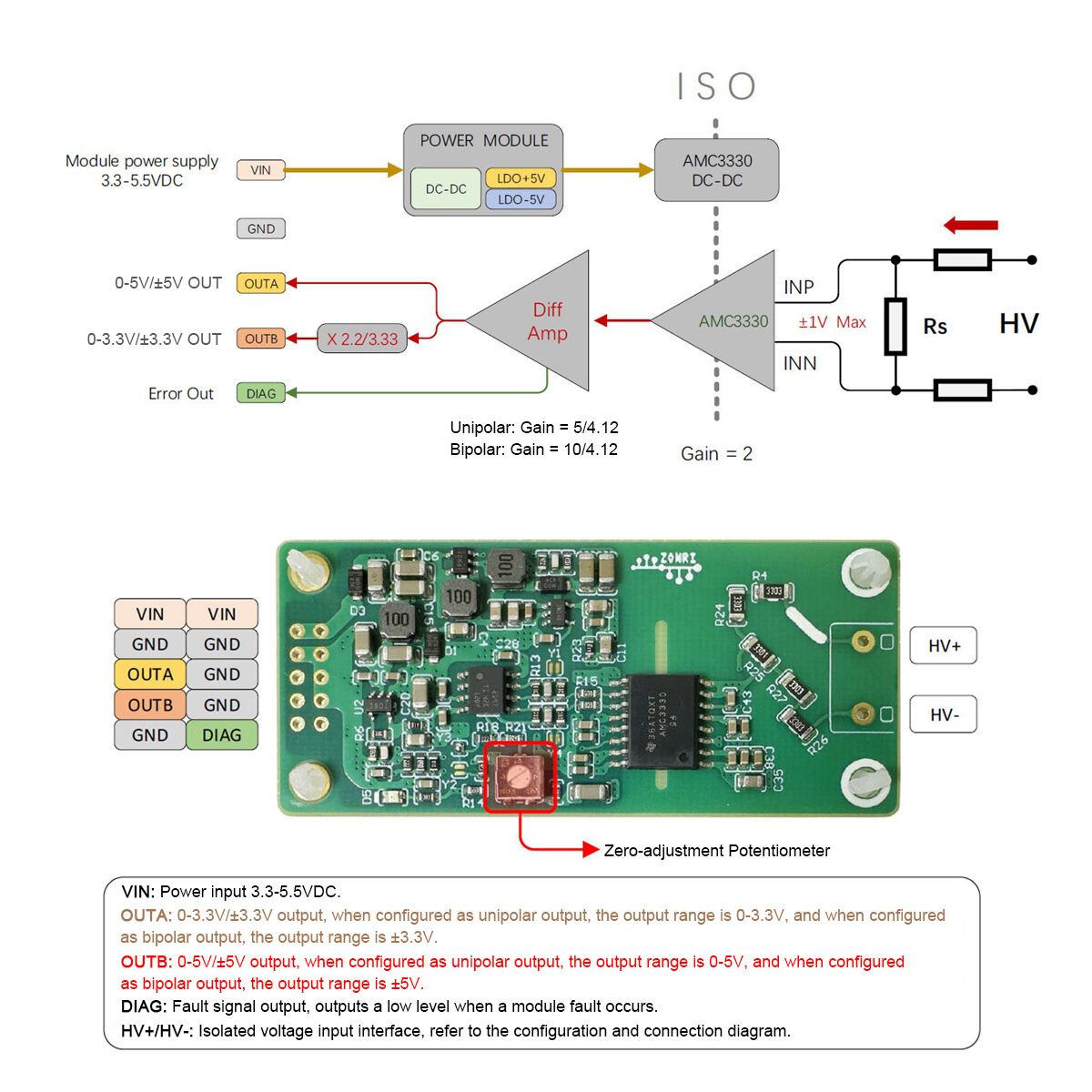

* Supports zero-point adjustment

* Output Options: Uni-polar Output: 0-5V, 0-3.3V; Bipolar Output: ±5V, ±3.3V

* Isolation Voltage: 4250VRMS, with low parasitic capacitance

* Non-linearity: ±0.02%

* Default Configuration: Bipolar output, ±400V input range

* Brand: ZONRI

* Expansion Slot Type: GPIO

* Operating System Support: Windows

* Typical Application Areas: Energy and Environment, Automotive Electronics, and Variable Frequency Drives (VFDs)

* Version: AMC3330

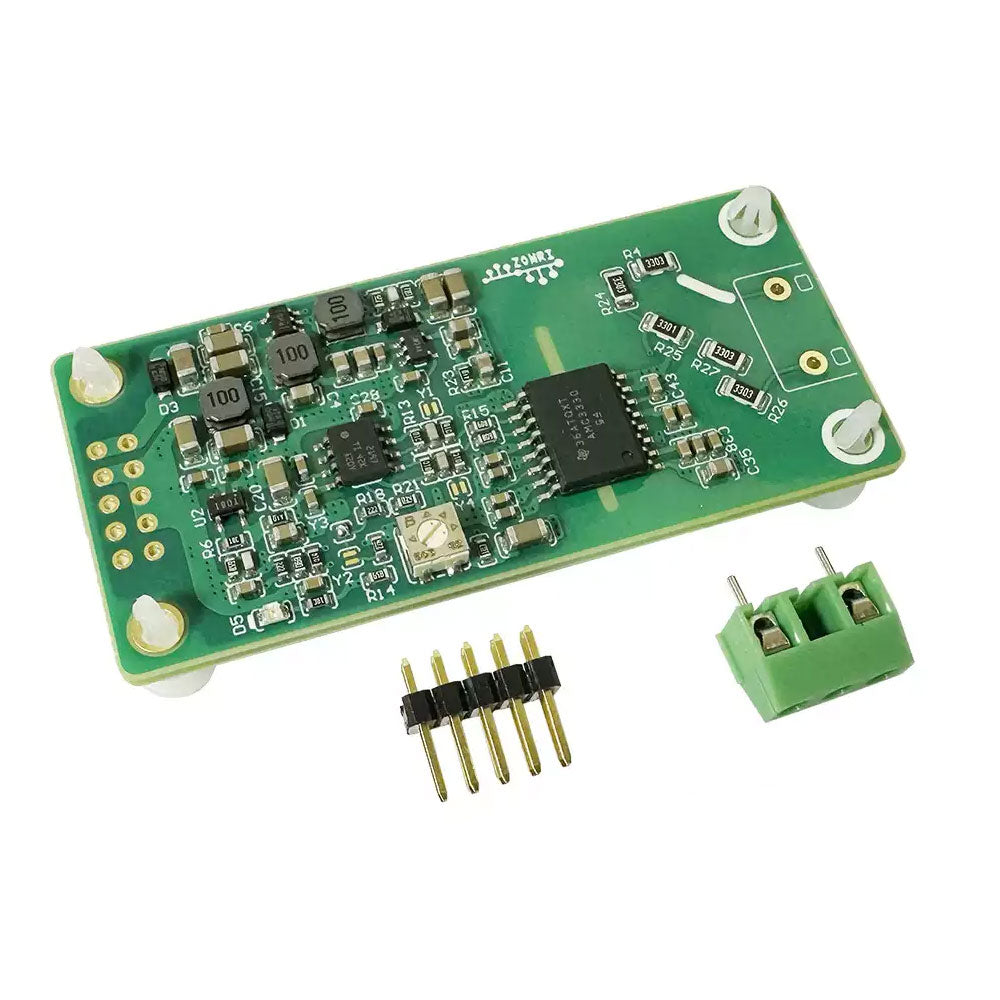

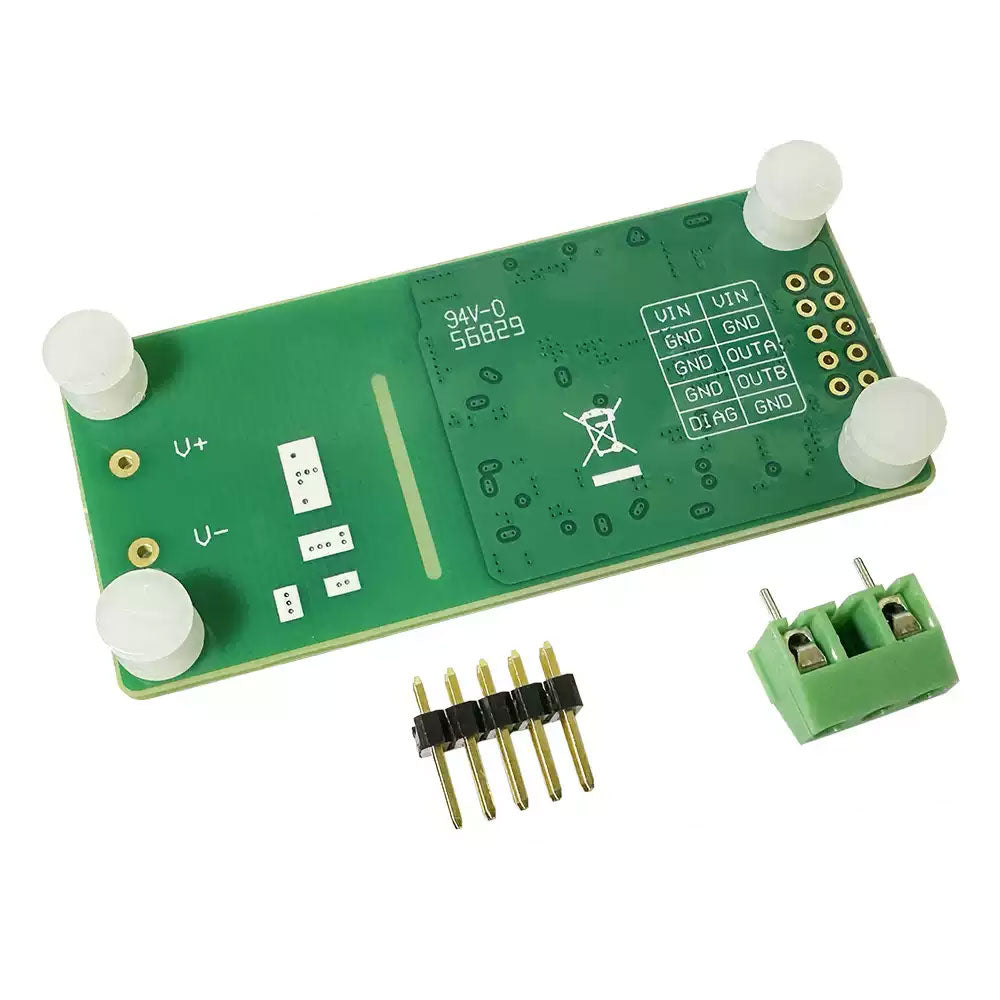

* 1 x AMC3330 Module

* 1 x 2.54mm 2x5 Pin Header

* 1 x KF396 3-Pin Connector

* Package weight: 0.15kg

Q: Are the connectors pre-soldered?

A: No. The connectors are not pre-soldered.

Q: What is the input voltage range?

A: The default input voltage range is ±400V.

Q: What is the analog bandwidth?

A: The module's board-level -3dB analog bandwidth is 48kHz.
